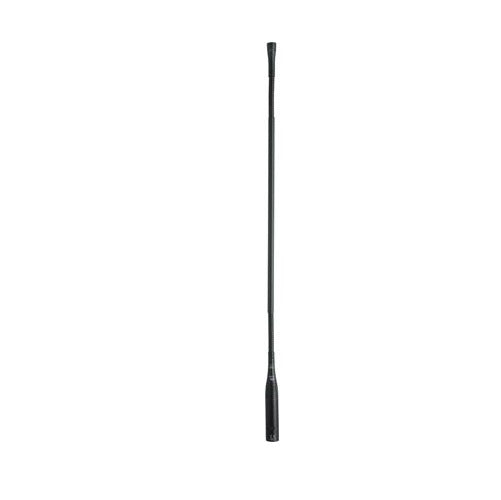

AKG GN50 20" Permanent Screw-on Installation Gooseneck Module for CK Series Capsules


  • Dale #:

    AKG-2765H00080
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

For permanent screw-on installation, AKG offers goosenecks in various lengths: GN 15: approx. 15 cm (6 in.); GN 30: approx. 30 cm (12 in.); GN 50: approx. 50 cm (20 in.). Except for the GN 30 OC with unterminated cable ends, all come with a DPA in-line XLR phantom power adapter with integrated 20... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

For permanent screw-on installation, AKG offers goosenecks in various lengths: GN 15: approx. 15 cm (6 in.); GN 30: approx. 30 cm (12 in.); GN 50: approx. 50 cm (20 in.). Except for the GN 30 OC with unterminated cable ends, all come with a DPA in-line XLR phantom power adapter with integrated 200 Hz bass rolloff and LED ON/OFF jumper. The DPA connects to any standard mixer input with 9 to 52 V power supply. The mini XLR connector will thread through any hole from 11 mm (0.44 in.) in diameter. This eliminates the need for large holes or awkward unsoldering and resoldering of the much larger phantom power adapter during installation.

Features

  • Phantom power adapter
  • Rugged construction
  • Highly reliable contacts for capsule modules
  • Integrated LED ring status indicator
  • Integrated switchable bass rolloff
  • Mini XLR connector

The external phantom power adapter of the GN series makes setting up the goosenecks much easier, since a small hole will suffice for threading through a mini XLR connector. Having disconnected the cable, the integrated bass cut can be set quite easily inside the phantom power adapter. The phantom power adapter will operate off any available phantom power supply from 9 to 52 V, powering both the condenser capsule and the LED ring.

More +

Product Specs

Bass filter250 Hz, -10 dB at 50 Hz
Impedance <=600 ohms
Recommended load impedance>=2,000 ohms
Supply voltage 9 to 52 V phantom power to DIN/IEC
Powering<3 mA
Connector 3-pin male XLR; GN 30 oc: stripped and tinned leads
Cable1.5 m (5 ft.)
Finish matte dark grey
Net weight GN 50: 120 g (4.2 oz.)
Shipping weightGN 50: 495 g (17.5 oz.)
