AKG HUB 4000 Q HiQNet Ethernet Interface for WMS Series Wireless
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Description

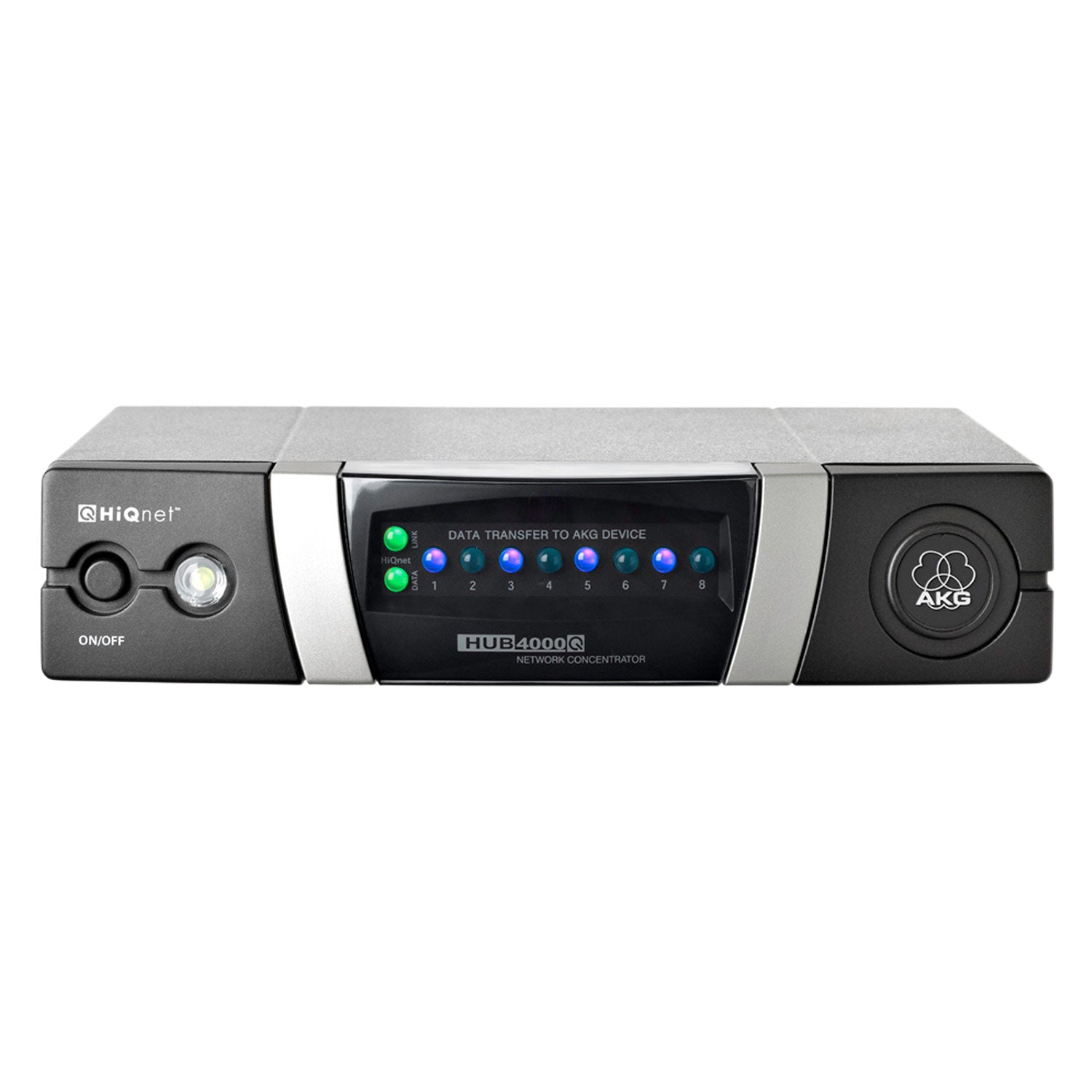

The HUB 4000 Q reference HiQnet® ethernet interface allows you to connect up to eight AKG wireless devices to a HiQnet network. HUB 4000 Q connects to the network via a standard CAT-5 cable. For large wireless systems, several HUB 4000 Qs can be cascaded using commercial Ethernet switches (or routers, wireless hubs, etc.), allowing you to configure and monitor complex systems from a single application. HUB 4000 Q connects the wireless system to the applications Harman Audio Architect, AKG Wireless app and VM2. The HUB 4000 Q comes in a rugged half-rack metal housing and provides 10 LEDs with information on the data transfer status as well as 4 DIP switches to set up the IP address. The HUB 4000 Q allows you to integrate DMS 700, WMS 4000/4500 professional wireless microphones, and an IVM 4 professional in-ear monitoring system into any HiQnet ® system.
NO power supply included. Power supply sold separately - AC12 PSU12V 500mA Lock EU/US/UK/AU.
Features:
- Connects up to 8 wireless devices to HiQnet network
- Enables remote control via Audio Architect, AKG Wireless app and VM2
- Cascadable via standard ethernet switches for easy setup of large system configurations
- Central 10 LED operating display for full control on data transfer status
- Covered DIP switches on front panel for quick and safe setup of the IP address
- Rugged half-rack metal housing for flexible, space efficient system configurations
| Current consumption | 200 mA max |
| Ambient temperature | -10¡C to +60¡C |

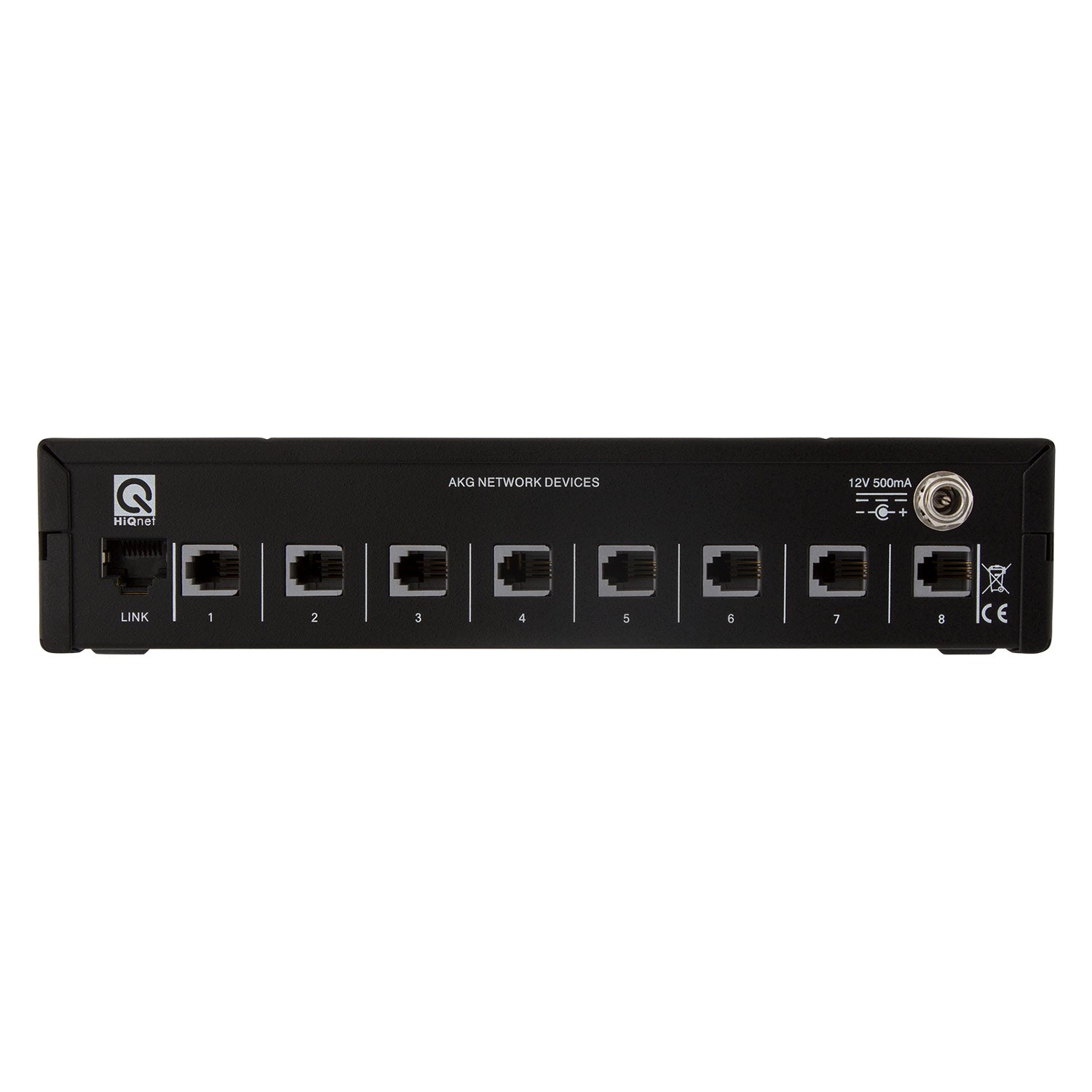

| Connectors for AKG devices | RJ11 |
| Connector for network card | RJ45 |
| Size | 200 x 190 x 44 mm (7.8 x 7.5 x 1.7 in.) |
| Weight | 970g (2.2 lbs.) |
The HUB 4000 Q reference HiQnet® ethernet interface allows you to connect up to eight AKG wireless devices to a HiQnet network. HUB 4000 Q connects to the network via a standard CAT-5 cable. For large wireless systems, several HUB 4000 Qs can be cascaded using commercial Ethernet switches (or routers, wireless hubs, etc.), allowing you to configure and monitor complex systems from a single application. HUB 4000 Q connects the wireless system to the applications Harman Audio Architect, AKG Wireless app and VM2. The HUB 4000 Q comes in a rugged half-rack metal housing and provides 10 LEDs with information on the data transfer status as well as 4 DIP switches to set up the IP address. The HUB 4000 Q allows you to integrate DMS 700, WMS 4000/4500 professional wireless microphones, and an IVM 4 professional in-ear monitoring system into any HiQnet ® system.
NO power supply included. Power supply sold separately - AC12 PSU12V 500mA Lock EU/US/UK/AU.
Features:
- Connects up to 8 wireless devices to HiQnet network
- Enables remote control via Audio Architect, AKG Wireless app and VM2
- Cascadable via standard ethernet switches for easy setup of large system configurations
- Central 10 LED operating display for full control on data transfer status
- Covered DIP switches on front panel for quick and safe setup of the IP address
- Rugged half-rack metal housing for flexible, space efficient system configurations
| Current consumption | 200 mA max |
| Ambient temperature | -10¡C to +60¡C |
| Connectors for AKG devices | RJ11 |
| Connector for network card | RJ45 |
| Size | 200 x 190 x 44 mm (7.8 x 7.5 x 1.7 in.) |
| Weight | 970g (2.2 lbs.) |
