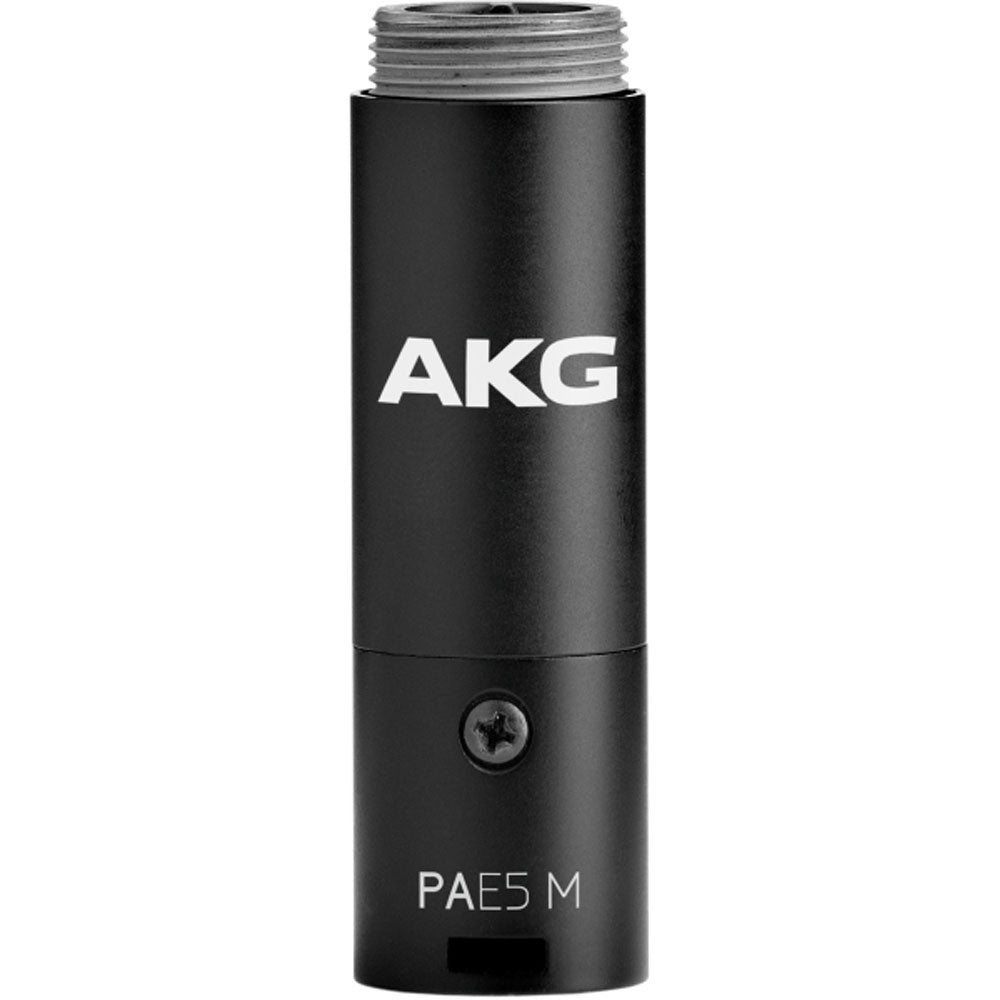

AKG PAE5 M 5 Pin XLR Inline Phantom Power Adapter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the "mic on" status. With its wide voltage range the module will fit most available microphone mixers. The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
Features
- Extra feeding of LED ring to show mic status
- Highly reliable contacts to mounting modules
- RFi Shield technology
- Feeds all DAM+ Series capsules
- Switchable bass roll off
| GENERAL | |
| Audio Frequency bandwidth | 20 to 20000 Hz |
| Bass Cut Filter | 150 Hz |
| Recommended Load Impedance | 2000 Ohms |
| POWERING INTERFACE | |
| Voltage | 9 to 52 V |
| Current | 3.5 mA |
| AUDIO OUTPUT | |
| Type | Balanced XLR |
| Gender | Male |
| Contacts | 5-pin |
| DIMENSIONS / WEIGHT | |
| Net Weight | 43 g |
| Height | 65.5 mm |
| Diameter | 19.1 mm |
The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the "mic on" status. With its wide voltage range the module will fit most available microphone mixers. The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
Features
- Extra feeding of LED ring to show mic status
- Highly reliable contacts to mounting modules
- RFi Shield technology
- Feeds all DAM+ Series capsules
- Switchable bass roll off
| GENERAL | |
| Audio Frequency bandwidth | 20 to 20000 Hz |
| Bass Cut Filter | 150 Hz |
| Recommended Load Impedance | 2000 Ohms |
| POWERING INTERFACE | |
| Voltage | 9 to 52 V |
| Current | 3.5 mA |
| AUDIO OUTPUT | |
| Type | Balanced XLR |
| Gender | Male |
| Contacts | 5-pin |
| DIMENSIONS / WEIGHT | |
| Net Weight | 43 g |
| Height | 65.5 mm |
| Diameter | 19.1 mm |
