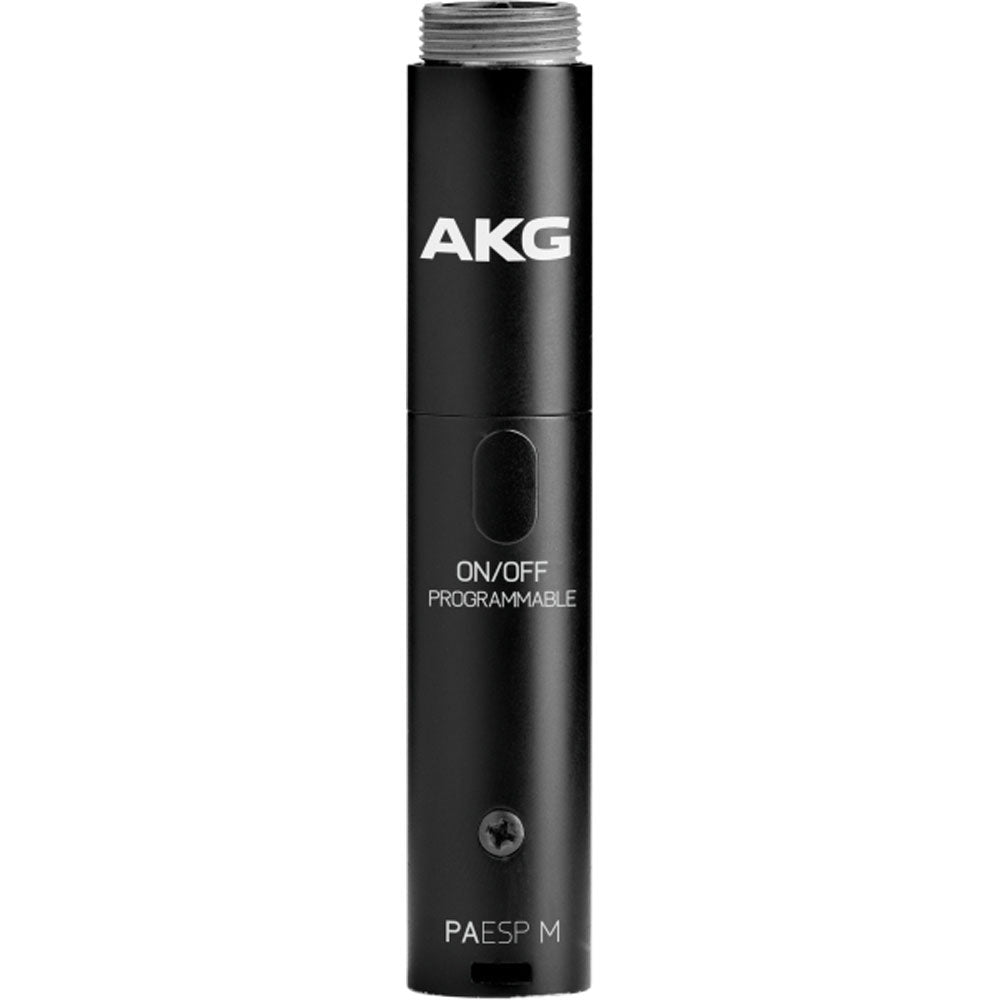

AKG PAESP M 3 Pin XLR Inline Phantom Power Adapter (with Switch)


  • Dale #:

    AKG-3165H00170
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The DAM+ Series PAESP M is a programmable phantom power module for fixed and mobile installation. With its wide voltage range the module will fit most available microphone mixers. It comes with a unique BCD (binary coded decimal) switch to recall one of the operating modes. Several functions can ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DAM+ Series PAESP M is a programmable phantom power module for fixed and mobile installation. With its wide voltage range the module will fit most available microphone mixers. It comes with a unique BCD (binary coded decimal) switch to recall one of the operating modes. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off, follow mic function) as well as the mic switch mode (push to mute, push to talk, push on - push off). The PAESP M features a completely noiseless microphone switch. Rather than actually disconnecting the signal, it reduces the level by 26dB, thus avoiding the irritating crackling sound when phantom powering is interrupted. The switch is inconspicuously placed but easily accessible for simple handling even by inexperienced talkers. The integrated system connector with gold-plated contacts securely fits all available mounting modules of the DAM+ Series.

Features

  • Programmable on/mute/off switch
  • Selectable operating modes
  • RFi Shield technology
  • Accepts 9-52V input
  • Feeds all DAM+ Series capsules

More +

Product Specs

GENERAL
Audio Frequency bandwidth20 to 20000 Hz
Bass Cut Filter150 Hz
Recommended Load Impedance2000 Ohms
POWERING INTERFACE
Voltage9 to 52 V
Current4 mA
AUDIO OUTPUT
TypeBalanced XLR
GenderGender
Contacts3-pin
DIMENSIONS / WEIGHT
Net Weight63 g
Height100.5 mm
Diameter19.1 mm

More +
