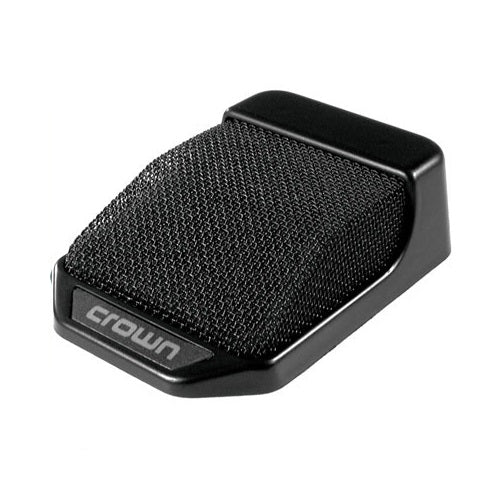

AKG PCC-130 Surface Mounted Professional Cardioid Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Crown PCC130 (PCC-130) Phase Coherent Cardioid Microphone is a surface mounted small cardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and teleconferencing. With its small size, the PCC-130 is less conspicuous on a conference table than comparable mics. Because of its highly directional pickup pattern, the PCC-130 minimizes background noise and feedback.
The microphone uses the principle of phase coherency achieved by mounting a small-diameter mic capsule very near a boundary. Direct and reflected sound waves arrive at the mic in-phase, and add coherently. This enhances sensitivity, clarity and reach. Self-contained electronics eliminate the need for an in-line power module. Powered by 12-48V phantom power, the PCC-130 has a low-impedance balanced output which permits long cable runs without hum pickup or high-frequency loss. Included with each PCC-130 is a 15-foot (4.6-m), two-conductor shielded microphone cable with a TA3F connector (mic end) and 3-pin male XLR-type connector (output).
Features:
- Ideal for boardroom tables, lecterns, churches, courtrooms and teleconferencing
- Cardioid pattern reduces background noise and feedback
- Small and inconspicuous
- Prevents phase interference due to table sound reflections
- Three-position bass-tilt switch
| Frequency response (typical) | 50 Hz to 20,000 Hz at 30 degrees incidence to surface |
| Impedance | 150 ohms nominal (85 ohms actual), balanced, (recommended load impedance 1000 ohms or greater) |
| Power sensitivity | Ð30.5 dB re 1 mW/Pa*. EIA rating Ð125 dBm |
| Maximum SPL | 120 dB SPL produces 3% THD |
| Polarity | Positive pressure on the diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Current drain | 4 mA nominal |
| Connector | Switchcraft TB3M |
| Cable | 15-foot, black, two-conductor shielded cable with Switchcraft TA3F and A3M connectors |
| Switch | Slide switch for bass cut, bass boost, or flat |
| Finish | Satin black |
| Net weight | 3.5 oz. (99 g) |
The Crown PCC130 (PCC-130) Phase Coherent Cardioid Microphone is a surface mounted small cardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and teleconferencing. With its small size, the PCC-130 is less conspicuous on a conference table than comparable mics. Because of its highly directional pickup pattern, the PCC-130 minimizes background noise and feedback.
The microphone uses the principle of phase coherency achieved by mounting a small-diameter mic capsule very near a boundary. Direct and reflected sound waves arrive at the mic in-phase, and add coherently. This enhances sensitivity, clarity and reach. Self-contained electronics eliminate the need for an in-line power module. Powered by 12-48V phantom power, the PCC-130 has a low-impedance balanced output which permits long cable runs without hum pickup or high-frequency loss. Included with each PCC-130 is a 15-foot (4.6-m), two-conductor shielded microphone cable with a TA3F connector (mic end) and 3-pin male XLR-type connector (output).
Features:
- Ideal for boardroom tables, lecterns, churches, courtrooms and teleconferencing
- Cardioid pattern reduces background noise and feedback
- Small and inconspicuous
- Prevents phase interference due to table sound reflections
- Three-position bass-tilt switch
| Frequency response (typical) | 50 Hz to 20,000 Hz at 30 degrees incidence to surface |
| Impedance | 150 ohms nominal (85 ohms actual), balanced, (recommended load impedance 1000 ohms or greater) |
| Power sensitivity | Ð30.5 dB re 1 mW/Pa*. EIA rating Ð125 dBm |
| Maximum SPL | 120 dB SPL produces 3% THD |
| Polarity | Positive pressure on the diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Current drain | 4 mA nominal |
| Connector | Switchcraft TB3M |
| Cable | 15-foot, black, two-conductor shielded cable with Switchcraft TA3F and A3M connectors |
| Switch | Slide switch for bass cut, bass boost, or flat |
| Finish | Satin black |
| Net weight | 3.5 oz. (99 g) |
