AKG PCC170sw Phase Coherent Cardioid Boundary Microphone (with Programmable Switch)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:AKG-3330H00010

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

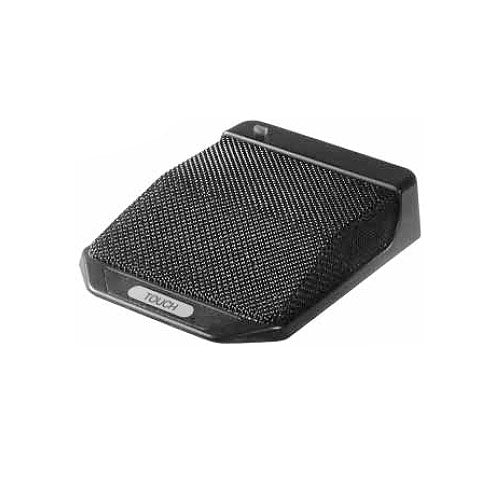

  • The Crown® PCC®-170SW is a surface-mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. The PCC-170SW has a silent-operating membrane switch which is normally off. The switch can be configured for touch on/off, momentary on or momentary off operation. This configuration is set by a bottom-mounted DIP switch. A high-intensity LED lights when the unit is on.

    Features:

    • Perfect for multimiking applications in telecon- ferencing, distance learning, and boardrooms
    • Phase Coherent Cardioid® design prevents coloration from surface sound reflections
    • Half-supercardioid polar pattern reduces ambient noise and room reverberation
    • Programmable on/off membrane switch
    • Balanced XLR output

    The PCC-170SW is intended for multiple- microphone use on a conference table where each person wants control of his or her microphone. The microphone attenuates 70 dB when the switch is in the off position. Since the micro- phone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase, resulting in a wide, smooth frequency response free of phase inter- ference. Clarity and reach are also enhanced. Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48V phantom power, the PCC-170SW has a low-impedance balanced output which permits long cable runs without hum pickup or high-frequency loss. Although the standard connector option is a Switchcraft TB3M, the microphone can be spe- cial-ordered with a 1?4-inch (6.35-mm) stereo phone plug on the bottom of the base plate as the PCC-170SWSPP. RFI suppression is included. Self-noise is low and sensitivity is very high. A bass-tilt switch allows the user to tailor the low-end response for particular applications.

  • Type Phase Coherent Cardioid®
    Element Electret condenser
    Frequency response (typical) 50 Hz to 20,000 Hz at 30 degrees incidence to surface
    Polar pattern Half-supercardioid (supercardioid in the hemisphere above the primary boundary)
    Impedance 150 ohms, balanced (recommended load impedance 1000 ohms or greater)
    Open circuit sensitivity (typical) 22 mV/Pa* (–33 dB re 1 volt/Pa)
    Power sensitivity –30.5 dB re 1 mW/Pa*. EIA rating –125 dBm
    Equivalent noise level (self-noise) 22 dB SPL typi- cal (0 dB = 0.0002 dyne/cm2), A-weighted
    S/N ratio 72 dB at 94 dB SPL.
    Maximum SPL 120 dB SPL produces 3% THD. Off Attenuation: 70 dB at 1 kHz
    Turn-on time 250 msec
    Turn-off time 125 msec
    Polarity Positive pressure on the diaphragm produces positive voltage on pin 2 with respect to pin 3
    Operating voltage Phantom power, 12 to 48 volts DC on pins 2 and 3 with respect to pin 1
    Current drain 6 mA nominal
    Connector Switchcraft TB3M
    Cable 15-foot, black, two-conductor shielded cable with Switchcraft TA3F and A3M connectors
    Materials High-impact molded plastic and steel mesh grille
    Finish Black
    Net weight 6 oz.
    Optional accessories Crown PH-1A phantom power supply (single channel, battery or AC adapter powered)
