AKG PT45 Bodypack Transmitter for Perception Wireless (BD A Band)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

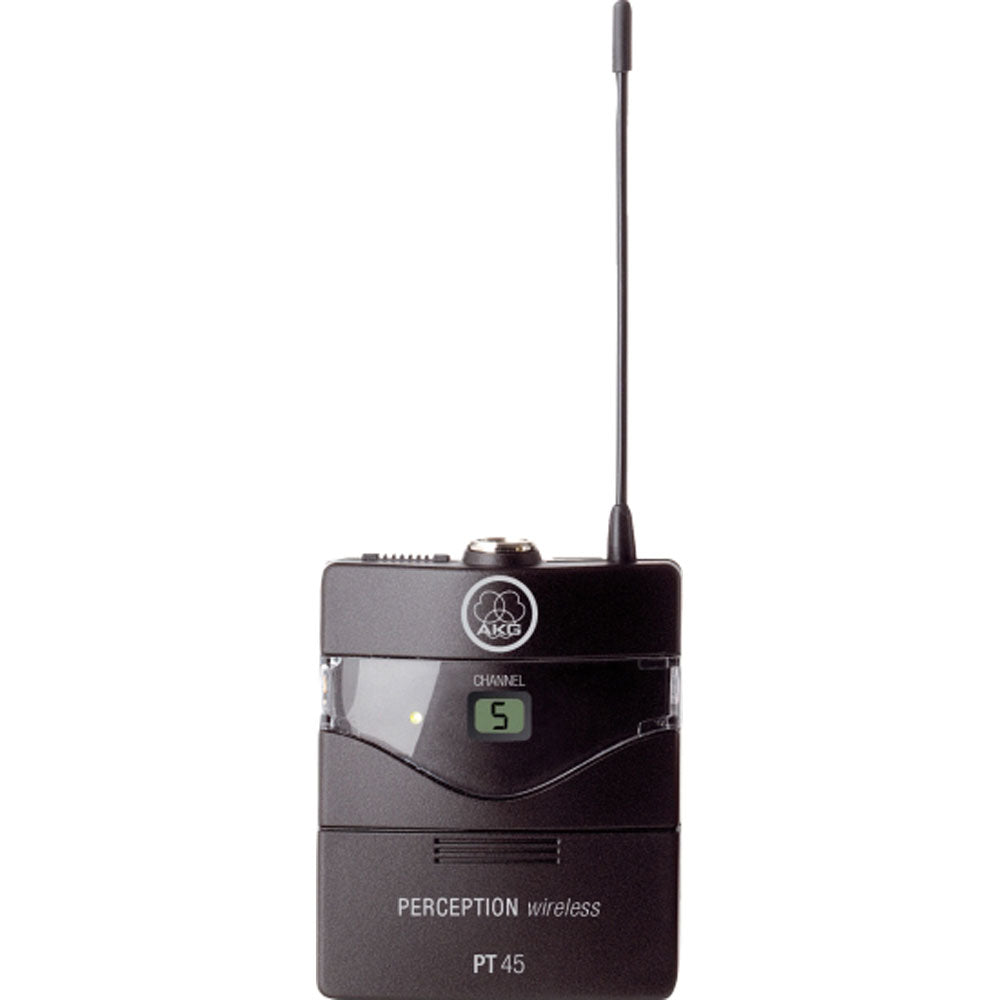

The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms. The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.
Features
- Eight hours of operation from a single AA-size battery
- Professional three-pin mini XLR connector
- Gain control on transmitter
- Noiseless on/off/mute switch
- Compact and rugged body-pack design
| AUDIO | |
| Audio Frequency bandwidth | 40 to 20000 Hz |
| THD at 1 kHz | 0.8 Prozent |
| Signal to Noise | 105 dB-A |
| ENHANCED | |
| Operating temperature range | -10 to 55 Celsius |
| Peak deviation | 45 kHz |
| POCKET TRANSMITTER | |
| Nominal deviation | 15 kHz kHz |
| Radio Output Power (min/max) | 0 ... 0 mW |
| Transmitter Synchronization | Manual |
| AUDIO INPUT | |
| Type | Mini XLR |
| Gender | Female |
| Contacts | 3-pin |
| Maximum audio level | 12 dB |
| Rated Impedance | 1 Ohms |
| MUTE SWITCH INTERFACE | |
| Type | Unbalanced XLR |
| Gender | Male |
| BATTERY 1 | |
| Number of Batteries | 1 |
| Batterietype | LR6 AA alkaline battery |
| Operating Time | 8 h |
| Compatibel Charging System | CU400 |
| BATTERY 2 | |
| Number of Batteries | 1 |
| Operating Time | 8 h |
| Compatibel Charging System | CU400 |
| BATTERY 3 | |
| Number of Batteries | 1 |
| Operating Time | 14 h |
| Compatibel Charging System | CU400 |
| DESIGN | |
| Body | Plastic |
| Operating Time | 14 h |
| Compatibel Charging System | CU400 |
| DESIGN | |
| Body | Plastic |
| Finish | black |
| DIMENSIONS / WEIGHT | |
| Length | 60 mm |
| Height | 75.5 mm |
| Width | 30 mm |
| RADIO | |
| Switching bandwidth | 30 MHz |
| Recommended simultaneous channels | 5 |
| Number of selectable frequencies | 8 Fixed frequencies |
| Frequency Selection | Fixed frequency |
| Wireless channels within device | 1 |
| Radio Range (Line of Sight) | 30m |
| Switchable RF Power | no |
| Modulation | FM |
| Encryption | No encryption |
| Pilot Tone | no |
The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms. The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.
Features
- Eight hours of operation from a single AA-size battery
- Professional three-pin mini XLR connector
- Gain control on transmitter
- Noiseless on/off/mute switch
- Compact and rugged body-pack design
| AUDIO | |
| Audio Frequency bandwidth | 40 to 20000 Hz |
| THD at 1 kHz | 0.8 Prozent |
| Signal to Noise | 105 dB-A |
| ENHANCED | |
| Operating temperature range | -10 to 55 Celsius |
| Peak deviation | 45 kHz |
| POCKET TRANSMITTER | |
| Nominal deviation | 15 kHz kHz |
| Radio Output Power (min/max) | 0 ... 0 mW |
| Transmitter Synchronization | Manual |
| AUDIO INPUT | |
| Type | Mini XLR |
| Gender | Female |
| Contacts | 3-pin |
| Maximum audio level | 12 dB |
| Rated Impedance | 1 Ohms |
| MUTE SWITCH INTERFACE | |
| Type | Unbalanced XLR |
| Gender | Male |
| BATTERY 1 | |
| Number of Batteries | 1 |
| Batterietype | LR6 AA alkaline battery |
| Operating Time | 8 h |
| Compatibel Charging System | CU400 |
| BATTERY 2 | |
| Number of Batteries | 1 |
| Operating Time | 8 h |
| Compatibel Charging System | CU400 |
| BATTERY 3 | |
| Number of Batteries | 1 |
| Operating Time | 14 h |
| Compatibel Charging System | CU400 |
| DESIGN | |
| Body | Plastic |
| Operating Time | 14 h |
| Compatibel Charging System | CU400 |
| DESIGN | |
| Body | Plastic |
| Finish | black |
| DIMENSIONS / WEIGHT | |
| Length | 60 mm |
| Height | 75.5 mm |
| Width | 30 mm |
| RADIO | |
| Switching bandwidth | 30 MHz |
| Recommended simultaneous channels | 5 |
| Number of selectable frequencies | 8 Fixed frequencies |
| Frequency Selection | Fixed frequency |
| Wireless channels within device | 1 |
| Radio Range (Line of Sight) | 30m |
| Switchable RF Power | no |
| Modulation | FM |
| Encryption | No encryption |
| Pilot Tone | no |
