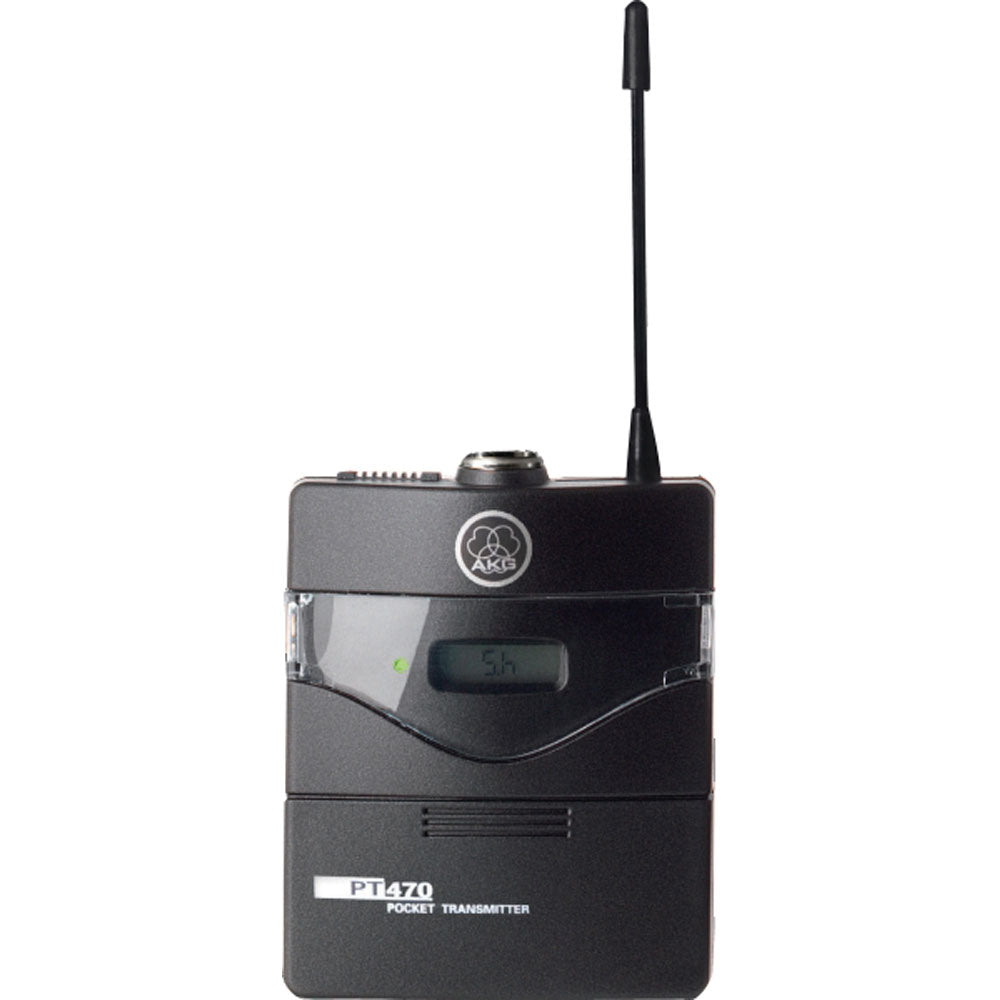

AKG PT470 Wireless Bodypack Transmitter (BD7 Band)


  • Dale #:

    AKG-3302H00170
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in ho... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms. The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.

Features

  • Eight hours of operation from a single AA-size battery
  • Professional three-pin mini XLR connector
  • Gain control on transmitter
  • Noiseless on/off/mute switch
  • Compact and rugged body-pack design

More +

Product Specs

AUDIO
Audio Frequency bandwidth40 to 20000 Hz
THD at 1 kHz0.8 Prozent
Signal to Noise105 dB-A
ENHANCED
Operating temperature range-10 to 55 Celsius
Peak deviation45 kHz
POCKET TRANSMITTER
Nominal deviation15 kHz kHz
Radio Output Power (min/max)0 ... 0 mW
Transmitter SynchronizationManual
AUDIO INPUT
TypeMini XLR
GenderFemale
Contacts3-pin
Maximum audio level12 dB
Rated Impedance1 Ohms
MUTE SWITCH INTERFACE
TypeUnbalanced XLR
GenderMale
BATTERY 1
Number of Batteries1
BatterietypeLR6 AA alkaline battery
Operating Time8 h
Compatibel Charging SystemCU400
BATTERY 2
Number of Batteries1
Operating Time8 h
Compatibel Charging SystemCU400
BATTERY 3
Number of Batteries1
Operating Time14 h
Compatibel Charging SystemCU400
DESIGN
BodyPlastic
Operating Time14 h
Compatibel Charging SystemCU400
DESIGN
BodyPlastic
Finishblack
DIMENSIONS / WEIGHT
Length60 mm
Height75.5 mm
Width30 mm
RADIO
Switching bandwidth30 MHz
Recommended simultaneous channels5
Number of selectable frequencies8 Fixed frequencies
Frequency SelectionFixed frequency
Wireless channels within device1
Radio Range (Line of Sight)30m
Switchable RF Powerno
ModulationFM
EncryptionNo encryption
Pilot Toneno

More +
