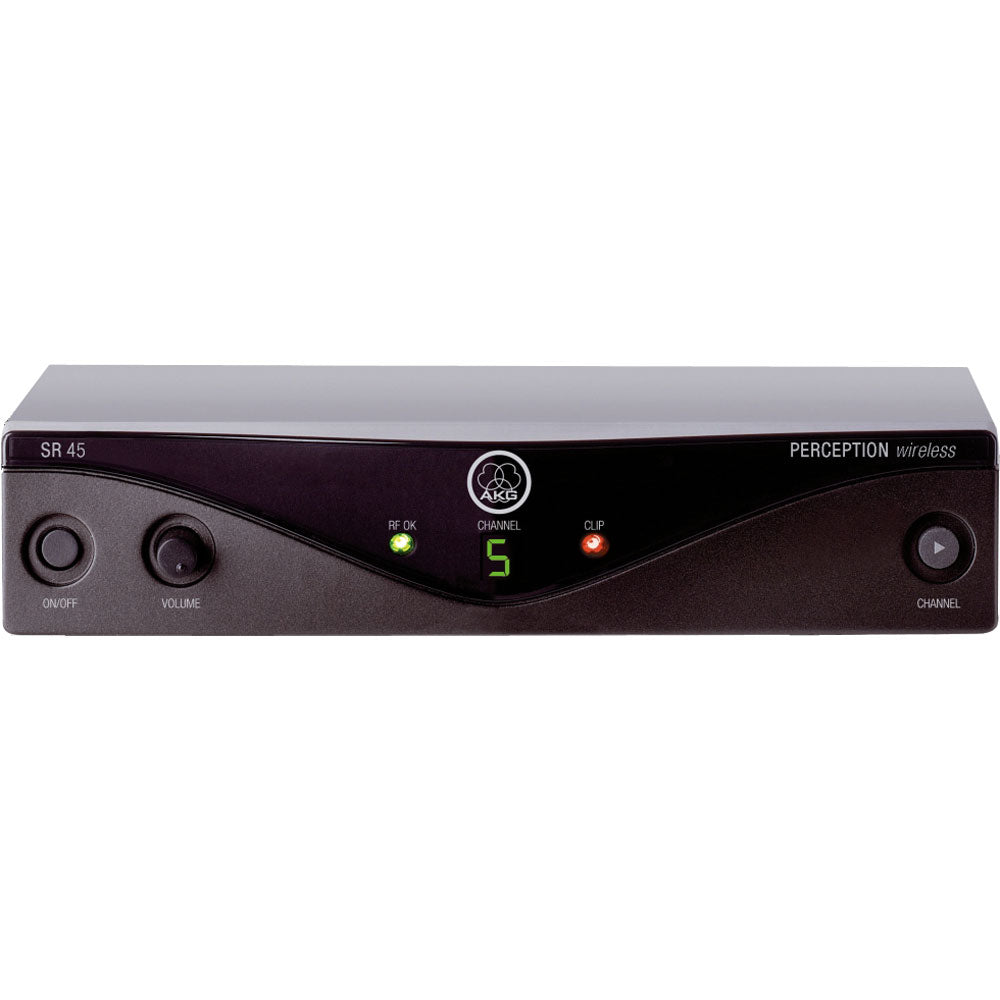

AKG SR45 Diversity Receiver for Perception Wireless (BD A Band)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:AKG-3245H00010

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The SR45 analog high-performance space diversity wireless receiver provides maximum ease of use with different channel presets up to eight channels. It is perfect for instrumental and vocal performances in small clubs as well as for use in houses of worship and in conference rooms. The SR45 provides an audio clipping and RF signal LED for easy monitoring of systems status. Best audio signal output is provided via both a professional XLR and a 1/4" jack connector. For worldwide use, the receiver comes with a universal, switched mode power supply kit.

    Features

    • 30MHz selection bandwidth
    • Professional balanced XLR and ¼" jack output
    • Audio clip and RF control LED on receiver
    • Switched mode power supply
    • Adjustable squelch level
  • Audio
    Audio Frequency bandwidth40 to 20000 Hz
    THD at 1 kHz0.8 Prozent
    Signal to Noise105 dB-A
    Enhanced
    Operating temperature range-10 to 55 Celsius
    Radio Sensitivity-100 dBm
    Radio
    Switching bandwidth30 MHz
    Recommended simultaneous channels5
    Number of selectable frequencies8 Fixed frequencies
    Frequency SelectionFixed frequency
    Wireless channels within device1
    Radio Range (Line of Sight)30m
    Switchable RF Powerno
    ModulationFM
    EncryptionNo encryption
    Pilot Toneno
    General
    Transmitter SynchronizationManual
    HiQnet compatibleNo
    Racksize1/2 Racksize (19")
    Rackheight1 RU
    Audio Outputs 1
    Amount1
    TypeBalanced XLR
    GenderMale
    Contacts3-pin
    NoteBalanced audio output adjustable from mic to line level. Output level at rated deviation: 500 mV rms
    Audio Outputs 2
    Amount1
    TypeJack Mono (1/4")
    GenderMale
    Contacts3-pin
    NoteUnbalanced audio output
    Powering Interface
    Internal Power Supplyno
    Voltage12 to 12 V
    TypeDC Socket
    Design
    BodyPlastic
    Finishblack
    Dimensions / Weight
    Length150 mm
    Height44 mm
    Width200 mm
