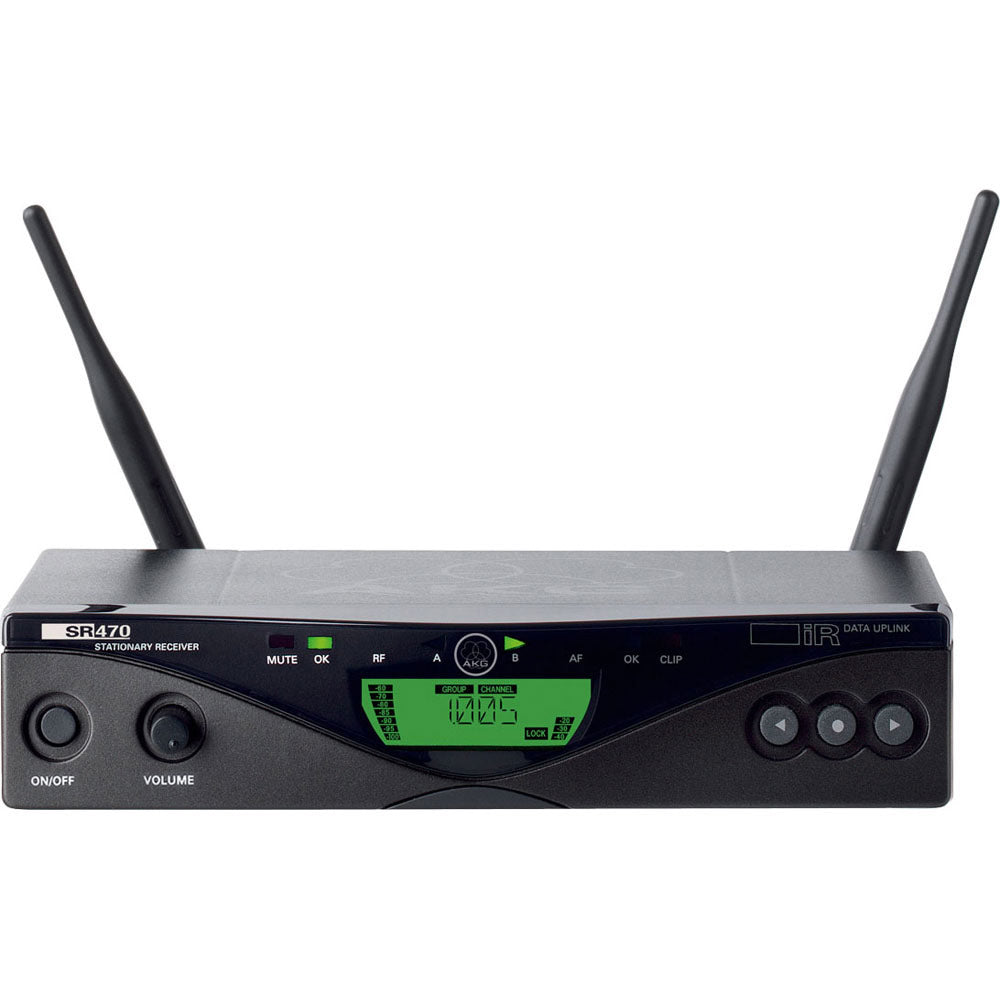

AKG SR470 Diversity Receiver for WMS470 Wireless (BD7 Band)


  • Dale #:

    AKG-3300H00150
  • Availability:

    Usually ships in 5 - 10 Days
  • This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Description

The SR 470 lets you operate up to sixteen channels simultaneously within the same frequency band. You can even set up absolutely reliable systems with as many as 48 channels by using multiple frequency bands. The display backlighting changes in color to warn the user of such critical operating co... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Description

The SR 470 lets you operate up to sixteen channels simultaneously within the same frequency band. You can even set up absolutely reliable systems with as many as 48 channels by using multiple frequency bands. The display backlighting changes in color to warn the user of such critical operating conditions as transmitter battery running low, audio peaks, or low RF signal strength. A line of professional accessories including the WMS 4000 antenna splitter, power supplies, and remote directional antennas makes it easier than ever to set up large wireless systems.

Features

  • NEW automatic frequency setup function
  • Rugged and reliable for professional applications
  • Up to 48 wireless channels and 16 channels within a single frequency band
  • Pilot tone system prevents unwanted noise
  • Space diversity receiver with all-metal case for reliable reception
  • AKG reference compander technology for superior sound
  • AKG reference compander technology for superior sound
  • Programmable warning functions

More +

Product Specs

Carrier frequency range500 to 530, 570 to 600, 600 to 630, 650 to 680, 680 to 710, 720 to 750, 790 to 820 and 835 to 865 MHz
Audio bandwidth35 to 20,000 Hz
THD<0.3% (at 1 kHz)
Signal/noise ratio120 dB(A)
ModulationFM

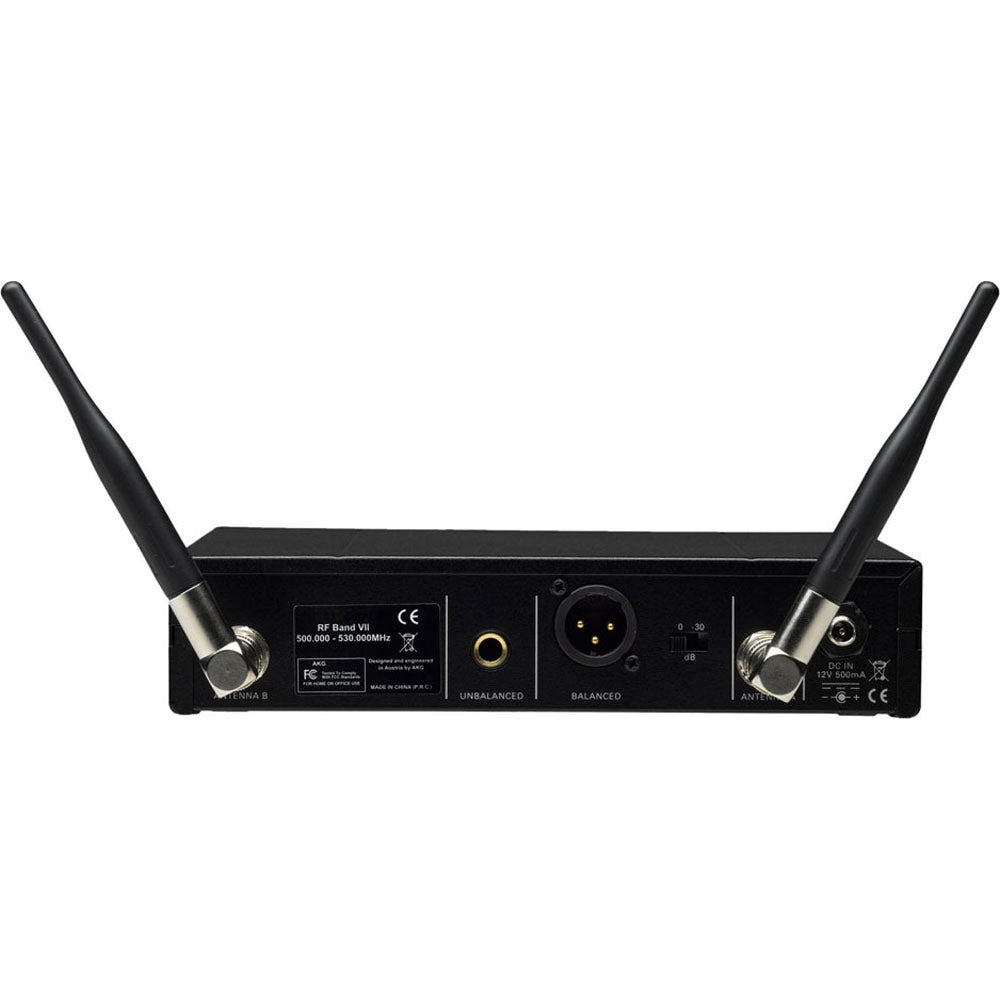

Audio outputsbalanced XLR and unbalanced TS 1/4" jack, balanced level switchable to -30 or 0 dBm
Dimensionsapprox. 200 x 44 x 190 mm (7.8 x 1.7 x 7.4 in.)
Net weight972 g (2.2 lbs.)
