AKG SRA2 EW Passive Directional Wideband UHF Antenna
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

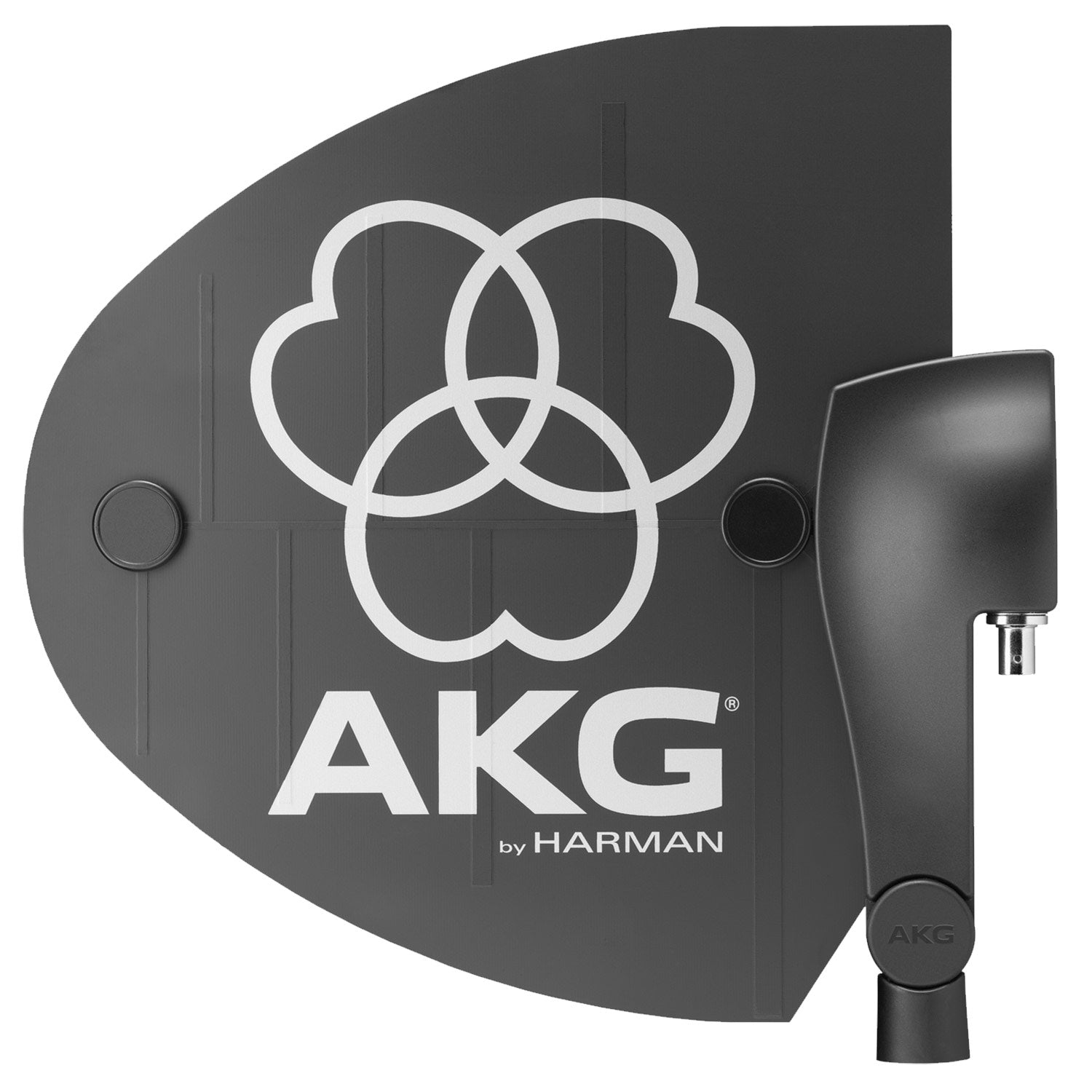

The SRA2 EW is a passive directional wide-band UHF antenna that can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470MHz to 952MHz and provides a covering angle of 70° and an antenna gain of 6dB. The SRA2 EW is built in a passive technology and requires no powering. It works for short cable lengths up to 10m and supports a professional BNC connector. The antenna has waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws.
| Switching bandwidth (from/to) | 470 to 952 MHz |
| Antenna gain | 4.5 dBi |
| Covering angle | 70 Grad |
| Dimensions | Length 240 mm Height 230 mm Width 26 mm |
| Net Weight | 250 g |
| Antenna Output | 1 |
| Type | BNC |
| Gender | Female |
| Recommended load impedance | 50 Ohms |
| Body | plastic |
| Finish | black |
The SRA2 EW is a passive directional wide-band UHF antenna that can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470MHz to 952MHz and provides a covering angle of 70° and an antenna gain of 6dB. The SRA2 EW is built in a passive technology and requires no powering. It works for short cable lengths up to 10m and supports a professional BNC connector. The antenna has waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws.
| Switching bandwidth (from/to) | 470 to 952 MHz |
| Antenna gain | 4.5 dBi |
| Covering angle | 70 Grad |
| Dimensions | Length 240 mm Height 230 mm Width 26 mm |
| Net Weight | 250 g |
| Antenna Output | 1 |
| Type | BNC |
| Gender | Female |
| Recommended load impedance | 50 Ohms |
| Body | plastic |
| Finish | black |
