AKG SRA2B/EW Active Directional Wideband UHF Antenna
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

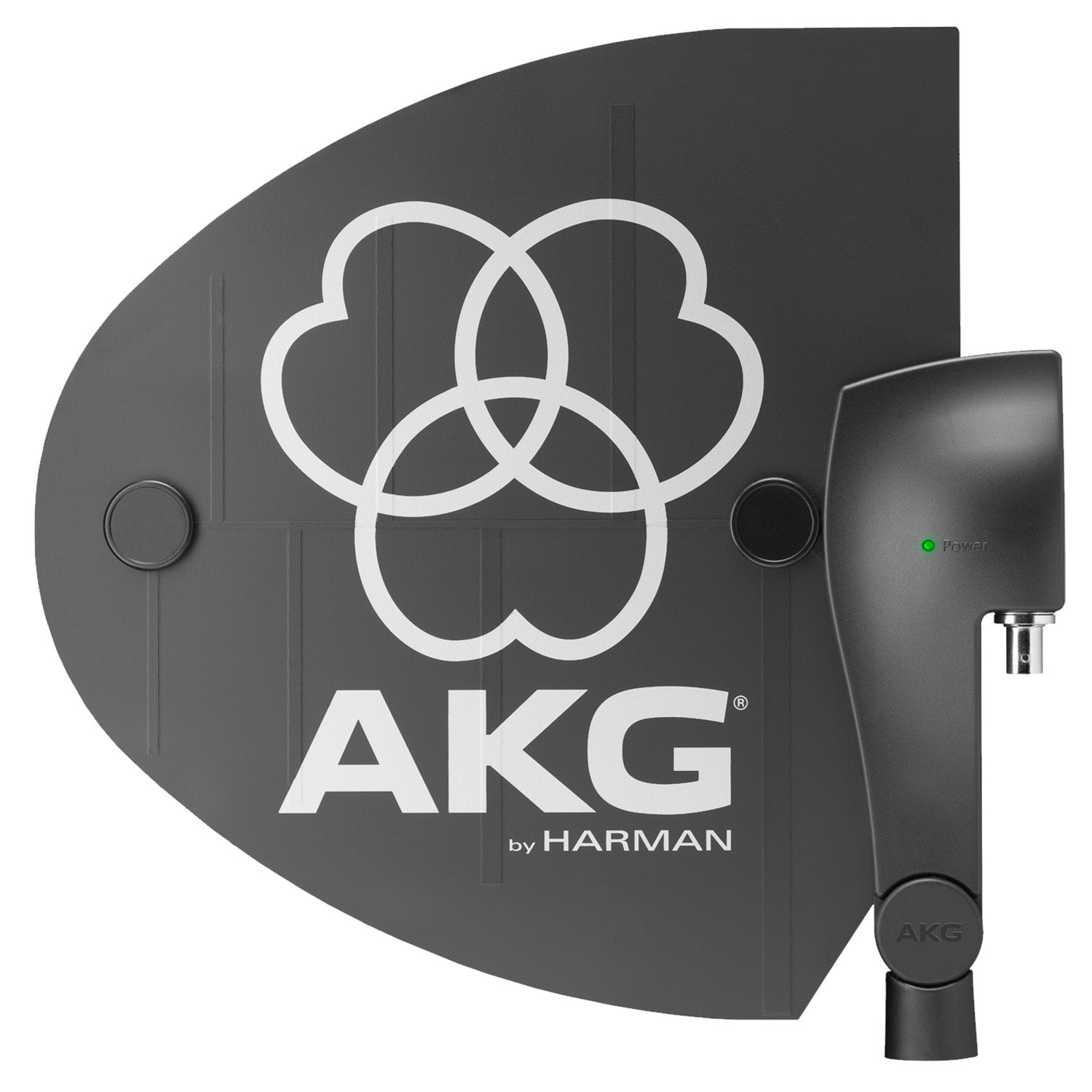

The SRA2 B/EW is an active directional wide-band UHF receiving antenna for use with wireless microphone systems. It operates in a frequency range from 470MHz to 952MHz, provides a covering angle of 70° and has a built-in amplifier. With a total gain of 22dB, it compensates for long cable runs. In combination with dedicated antenna components, it works for cable lengths up to 300m and can be remotely powered through the antenna cable. The antenna has waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws.
| Switching bandwidth (from/to) | 470 to 952 MHz |
| Antenna gain | 21.5 dBi |
| Covering angle | 70 Grad |
| Dimensions | Length 240 mm Height 230 mm Width 26 mm |
| Net Weight | 250 g |
| Antenna Output | 1 |
| Type | BNC |
| Gender | Female |
| Recommended load impedance | 50 Ohms |
| Body | plastic |
| Finish | black |
| Powering Interface | Voltage 8 to 8 V |
The SRA2 B/EW is an active directional wide-band UHF receiving antenna for use with wireless microphone systems. It operates in a frequency range from 470MHz to 952MHz, provides a covering angle of 70° and has a built-in amplifier. With a total gain of 22dB, it compensates for long cable runs. In combination with dedicated antenna components, it works for cable lengths up to 300m and can be remotely powered through the antenna cable. The antenna has waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws.
| Switching bandwidth (from/to) | 470 to 952 MHz |
| Antenna gain | 21.5 dBi |
| Covering angle | 70 Grad |
| Dimensions | Length 240 mm Height 230 mm Width 26 mm |
| Net Weight | 250 g |
| Antenna Output | 1 |
| Type | BNC |
| Gender | Female |
| Recommended load impedance | 50 Ohms |
| Body | plastic |
| Finish | black |
| Powering Interface | Voltage 8 to 8 V |
