AKG WMS470 Sports Set Headset Wireless System (Band 7)

  • Dale #:

    AKG-3308H00370
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AKG WMS 470 is your best choice for any application calling for a solution that is more flexible than a simple plug-and-play system, yet easy to set up and operate. The WMS 470 is a high-performance solution for any situations where several radio mics will be used simultaneously, including gi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AKG WMS 470 is your best choice for any application calling for a solution that is more flexible than a simple plug-and-play system, yet easy to set up and operate. The WMS 470 is a high-performance solution for any situations where several radio mics will be used simultaneously, including gigs at clubs and stages, for regional events, seminars or house of worship applications.

With 30 MHz tuning range you can select 1200 frequencies and operate with up to 20 channels simultaneously within the same frequency band or up to 48 channels in multiple bands. WMS 470 is the most cost-efficient wireless systems. Transmitters are powered by a single AA size Alkaline (LR6), Lithium (FR6) or Ni-MH rechargeable (HR6) battery and provide up to 14 hours of continuous operation.

Being compatible and based on the technology of the professional WMS 4500 wireless system you can set up even complex wireless systems using antenna splitters, power supply units and the whole range of professional directional or omni-directional antennas.

Features:

  • Half 19" all metal case diversity receiver
  • Automatic frequency setup
  • Up to 16 pre-programmed frequencies within the same frequency band
  • Pilot Tone prevents unexpected start-up noise
  • Infrared link of all frequency and setup data to the transmitter
  • Up to 14 hours battery life and battery status information in hours
  • Two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
  • Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omni-directional antennas

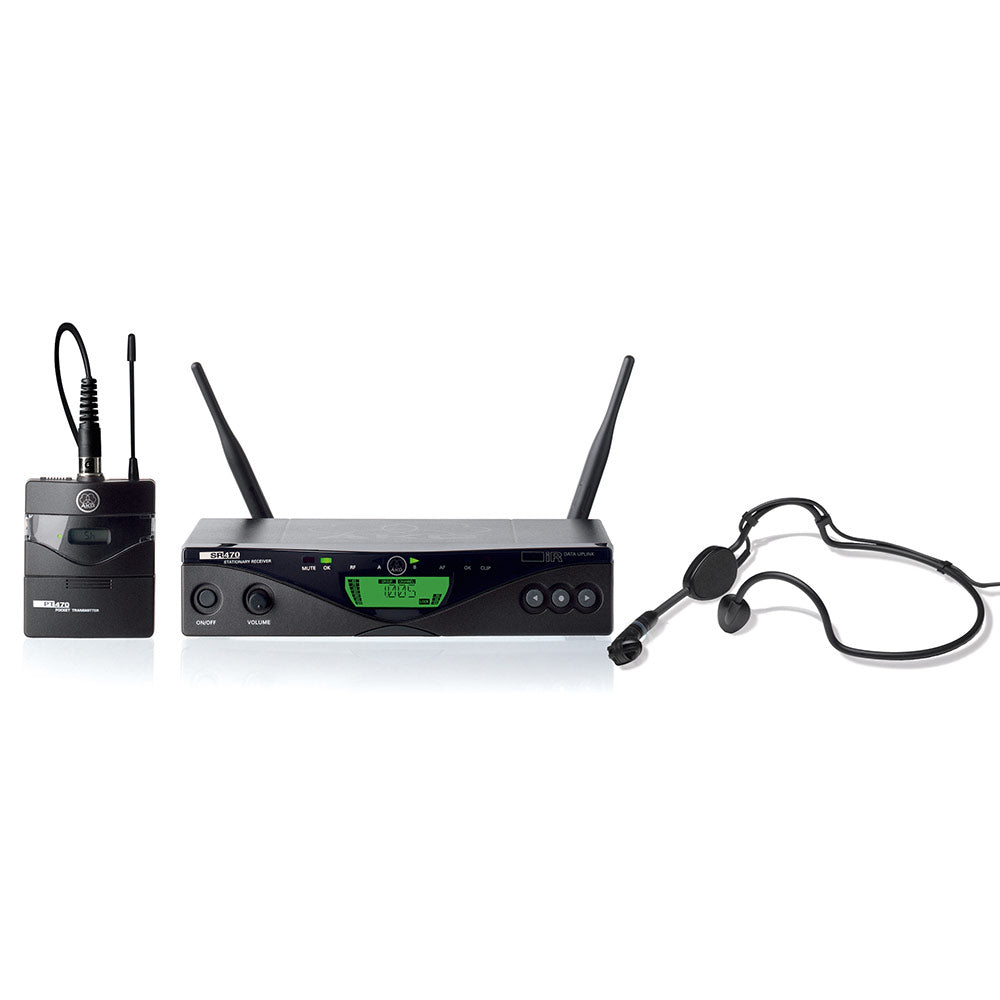

Set includes:

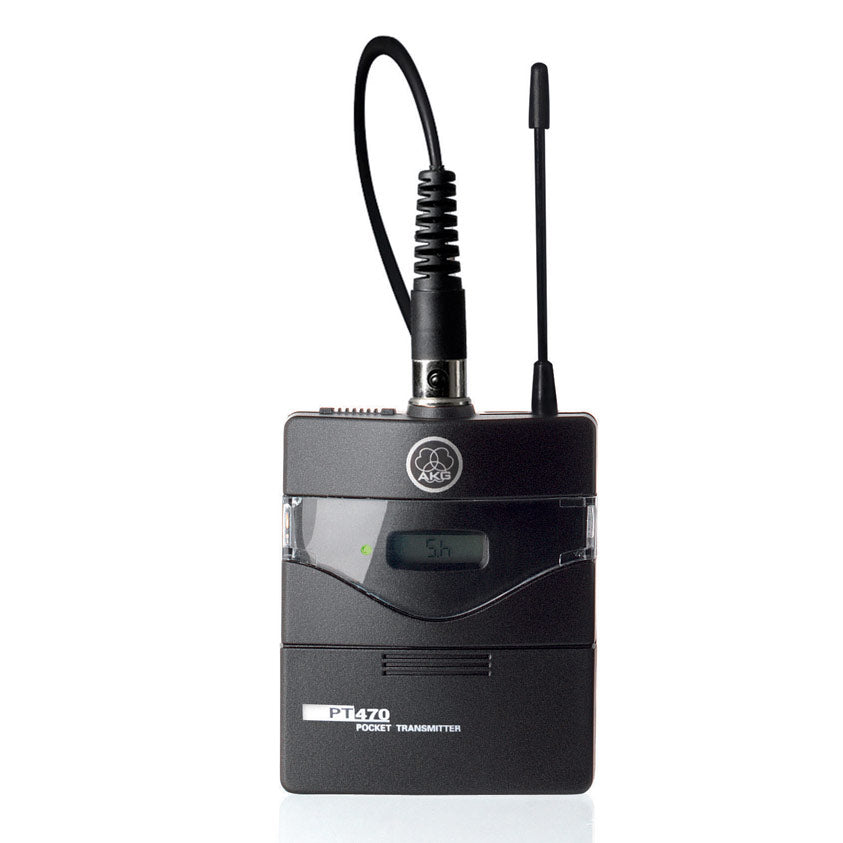

  • 1 PT 470 bodypack transmitter
  • 1 SR 470 receiver
  • 1 C 544 L headworn microphone
  • 1 belt clip, 1 AA size battery, 2 antennas, 1 rack mounting kit, power supply

More +

Product Specs

Carrier frequency range Band 1: 650 to 680 MHz
Band 7: 500.1 to 530.5 MHz
Band 8: 570.1 to 600.5 MHz
Band 9: 600.1 to 605.9 & 614.1 to 630.5 MHz
Switching bandwidth 30.5 MHz (country dependent)
Sensitivity 6.3 dBV / -100 dBm
Diversity System Microprocessor-controlled diversity
Modulation Wideband FM
Audio bandwidth 35–20000Hz (±3dB)
T.H.D. 0.3%
SNR (A-weighted) typ. 120 dB(A)
Audio outputs 1 x XLR sockets balanced
1 x TS ” / 6.3 mm jack sockets unbalanced
Dimensions 1/2 19 inch 1U rack,202mm(7.8in.)44mm(1.7in.)190mm(7.4in.) 972 g (2.2 lbs.)
Net / Shipping Weight 972 g (2.2 lbs.)
Standard Accessories 2 UHF antennas, power supply, rack mount kit
PT 470 Bodypack Transmitter Specifications
Carrier frequency range Band 1: 650 to 680 MHz
Band 7: 500.1 to 530.5 MHz
Band 8: 570.1 to 600.5 MHz
Band 9: 600.1 to 605.9 & 614.1 to 630.5 MHz
Switching bandwidth 30.5 MHz (country dependent)
RF output power 10 or 50 mW (ERP, country dependent)
Modulation Wideband FM
Audio input TB3M / 3-pin mini-XLR socket (max. 2.5 Vrms)
Audio bandwidth 35 – 20 000 Hz (± 3 dB)
T.H.D. 0.7 %
SNR (A-weighted) > 120 dB(A)
Battery life

7 hours with one 1.5 V LR6 AA alkaline battery
8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh)
14 hours with one 1.5 V FR6 AA lithium battery

Dimensions 60 mm (2.4 in.) 73.5 mm (2.9 in.) x 30 mm (1.2 in.)
Net / Shipping Weight 90 g (3.2 oz.) without batteries
Standard Accessories 1 AA size LR6 batteries, belt clip
