Description
The AKG WMS 470 is your best choice for any application calling for a solution that is more flexible than a simple plug-and-play system, yet easy to set up and operate. The WMS 470 is a high-performance solution for any situations where several radio mics will be used simultaneously, including gigs at clubs and stages, for regional events, seminars or house of worship applications.
With 30 MHz tuning range you can select 1200 frequencies and operate with up to 20 channels simultaneously within the same frequency band or up to 48 channels in multiple bands. WMS 470 is the most cost-efficient wireless systems. Transmitters are powered by a single AA size Alkaline (LR6), Lithium (FR6) or Ni-MH rechargeable (HR6) battery and provide up to 14 hours of continuous operation.
Being compatible and based on the technology of the professional WMS 4500 wireless system you can set up even complex wireless systems using antenna splitters, power supply units and the whole range of professional directional or omni-directional antennas.
Features:
- Half 19" all metal case diversity receiver
- Automatic frequency setup
- Up to 16 pre-programmed frequencies within the same frequency band
- Pilot Tone prevents unexpected start-up noise
- Infrared link of all frequency and setup data to the transmitter
- Up to 14 hours battery life and battery status information in hours
- Two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
- Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omni-directional antennas

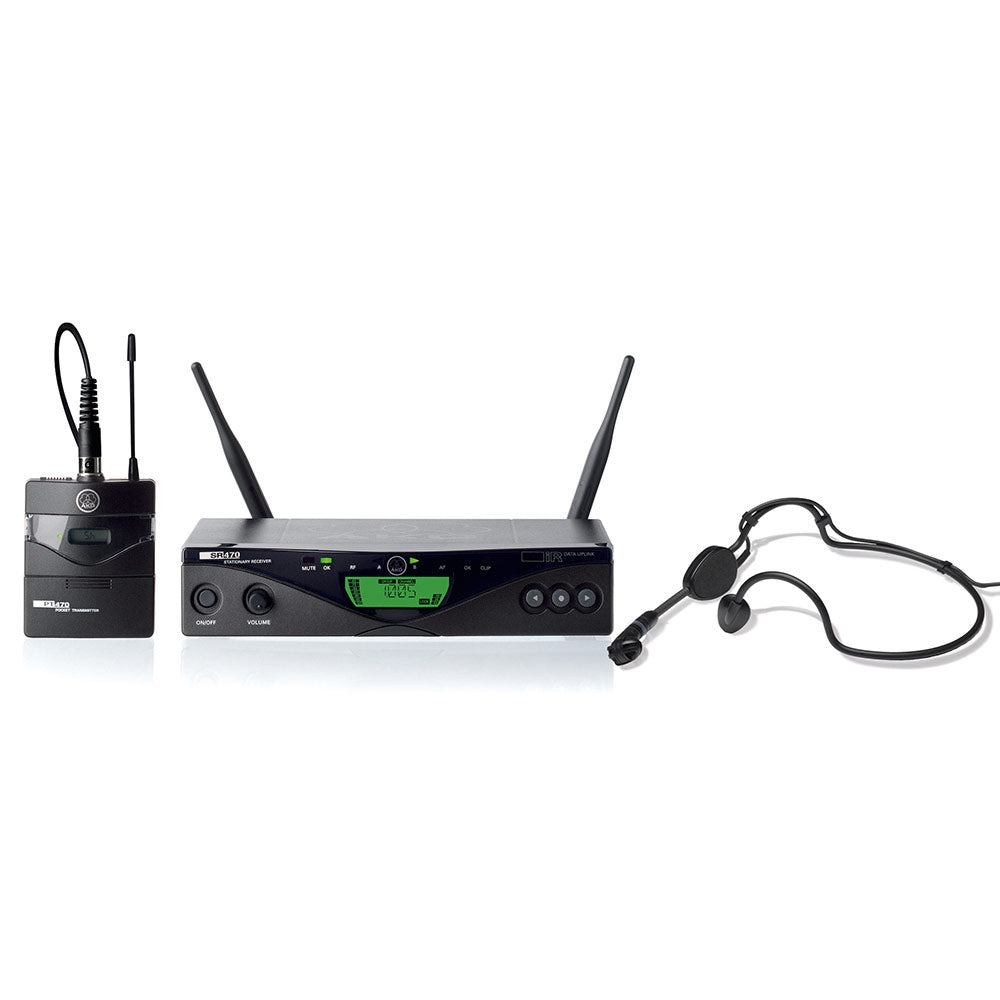

Set includes:
- 1 PT 470 bodypack transmitter
- 1 SR 470 receiver
- 1 C 544 L headworn microphone
- 1 belt clip, 1 AA size battery, 2 antennas, 1 rack mounting kit, power supply
Carrier frequency range | Band 1: 650 to 680 MHz Band 7: 500.1 to 530.5 MHz Band 8: 570.1 to 600.5 MHz Band 9: 600.1 to 605.9 / 614.1 to 630.5 MHz |
Switching bandwidth | 30.5 MHz (country dependent) |
Sensitivity | 6.3 dBV / -100 dBm |
Diversity System | Microprocessor-controlled diversity |
Modulation | Wideband FM |
Audio bandwidth | 35Ð20000Hz (±3dB) |
T.H.D. | 0.3% |
SNR (A-weighted) | typ. 120 dB(A) |
Audio outputs | 1 x XLR sockets balanced 1 x TS Ó / 6.3 mm jack sockets unbalanced |
Dimensions | 1/2 19 inch 1U rack,202mm(7.8in.)44mm(1.7in.)190mm(7.4in.) 972 g (2.2 lbs.) |
Net / Shipping Weight | 972 g (2.2 lbs.) |
Standard Accessories | 2 UHF antennas, power supply, rack mount kit |

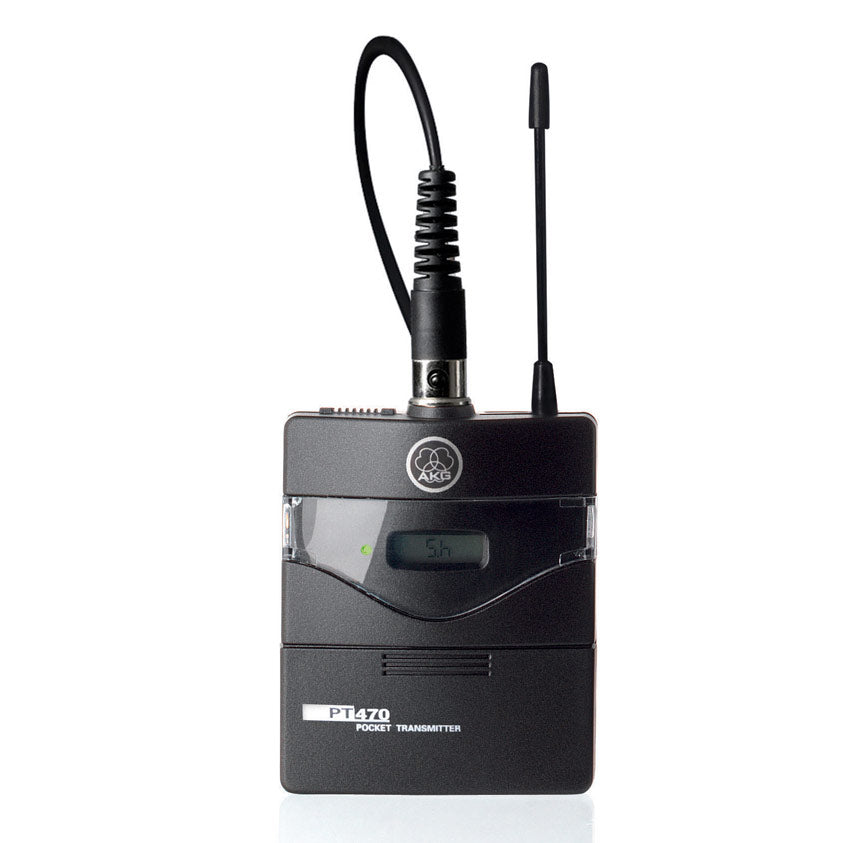

PT 470 Bodypack Transmitter Specifications | |
Carrier frequency range | Band 1: 650 to 680 MHz Band 7: 500.1 to 530.5 MHz Band 8: 570.1 to 600.5 MHz Band 9: 600.1 to 605.9 / 614.1 to 630.5 MHz |
Switching bandwidth | 30.5 MHz (country dependent) |
RF output power | 10 or 50 mW (ERP, country dependent) |
Modulation | Wideband FM |
Audio input | TB3M / 3-pin mini-XLR socket (max. 2.5 Vrms) |
Audio bandwidth | 35 Ð 20 000 Hz (± 3 dB) |
T.H.D. | 0.7 % |
SNR (A-weighted) | > 120 dB(A) |
Battery life | 7 hours with one 1.5 V LR6 AA alkaline battery |
Dimensions | 60 mm (2.4 in.) 73.5 mm (2.9 in.) x 30 mm (1.2 in.) |
Net / Shipping Weight | 90 g (3.2 oz.) without batteries |
Standard Accessories | 1 AA size LR6 batteries, belt clip |
The AKG WMS 470 is your best choice for any application calling for a solution that is more flexible than a simple plug-and-play system, yet easy to set up and operate. The WMS 470 is a high-performance solution for any situations where several radio mics will be used simultaneously, including gigs at clubs and stages, for regional events, seminars or house of worship applications.
With 30 MHz tuning range you can select 1200 frequencies and operate with up to 20 channels simultaneously within the same frequency band or up to 48 channels in multiple bands. WMS 470 is the most cost-efficient wireless systems. Transmitters are powered by a single AA size Alkaline (LR6), Lithium (FR6) or Ni-MH rechargeable (HR6) battery and provide up to 14 hours of continuous operation.
Being compatible and based on the technology of the professional WMS 4500 wireless system you can set up even complex wireless systems using antenna splitters, power supply units and the whole range of professional directional or omni-directional antennas.
Features:
- Half 19" all metal case diversity receiver
- Automatic frequency setup
- Up to 16 pre-programmed frequencies within the same frequency band
- Pilot Tone prevents unexpected start-up noise
- Infrared link of all frequency and setup data to the transmitter
- Up to 14 hours battery life and battery status information in hours
- Two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
- Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omni-directional antennas
Set includes:
- 1 PT 470 bodypack transmitter
- 1 SR 470 receiver
- 1 C 544 L headworn microphone
- 1 belt clip, 1 AA size battery, 2 antennas, 1 rack mounting kit, power supply
Carrier frequency range | Band 1: 650 to 680 MHz Band 7: 500.1 to 530.5 MHz Band 8: 570.1 to 600.5 MHz Band 9: 600.1 to 605.9 / 614.1 to 630.5 MHz |
Switching bandwidth | 30.5 MHz (country dependent) |
Sensitivity | 6.3 dBV / -100 dBm |
Diversity System | Microprocessor-controlled diversity |
Modulation | Wideband FM |
Audio bandwidth | 35Ð20000Hz (±3dB) |
T.H.D. | 0.3% |
SNR (A-weighted) | typ. 120 dB(A) |
Audio outputs | 1 x XLR sockets balanced 1 x TS Ó / 6.3 mm jack sockets unbalanced |
Dimensions | 1/2 19 inch 1U rack,202mm(7.8in.)44mm(1.7in.)190mm(7.4in.) 972 g (2.2 lbs.) |
Net / Shipping Weight | 972 g (2.2 lbs.) |
Standard Accessories | 2 UHF antennas, power supply, rack mount kit |
PT 470 Bodypack Transmitter Specifications | |
Carrier frequency range | Band 1: 650 to 680 MHz Band 7: 500.1 to 530.5 MHz Band 8: 570.1 to 600.5 MHz Band 9: 600.1 to 605.9 / 614.1 to 630.5 MHz |
Switching bandwidth | 30.5 MHz (country dependent) |
RF output power | 10 or 50 mW (ERP, country dependent) |
Modulation | Wideband FM |
Audio input | TB3M / 3-pin mini-XLR socket (max. 2.5 Vrms) |
Audio bandwidth | 35 Ð 20 000 Hz (± 3 dB) |
T.H.D. | 0.7 % |
SNR (A-weighted) | > 120 dB(A) |
Battery life | 7 hours with one 1.5 V LR6 AA alkaline battery |
Dimensions | 60 mm (2.4 in.) 73.5 mm (2.9 in.) x 30 mm (1.2 in.) |
Net / Shipping Weight | 90 g (3.2 oz.) without batteries |
Standard Accessories | 1 AA size LR6 batteries, belt clip |
