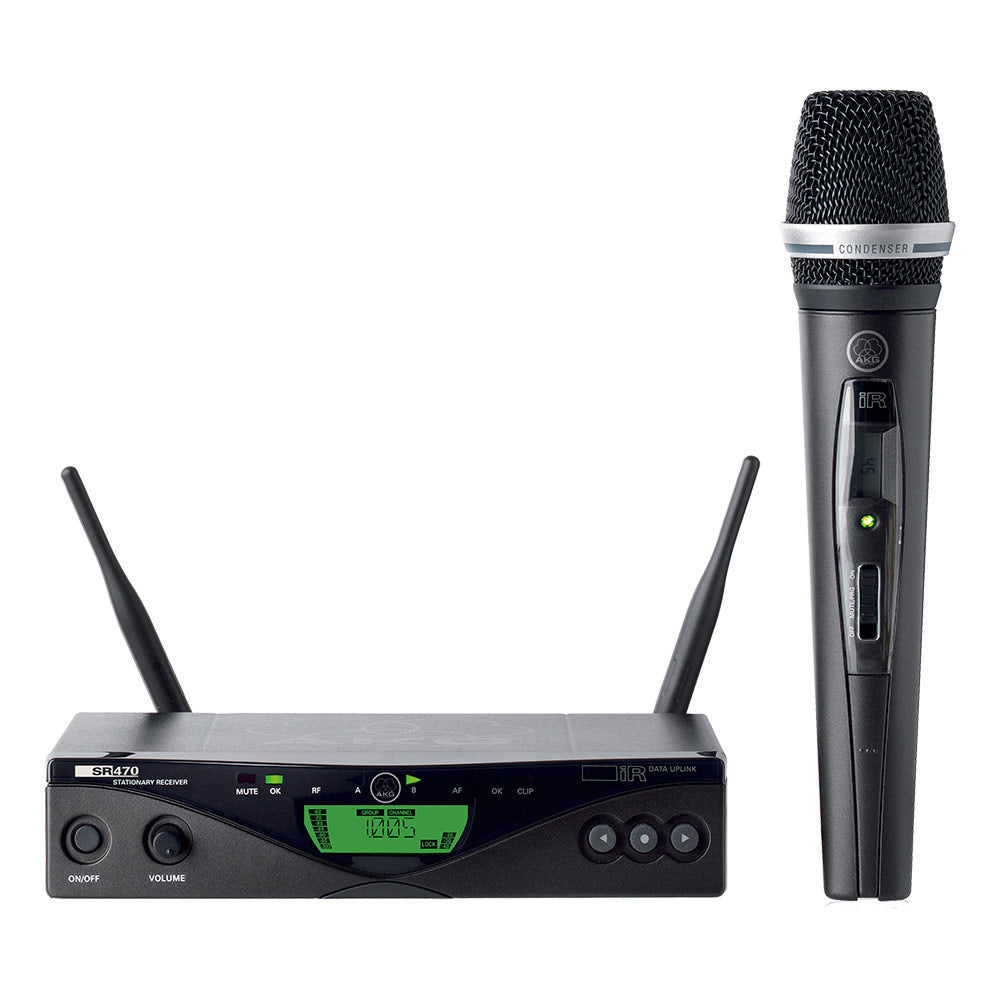

AKG WMS470 Vocal Set C5 Handheld Wireless System (Band 7)


  • Dale #:

    AKG-3306X00380
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

WMS470 is a professional multichannel wireless microphone system with Pilot tone transmission to prevent unwanted noise. The Vocal Set C5 includes a HT470 handheld transmitter featuring a C5 condenser microphone capsule for clear and detailed voice reproduction. The space diversity receiver offer... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

WMS470 is a professional multichannel wireless microphone system with Pilot tone transmission to prevent unwanted noise. The Vocal Set C5 includes a HT470 handheld transmitter featuring a C5 condenser microphone capsule for clear and detailed voice reproduction. The space diversity receiver offers both a microphone level and a line level output.

The WMS470 Vocal Set C5 package includes:

  • 1 x SR470 Receiver
  • 1 x HT470 Handheld transmitter with C5 capsule
  • 1 x Stand adapter
  • 1 x Rack mount kit
  • 1 x Universal power supply with US/UK/EU adapter
  • 1 x AA size battery
  • 2 x Antennas

FLEXIBLE AND EXPANDABLE
for conference, medium theater and houses of worship applications

The WMS470 professional analog wireless microphone system is the best choice for a cost-efficient, high-performance multichannel system. Up to 16 channels can be used simultaneously within the same frequency band. The pilot tone prevents the user from unexpected startup noise and it continuously sends transmitter data including low battery information to the receiver.

A revolutionary power management allow up to 14 hours of operation with one AA-size lithium battery. If a NiMH rechargeable battery is used, it can be charged while remaining within the transmitter using the optional CU400.

Features:

  • Compatible with WMS4000 accessories
    for multichannel systems in critical environments
  • 14 hours operation with one single battery
    lowest operating costs using AA-size lithium dry battery
  • Pilot Tone transmission
    for transmitter battery status monitoring and tone code squelch
  • Up to 48 simultaneous channels
    when combining several frequency bands
  • Enhanced automatic setup with channel preview
    for quick and easy system setup

More +

Product Specs

SR 470 Receiver Specifications
Carrier frequency range Band 1: 650 to 680 MHz
Band 7: 500.1 to 530.5 MHz
Band 8: 570.1 to 600.5 MHz
Band 9: 600.1 to 605.9 & 614.1 to 630.5 MHz
Switching bandwidth 30.5 MHz (country dependent)
Sensitivity 6.3 dBV / -100 dBm
Diversity System Microprocessor-controlled diversity
Modulation Wideband FM
Audio bandwidth 35 – 20 000 Hz (± 3 dB)
T.H.D. 0.3 %
SNR (A-weighted) typ. 120 dB(A)
Audio outputs 1 x XLR sockets balanced
1 x TS ” / 6.3 mm jack sockets unbalanced
Dimensions 19 inch 1U rack, 202 mm (7.8 in.) 44 mm (1.7 in.) 190 mm (7.4 in.)
Net / Shipping Weight 972 g (2.2 lbs.)
Standard Accessories 2 UHF antennas, power supply, rack mount kit
HT 470 Handheld Transmitter Specifications
Carrier frequency range

Band 1: 650 to 680 MHz
Band 7: 500.1 to 530.5 MHz
Band 8: 570.1 to 600.5 MHz
Band 9: 600.1 to 605.9 & 614.1 to 630.5 MHz

Switching bandwidth 30.5 MHz (country dependent)
RF output power 10 or 50 mW (ERP, country dependent)
Modulation / Bandwidth Wideband FM
Microphone capsule C 5 – condenser (cardioid)
Max. SPL 144 dB SPL
Audio bandwidth 35 – 20 000 Hz (± 3 dB)
T.H.D. 0.7 %
SNR (A-weighted) > 120 dB(A)
Battery life 7 hours with one 1.5 V LR6 AA alkaline battery
8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh)
14 hours with one 1.5 V FR6 AA lithium battery
Dimensions 237 mm (9.3 in.) length, 51 mm (2 in.) dia.
Net / Shipping Weight 240 g (8.5 oz.) without batteries
Standard Accessories 1 x AA size LR6 battery, stand adapter, windscreen

More +
