AKG WMS470 Vocal Set D5 Handheld Wireless System (Band 8)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

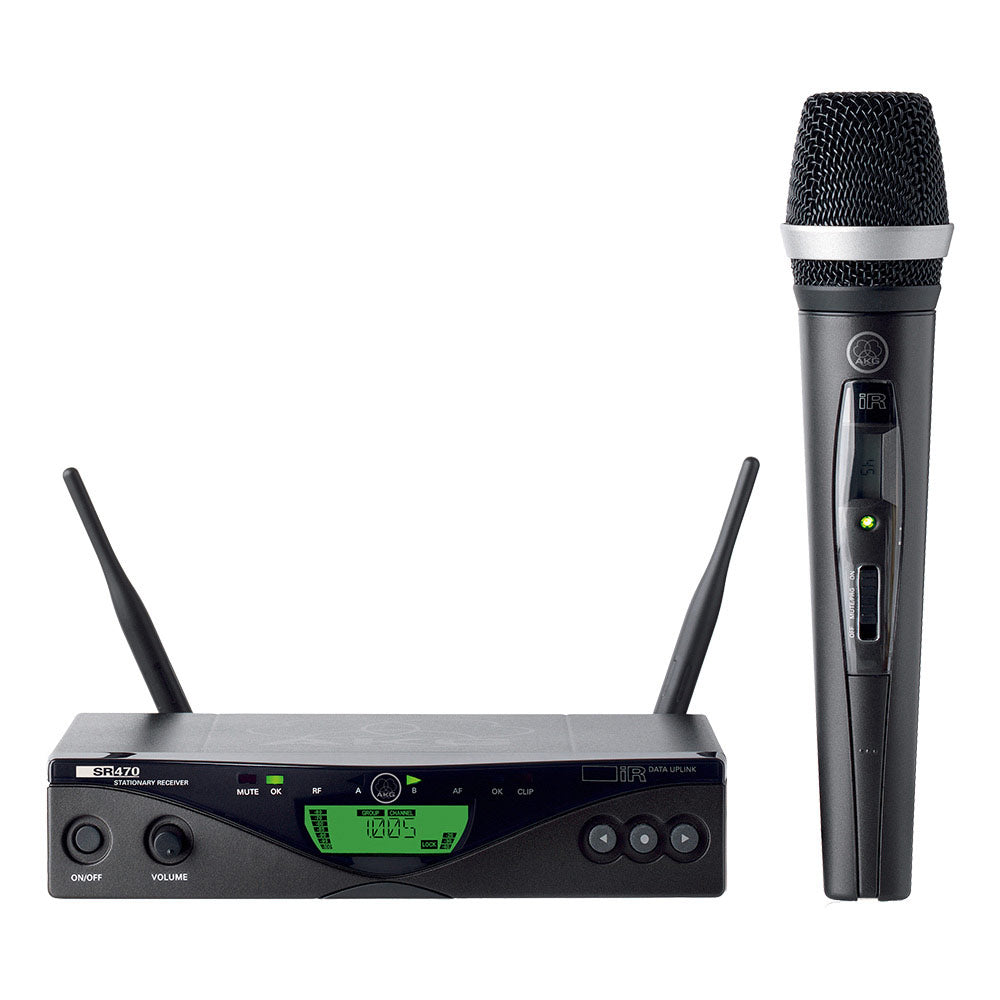

WMS470 is a professional multichannel wireless microphone system with pilot tone transmission to prevent unwanted noise. The Vocal Set D5 includes a HT470 handheld transmitter featuring a dynamic D5 capsule for well-balanced, powerful sound. The space diversity receiver offers both a microphone level and a line level output.
The WMS470 Vocal Set D5 package includes:
- 1 x SR470 Receiver
- 1 x HT470 Handheld transmitter with D5 capsule
- 1 x Stand adapter
- 1 x Rack mount kit
- 1 x Universal power supply with US/UK/EU adapter
- 1 x AA size battery
- 2 x Antennas
FLEXIBLE AND EXPANDABLE
for conference, medium theater and houses of worship applications
The WMS470 professional analog wireless microphone system is the best choice for a cost-efficient, high-performance multichannel system. Up to 16 channels can be used simultaneously within the same frequency band. The pilot tone prevents the user from unexpected startup noise and it continuously sends transmitter data including low battery information to the receiver.
A revolutionary power management allow up to 14 hours of operation with one AA-size lithium battery. If a NiMH rechargeable battery is used, it can be charged while remaining within the transmitter using the optional CU400.
Features:
-
Compatible with WMS4000 accessories
for multichannel systems in critical environments -
14 hours operation with one single battery
lowest operating costs using AA-size lithium dry battery -
Pilot Tone transmission
for transmitter battery status monitoring and tone code squelch -
Up to 48 simultaneous channels
when combining several frequency bands -
Enhanced automatic setup with channel preview
for quick and easy system setup
| SR 470 Receiver Specifications | |
| Carrier frequency range | Band 1: 650 to 680 MHz Band 7: 500.1 to 530.5 MHz Band 8: 570.1 to 600.5 MHz Band 9: 600.1 to 605.9 / 614.1 to 630.5 MHz |
| Switching bandwidth | 30.5 MHz (country dependent) |
| Sensitivity | 6.3 dBV / -100 dBm |
| Diversity | System Microprocessor-controlled diversity |
| Modulation | Wideband FM |
| Audio bandwidth | 35 Ð 20 000 Hz (± 3 dB) |
| T.H.D. | 0.3 % |
| SNR (A-weighted) typ. | 120 dB(A) |
| Audio outputs | 1 x XLR sockets balanced 1 x TS Ó / 6.3 mm jack sockets unbalanced |
| Dimensions | 19 inch 1U rack, 202 mm (7.8 in.) 44 mm (1.7 in.) 190 mm (7.4 in.) |
| Net / Shipping Weight | 972 g (2.2 lbs.) |
| Standard Accessories | 2 UHF antennas, power supply, rack mount kit |
| HT 470 Handheld Transmitter Specifications | |
| Carrier frequency range | Band 1: 650 to 680 MHz |
| Switching bandwidth | 30.5 MHz (country dependent) |
| RF output power | 10 or 50 mW (ERP, country dependent) |
| Modulation / Bandwidth | Wideband FM |
| Microphone capsule | D 5 Ð dynamic (cardioid) |
| Max. SPL | 144 dB SPL |
| Audio bandwidth | 35 Ð 20 000 Hz (± 3 dB) |
| T.H.D. | 0.7 % |
| SNR (A-weighted) | > 120 dB(A) |
| Battery life | 7 hours with one 1.5 V LR6 AA alkaline battery 8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh) 14 hours with one 1.5 V FR6 AA lithium battery |
| Dimensions | 237 mm (9.3 in.) length, 51 mm (2 in.) dia. |
| Net / Shipping Weight | 240 g (8.5 oz.) without batteries |
| Standard Accessories | 1 x AA size LR6 battery, stand adapter, windscreen |
WMS470 is a professional multichannel wireless microphone system with pilot tone transmission to prevent unwanted noise. The Vocal Set D5 includes a HT470 handheld transmitter featuring a dynamic D5 capsule for well-balanced, powerful sound. The space diversity receiver offers both a microphone level and a line level output.
The WMS470 Vocal Set D5 package includes:
- 1 x SR470 Receiver
- 1 x HT470 Handheld transmitter with D5 capsule
- 1 x Stand adapter
- 1 x Rack mount kit
- 1 x Universal power supply with US/UK/EU adapter
- 1 x AA size battery
- 2 x Antennas
FLEXIBLE AND EXPANDABLE
for conference, medium theater and houses of worship applications
The WMS470 professional analog wireless microphone system is the best choice for a cost-efficient, high-performance multichannel system. Up to 16 channels can be used simultaneously within the same frequency band. The pilot tone prevents the user from unexpected startup noise and it continuously sends transmitter data including low battery information to the receiver.
A revolutionary power management allow up to 14 hours of operation with one AA-size lithium battery. If a NiMH rechargeable battery is used, it can be charged while remaining within the transmitter using the optional CU400.
Features:
-
Compatible with WMS4000 accessories
for multichannel systems in critical environments -
14 hours operation with one single battery
lowest operating costs using AA-size lithium dry battery -
Pilot Tone transmission
for transmitter battery status monitoring and tone code squelch -
Up to 48 simultaneous channels
when combining several frequency bands -
Enhanced automatic setup with channel preview
for quick and easy system setup
| SR 470 Receiver Specifications | |
| Carrier frequency range | Band 1: 650 to 680 MHz Band 7: 500.1 to 530.5 MHz Band 8: 570.1 to 600.5 MHz Band 9: 600.1 to 605.9 / 614.1 to 630.5 MHz |
| Switching bandwidth | 30.5 MHz (country dependent) |
| Sensitivity | 6.3 dBV / -100 dBm |
| Diversity | System Microprocessor-controlled diversity |
| Modulation | Wideband FM |
| Audio bandwidth | 35 Ð 20 000 Hz (± 3 dB) |
| T.H.D. | 0.3 % |
| SNR (A-weighted) typ. | 120 dB(A) |
| Audio outputs | 1 x XLR sockets balanced 1 x TS Ó / 6.3 mm jack sockets unbalanced |
| Dimensions | 19 inch 1U rack, 202 mm (7.8 in.) 44 mm (1.7 in.) 190 mm (7.4 in.) |
| Net / Shipping Weight | 972 g (2.2 lbs.) |
| Standard Accessories | 2 UHF antennas, power supply, rack mount kit |
| HT 470 Handheld Transmitter Specifications | |
| Carrier frequency range | Band 1: 650 to 680 MHz |
| Switching bandwidth | 30.5 MHz (country dependent) |
| RF output power | 10 or 50 mW (ERP, country dependent) |
| Modulation / Bandwidth | Wideband FM |
| Microphone capsule | D 5 Ð dynamic (cardioid) |
| Max. SPL | 144 dB SPL |
| Audio bandwidth | 35 Ð 20 000 Hz (± 3 dB) |
| T.H.D. | 0.7 % |
| SNR (A-weighted) | > 120 dB(A) |
| Battery life | 7 hours with one 1.5 V LR6 AA alkaline battery 8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh) 14 hours with one 1.5 V FR6 AA lithium battery |
| Dimensions | 237 mm (9.3 in.) length, 51 mm (2 in.) dia. |
| Net / Shipping Weight | 240 g (8.5 oz.) without batteries |
| Standard Accessories | 1 x AA size LR6 battery, stand adapter, windscreen |
