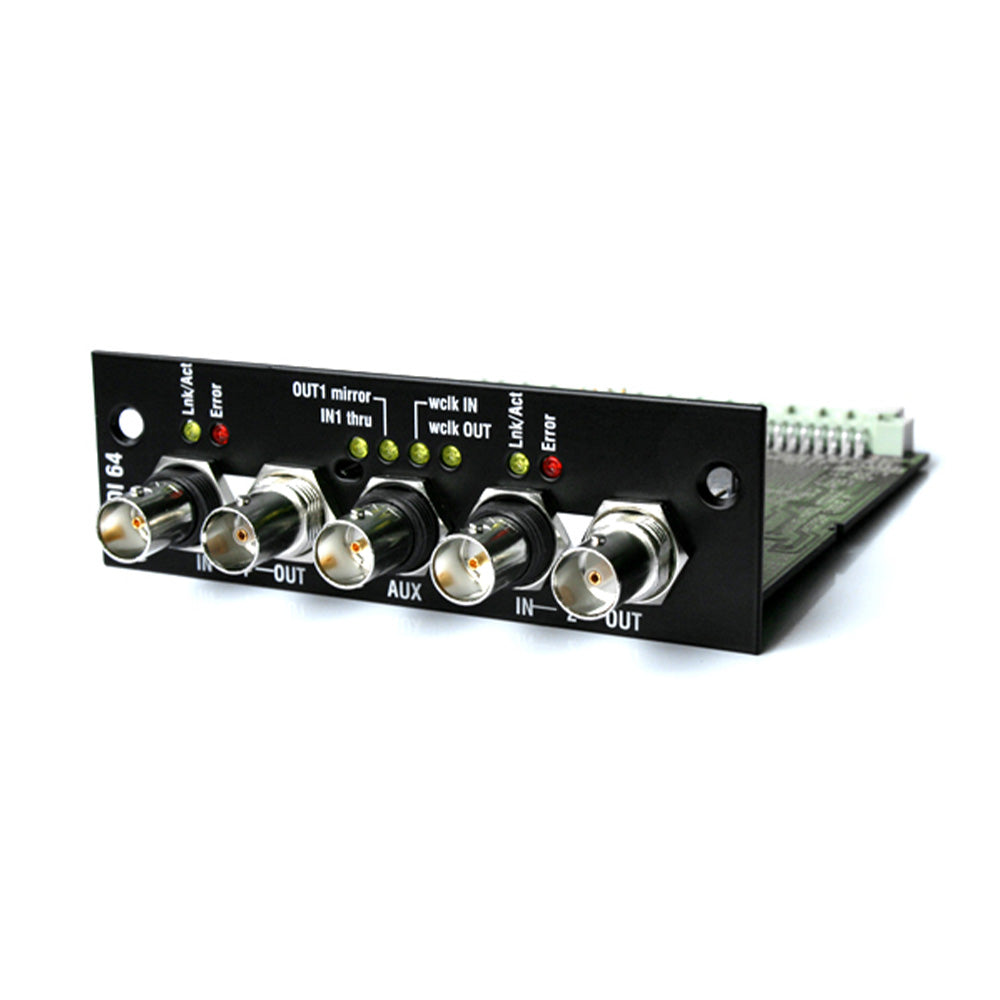

Allen and Heath AH-M-MADI2-A - 64-x64 Channel MADI Card for dLive S or C Class

Dual port MADI card supports two streams of 64 channel bi-directional 24-bit 48kHz serial digital audio transmission using two 75 ohm coaxial cables per port. An additional AUX connector can be configured to mirror stream 1 outputs, pass thru stream 1 inputs, or as a word clock input or output. Daisy chain or split signals to multiple devices, sync with either stream or an external word clock. The second port can be configured as an independent stream or as a redundant backup connection using a second cable. Signals from either stream can be routed to the iLive channels in blocks of 8. iLive and GLD outputs can be patched to MADI and appear at both stream outputs.
