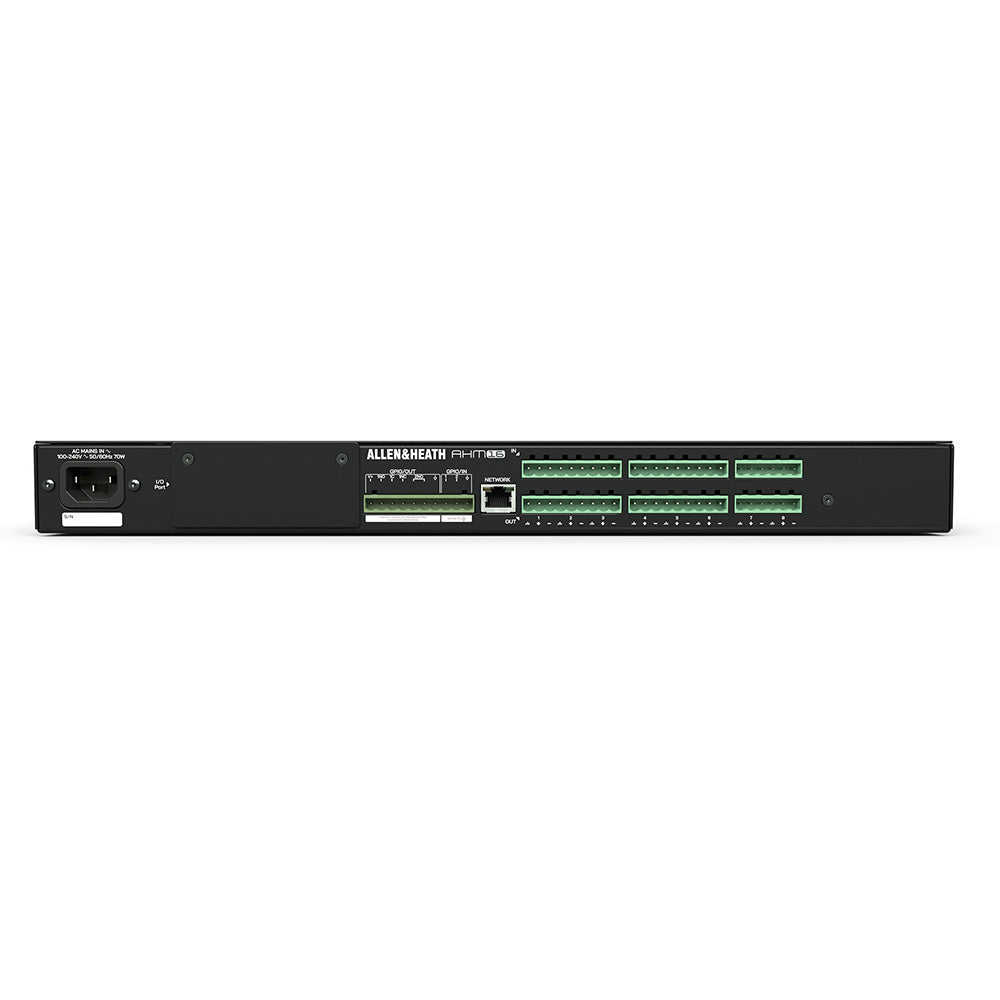

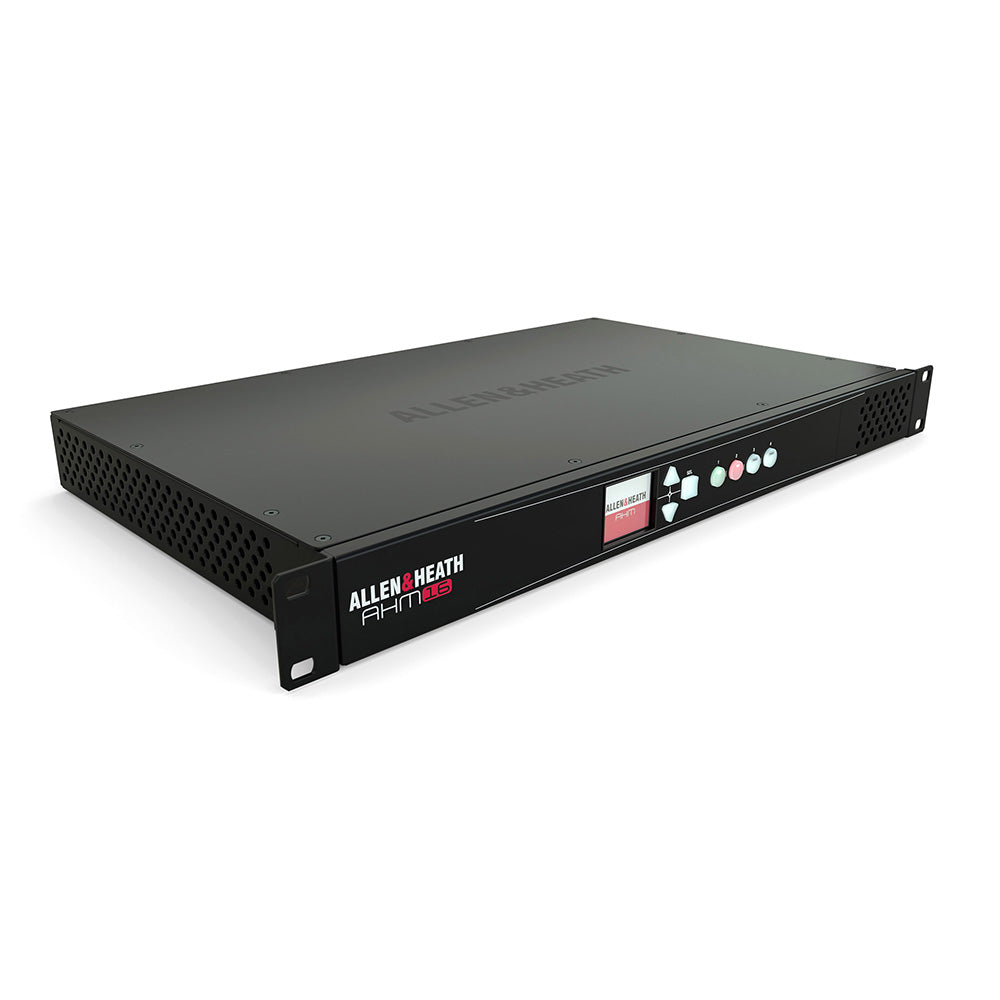

Allen and Heath AHM-16 - 16x16 Audio Matrix Processor

  • Dale #:

    ALLE-AHAHM16
  • Availability:

    Backordered - Not In Stock
  • on backorder until late February 2023

Description

With an unrivalled price-performance ratio, AHM-16 delivers a 16x16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls. Features: 16x16 processing matrix 8x8 local analogue I/O I/O P... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

With an unrivalled price-performance ratio, AHM-16 delivers a 16x16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.

Features:

  • 16x16 processing matrix
  • 8x8 local analogue I/O
  • I/O Port for audio networking, up to 128x128
  • Dante 96kHz option card (AES67 and DDM ready)
  • SLink 128x128 option card for audio expansion
  • 16 configurable processing outputs – mono / stereo zones or speaker processing
  • 96kHz FPGA core with ultra-low latency
  • Front panel screen and navigation
  • 4x SoftKeys
  • Compatible with IP1, IP6, IP8 remote controllers
  • 2x2 local GPIO plus networkable GPIO interface
  • TCP/IP protocol for third party integration
  • Crestron, AMX and Extron drivers
  • Mac / Windows System Manager software
  • Custom Control app and editor for BYOD
  • 4 user profiles
  • Integrated stereo playback
  • Event scheduler


ALWAYS IN CONTROL

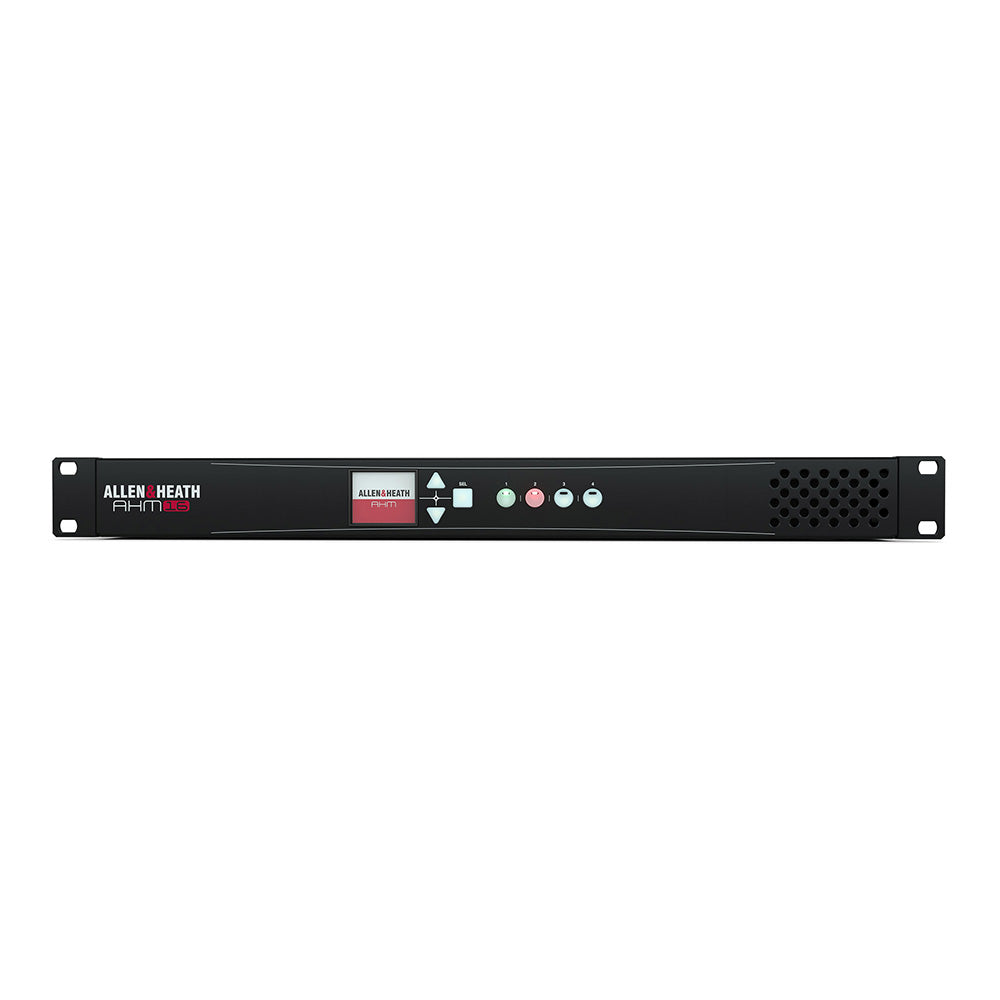

In addition to remote controllers, GPIO and 3rd party integration, AHM-16 has a front panel screen and 4x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

SOUND MANAGEMENT

  • Automatic Mic Mixer
  • ANC (Ambient Noise Compensation)
  • Priority Ducking
  • 8-band PEQ, dynamics and delay on every input and zone
  • Speaker processing with x-over filter, delay, limiter and PEQ

SIMPLY SCALABLE
AHM is a family of powerful Audio Matrix Processors supported by a comprehensive ecosystem of scalable I/O, control and Dante solutions. Designed to excel in corporate, retail, hospitality and education environments, AHM matrix processors allow integrators to quickly create systems that build from a single boardroom to a complete campus.

UNCOMPROMISED POWER AND FLEXIBILITY
AHM processors deploy next-generation FPGA technology and 96kHz sample rate, bringing acclaimed Allen and Heath sound quality and sub-millisecond latency to installation. The audio engines have the power to deliver far more processing than the usual open architecture platforms, including 8-band PEQ, gate, compressor and delay on all input channels, and 8-band PEQ, 30-band GEQ, compressor, ANC, source selector, limiter and delay on all zone outputs.

SLink* allows plug 'n play connection to up to 8 remote expanders from Allen and Heath’s extensive Everything I/O range, which includes wall mount, rack and portable options. With hundreds of routable system inputs and outputs, AHM can cater for projects ranging from a single room to large, distributed spaces.

*SLink port built-in on AHM-64, SLink option card for AHM-32 and AHM-16

A WORLD OF CONTROL
An AHM system can be controlled using our range of remote controllers, GPIO and 3rd party devices. With up to 96 IP remote controllers over a standard TCP/IP network, every room can enjoy local volume control, source select and preset recall.

CUSTOM CONTROL APP
Designing the perfect user interface for each type of user has never been so easy. Custom Control is a customizable, cross-platform control app, providing elegant, bespoke control over an AHM system.

AHM SYSTEM MANAGER
The intuitive AHM System Manager software and AHM’s flexible architecture allow rapid configuration, with no certified programming training required. AHM matrix processors strike a balance between the simplicity and set latency of fixed architecture, and the flexibility normally reserved for open architecture platforms, allowing them to handle sound management, paging, audio distribution, conferencing and speaker processing roles.

Channels view
Horizontal signal-flow and processing diagram, with clear visibility of what is available, what is / isn’t active, and mouse-over real time audio monitoring.

Assign view
Zoomable matrix view for I/O and routing, with optional level and mute indication, and including Tieline patching and Zone to Zone routing for unparalleled flexibility.

More +

Product Specs

Inputs
Mic/Line Inputs Balanced, +48V phantom power
Mic/Line Preamp Fully recallable
Input Sensitivity -60 to +15dBu
Analogue Gain +5 to +60dB, 1dB steps
Pad -20dB Active PAD
Maximum Input Level +30dBu (PAD in)
Input Impedance >3kΩ (Pad out), >8kΩ (Pad in)
Mic EIN -127dB with 150Ω source
Outputs
Analogue Outputs Balanced, Relay protected
Output Impedance <75Ω
Nominal Output +4dBu = 0dB meter reading
Maximum Output Level +21dBu
Residual Output Noise -92dBu (muted, 22-22kHz)
System, Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
Dynamic Range 108dB
System Signal to Noise -92dB
Frequency Response 20Hz - 20kHz +0/-0.5dB
THD+N (analogue in to out) 0.005% @ +16dBu output, 1kHz +5dB gain
Headroom +18dB
Sampling Rate 96kHz +/- 20 PPM
Acoustic Noise Typical loading, 22 deg C ambient
No I/O Port installed 31dBA
With I/O Port installed 33dBA
Dimensions and Weights
Unboxed Width x Depth x Height x Weight 482.6mm x 270mm x 44mm x 3.8kg
(19” x 10.6” x 1.7” x 8.4lbs)
Boxed 555 x 385 x 150 mm x 5.1kg
(21.8” x 15.2” x 5.9” x 11.2lbs)
Operating Temperature Range 0 deg C to 40 deg C (32 deg F to 104 deg F)
Mains Power 100-240V AC, 50-60Hz, 65W max
Input Processing
16 Input Channels Configurable mono or stereo
Trim +/-24dB digital trim
Polarity Normal/Reverse
Stereo Width Control L/R, R/L, L -Pol/R, R -Pol/L, Mono, L/L, R,R, M/S
Gate
Sidechain Self-key or source selectable, with 12dB/octave Lo-Pass and Hi-Pass
Threshold -72dBu to +12dBu
Depth 0 to 60 dB
Attack 50us to 300ms
Hold 10ms to 5s
Release 10ms to 1s
Insert In/Out, +4dBu/-10dBV level
PEQ
Type 8-Band fully parametric, +/-15dB
Band 1 - 8 Selectable LF/HF Shelving, Bell (variable or constant Q), Hi-Pass / LoPass
Bell Width 0.50 – 6.00 Q
Shelving Type Classic Baxandall
Hi-Pass, Lo-Pass Filter 12dB/octave
Compressor Peak or RMS sensing
Sidechain Self-key or source selectable, with 12dB/octave Lo-Pass and Hi-Pass
Threshold -46dBu to 18dBu
Compressor parameters Threshold, Ratio, Attack, Release
Delay Up to 683ms
Zone Processing
Up to 16 Zones Configurable mono or stereo
Source Selector Up to 20 sources, variable level, Fade In and Fade Out time <20s
Insert In/Out, +4dBu/-10dBV level
GEQ 28 bands 31Hz -16kHz, +/-12dB, constant-Q
PEQ See Input Processing
Compressor See Input Processing
Delay Up to 683ms
ANC
Ambient Level Selectable source and metering point, Gain Differential -18dB to 40dB
Gap Selectable source and metering point, Threshold -62dB to -20dB, Time 05000ms
Gain Element Min / Max Gain, Rate 0-30dB/s
Limiter Variable Threshold, Attack and Release
Speaker Processing
Crossovers Configurable 2, 3, 4 way
Filters Asymmetrical, selectable 1st order, Butterworth 12/18/24 db/octave, LR 12/24 dB/octave
EQ 4-Band fully parametric, or 28 band GEQ
Delay Up to 683ms
Limiter See Zone Processing
AMM
Channels (AHM-16) 1x16
Channels (AHM-32) 1x32, 2x 16 or 4x 8
Modes D-Classic gain sharing or NOM
