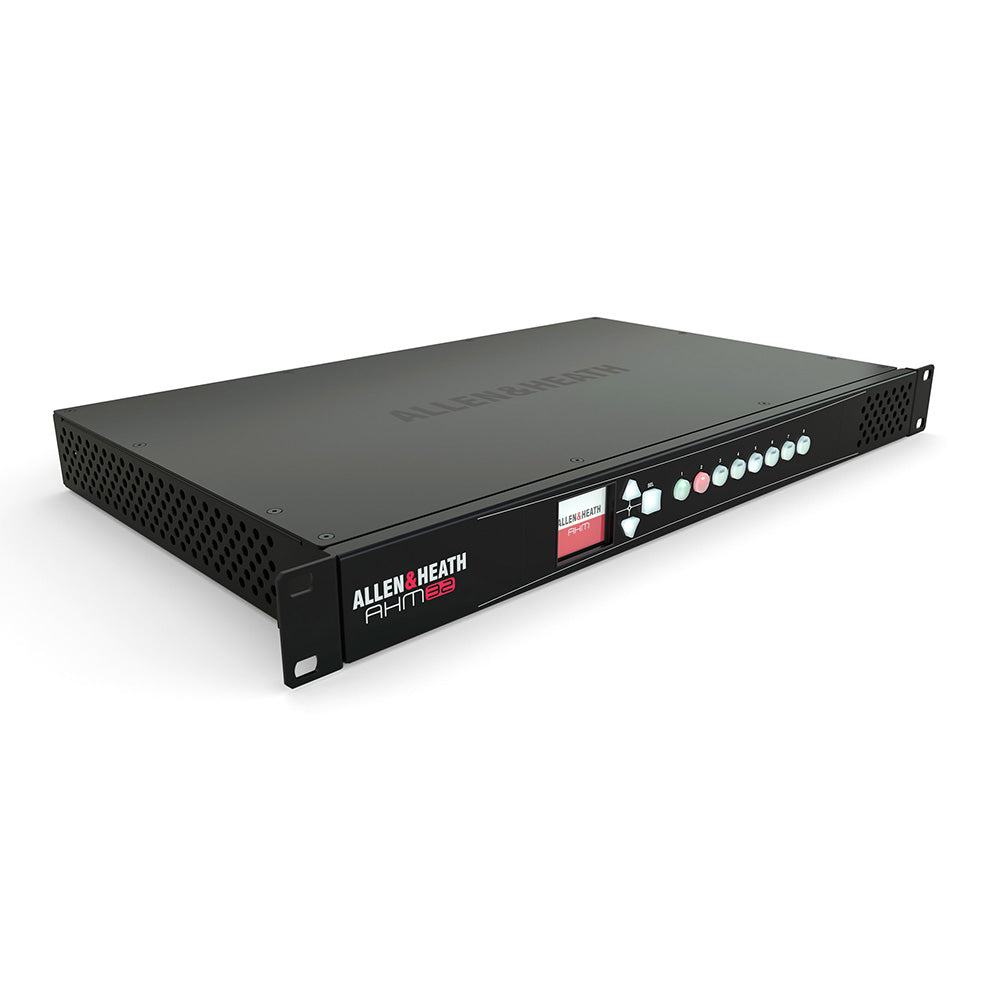

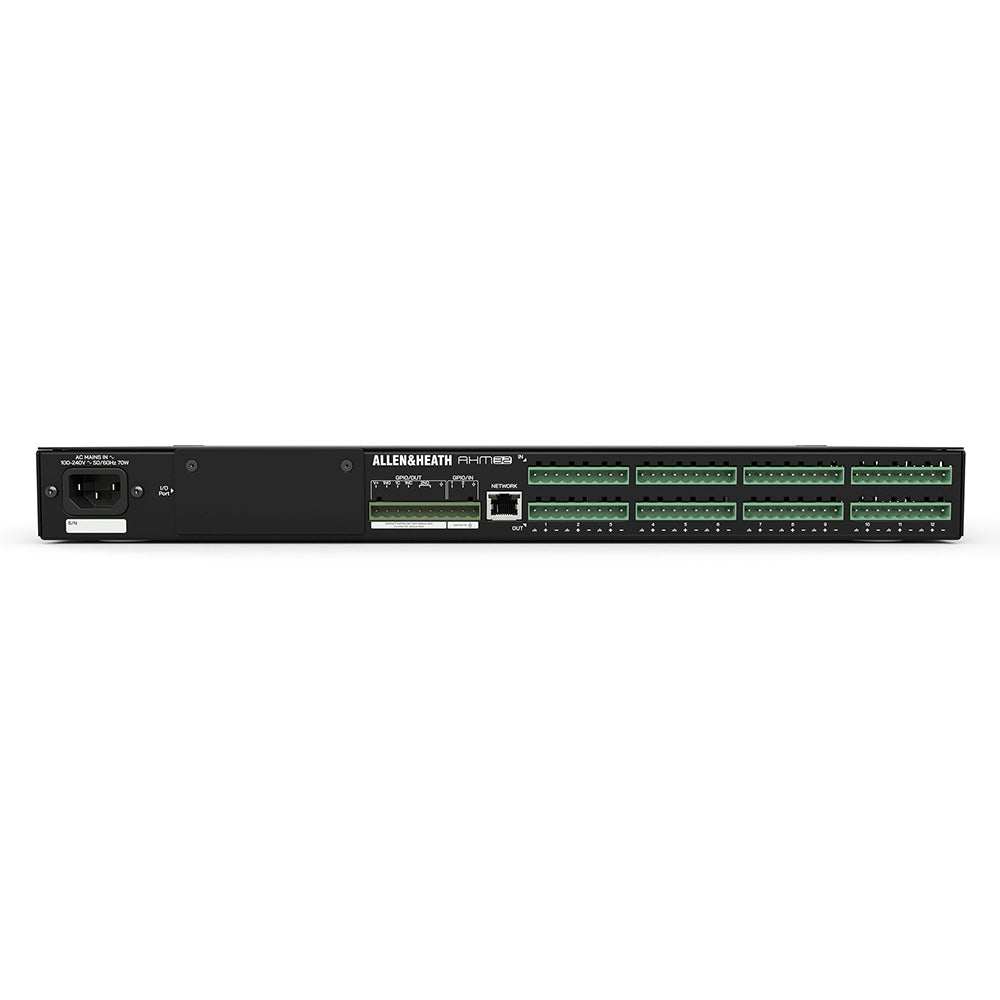

Allen and Heath AHM-32 - 32x32 Audio Matrix Processor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AHM-32 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi-purpose venues, retail, theatres, cruise ships and sports venues. The AHM-32 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software.
A family of portable, rack-mountable or wallmount audio expanders is available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols. A range of IP remote controllers is available for volume control, music source selection, preset recall and more. AHM can also integrate with third party devices over GPIO, TCP/IP, or industry standard control systems. The Custom Control editor and app from Allen and Heath offer more control options and tailored user interfaces for multiple users and device types, with kiosk and BYOD capability.
Features:
- 32x32 processing matrix
- 12x12 local analogue I/O
- I/O Port for audio networking, up to 128x128
- Dante 96kHz option card (AES67 and DDM ready)
- SLink 128x128 option card for audio expansion
- 32 configurable processing outputs – mono / stereo zones or speaker processing
- 96kHz FPGA core with ultra-low latency
- Front panel screen and navigation
- 8x SoftKeys
- Compatible with IP1, IP6, IP8 remote controllers
- 2x2 local GPIO plus networkable GPIO interface
- TCP/IP protocol for third party integration
- Crestron, AMX and Extron drivers
- Mac / Windows System Manager software
- Custom Control app and editor for BYOD
- 16 user profiles
- Integrated stereo playback
- Event scheduler
ALWAYS IN CONTROL

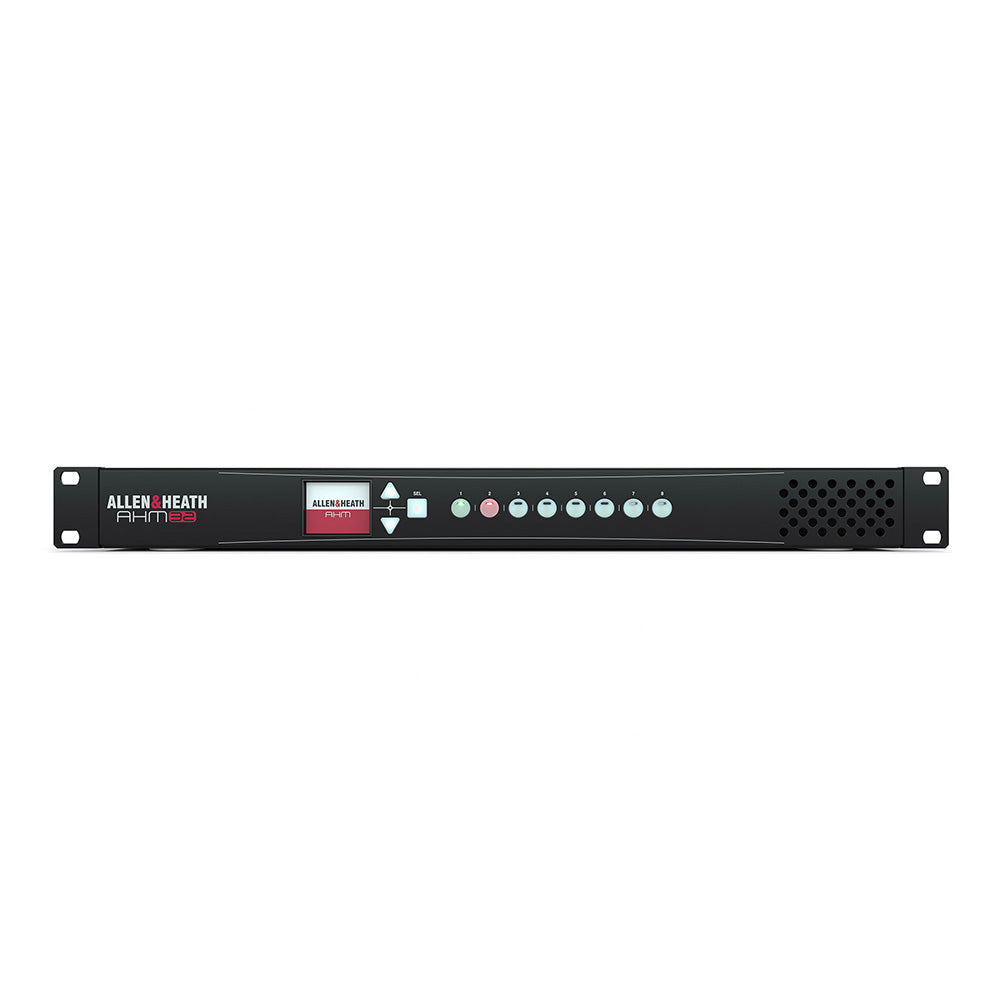

In addition to remote controllers, GPIO and 3rd party integration, AHM-32 has a front panel screen and 8x programmable SoftKeys for intuitive volume control, source select, preset recall and more.
ACOUSTIC ECHO CANCELLATION
The Acoustic Echo Cancellation (AEC) module for AHM-32 provides 12 channels of AEC and is designed for teleconferencing and videoconferencing scenarios.
SOUND MANAGEMENT
- 4x Automatic Mic Mixers
- ANC (Ambient Noise Compensation)
- Priority Ducking
- 8-band PEQ, dynamics and delay on every input and zone
- Speaker processing with x-over filter, delay, limiter and PEQ
| Inputs | |
| Mic/Line Inputs | Balanced, +48V phantom power |
| Mic/Line Preamp | Fully recallable |
| Input Sensitivity | -60 to +15dBu |
| Analogue Gain | +5 to +60dB, 1dB steps |
| Pad | -20dB Active PAD |
| Maximum Input Level | +30dBu (PAD in) |
| Input Impedance | 3k½ (Pad out), 8k½ (Pad in) |
| Mic EIN | -127dB with 150½ source |
| Outputs | |
| Analogue Outputs | Balanced, Relay protected |
| Output Impedance | 75½ |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output Level | +21dBu |
| Residual Output Noise | -92dBu (muted, 22-22kHz) |
| System, Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter) | |
| Dynamic Range | 108dB |
| System Signal to Noise | -92dB |
| Frequency Response | 20Hz - 20kHz +0/-0.5dB |
| THD+N (analogue in to out) | 0.005% @ +16dBu output, 1kHz +5dB gain |
| Headroom | +18dB |
| Sampling Rate | 96kHz +/- 20 PPM |
| Acoustic Noise | Typical loading, 22 deg C ambient |
| No I/O Port installed | 31dBA |
| With I/O Port installed | 33dBA |
| Dimensions and Weights | |
| Unboxed Width x Depth x Height x Weight | 482.6mm x 270mm x 44mm x 4kg (19Ó x 10.6Ó x 1.7Ó x 8.8lbs) |
| Boxed | 555 x 385 x 150 mm x 5.3kg (21.8Ó x 15.2Ó x 5.9Ó x 11.7lbs) |
| Operating Temperature Range | 0 deg C to 40 deg C (32 deg F to 104 deg F) |
| Mains Power | 100-240V AC, 50-60Hz, 65W max |
| Input Processing | |
| 32 Input Channels | Configurable mono or stereo |
| Trim | +/-24dB digital trim |
| Polarity | Normal/Reverse |
| Stereo Width Control | L/R, R/L, L -Pol/R, R -Pol/L, Mono, L/L, R,R, M/S |
| Gate | |
| Sidechain | Self-key or source selectable, with 12dB/octave Lo-Pass and Hi-Pass |
| Threshold | -72dBu to +12dBu |
| Depth | 0 to 60 dB |
| Attack | 50us to 300ms |
| Hold | 10ms to 5s |
| Release | 10ms to 1s |
| Insert | In/Out, +4dBu/-10dBV level |
| PEQ | |
| Type | 8-Band fully parametric, +/-15dB |
| Band 1 - 8 | Selectable LF/HF Shelving, Bell (variable or constant Q), Hi-Pass / LoPass |
| Bell Width | 0.50 Ð 6.00 Q |
| Shelving Type | Classic Baxandall |
| Hi-Pass, Lo-Pass Filter | 12dB/octave |
| Compressor | Peak or RMS sensing |
| Sidechain | Self-key or source selectable, with 12dB/octave Lo-Pass and Hi-Pass |
| Threshold | -46dBu to 18dBu |
| Compressor parameters | Threshold, Ratio, Attack, Release |
| Delay | Up to 683ms |
| Zone Processing | |
| Up to 32 Zones | Configurable mono or stereo |
| Source Selector | Up to 20 sources, variable level, Fade In and Fade Out time under 20s |
| Insert | In/Out, +4dBu/-10dBV level |
| GEQ | 28 bands 31Hz -16kHz, +/-12dB, constant-Q |
| PEQ | See Input Processing |
| Compressor | See Input Processing |
| Delay | Up to 683ms |
| ANC | |
| Ambient Level | Selectable source and metering point, Gain Differential -18dB to 40dB |
| Gap | Selectable source and metering point, Threshold -62dB to -20dB, Time 05000ms |
| Gain Element | Min / Max Gain, Rate 0-30dB/s |
| Limiter | Variable Threshold, Attack and Release |
| Speaker Processing | |
| Crossovers | Configurable 2, 3, 4 way |
| Filters | Asymmetrical, selectable 1st order, Butterworth 12/18/24 db/octave, LR 12/24 dB/octave |
| EQ | 4-Band fully parametric, or 28 band GEQ |
| Delay | Up to 683ms |
| Limiter | See Zone Processing |
| AMM | |
| Channels (AHM-16) | 1x16 |
| Channels (AHM-32) | 1x32, 2x 16 or 4x 8 |
| Modes | D-Classic gain sharing or NOM |
