Allen and Heath Avantis - 64-Channel Digital Mixer with dPack Software Bundle

  • Dale #:

    ALLE-AHAVANTISWDPACK
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The third mixer based on our 96kHz XCVI FPGA engine, Avantis puts all our next-generation technology in a 64 channel / 42 configurable bus console, with dual Full HD touchscreens, a super-flexible workflow with Continuity UI, extensive I/O options, add-on processing from our flagship dLive mixing... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The third mixer based on our 96kHz XCVI FPGA engine, Avantis puts all our next-generation technology in a 64 channel / 42 configurable bus console, with dual Full HD touchscreens, a super-flexible workflow with Continuity UI, extensive I/O options, add-on processing from our flagship dLive mixing system, and a rugged full metal chassis. Step up to Avantis. Leap ahead of the curve.

Features:

  • 96kHz 64 channel / 42 bus digital mixer
  • XCVI FPGA core with ultra-low latency (0.7ms)
  • Fully configurable mix bus architecture
  • Super-tough, full metal chassis
  • Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
  • dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp
  • 12 RackExtra FX slots with dedicated stereo returns
  • 16 DCAs
  • Dual 15.6" Full HD capacitive touchscreens with gesture control
  • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
  • Fully assignable layout
  • 144 fader strips (24 faders, 6 layers) with optional dedicated master section
  • SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
  • 12 analogue XLR Inputs / 12 analogue XLR Outputs
  • 1 Stereo AES In / 2 Stereo AES Out
  • 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
  • User configurable rotary controls
  • 24 assignable SoftKeys
  • Comprehensive metering with multi-point peak detection
  • Internal storage for stereo playback and recording
  • USB stereo playback
  • BNC Word Clock


The power of Avantis emanates from the XCVI Core – pioneered by the Allen + Heath R+D team using next generation FPGA technology, with parallel virtual processing cores generating enough power for 88×42 (including FX returns) channels of processing at 96kHz sampling rate.

The massive power of XCVI (25 billion operations per second) allows Avantis to deliver 64 full processing inputs and 12 stereo FX returns, 42 bus with configurable mix architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class-leading latency at an ultra-low 0.7ms.

It's your mixer so mix your way.
With a massive 206 square inches of screen space operating at a crisp 1080p Full HD resolution, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the displays.

The faders react on touch to immediately highlight the active channels for instant visual feedback.

The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank.

Each screen also features a FastGrab tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel.

The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.

EVERYTHING I/O
A complete ecosystem of remote expanders. Whether you’re an owner/operator looking to build a compact system, or a rental company with existing Allen + Heath stock, the SLink connection on Avantis allows true flexibility by connecting to the entire range of Allen + Heath audio expander hardware.

Add a Dante card to your system and you’ve got even more options, with our dedicated Dante expanders, DT168 and DT164-W.

Get acclaimed dLive processing. Inside your Avantis.

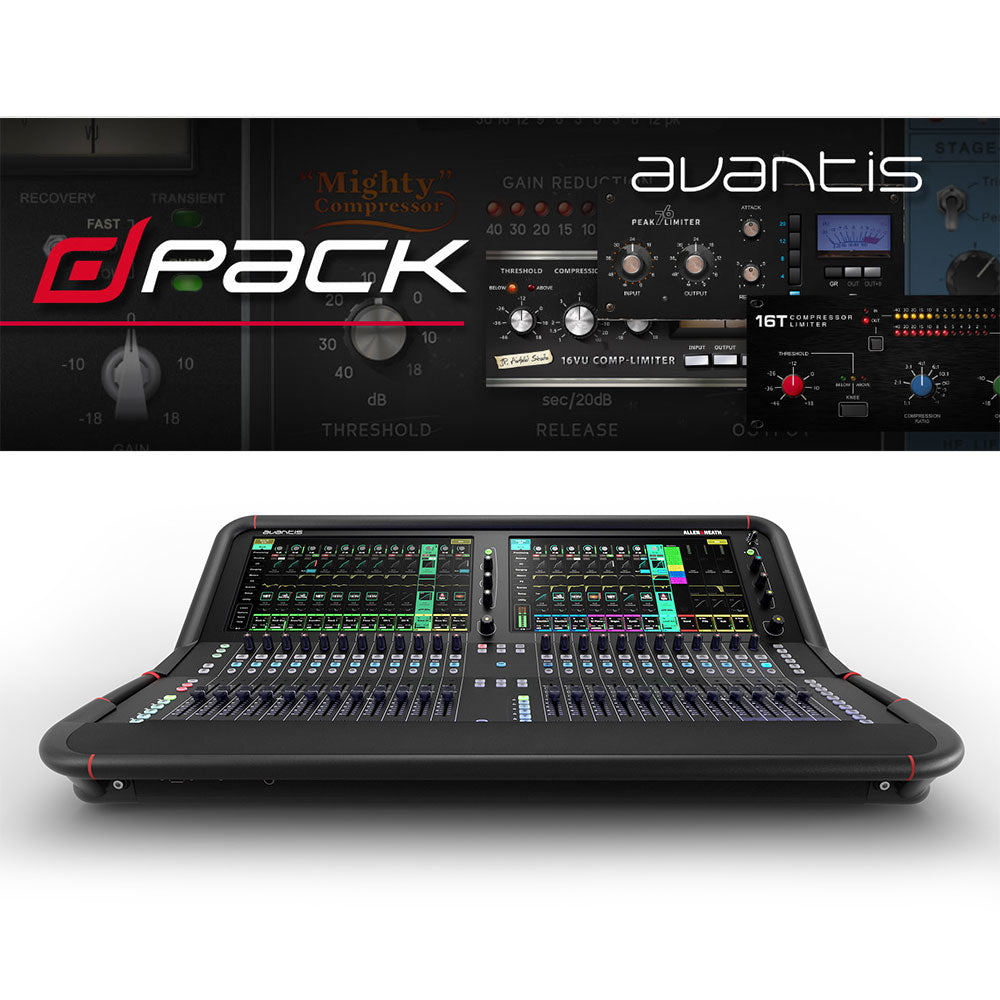

Right out of the box, Avantis is loaded with powerful processing tools that will easily meet the demands of most users and applications. Want more options? Upgrade your console with Avantis dPack to get additional dLive processing including Dyn8 (up to 16 instances), DEEP Compressors, and the Dual Stage Valve Preamp, plus more models as they’re added.

dPACK - DEEP
Trusted by platinum selling artists on sellout tours, DEEP puts incredible emulations directly within Avantis’ input and mix channels with zero latency. No burning FX slots, no 3rd party gear hassles and no issues with latency or phase coherency.

dPACK - DYN8
Avantis dPack also delivers Dyn8, a powerful and sophisticated processor boasting 4 bands of dynamic EQ and 4 bands of multiband compression. With endless applications including taming vocals, tightening sub-groups or adding sonic glue to a mix, Dyn8 changes the way we think about dynamic processing. dPack enables 16 Dyn8 engines for inserting on Input and Mix channels.

Avantis can be controlled using the Avantis Director software, MixPad app, Custom Control app or from our range of remote controllers and GPIO interfaces, with up to 48 IP remote controllers over a standard TCP/IP network. Applications include control of IEM mixes on stage, extra fader banks at FOH, and local control in breakout rooms.

12 dedicated fx rack slots. And no compromises.
Trust us, these are not your usual built-in effects. Allen + Heath has a well-earned reputation for crafting FX emulations that rival the very best third party plug-ins, but with none of the associated hassle.

With a passion bordering on obsession, we’ve created a suite of FX inspired by some of the most revered outboard equipment, including pristine reverbs, detailed delays, and wonderful classic modulation effects.

Best of all, we offer our 12 FX slots with no compromises. Each effect takes up just one of the 12 slots, and each of the 12 FX slots has a dedicated stereo return - so you don’t need to waste your input channels.

Lightweight and super-strong.

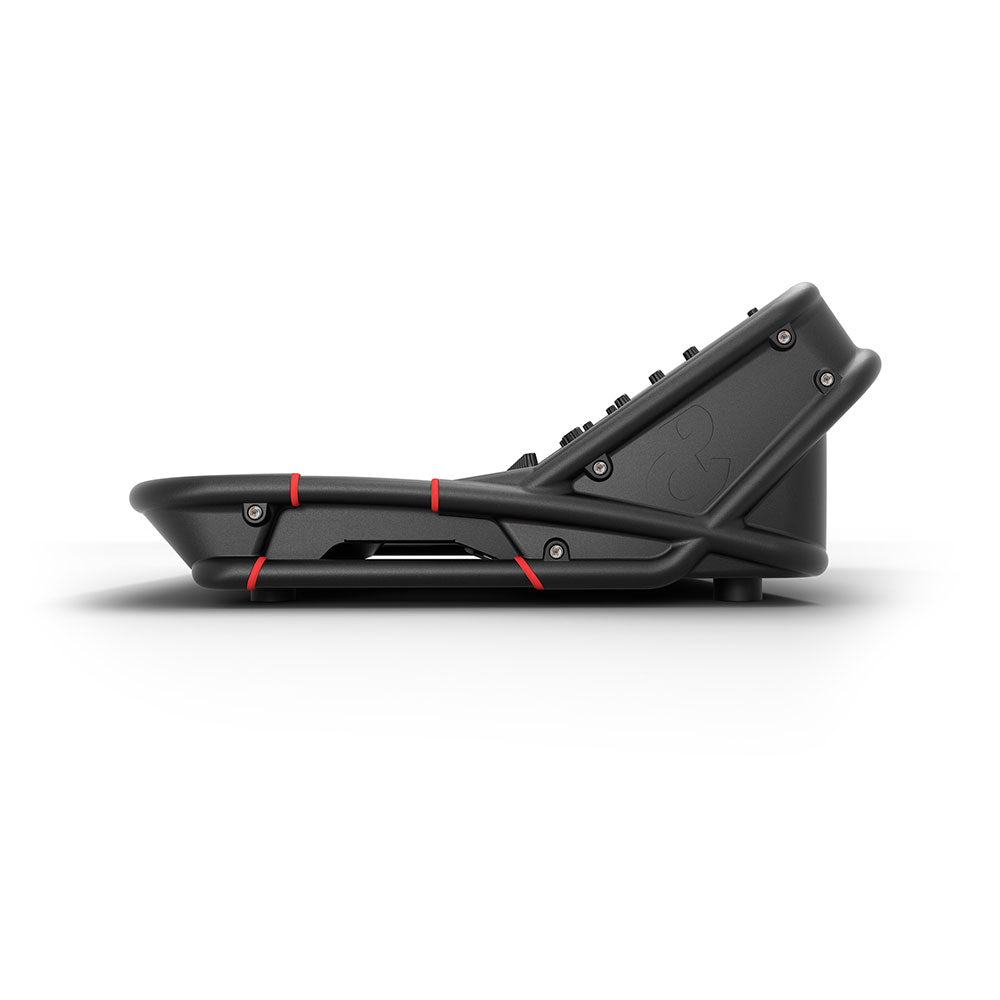

You’ve probably noticed that Avantis is not just another dull grey box mixer with plastic sides. Part-inspired by the tubular exo skeletons of the latest generation of superbikes, those sleek curves are all metal - super tough - but lightweight.

Because every part of Avantis was designed in pursuit of performance and reliability, we subjected it to some of the most rigorous testing we’ve ever embarked upon. And it took it all.

Editor + Control. Offline and Online.
Avantis Director is a free Windows and Mac OS application enabling offline editing and online control capabilities. Offline mode can be used for the creation and editing of show files and system configuration, as well as serving as a training tool for new users. Online mode delivers full remote-control of the mixer, freeing the engineer from the mix position to make changes from anywhere in the venue.

Remote mixing. Personal monitoring.

MixPad
Avantis MixPad is an engineer’s mixing tool providing wireless mobile control for Allen + Heath Avantis digital mixers. It gives you the freedom to walk the room or stage and control the sound right where it is needed. Avantis MixPad and the Avantis mixer can work together to provide simultaneous control of independent functions, for example one engineer using the mixer to mix front-of-house sound, and another using the iPad to mix monitors on stage. Several iPads can be connected, each providing independent control.

OneMix
OneMix is a cut down version of the Avantis MixPad app that locks control to a single Aux (monitor) mix. Multiple iPads may be set up by the 'Admin' user to give each musician customised personal monitor control via Wi-Fi connection to Avantis without the risk of affecting the other monitors or FOH main mix. Avantis OneMix can be configured to provide as much or as little control as needed.

Dante. Waves. And so much more.

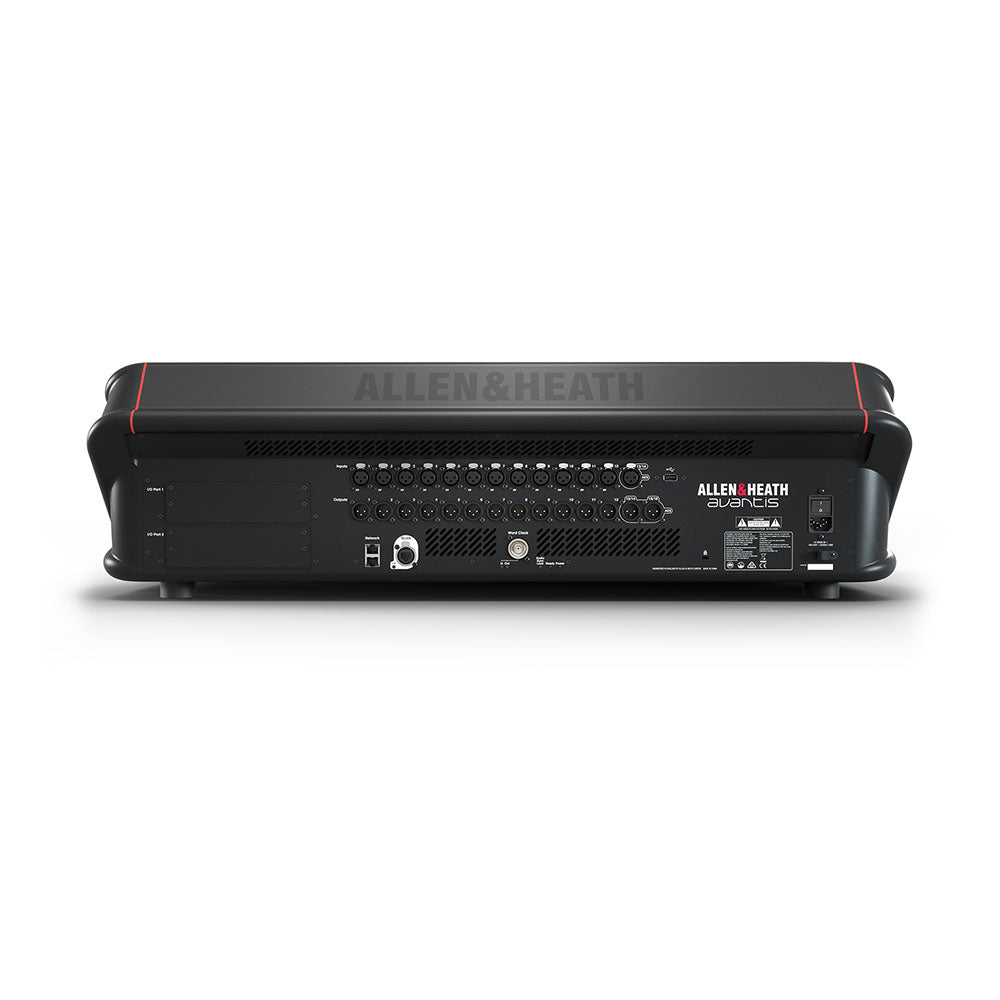

For local I/O, Avantis is well equipped with 12 XLR analogue inputs, 12 XLR analogue outputs, plus AES (Stereo In, 2x Stereo Out).

Two additional I/O Ports allow Avantis to benefit from the full range of current dLive option cards, including Dante (64x64 and 128x128), Waves, gigaACE, MADI and more, expanding the scope for system integration, FoH / monitor splits and multitrack recording.

More +

Product Specs

Inputs
Mic/Line XLR Inputs Balanced XLR, +48V phantom power
Mic/Line Preamp Fully recallable
Input Sensitivity -60 to +15dBu
Analogue Gain +5 to +60dB, 1dB steps
Pad -20dB Active PAD
Maximum Input Level +30dBu (PAD in)
Input Impedance >4kΩ (Pad out), >10kΩ (Pad in)
Mic EIN -127dB with 150Ω source
Phantom Power indication Per socket, internal or external phantom power sensing, triggered at +24V
Digital Inputs AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
SRC range 24 bit, 32k - 192kHz, with bypass option
Outputs
Analogue XLR Outputs Balanced, Relay protected
Output Impedance <75Ω
Nominal Output +4dBu = 0dB meter reading
Maximum Output Level +22dBu
Residual Output Noise -95dBu (muted, 22-22kHz)
-90dBu (muted, 0-80kHz)
Digital Outputs AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
Sampling Rates 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz
System
Measured balanced XLR In to XLR Out, 22-40kHz, minimum Gain, Pad out
Dynamic Range 109dB
System Signal to Noise -92dB
Frequency Response 20Hz - 30kHz (+0/-0.8dB)
THD+N (analogue in to out) 0.0015% @ +16dBu output, 1kHz 0dB gain
Headroom +18dB
Internal operating Level 0dBu
dBFS Alignment +18dBu = 0dBFS
(+22dBu at XLR output)
Meter Calibration 0dB meter = -18dBFS
(+4dBu at XLR out)
Meter Peak indication -3dBFS (+19dBu at XLR out)
Sampling Rate 96kHz
Environmental
Operating Temperature Range 0 deg C to 40 deg C
32 deg F to 104 deg F
Mains Power 100-240V AC, 50-60Hz, 150W max
USB Audio
Playback Mono/stereo .WAV files,
16/24bit, 44.1/48/96kHz
MP3 files
FLAC files
USB Audio recording Stereo .WAV files,
24bit 96kHz
Dimensions Unboxed Width x Depth x Height 917 x 627 x 269 mm
36.1" x 24.7" x 10.6"
Boxed Width x Depth x Height 1100 x 850 x 425 mm
43.3" x 33.5" x 16.7"
Net Weight 26kg
57.4lbs
Boxed Weight 34kg
75lbs
