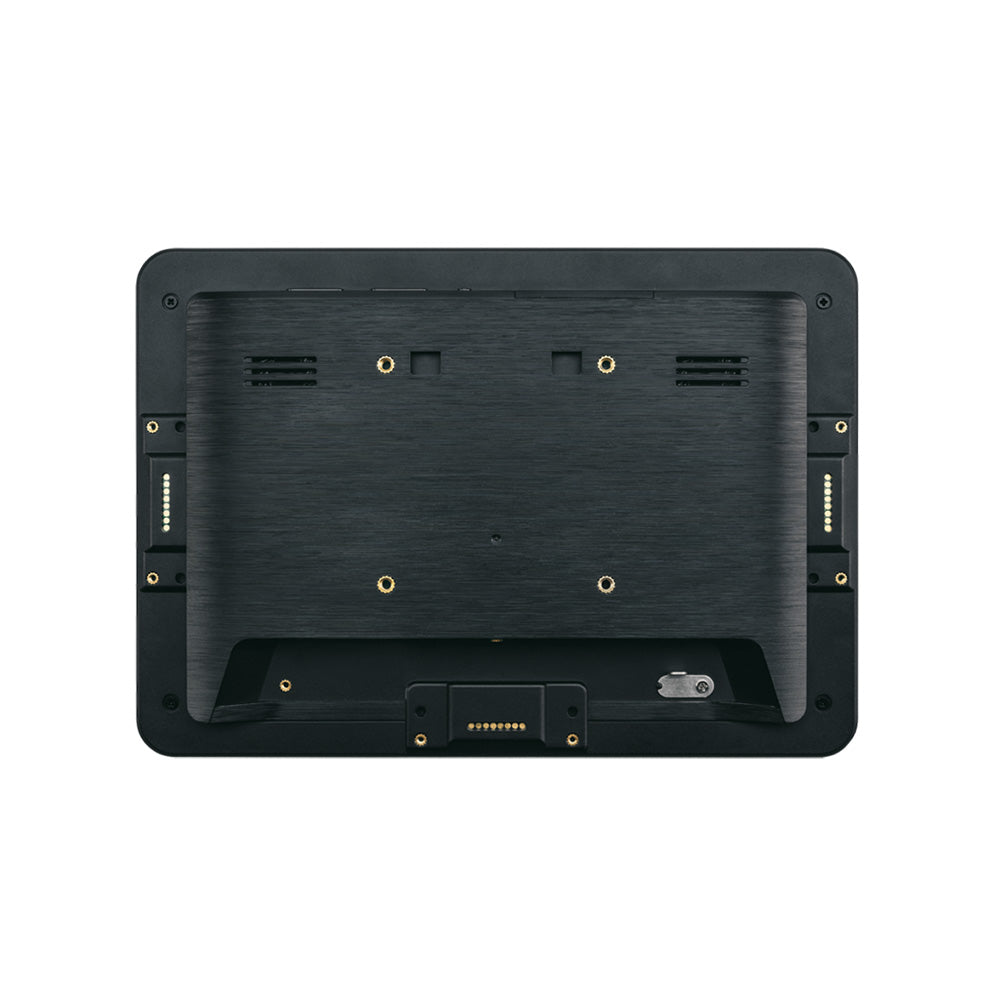

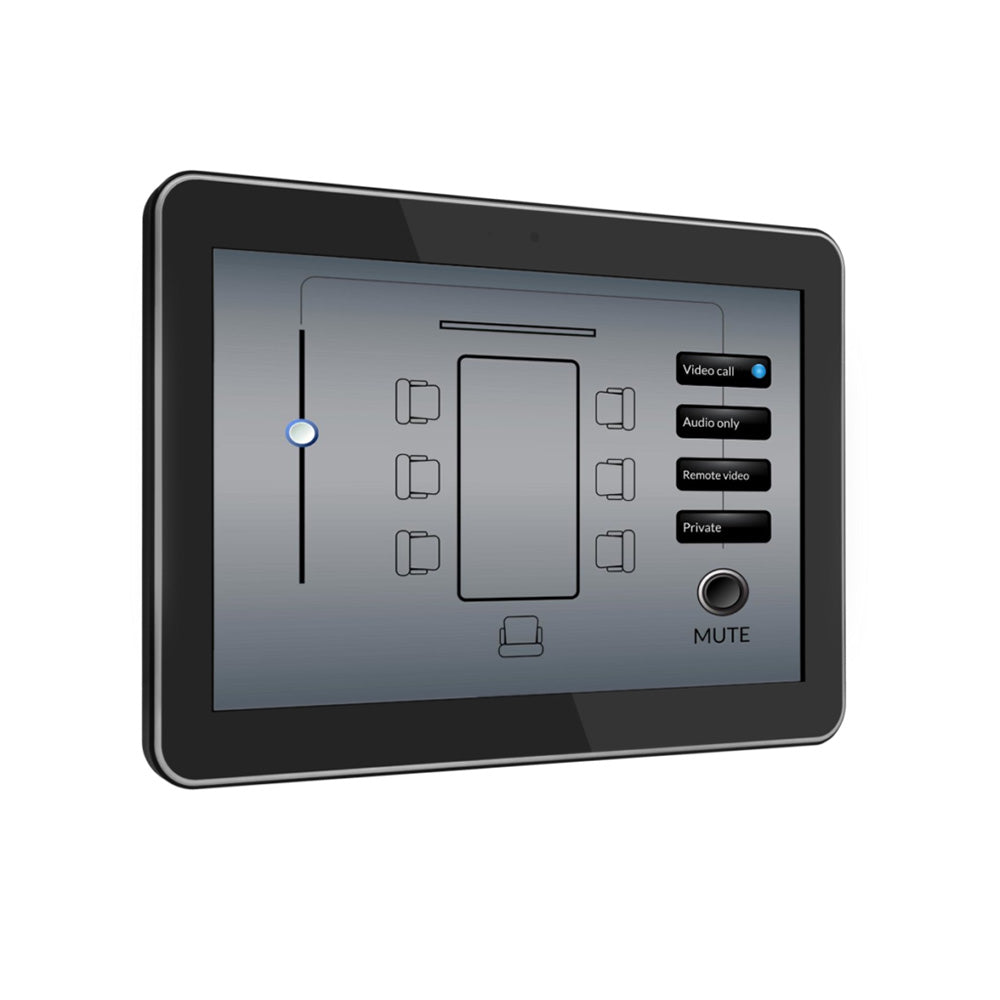

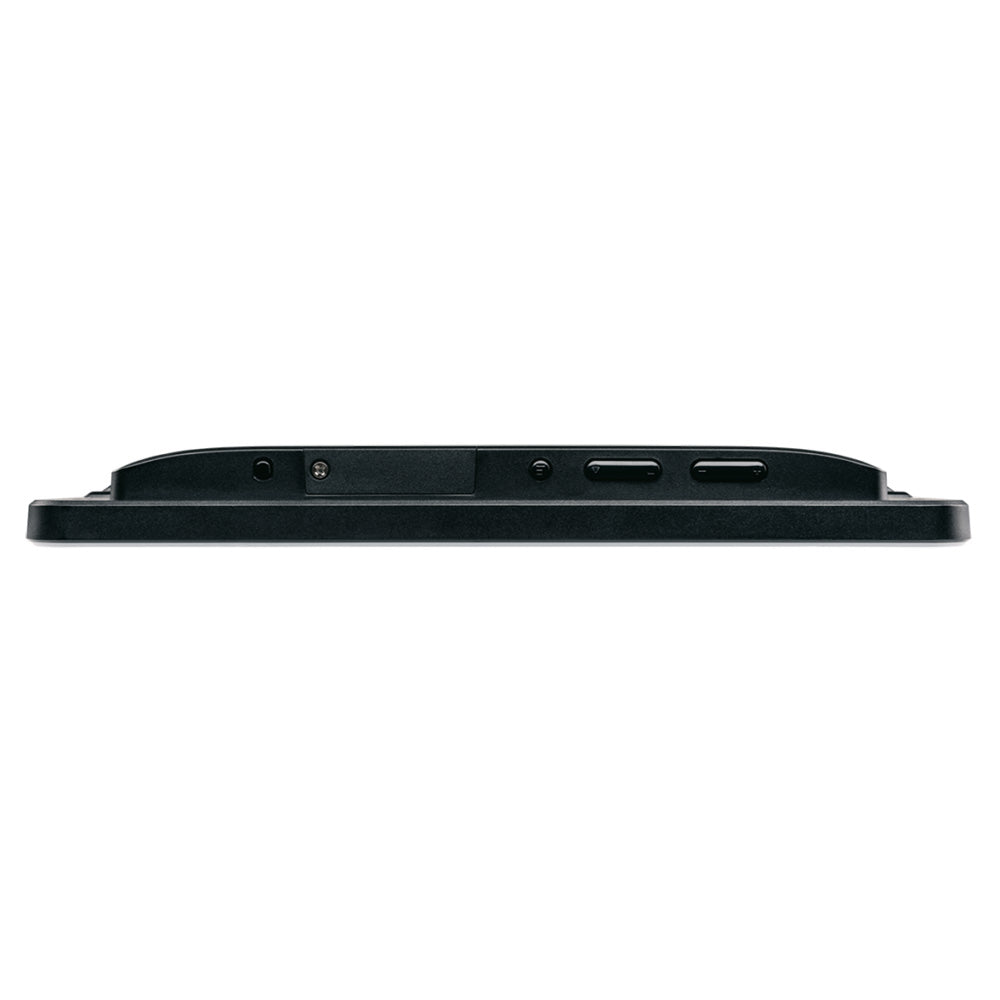

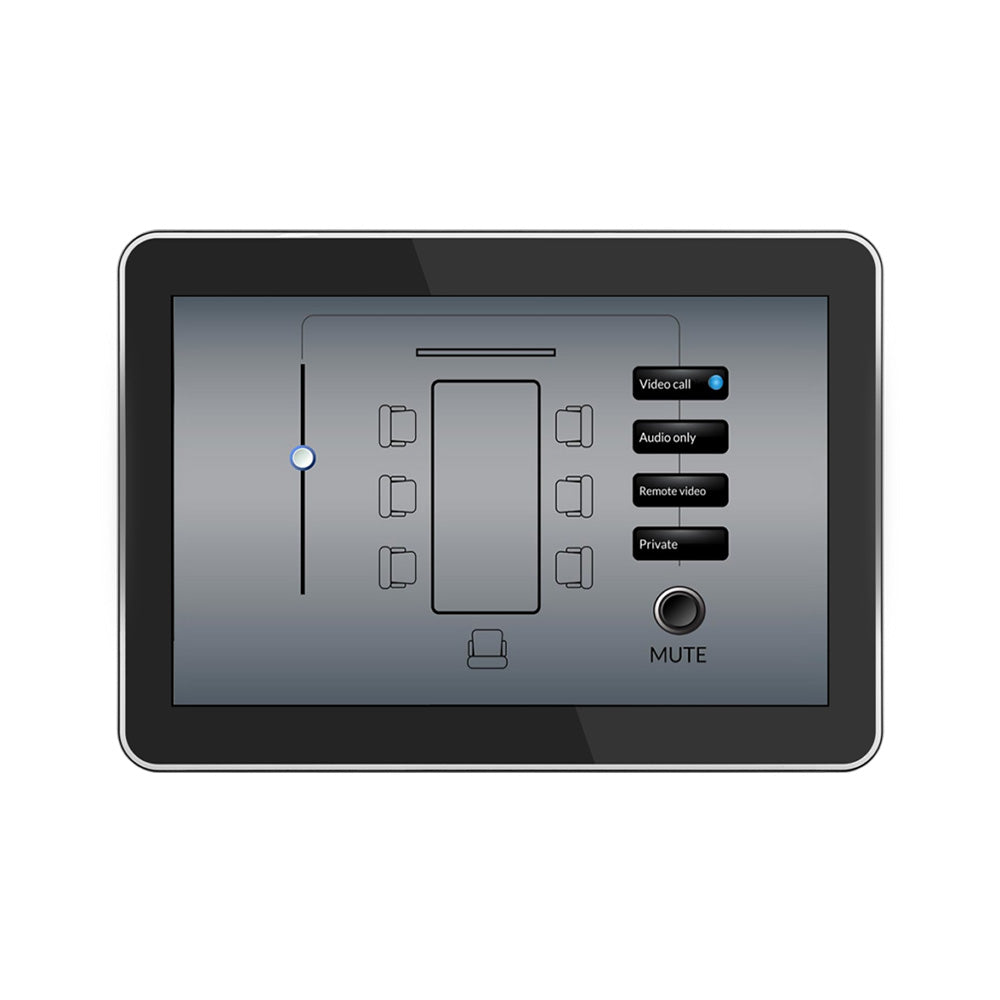

Allen and Heath CC-10 - Touch Controller for AHM or Avantis Systems

  • Dale #:

    ALLE-AHCC10
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Perfect companions for AHM matrix processors, dLive or Avantis systems in installations, CC-7 and CC-10 are control touch panels for desktop or wall mount use. Powered by the Allen and Heath Custom Control app, they can operate as fixed control devices or complementing a BYOD solution. From simpl... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Perfect companions for AHM matrix processors, dLive or Avantis systems in installations, CC-7 and CC-10 are control touch panels for desktop or wall mount use. Powered by the Allen and Heath Custom Control app, they can operate as fixed control devices or complementing a BYOD solution. From simple music source selection to level control, preset recall or paging, they offer an alternative to our range of IP remote controllers for applications where a touchscreen interface is preferred.

Configured to run Custom Control in kiosk mode, the app prevents any unauthorised operation, securing the settings of the panel. The installer, integrator or system admin can exit the app to change the touch panel settings such as IP address or brightness, or to update the software.

Features:

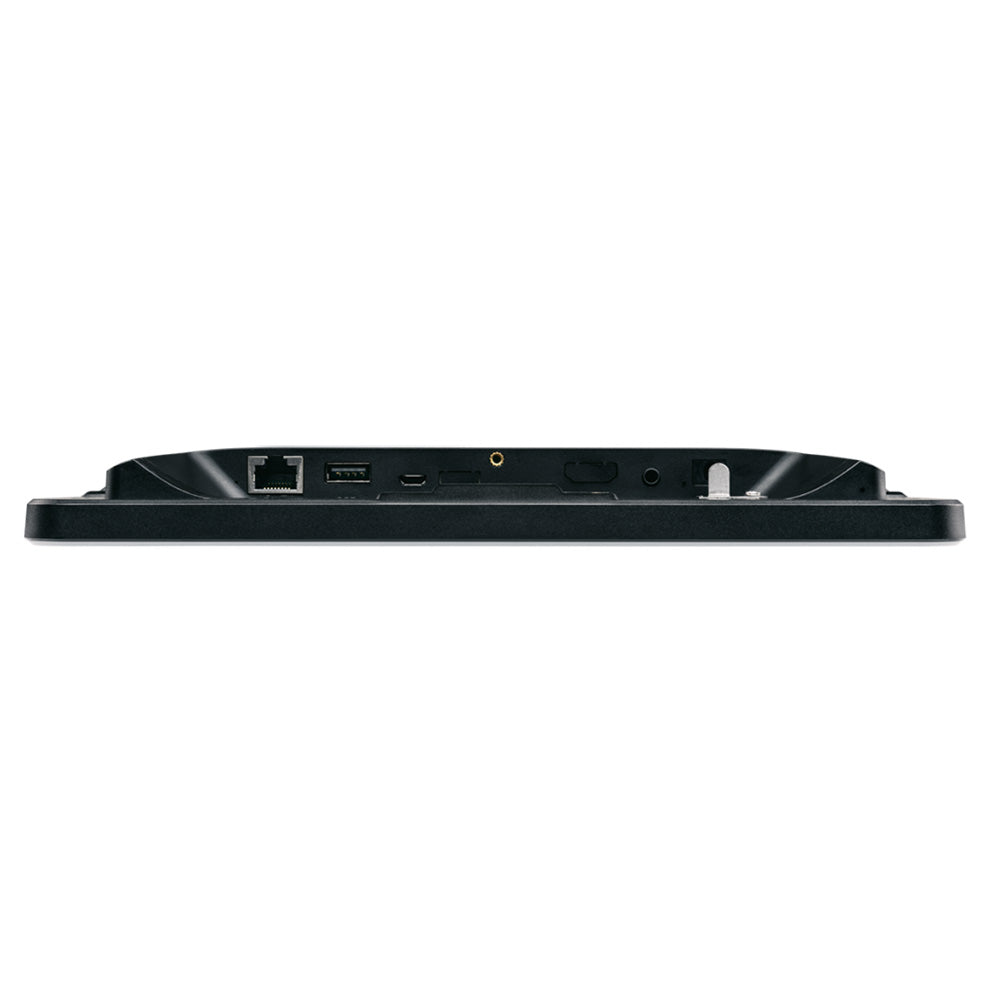

  • PoE or DC 12V powered
  • Gigabit Ethernet port
  • USB-A port for Custom Control updates
  • VESA 75x75 mounting
  • Desktop stand (CC-STN) and wall/glass mount bracket (CC-BRK) available

More +

Product Specs

DC Input +12V DC 2A
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
PoE Requirements 802.3af 15W
Screen Capacitive, 5 point touch projected
Resolution 1280x800
Brightness 500 cd/m2
Viewing Angle H 160° / V 160°
Contrast Ratio 800:1
Aspect Ratio 16:10

More +
