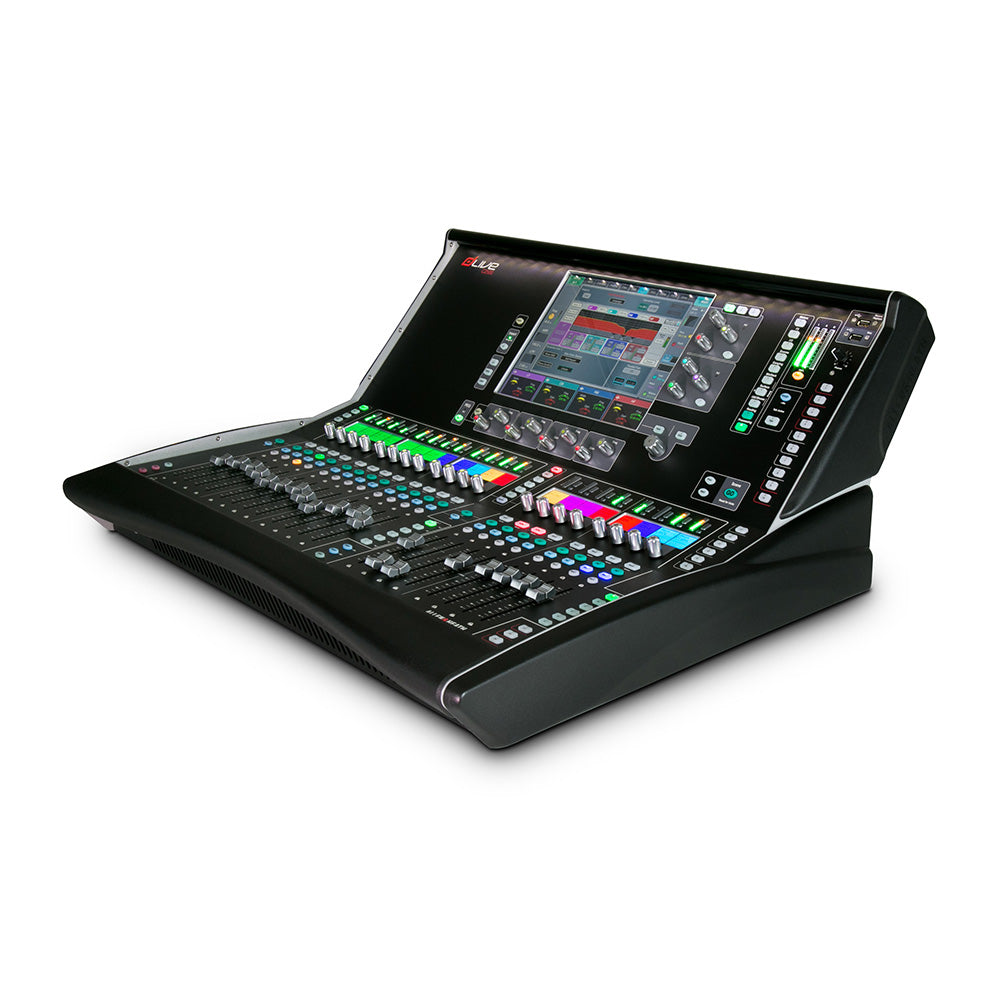

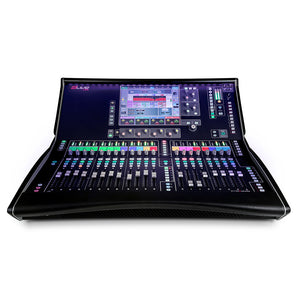

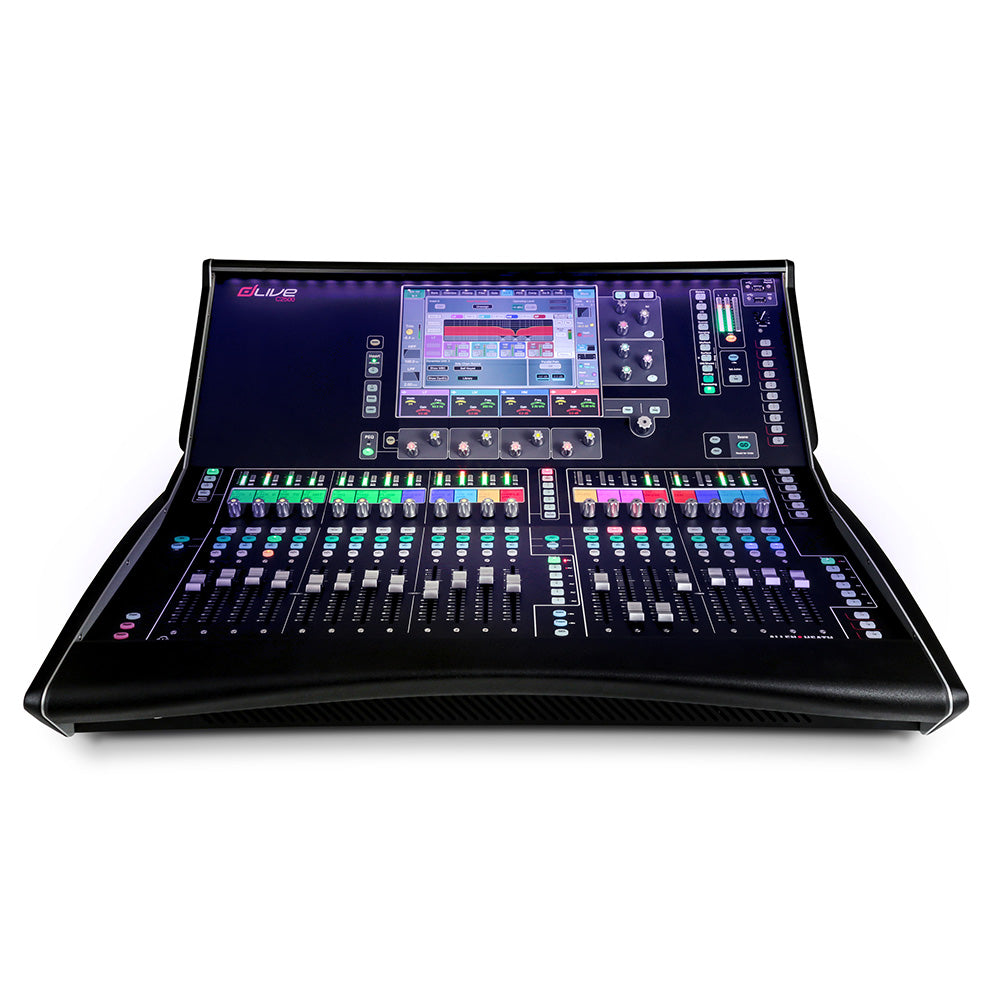

Allen and Heath dLive C2500 20-Fader Digital Mixing Surface

  • Dale #:

    ALLE-DLIVEC2500
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The C2500 is a small-footprint yet powerful control Surface for the dLive MixRack. It features 20 faders over 6 layers, built-in audio I/O, an audio networking port, a 12" capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry. Features: 20 faders Ful... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The C2500 is a small-footprint yet powerful control Surface for the dLive MixRack. It features 20 faders over 6 layers, built-in audio I/O, an audio networking port, a 12" capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.

Features:

  • 20 faders
  • Fully assignable layout - 120 fader strips
  • Harmony UI integrates screen and wrap-around controls
    • Single 12" capacitive touchscreen
    • Gesture control - pinch, swipe, drag 'n drop
    • Dedicated multi-mode EQ view
    • Configurable widget areas for Scenes, meters, FX and more
    • 3 pages of 6 assignable rotaries
  • 19 assignable SoftKeys
  • Engineer's Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback
  • 6 XLR mic/line in, 6 XLR line out
  • 1 digital st AES3 in, 1 digital st AES3 out

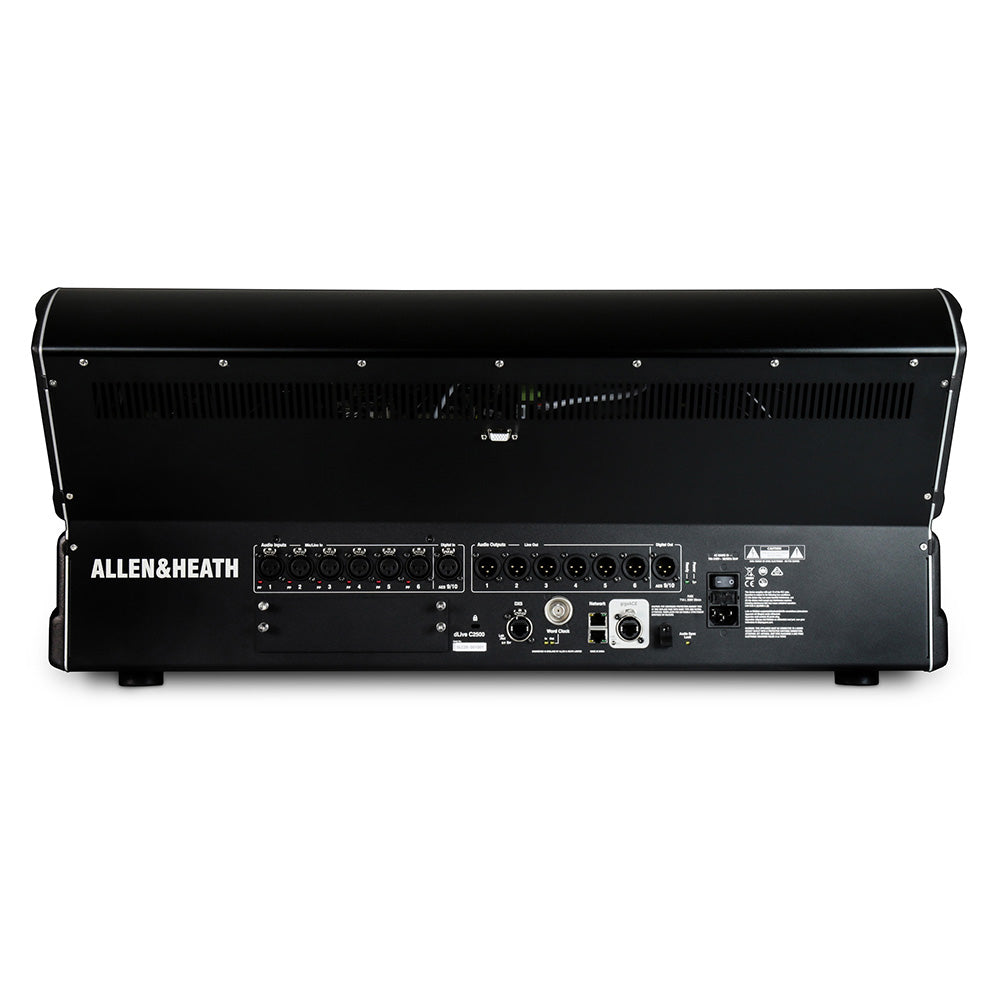

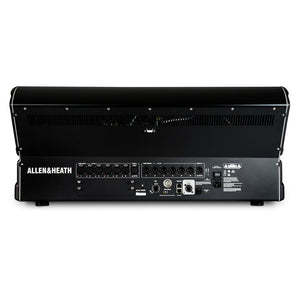

  • Connection hub
    • GigaACE gigabit link to MixRack
    • DX link for I/O expansion
    • I/O Port - 128 ch 96 kHz
    • 2x Network ports
    • Wordclock BNC I/O
    • Video output


HARMONY USER INTERFACE
Where many digital consoles are still trying to recreate the experience of using an analogue mixer, dLive is a true digital native, drawing on our familiarity with the ubiquitous smartphones and tablets that we all use without thinking. C2500's 12" capacitive touchscreen feels instantly familiar, responding to every pinch, swipe, drag and drop exactly how you'd expect them to. Bespoke 'widget' areas can also be set up on the screen to keep track of scenes, meters, FX and other custom controls. The screen is complemented by a set of rotary controls, allowing the creativity and immediacy of tactile control over key processing functions, working in harmony with the visual feedback displayed on the screen. The high-grip rotary knobs offer precision control, and feature RGB illumination, with colours mapped to functions for instant

TRANSPARENT WORKFLOW
C2500's layout is fully customisable, allowing the user to create a mixing interface that reflects their own mental map of the show, or for an installer to set up the surface to match the venue and the experience levels of the operators. Throughout the dLive journey our guiding aim has been to create fast and transparent workflows that allow the operator to focus on the mix, not the mixer. Every input or mix can be assigned to any and every bank and / or layer, virtual scribble strips allow inputs and mixes to be clearly named and colour coded for at-a-glance navigation, and there are 19 assignable SoftKeys, plus 3 pages of 6 assignable rotaries.

More +

Product Specs

Inputs
Mic/Line XLR Inputs Balanced XLR, +48V phantom power
Mic/Line Preamp Fully recallable
Analogue Gain +5 to +60dB, 1dB steps
Pad -20dB Active PAD
Maximum Input Level +30dBu (PAD in)
Input Impedance >4kΩ (Pad out), >10kΩ (Pad in)
Mic EIN -127dB with 150Ω source
Phantom Power indication Per socket, internal or external phantom power sensing, triggered at 24V
Digital Inputs
Type AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
SRC range 32k - 192kHz, with bypass option
Outputs
Analogue XLR Outputs Balanced, Relay protected
Output Impedance <75Ω
Nominal Output +4dBu = 0dB meter reading
Maximum Output Level +22dBu
Residual Output Noise -92dBu (muted, 20-20kHz)
-90dBu (muted, 20-40kHz)
Digital Outputs
Type AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
Rates 96kHz sampling rate, switchable to 48kHz, 44.1kHz
System
Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out

Dynamic Range 110dB
Input Sensitivity -60 to +15dBu
System Signal to Noise -92dB
Frequency Response 20Hz - 30kHz +0/-0.8dB
THD+N (analogue in to out) 0.0015% @ +16dBu output, 1kHz 0dB gain
Headroom +18dB
Internal operating Level 0dBu
dBFS Alignment +18dBu = 0dBFS (+22dBu at XLR output)
Meter Calibration 0dB meter = -18dBFS (+4dBu at XLR out)
Meter Peak indication -3dBFS (+19dBu at XLR out)
Sampling Rate 96kHz +/- 20 PPM
ADC 24-bit Delta-Sigma
DAC 24-bit Delta-Sigma
Latency 0.7 ms (MixRack XLR in to XLR out, Input to Mix)
+ 5 samples, Surface to Mixrack (GigaACE hop)
+ 8 samples, DX32 to Mixrack (DX hop)
Operating Temperature Range 0 deg C to 35 deg C (32 deg F to 95 deg F)
Mains Power 100-240V AC, 50-60Hz, 110W max
USB Audio playback Mono/stereo .WAV files, 16/24bit, 44.1/48/96kHz
USB Audio recording Stereo .WAV files, 24bit 96kHz
Dimensions and Weights
Width x Depth x Height x Weight 665 x 775 x 325 mm (26.2 x 30.5 x 12.8") x 24.5kg (54lbs)
Width x Depth x Height x Weight, Boxed 870 x 950 x 480 mm (34.3 x 37.4 x 18.9") x 33kg (72.8lbs)
