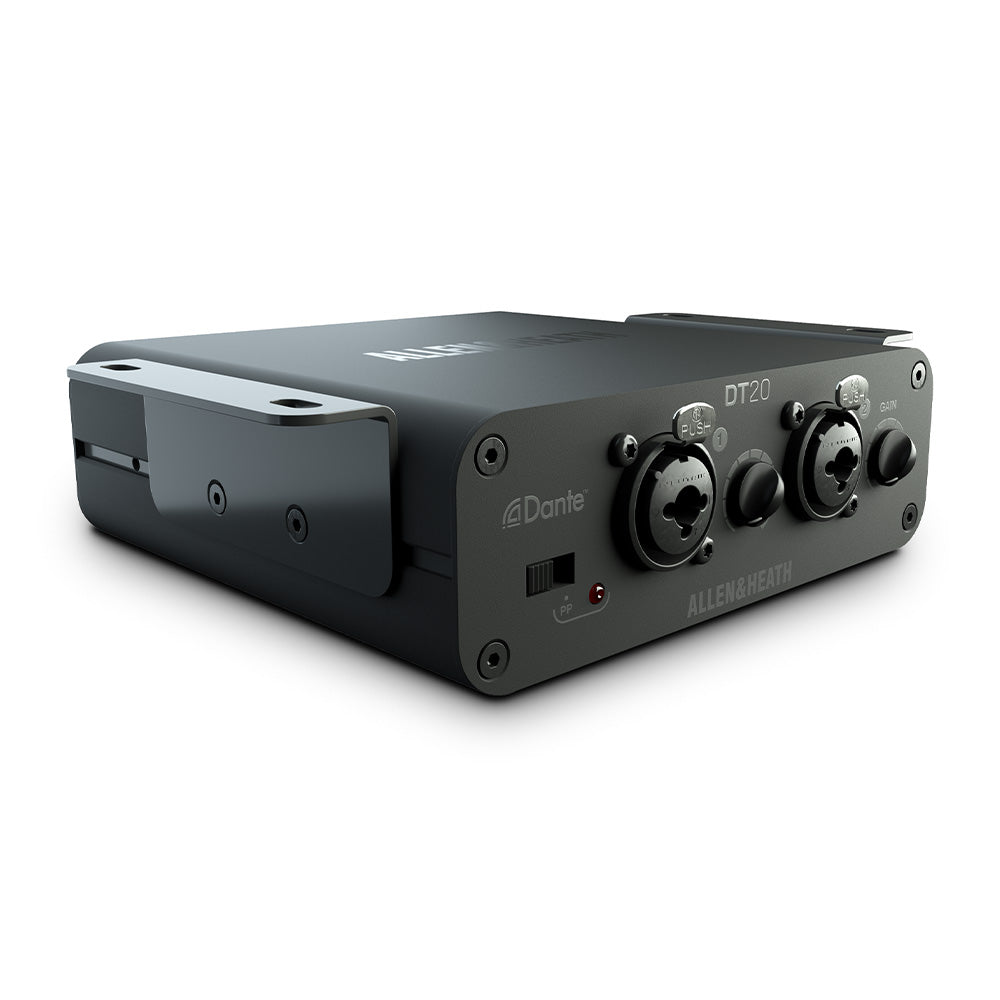

Allen and Heath DT-20-M - Analog to Dante Input Interface with Ears / No PSU
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.
Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen and Heath mixer or AHM system, as well as in third party Dante systems.
Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection – or rack-mounted wherever required – on stage, or at FoH.
The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).
Features:
- Dante input interface, 48kHz/96kHz
- 2x combi mic/line inputs
- Local gain control
- 48V phantom power with LED indicator
- PoE powered or DC 12V

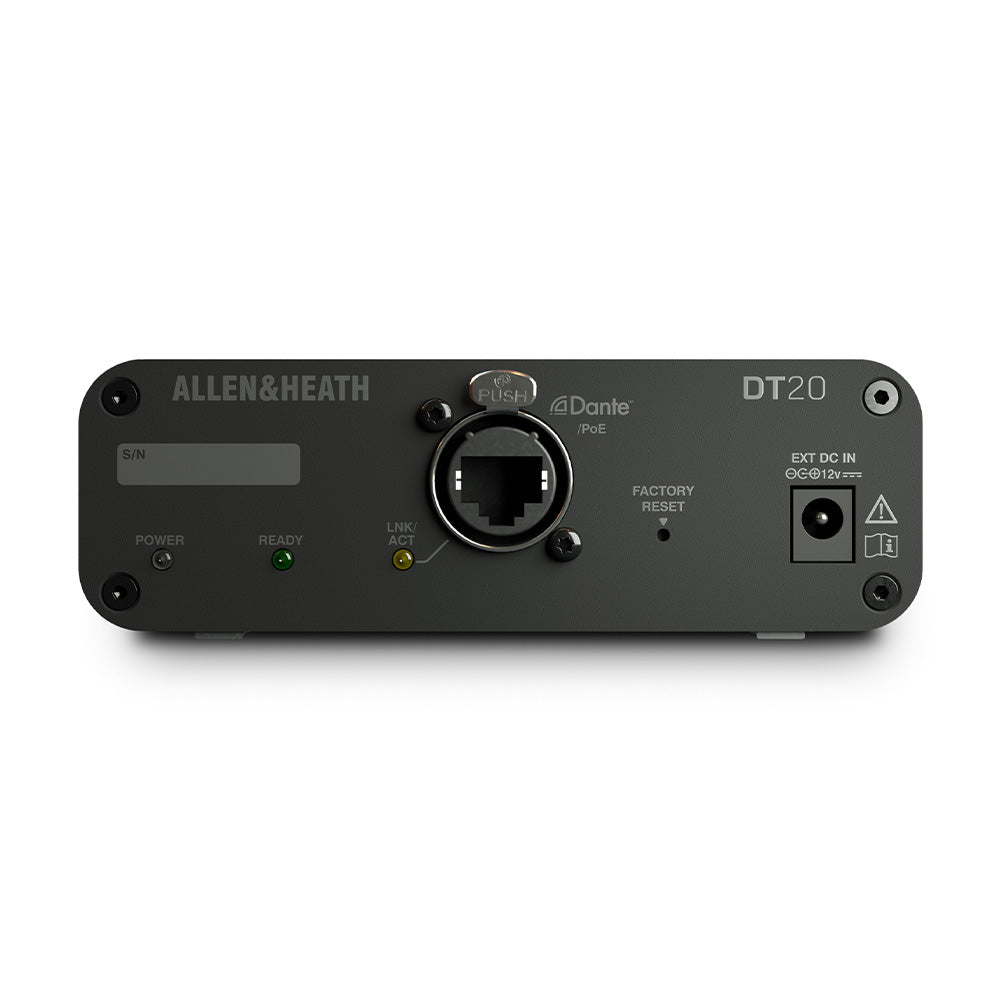

- EtherCon connector
- Rugged aluminium box
- Optional ears for surface mounting (included in DT20-M version)
- Optional rack mounting kit DT-RK19
- AES67 compatible
- Dante Domain Manager ready
| Mic Inputs | Balanced XLR, +48V phantom |
| Analogue Gain | 0 to +55dB |
| Line Inputs | Balanced TRS, -20dB PAD |
| Maximum Input Level | +30dBu (TRS in) |
| Input Impedance | >4k½ (XLR),>10k½ (TRS) |
| Dante | 48kHz/96kHz |
| DC Input | +12V DC 1.25A |
| Power Consumption | 10W max |
| Operating Temperature Range | 0¡C to 40¡C (32¡F to 104¡F) |
| PoE Requirements | 802.3af 15W |
| Width x Depth x Height x Weight | 130 x 136 x 43 mm, 0.5kg (5.1Ó x 5.4Ó x 1.7Ó, 1lbs) |
