Allen and Heath DT-22-M - Dante to Phoenix Euroblock Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

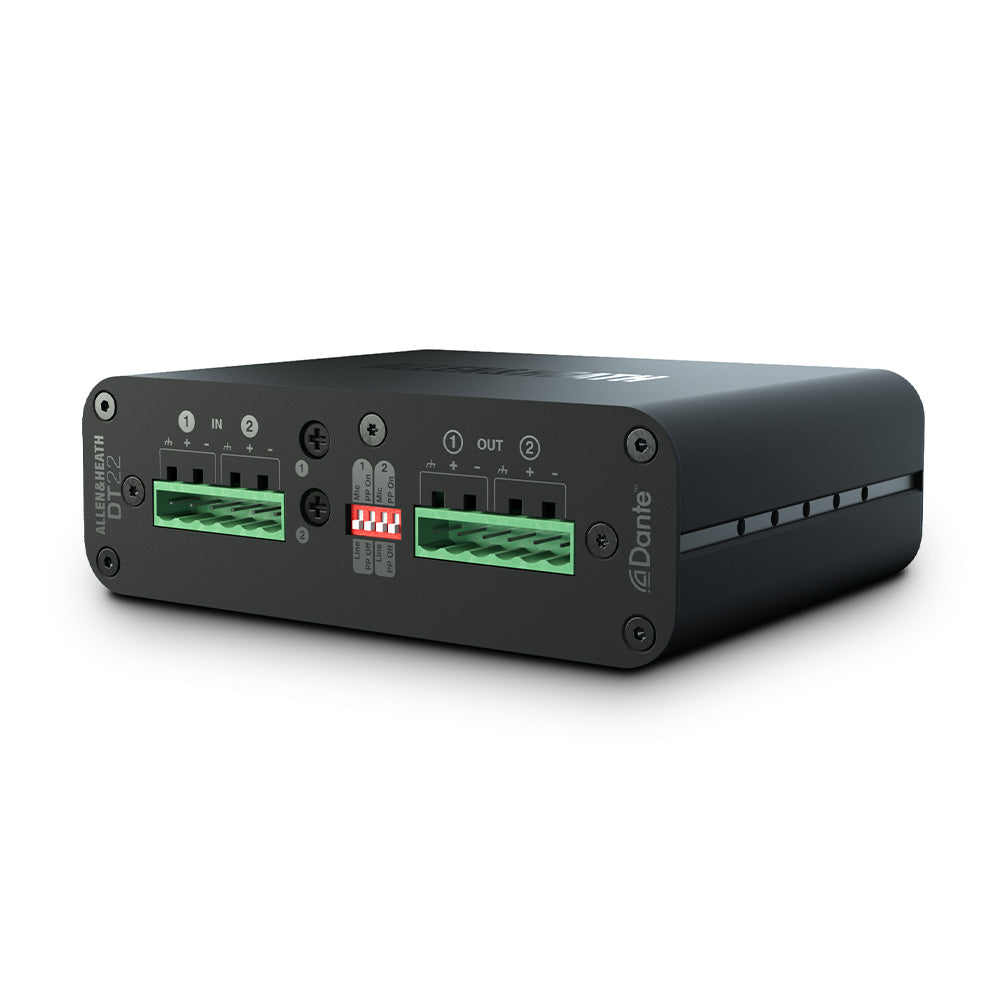

The DT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs wherever you need to get analogue audio in and out of a Dante network. Equipped with standard Phoenix / euroblock connectors, DT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, under a podium for local mic/PC and speaker connection, or rack-mounted to interface with analogue equipment such as an AV switcher.

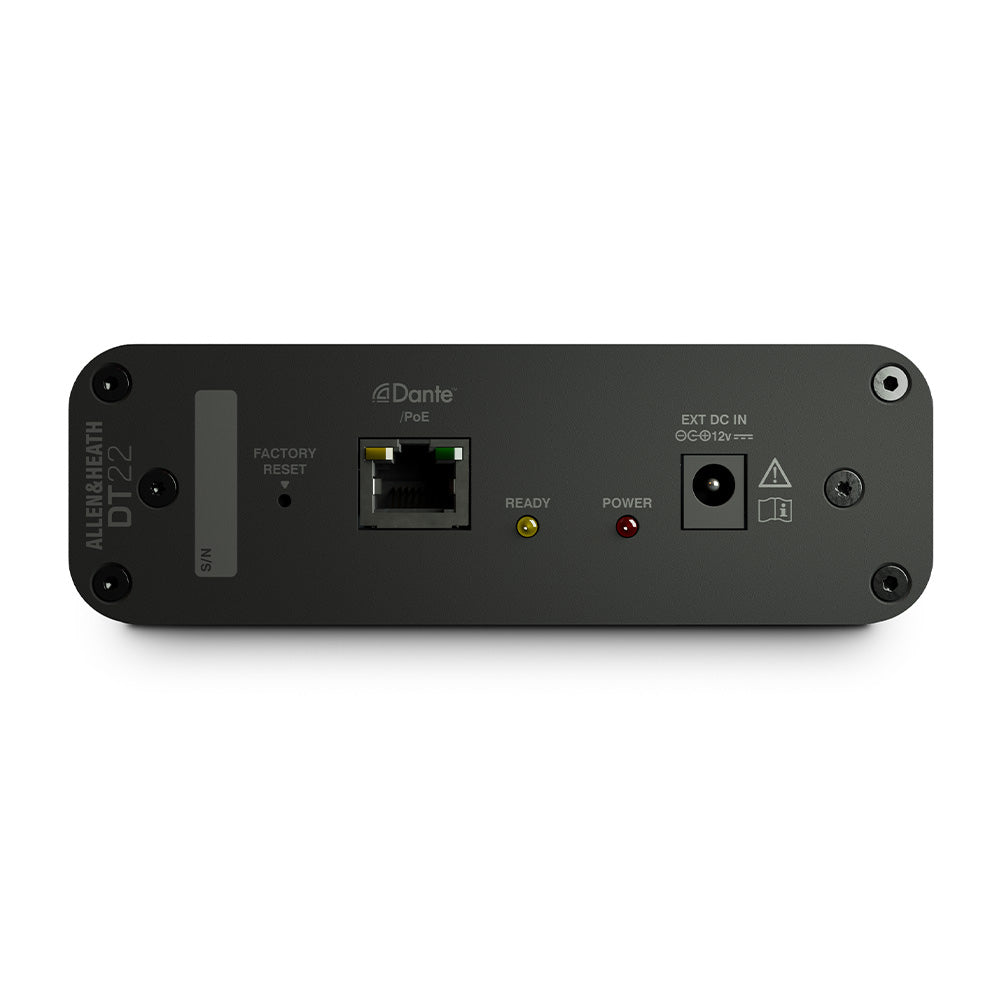

It can be used with any Dante-equipped Allen and Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply.
Features:
- Dante 2×2 interface, 48kHz/96kHz
- Phoenix euroblock connectors
- Local gain control and mic/line switch
- 48V phantom power
- PoE powered or DC 12V
- Rugged aluminium box

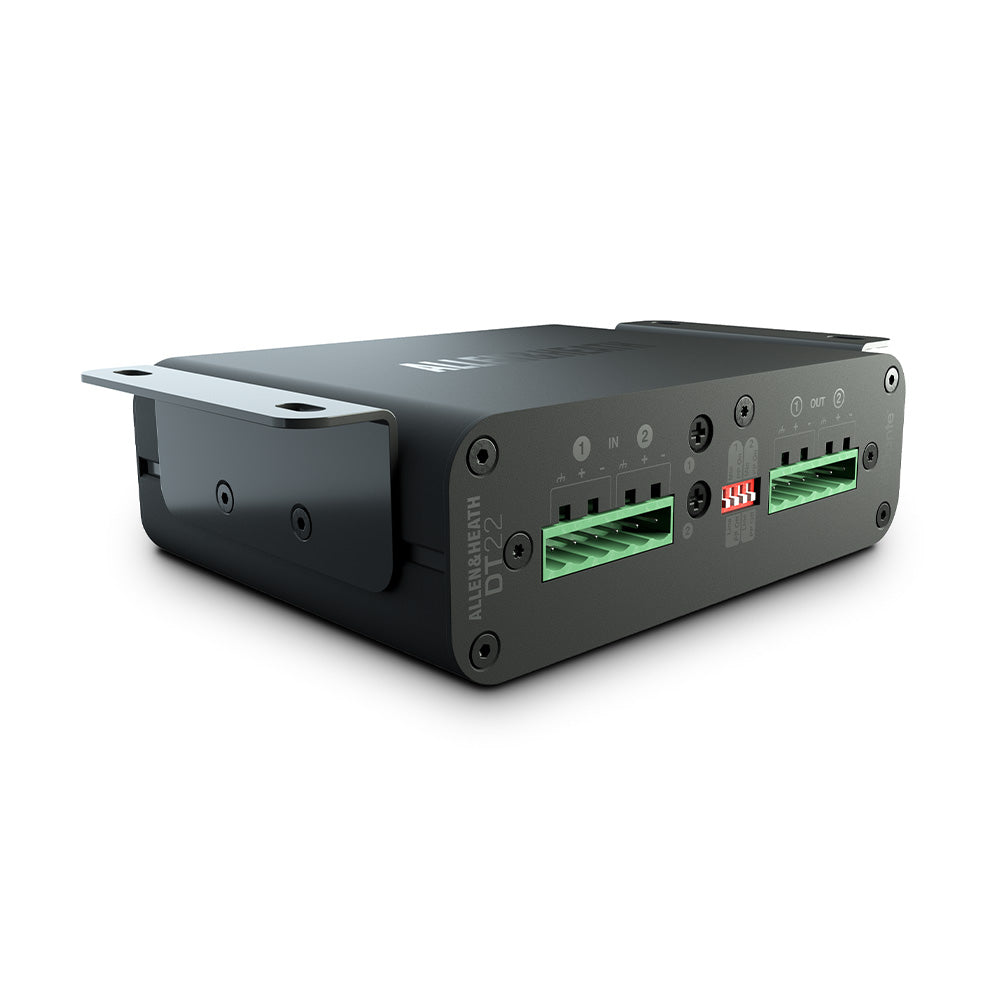

- Includes ears for surface mounting
- Optional rack mounting kit DT-RK19
- AES67 compatible
- Dante Domain Manager ready
| Mic/Line Inputs | Balanced Phoenix, +48V PP |
| Analogue Gain | 0 to +55dB |
| Line Inputs | -20dB PAD |
| Maximum Input Level | +30dBu (line in) |
| Input Impedance | >4k½ (mic),>10k½ (line) |
| Line Outputs | Balanced Phoenix |
| Output Impedance | <75½ |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output | +22dBu |
| Dante | 48kHz/96kHz |
| DC Input | +12V DC 1.25A |
| Power Consumption | 10W max |
| Operating Temperature Range | 0¡C to 40¡C (32¡F to 104¡F) |
| PoE Requirements | 802.3af 15W |
| Width x Depth x Height x Weight | 130 x 100 x 42 mm, 0.5kg (5.1Ó x 3.9Ó x 1.7Ó, 1lbs) |
The DT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs wherever you need to get analogue audio in and out of a Dante network. Equipped with standard Phoenix / euroblock connectors, DT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, under a podium for local mic/PC and speaker connection, or rack-mounted to interface with analogue equipment such as an AV switcher.
It can be used with any Dante-equipped Allen and Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply.
Features:
- Dante 2×2 interface, 48kHz/96kHz
- Phoenix euroblock connectors
- Local gain control and mic/line switch
- 48V phantom power
- PoE powered or DC 12V
- Rugged aluminium box
- Includes ears for surface mounting
- Optional rack mounting kit DT-RK19
- AES67 compatible
- Dante Domain Manager ready
| Mic/Line Inputs | Balanced Phoenix, +48V PP |
| Analogue Gain | 0 to +55dB |
| Line Inputs | -20dB PAD |
| Maximum Input Level | +30dBu (line in) |
| Input Impedance | >4k½ (mic),>10k½ (line) |
| Line Outputs | Balanced Phoenix |
| Output Impedance | <75½ |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output | +22dBu |
| Dante | 48kHz/96kHz |
| DC Input | +12V DC 1.25A |
| Power Consumption | 10W max |
| Operating Temperature Range | 0¡C to 40¡C (32¡F to 104¡F) |
| PoE Requirements | 802.3af 15W |
| Width x Depth x Height x Weight | 130 x 100 x 42 mm, 0.5kg (5.1Ó x 3.9Ó x 1.7Ó, 1lbs) |
