Allen and Heath DX012 12 XLR Output Audio Expander with AES Functionality
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

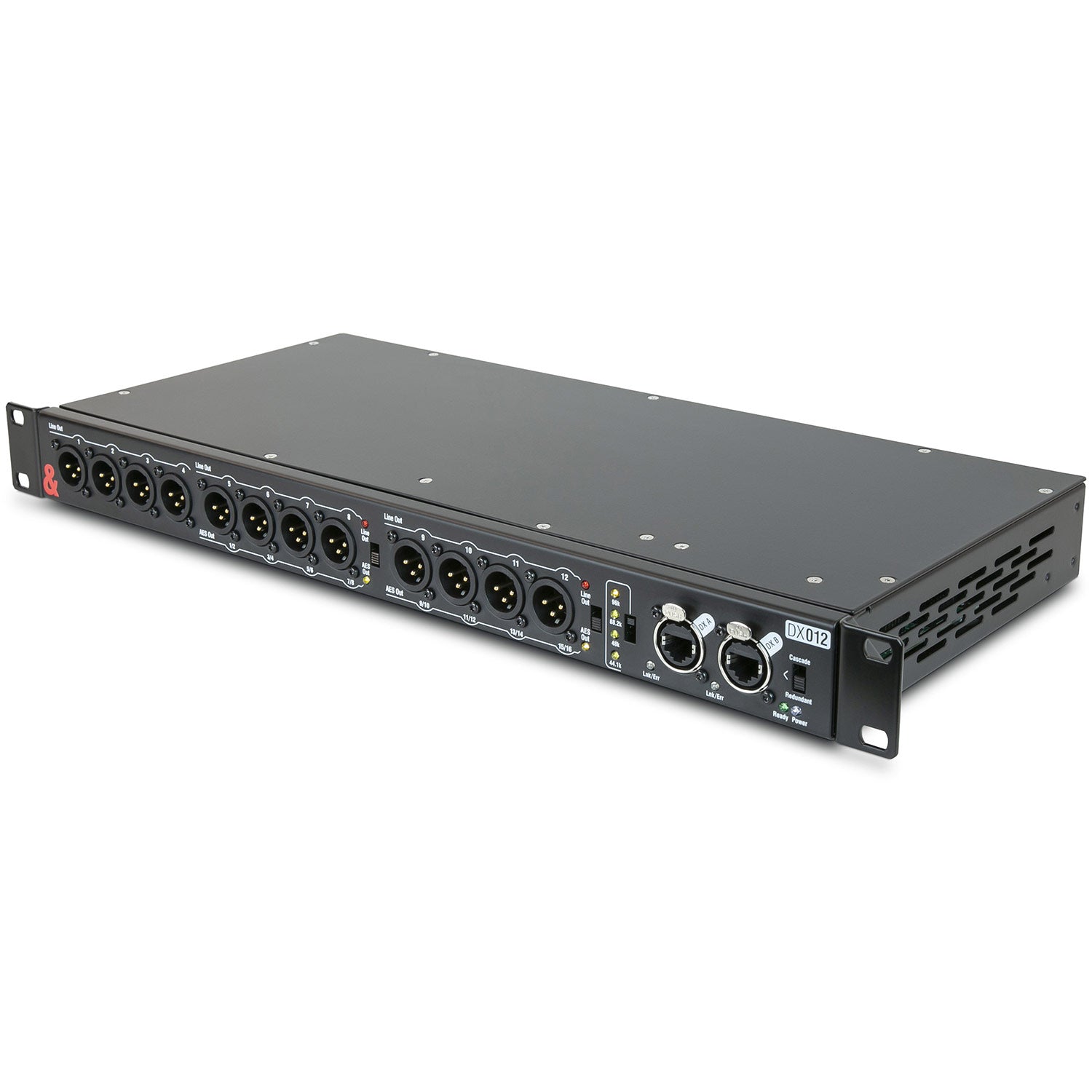

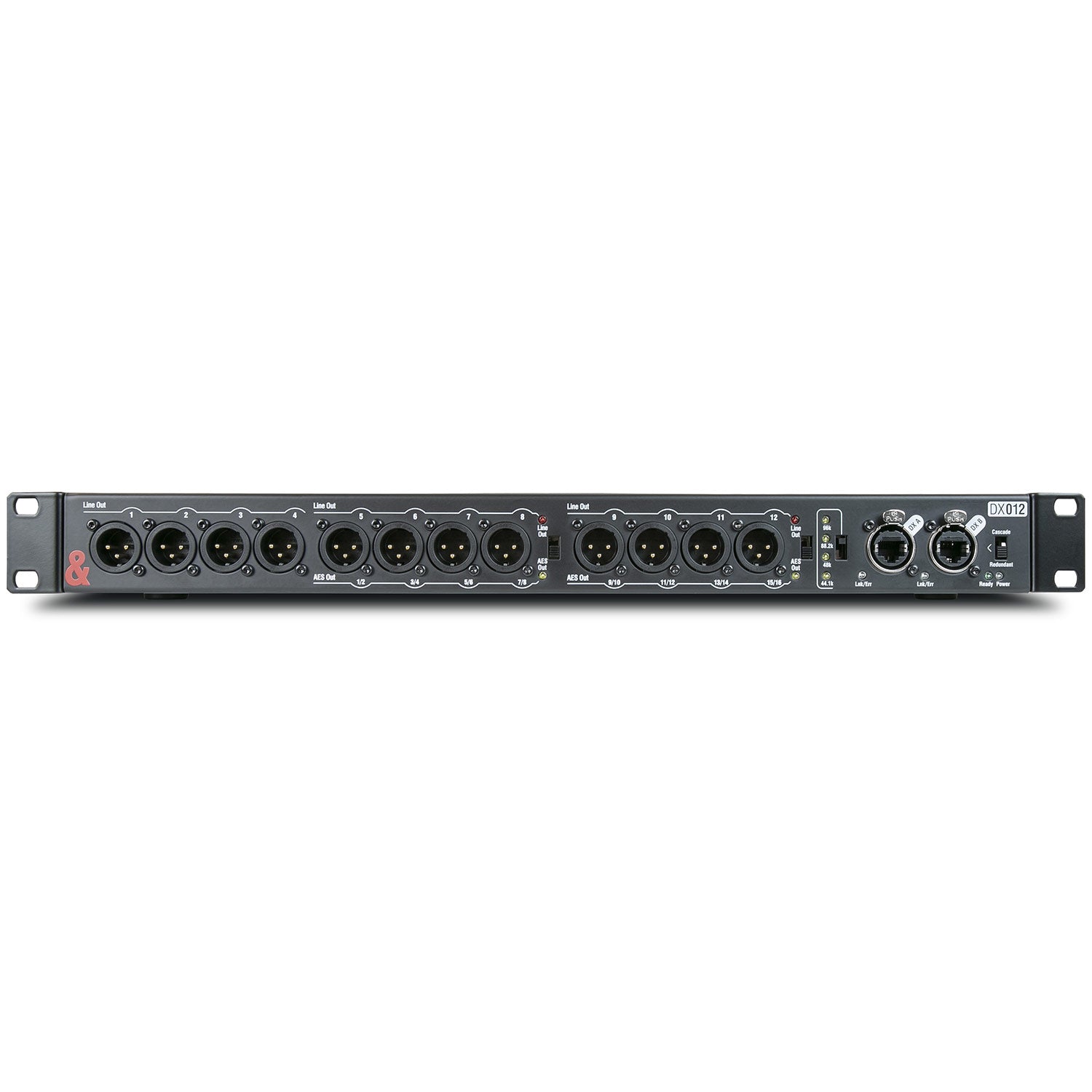

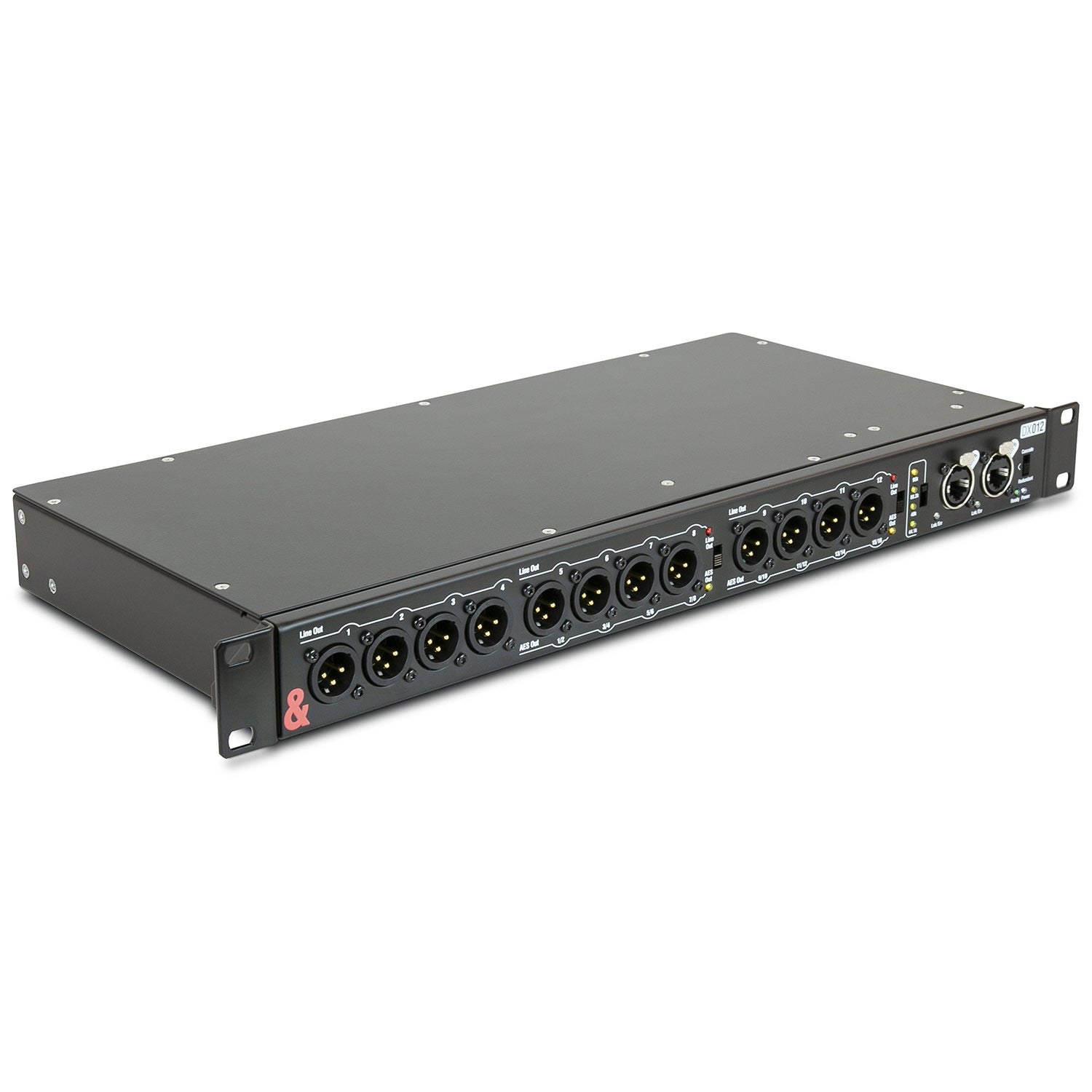

The DX012 is a 19" rack-mountable 96kHz output expander for Allen & Heath digital mixing systems.
Each GX4816 provides 12 XLR outputs, configurable as:
- 12 analogue line outputs
- 8 analogue line outputs + 4 stereo AES outputs
- 4 analogue line outputs + 8 stereo AES outputs
The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, SQ mixer or upstream DX expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.
Features:
- Compatible with SQ and dLive (firmware 1.9 onwards) systems
- 12 XLR Outputs:
- 1-4 Analogue Line Out
- 5-8 Analogue Line out or AES Digital out (switchable)
- 9-12 Analogue Line out or AES Digital out (switchable)
- AES outputs globally switchable between:
- 44.1kHz
- 48kHz
- 88.2kHz
- 96kHz
- Cascade mode allows daisy-chaining of 2 DX16/DX12 Expanders for additional I/O
- Redundant DX connection to compatible hardware
- Multiple DX012 can be added to a system:
- Up to 16 DX012 units can be added to a SQ system
- Up to 46 DX012 units can be added to a dLive S Class system
- Up to 22 DX012 units can be added to a dLive C Class system
- Rack-mounted (1u) or shelf/floor operation
- Plug and Play - no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
- Locking EtherCon ports
| Digital Outputs | AES3 2 Ch XLR, 2.5V balanced, terminated 110½ |
| Sample Rate | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Analogue XLR Outputs | Balanced, Relay protected |
| Output Impedance | <60½ |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output Level | +22dBu |
| Residual Output Noise | -95dBu (22Hz-22kHz) |
| THD+N | -98dB (0dBu, 1kHz) |
| Operating Temperature Range | 0¡C to 40¡C / 32¡F to 104¡F |
| Power | |
| Mains Voltage Operating Range | 100-240V AC, 50/60Hz |
| Mains Power Consumption | 35W max |
| Dimensions and Weight (Width x Depth x Height x Weight) | Unboxed: 482.6 x 48.2 x 214.7 mm x 2.95kg / 19" x 1.9" x 8.5" x 6.5lbs Boxed: 600 x 335 x 150 mm x 4.1kg / 23.6" x 13.2" x 5.9" x 9lbs |
The DX012 is a 19" rack-mountable 96kHz output expander for Allen & Heath digital mixing systems.
Each GX4816 provides 12 XLR outputs, configurable as:
- 12 analogue line outputs
- 8 analogue line outputs + 4 stereo AES outputs
- 4 analogue line outputs + 8 stereo AES outputs
The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, SQ mixer or upstream DX expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.
Features:
- Compatible with SQ and dLive (firmware 1.9 onwards) systems
- 12 XLR Outputs:
- 1-4 Analogue Line Out
- 5-8 Analogue Line out or AES Digital out (switchable)
- 9-12 Analogue Line out or AES Digital out (switchable)
- AES outputs globally switchable between:
- 44.1kHz
- 48kHz
- 88.2kHz
- 96kHz
- Cascade mode allows daisy-chaining of 2 DX16/DX12 Expanders for additional I/O
- Redundant DX connection to compatible hardware
- Multiple DX012 can be added to a system:
- Up to 16 DX012 units can be added to a SQ system
- Up to 46 DX012 units can be added to a dLive S Class system
- Up to 22 DX012 units can be added to a dLive C Class system
- Rack-mounted (1u) or shelf/floor operation
- Plug and Play - no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
- Locking EtherCon ports
| Digital Outputs | AES3 2 Ch XLR, 2.5V balanced, terminated 110½ |
| Sample Rate | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Analogue XLR Outputs | Balanced, Relay protected |
| Output Impedance | <60½ |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output Level | +22dBu |
| Residual Output Noise | -95dBu (22Hz-22kHz) |
| THD+N | -98dB (0dBu, 1kHz) |
| Operating Temperature Range | 0¡C to 40¡C / 32¡F to 104¡F |
| Power | |
| Mains Voltage Operating Range | 100-240V AC, 50/60Hz |
| Mains Power Consumption | 35W max |
| Dimensions and Weight (Width x Depth x Height x Weight) | Unboxed: 482.6 x 48.2 x 214.7 mm x 2.95kg / 19" x 1.9" x 8.5" x 6.5lbs Boxed: 600 x 335 x 150 mm x 4.1kg / 23.6" x 13.2" x 5.9" x 9lbs |
