Allen and Heath DX164-W Wall Mount Input Expander for dLive Series

The DX164-W is a wall mountable expander that adds remote I/O to a dLive system.

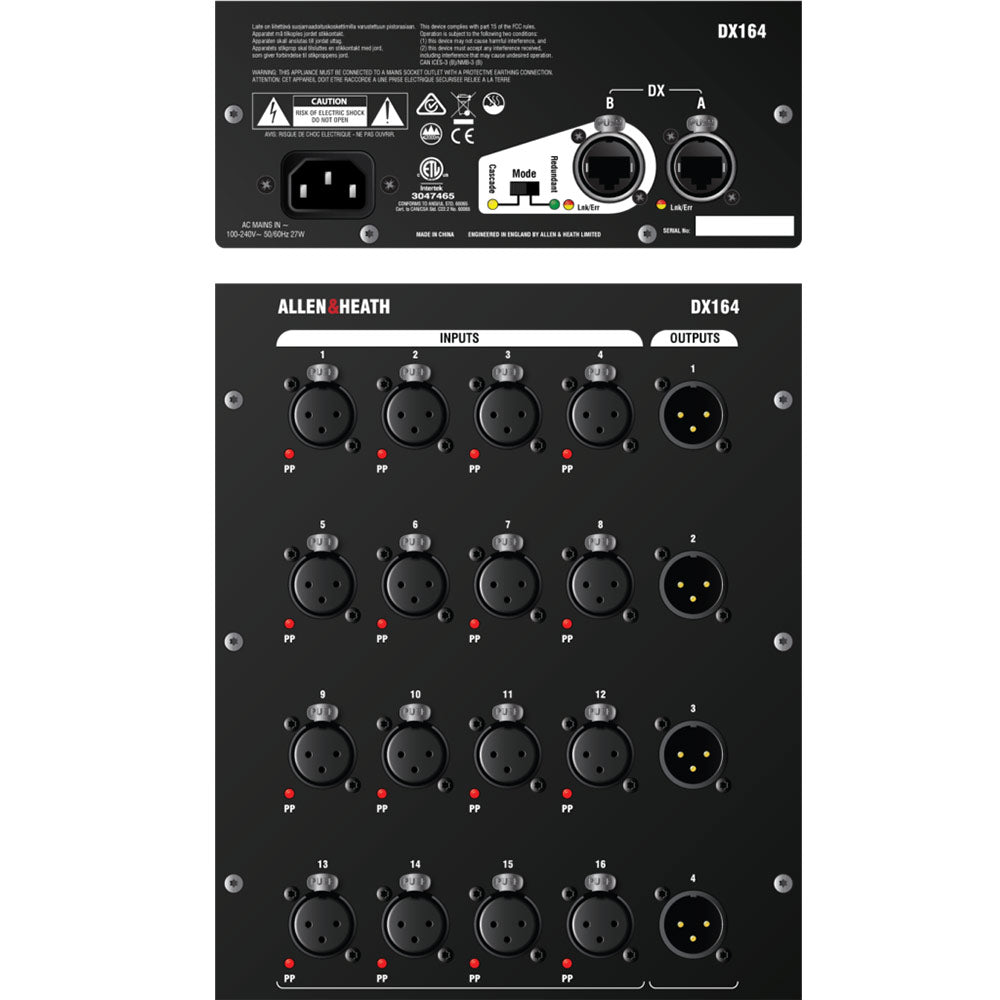

Each DX164-W features 16 mic preamps with independent Phantom Power LED indicators, plus 4 XLR line outs. Up to 6 DX164-W units can be connected to a standard dLive system - 4 via the MixRack and 2 via the Surface - allowing up to 96 remote inputs and 24 remote outputs in addition to those provided by the MixRack and Surface. Further units can be added to a dLive system via a DX Link card or DX Hub.

The DX164-W connects via a single Cat5e cable to the dLive Surface, MixRack, DX Hub or upstream DX164-W / DX168 via a secure etherCON port. A second locking etherCON port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX164-W or DX168 for additional remote I/O.

The Expander's design allows for wall mount operation or, alternatively, installation in a stage "Dip Trap" making it perfect for fixed installations.

Features:

• Designed for Wall Mount or Dip Trap installation
• 16 Mic Preamps on XLR
• Phantom Power LED per Input
• 4 XLR Line Outs
• Locking EtherCon ports
• Daisy chain or redundant connection
