Allen and Heath GPIO - General Purpose IO Remote Control for dLive or Avantis

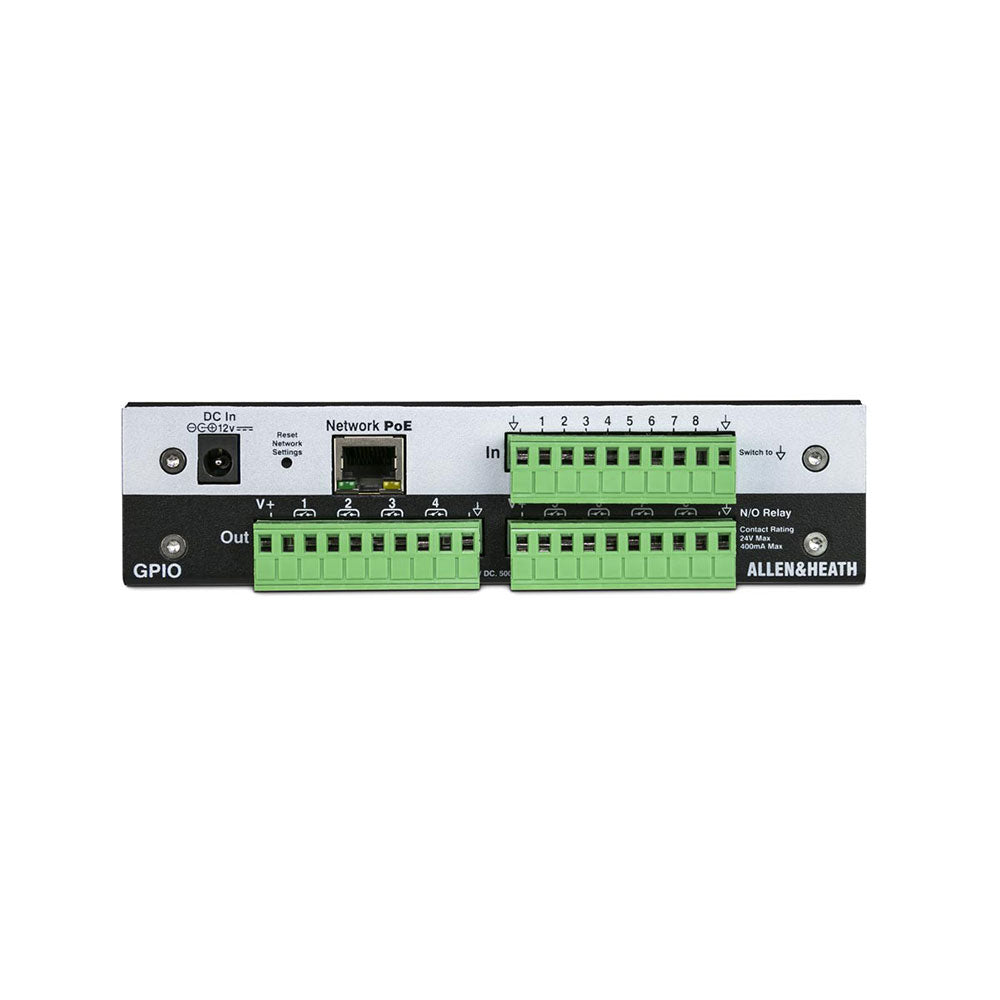

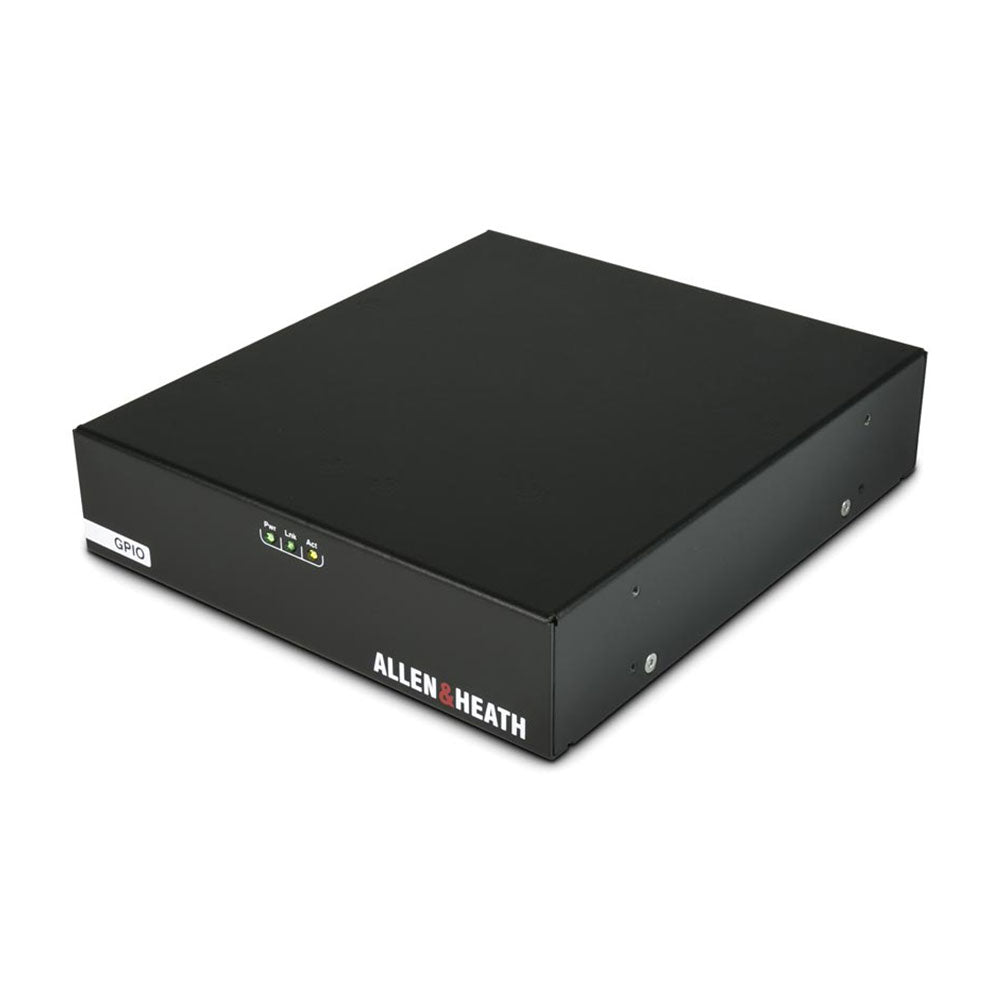

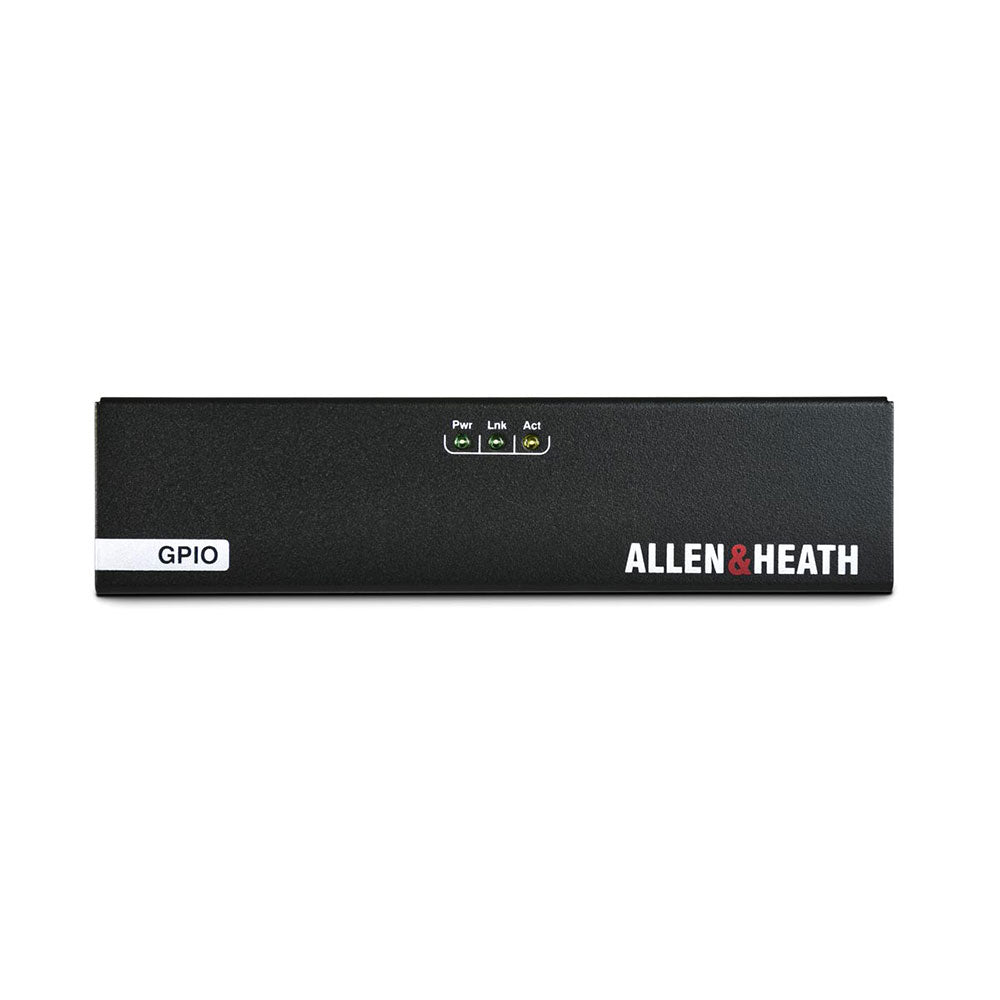

GPIO is a general purpose IO switching interface for control integration of an AHM-64 matrix processor or dLive/Avantis mixing system and 3rd party hardware, offering 8 opto-isolated inputs and 8 normally open (N/O) relay outputs on Phoenix connectors in addition to 2x +10V DC outputs.

The unit can be installed in a 19" rack (1u / 1/2 width) or can be operated freestanding, and up to 8 GPIO modules can be connected to a dLive system - directly or via a 100Mb/s network switch - using Cat5 cable.

GPIO functions are programmed using AHM System Manager or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface, and can suit a number of applications including EVAC (alarm / system mute), broadcast (on air lights, fader start logic) and theatre automation (curtains, lights).

Features:

• Up to 8 networked GPIO units can be added to a dLive/Avantis system
• Networked Cat5 connection to Avantis mixer, dLive MixRack or Surface (under 100m)
• 8 opto-isolated inputs
• 8 normally open (N/O) relay outputs, one of them configurable to Normally Closed output (N/C)
• Industry standard Phoenix connectors
• Freestanding or rack-mount (1u / 1/2 Width) operation
• PoE (IEEE 802.3af-2003) compliant
• IO parameters configured via Avantis mixer, or dLive Surface or Director
• 2 10V outputs (500mA max)
