Allen and Heath GX4816 48 XLR Input / 16 XLR Output Audio Expander with DX and ME Connectivity
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

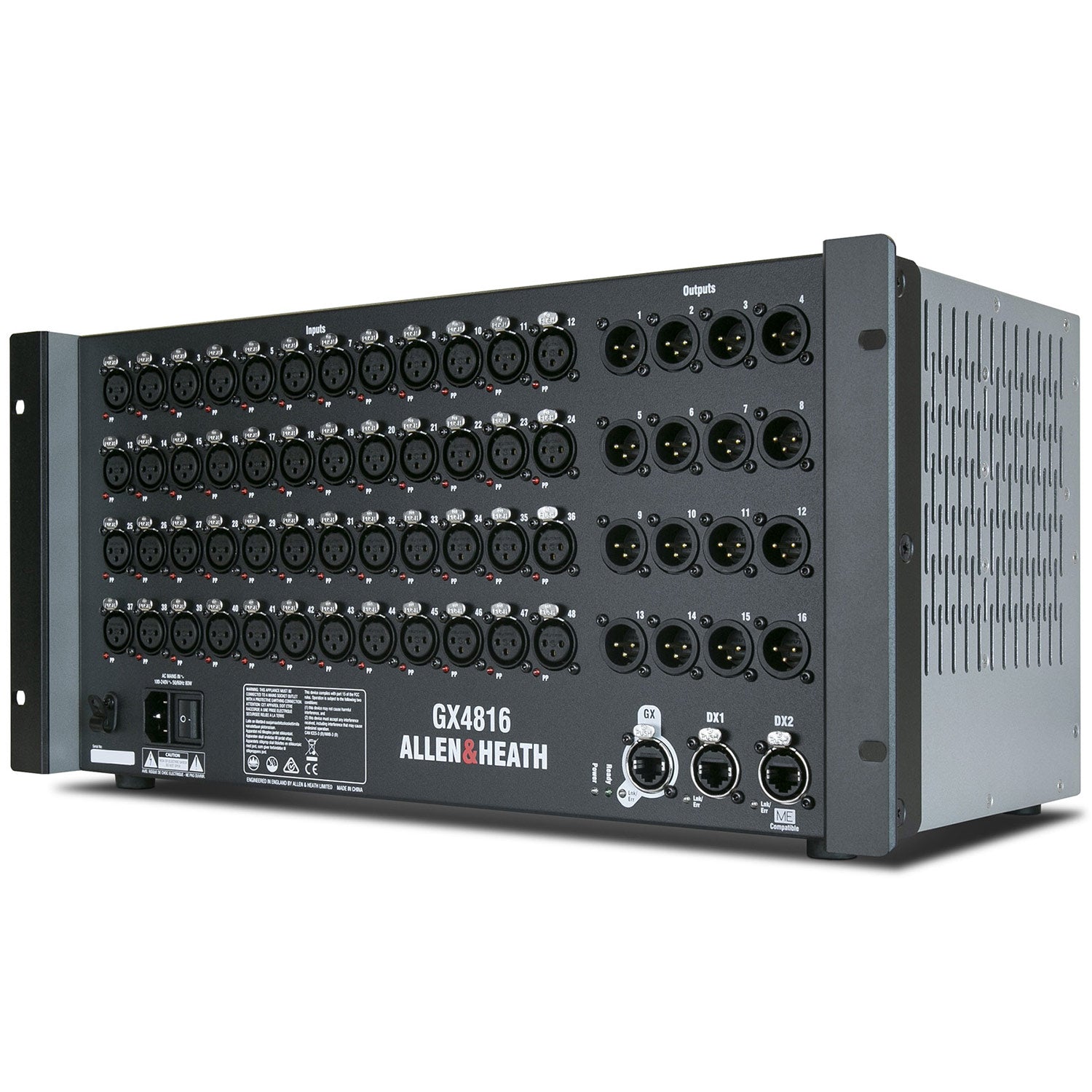

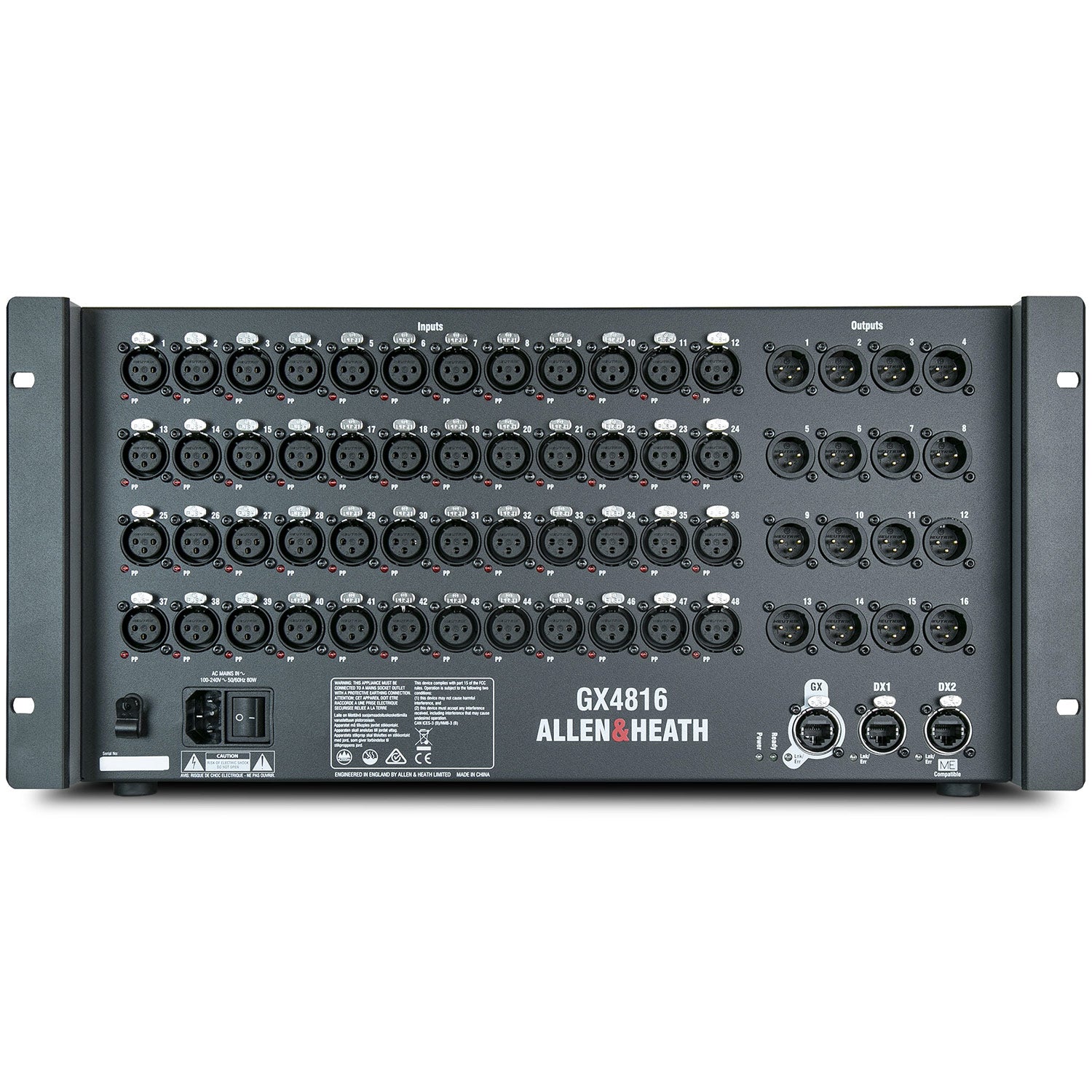

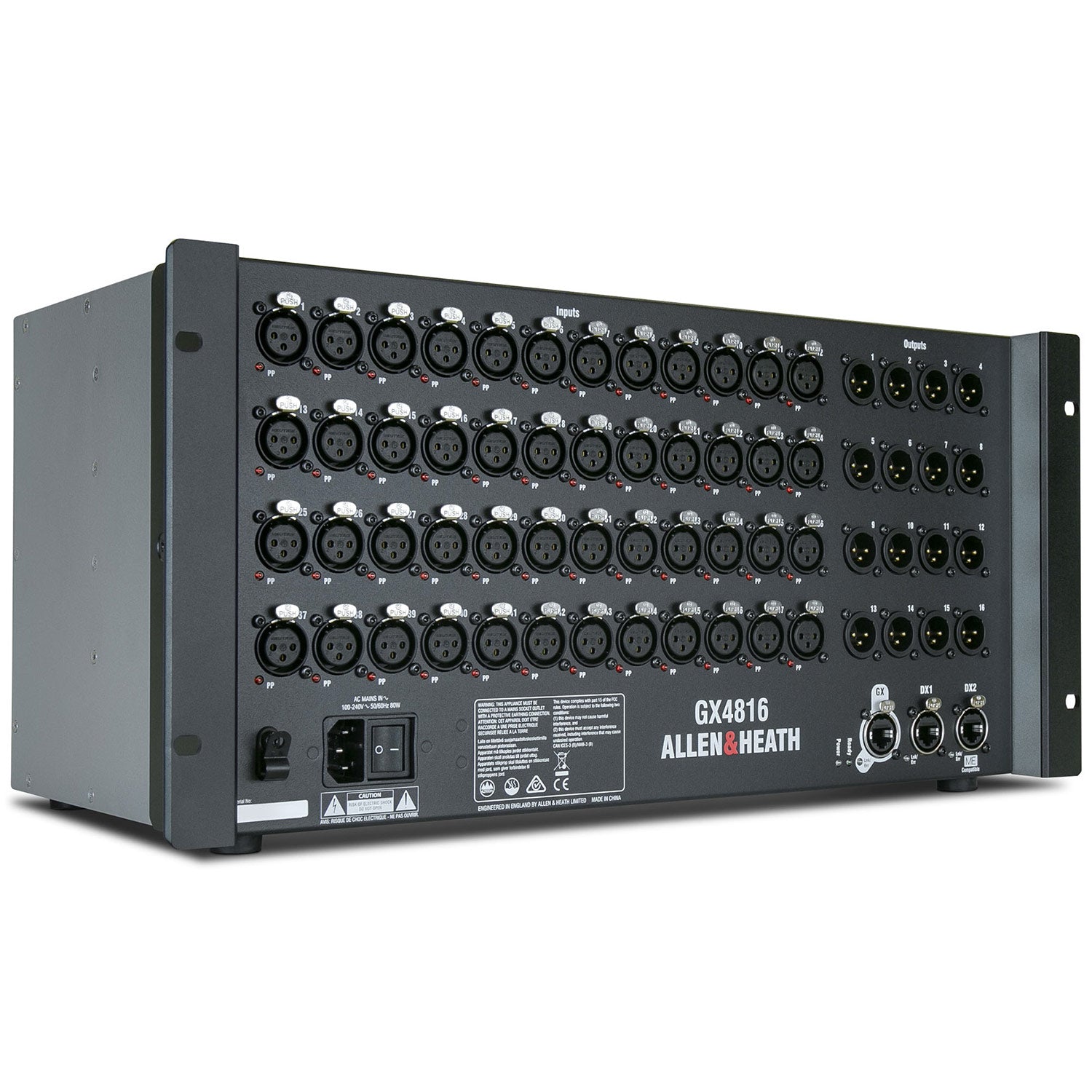

The GX4816 is a 96kHz audio expander that adds remote I/O to an SQ or dLive system.
Each GX4816 features 48 mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket.
The GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, or to a gigaACE audio network card on a dLive system. Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Features:
- 48 Mic Preamps on XLR with Phantom Power status LEDs
- 16 XLR Line Outs
- 96kHz operation
- DX1 Port - compatible with a single DX32, or up to 2 DX168/DX164-W expanders

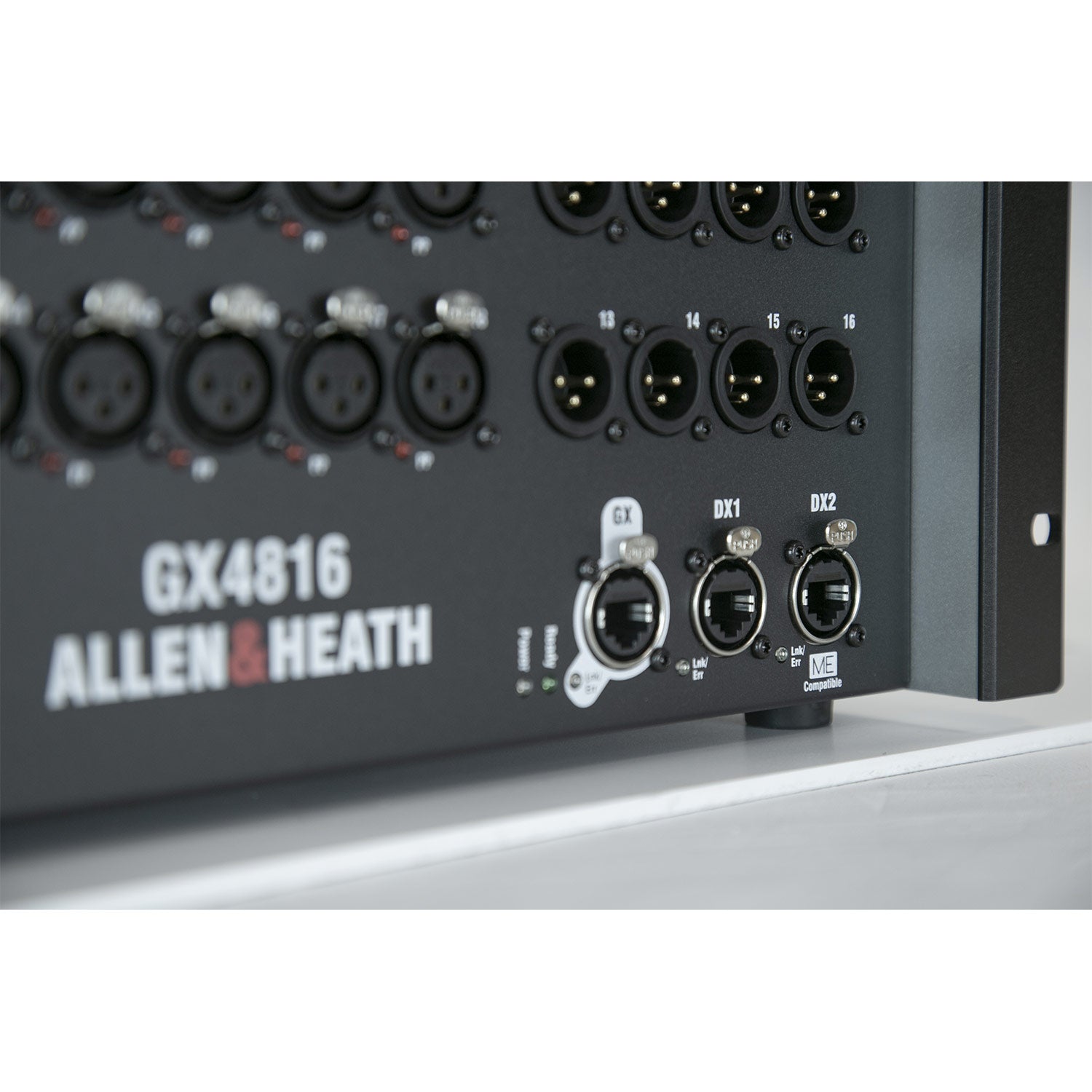

- DX2/ME Port - compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system.
- Compatible with SQ and dLive (firmware 1.9 onwards) systems
- Multiple GX4816 can be added to a system:
- Up to 2 GX4816 units can be added to a SQ system
- Up to 5 GX4816 units can be added to a dLive S Class system
- Up to 3 GX4816 units can be added to a dLive C Class system
- Rack-mounted (5u) or shelf/floor operation
- Plug and Play - no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
- Locking EtherCon ports
| INPUTS | |
| Mic/Line XLR Inputs | Balanced XLR, +48V phantom power |
| Mic/Line Preamp | Fully recallable |
| Input Sensitivity | -60 to +15dBu |
| Analogue Gain | +5 to +60dB, 1dB steps |
| Pad | -20dB Active PAD |
| Maximum Input Level | +30dBu (PAD in) |
| Input Impedance | >4k½ (Pad out) >10k½ (Pad in) |
| Mic EIN | -127dB with 150½ source |
| Phantom Power indication | Per socket, internal or external phantom power sensing, triggered at 24V |
| OUTPUTS | |
| Analogue XLR Outputs | Balanced, Relay protected |
| Output Impedance | <75½ |
| Nominal Output | +4dBu = 0dB meter reading |
| Residual Output Noise | -95dBu (muted, 22Hz-22kHz) |
| Power | |
| Mains Voltage Operating Range | 100-240V AC, 50/60Hz |
| Mains Power Consumption | 80W max |
| Temperature | |
| Operating Temperature Range | 0¡C to 40¡C (32¡F to 104¡F) |
| Dimensions and Weights (Width x Depth x Height x Weight) | Unboxed - 481.6 x 255 x 229.5 mm x 8kg / 18.9" x 10" x 9" x 17.6lbs Boxed - 560 x 385 x 310 mm x 10kg / 22" x 13.3" x 12.2" x 22lbs |
The GX4816 is a 96kHz audio expander that adds remote I/O to an SQ or dLive system.
Each GX4816 features 48 mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket.
The GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, or to a gigaACE audio network card on a dLive system. Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Features:
- 48 Mic Preamps on XLR with Phantom Power status LEDs
- 16 XLR Line Outs
- 96kHz operation
- DX1 Port - compatible with a single DX32, or up to 2 DX168/DX164-W expanders
- DX2/ME Port - compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system.
- Compatible with SQ and dLive (firmware 1.9 onwards) systems
- Multiple GX4816 can be added to a system:
- Up to 2 GX4816 units can be added to a SQ system
- Up to 5 GX4816 units can be added to a dLive S Class system
- Up to 3 GX4816 units can be added to a dLive C Class system
- Rack-mounted (5u) or shelf/floor operation
- Plug and Play - no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
- Locking EtherCon ports
| INPUTS | |
| Mic/Line XLR Inputs | Balanced XLR, +48V phantom power |
| Mic/Line Preamp | Fully recallable |
| Input Sensitivity | -60 to +15dBu |
| Analogue Gain | +5 to +60dB, 1dB steps |
| Pad | -20dB Active PAD |
| Maximum Input Level | +30dBu (PAD in) |
| Input Impedance | >4k½ (Pad out) >10k½ (Pad in) |
| Mic EIN | -127dB with 150½ source |
| Phantom Power indication | Per socket, internal or external phantom power sensing, triggered at 24V |
| OUTPUTS | |
| Analogue XLR Outputs | Balanced, Relay protected |
| Output Impedance | <75½ |
| Nominal Output | +4dBu = 0dB meter reading |
| Residual Output Noise | -95dBu (muted, 22Hz-22kHz) |
| Power | |
| Mains Voltage Operating Range | 100-240V AC, 50/60Hz |
| Mains Power Consumption | 80W max |
| Temperature | |
| Operating Temperature Range | 0¡C to 40¡C (32¡F to 104¡F) |
| Dimensions and Weights (Width x Depth x Height x Weight) | Unboxed - 481.6 x 255 x 229.5 mm x 8kg / 18.9" x 10" x 9" x 17.6lbs Boxed - 560 x 385 x 310 mm x 10kg / 22" x 13.3" x 12.2" x 22lbs |
