Allen and Heath IP1 - Wall Mount Remote Controller for AHM-64 or dLive Series (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

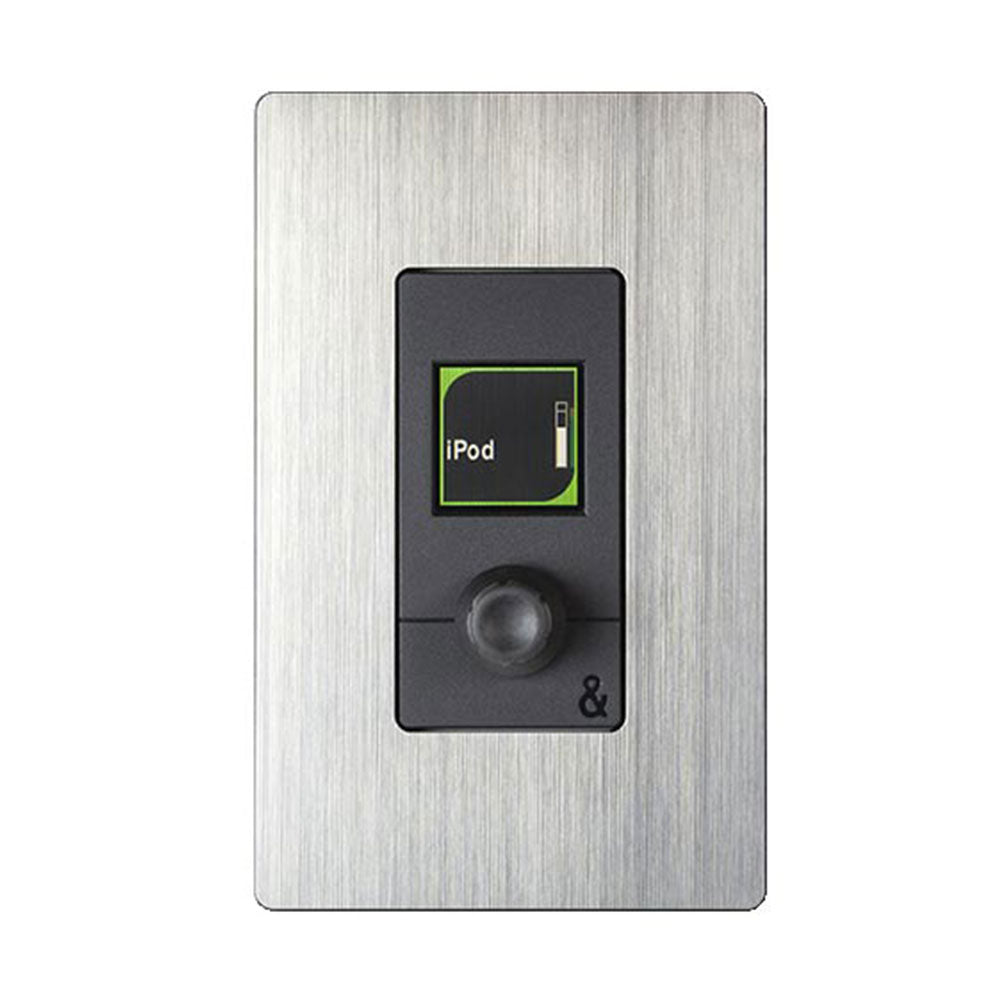

IP1 is a simple yet powerful programmable wallplate, giving the non-technical user convenient, easy control.
It interfaces with an AHM-64 matrix processor, dLive mixing system or Avantis mixer via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.
The IP controls and functions are configured using AHM System Manager or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface.
Features:
- Music source selection, level control, or preset recall
- Dual function rotary encoder
- LCD Display
- Two form variants: US (Decora compatible) and EU/UK (MK Elements compatible)
- TCP/IP and POE compliant
- Face plate not included
| Network | Fast Ethernet 100MBps |
| Operating Temperature Range | 0¡C to 35¡C (32¡F to 95¡F) |
| Power Supply | PoE |
| PoE Compatibility | 802.3af (15.4W at source) and 802.3at (30W at source) |
| Max Power Consumption | 2.5W |
| Width x Depth x Height | 45 x 25 x 106 mm (1.8Ó x 1Ó x 4.2Ó) |
| Net Weight | 3.5 ounces |
| Boxed Dimensions | 131 x 170 x 90 mm (5.2" x 6.7" x 3.5") |
| Boxed Weight | 0,2kg (7 ounce) |
IP1 is a simple yet powerful programmable wallplate, giving the non-technical user convenient, easy control.
It interfaces with an AHM-64 matrix processor, dLive mixing system or Avantis mixer via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.
The IP controls and functions are configured using AHM System Manager or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface.
Features:
- Music source selection, level control, or preset recall
- Dual function rotary encoder
- LCD Display
- Two form variants: US (Decora compatible) and EU/UK (MK Elements compatible)
- TCP/IP and POE compliant
- Face plate not included
| Network | Fast Ethernet 100MBps |
| Operating Temperature Range | 0¡C to 35¡C (32¡F to 95¡F) |
| Power Supply | PoE |
| PoE Compatibility | 802.3af (15.4W at source) and 802.3at (30W at source) |
| Max Power Consumption | 2.5W |
| Width x Depth x Height | 45 x 25 x 106 mm (1.8Ó x 1Ó x 4.2Ó) |
| Net Weight | 3.5 ounces |
| Boxed Dimensions | 131 x 170 x 90 mm (5.2" x 6.7" x 3.5") |
| Boxed Weight | 0,2kg (7 ounce) |
