Allen and Heath M-SQ-MADI-A - 64x64 MADI Card for SQ Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

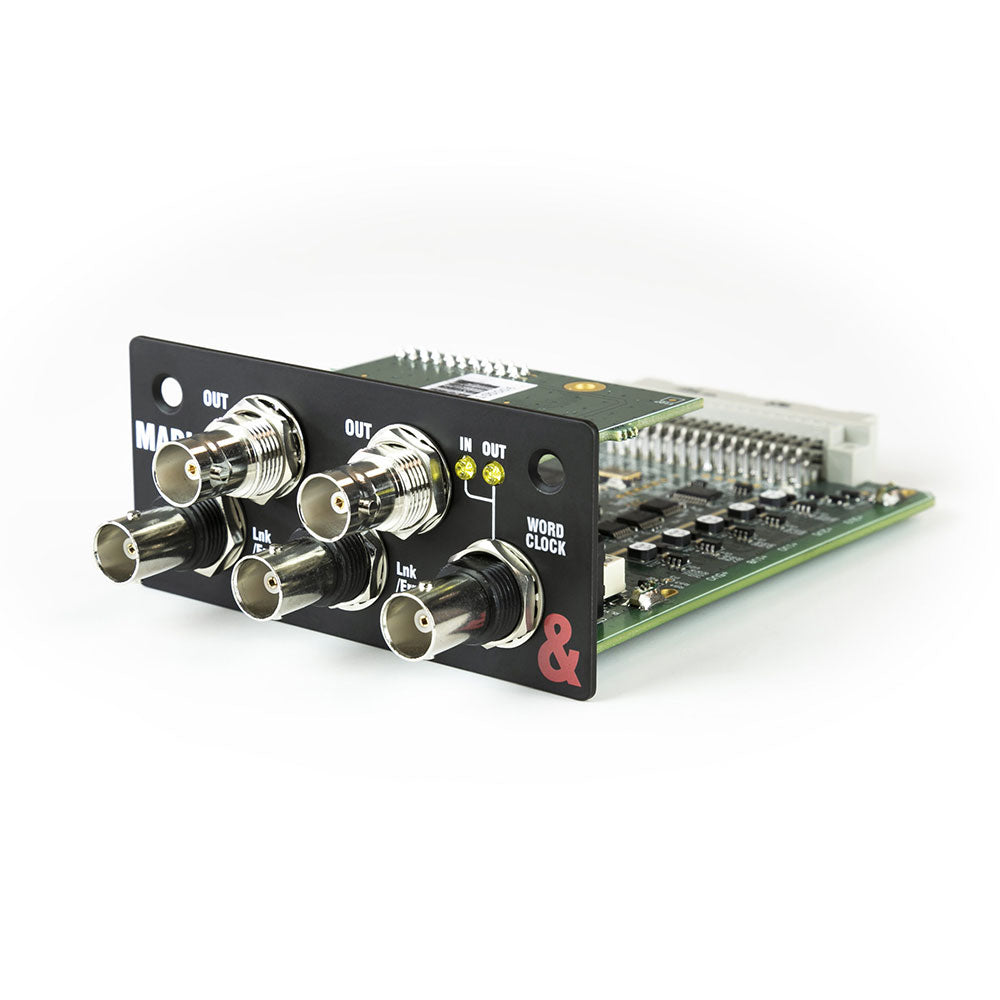

SQ MADI provides any SQ mixer with a 64×64 MADI interface running at either 48kHz or 96kHz. Two BNC inputs pair with two BNC outputs to allow for split or redundant setups while a dual function (in/out) BNC Wordclock connection enables the console to be either master or slave in the system.
SQ MADI enables connection and synchronisation with broadcast or recording systems, OB vans, and third-party consoles for high-channel count feeds over coaxial cables.
Features:
- 64×64 channel digital audio
- 96kHz or 48kHz operation
- Smux or HighSpeed 96kHz modes
- Sync from inputs or separate wordclock
- Console controlled error handling
- 4x BNC connectors (2 links)
- 1x BNC Wordclock I/O
SQ MADI provides any SQ mixer with a 64×64 MADI interface running at either 48kHz or 96kHz. Two BNC inputs pair with two BNC outputs to allow for split or redundant setups while a dual function (in/out) BNC Wordclock connection enables the console to be either master or slave in the system.
SQ MADI enables connection and synchronisation with broadcast or recording systems, OB vans, and third-party consoles for high-channel count feeds over coaxial cables.
Features:
- 64×64 channel digital audio
- 96kHz or 48kHz operation
- Smux or HighSpeed 96kHz modes
- Sync from inputs or separate wordclock
- Console controlled error handling
- 4x BNC connectors (2 links)
- 1x BNC Wordclock I/O
