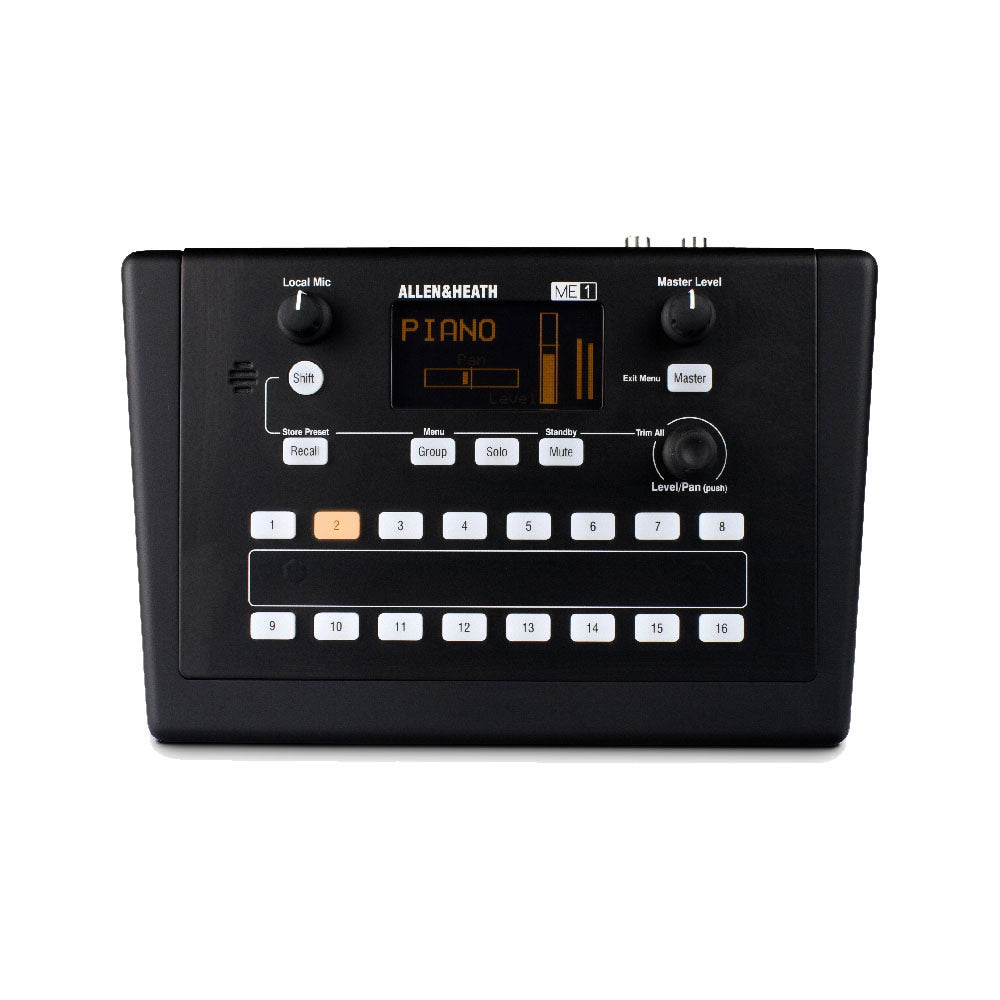

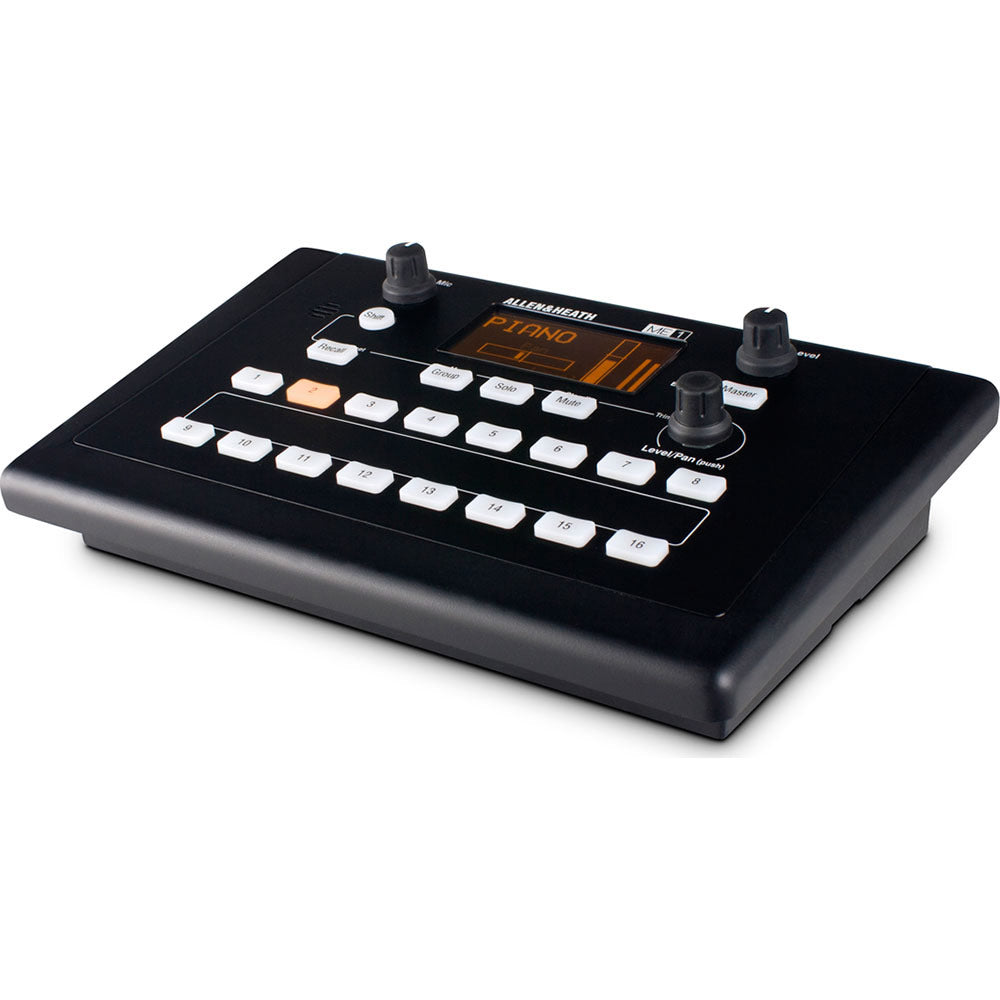

Allen and Heath ME-1 - 42-Channel Personal Monitor Mixer
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The ME-1 Personal Mixer puts the musician in control of their own monitor mix. Each performer can be given a tailored setup that works perfectly for them, whether they crave maximum control over the fine details of their mix or just want the minimum of keys to press. Operation is intuitive and elegant, with simple controls, clear visual feedback and custom naming for instant familiarity.
ME-1 is the cornerstone of the ME Personal Mixing System and is ready to use with the Allen & Heath iLive and GLD series digital mixers. ME-1 is complemented by the ME-U hub, which opens up the benefits of ME to users of other professional digital mixers via Dante, EtherSound or MADI. ME-1 also has an Aviom compatibility mode for use with Aviom Pro16 systems.
Features:- Fully customisable
- Intuitive operation
- Compact, smart design
- 40 sources from GLD or iLive
- Compatible with MADI, Dante or EtherSound
- Daisy chain or use standard PoE Ethernet hubs
- 16 assignable keys to suit application
| Inputs | 40 inputs (Cat5), Stereo Aux, Ambient Mic |
| Outputs | 2x Stereo (Line or Headphones), Mono Line Out |
| Input Control Master Control Group Control Groups Groups Presets Config Names | Level, Mute, Pan, Solo, Trim All Level, Mute, 3-band EQ, Limiter Level, Mute, Level/Pan for sources within Group 16, Up to 40 sources assignable 16, Store input Levels, Mutes, Pans, Key assign, Names, Group sources 16, Store input Levels, Mutes, Pans, Key assign, Names, Group sources Stores Setup and all Presets Channels, Keys, Unit, Presets, Config |
| USB Data Port | Individual Presets or Config transfer, Firmware update |
| Cat5 Audio and PoE | Link In and Link Out, locking EtherCon connectors |
| Stereo Out | Stereo 1/4 and 3.5mm Jacks Headphones 300mW+300mW into 100 load Max +21dBu Max +21dBu |
| Mono Output Mono Output | Balanced TRS Jack Nominal 0dBu, Max +18dBu |
| Aux Input | Stereo 3.5mm Jack Nominal -8dBu, Max +10dBu Input Impedance>10k |
| AD/DA Conversion | 24-bit Delta/Sigma, 48kHz |
| Residual Output Noise | -95dBu (Level down, 20-20kHz) -95dBu (Level down, 20-20kHz) |
| Frequency response | +0/-1dB 10Hz to 20kHz |
| Mains Power Unit (supplied) Power over Cat5 cable (PoE) | 100-240V AC, 50/60Hz in, 12V DC 1.25A out 10W (Requires 13W from PoE hub) |
| Dimensions Dimensions | Width x Depth x Height 225 x 150 x 55mm (8.9 x 5.9 x 2.2) |
| Weight (inc phones hook | 900g (2lbs) |
The ME-1 Personal Mixer puts the musician in control of their own monitor mix. Each performer can be given a tailored setup that works perfectly for them, whether they crave maximum control over the fine details of their mix or just want the minimum of keys to press. Operation is intuitive and elegant, with simple controls, clear visual feedback and custom naming for instant familiarity.
ME-1 is the cornerstone of the ME Personal Mixing System and is ready to use with the Allen & Heath iLive and GLD series digital mixers. ME-1 is complemented by the ME-U hub, which opens up the benefits of ME to users of other professional digital mixers via Dante, EtherSound or MADI. ME-1 also has an Aviom compatibility mode for use with Aviom Pro16 systems.
Features:- Fully customisable
- Intuitive operation
- Compact, smart design
- 40 sources from GLD or iLive
- Compatible with MADI, Dante or EtherSound
- Daisy chain or use standard PoE Ethernet hubs
- 16 assignable keys to suit application
| Inputs | 40 inputs (Cat5), Stereo Aux, Ambient Mic |
| Outputs | 2x Stereo (Line or Headphones), Mono Line Out |
| Input Control Master Control Group Control Groups Groups Presets Config Names | Level, Mute, Pan, Solo, Trim All Level, Mute, 3-band EQ, Limiter Level, Mute, Level/Pan for sources within Group 16, Up to 40 sources assignable 16, Store input Levels, Mutes, Pans, Key assign, Names, Group sources 16, Store input Levels, Mutes, Pans, Key assign, Names, Group sources Stores Setup and all Presets Channels, Keys, Unit, Presets, Config |
| USB Data Port | Individual Presets or Config transfer, Firmware update |
| Cat5 Audio and PoE | Link In and Link Out, locking EtherCon connectors |
| Stereo Out | Stereo 1/4 and 3.5mm Jacks Headphones 300mW+300mW into 100 load Max +21dBu Max +21dBu |
| Mono Output Mono Output | Balanced TRS Jack Nominal 0dBu, Max +18dBu |
| Aux Input | Stereo 3.5mm Jack Nominal -8dBu, Max +10dBu Input Impedance>10k |
| AD/DA Conversion | 24-bit Delta/Sigma, 48kHz |
| Residual Output Noise | -95dBu (Level down, 20-20kHz) -95dBu (Level down, 20-20kHz) |
| Frequency response | +0/-1dB 10Hz to 20kHz |
| Mains Power Unit (supplied) Power over Cat5 cable (PoE) | 100-240V AC, 50/60Hz in, 12V DC 1.25A out 10W (Requires 13W from PoE hub) |
| Dimensions Dimensions | Width x Depth x Height 225 x 150 x 55mm (8.9 x 5.9 x 2.2) |
| Weight (inc phones hook | 900g (2lbs) |
