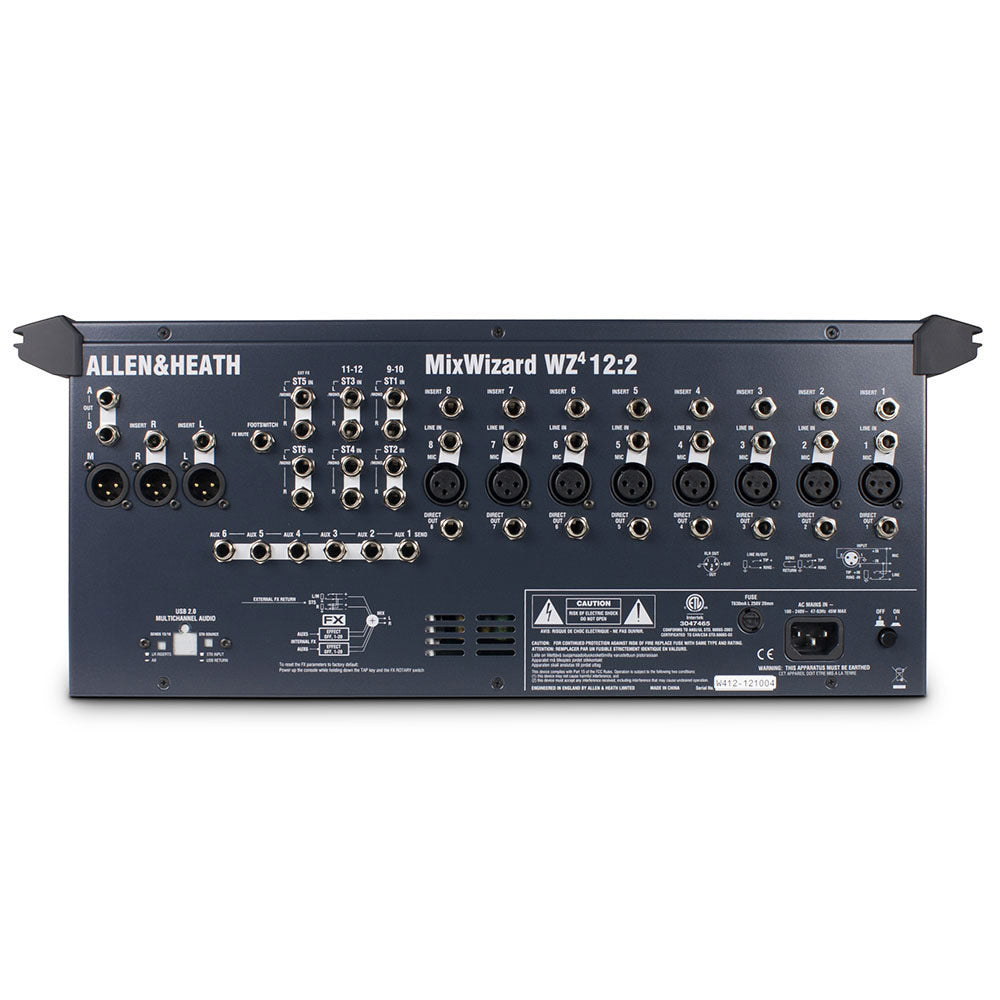

Allen and Heath MixWizard WZ4 12:2 Live Mixer (with Effects)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
WZ4 12:2 is your ideal companion for those scenarios where you don't need masses of channels, but you still need to deliver superb audio quality. The 2 dual stereo channels are perfect for stereo playback or for hooking up keyboards and other stereo instruments. WZ4 12:2 features an acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and a unique QCC connector system for easy desktop, rack or flightcase mounting. New features for this 4thgeneration MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback. If you're looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.
Features:
- 19" Rack mountable
- 8 mic/line inputs with balanced XLR/TRS jack, insert and direct output
- 100mm faders
- 2 Dual Stereo inputs with separate gain and 'ON' switches allowing inputs to be selected independently or mixed together
- 4 band EQ with 2 swept mids
- 6 Aux sends - 2x pre fade / 2x switched / 2x post fade*
- 2 Stereo returns
- Dedicated mono output fader - can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
- Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
- Tri-colour, 12 segment bargraph metering
- Twin FX engines with 20 studio quality FX presets
- +48V Phantom Power
- Signal and Peak LEDs
- Lamp socket
- USB multitrack recording option
- Footswitch connector (mutes/unmutes the ST1 FX Return)
| Performance | |
| Maximum output level | XLR +26dBu into 600 ohms max load Jack +21dBu into 2k ohm max load |
| Internal headroom | Channels +21dB Mix +23dB |
| Meters | 3 colour LED, quasi peak response |
| Sensitivity | 0VU = +4dBu at XLR output |
| Master meters | 12 segment -30 to +16dB |
| Channel meters | 2 segment -12, +16dB (5dB before clip) |
| Frequency response | 10Hz to 30kHz +/-0.5dB |
| THD+n at +10dBu | 1kHz Channel to mix out < 0.004% |
| Crosstalk at 1kHz | Fader shutoff>90dB Channel mute>90dB Inter channel>90dB |
| Noise, rms 22Hz to 22kHz | Mic EIN -127dB Residual output noise < -95dBu (-99dB S/N) LR unity fader mix noise < -83dBu (-87dB S/N) |
| Channel HPF | 12dB/octave below 80Hz |
| Mono EQ | HF Shelving, +/-15dB, 12kHz HM Peak/dip, +/-15dB, 500Hz to 15kHz, Q=1.8 LM Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8 LF Shelving, +/-15dB, 80Hz |
| Stereo EQ | HF Shelving, +/-15dB, 12kHz HM Peak/dip, +/-15dB, 2.5kHz, Q=1.8 LM Peak/dip, +/-15dB, 250Hz, Q=1.8 LF Shelving, +/-15dB, 80Hz |
| Power supply | 100-240V, 50/60Hz auto sensing, IEC input Power consumption 45W max Mains fuse T630mA L 20mm |
| Mechanical | |
| Free standing dimensions | W 507 (20Ó) x D 530 (20.9Ó) x H 194 (7.7Ó) |
| Rack mounted (Underside connectors) | W 483 (19Ó) x D 122 (4.8Ó) x H 444 (17.5Ó) 10U |
| Rack mounted (Rear connectors) | W 483 (19Ó) x D 193 (7.6Ó) x H 497 (19.6Ó) 11.2U |
WZ4 12:2 is your ideal companion for those scenarios where you don't need masses of channels, but you still need to deliver superb audio quality. The 2 dual stereo channels are perfect for stereo playback or for hooking up keyboards and other stereo instruments. WZ4 12:2 features an acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and a unique QCC connector system for easy desktop, rack or flightcase mounting. New features for this 4thgeneration MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback. If you're looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.
Features:
- 19" Rack mountable
- 8 mic/line inputs with balanced XLR/TRS jack, insert and direct output
- 100mm faders
- 2 Dual Stereo inputs with separate gain and 'ON' switches allowing inputs to be selected independently or mixed together
- 4 band EQ with 2 swept mids
- 6 Aux sends - 2x pre fade / 2x switched / 2x post fade*
- 2 Stereo returns
- Dedicated mono output fader - can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
- Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
- Tri-colour, 12 segment bargraph metering
- Twin FX engines with 20 studio quality FX presets
- +48V Phantom Power
- Signal and Peak LEDs
- Lamp socket
- USB multitrack recording option
- Footswitch connector (mutes/unmutes the ST1 FX Return)
| Performance | |
| Maximum output level | XLR +26dBu into 600 ohms max load Jack +21dBu into 2k ohm max load |
| Internal headroom | Channels +21dB Mix +23dB |
| Meters | 3 colour LED, quasi peak response |
| Sensitivity | 0VU = +4dBu at XLR output |
| Master meters | 12 segment -30 to +16dB |
| Channel meters | 2 segment -12, +16dB (5dB before clip) |
| Frequency response | 10Hz to 30kHz +/-0.5dB |
| THD+n at +10dBu | 1kHz Channel to mix out < 0.004% |
| Crosstalk at 1kHz | Fader shutoff>90dB Channel mute>90dB Inter channel>90dB |
| Noise, rms 22Hz to 22kHz | Mic EIN -127dB Residual output noise < -95dBu (-99dB S/N) LR unity fader mix noise < -83dBu (-87dB S/N) |
| Channel HPF | 12dB/octave below 80Hz |
| Mono EQ | HF Shelving, +/-15dB, 12kHz HM Peak/dip, +/-15dB, 500Hz to 15kHz, Q=1.8 LM Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8 LF Shelving, +/-15dB, 80Hz |
| Stereo EQ | HF Shelving, +/-15dB, 12kHz HM Peak/dip, +/-15dB, 2.5kHz, Q=1.8 LM Peak/dip, +/-15dB, 250Hz, Q=1.8 LF Shelving, +/-15dB, 80Hz |
| Power supply | 100-240V, 50/60Hz auto sensing, IEC input Power consumption 45W max Mains fuse T630mA L 20mm |
| Mechanical | |
| Free standing dimensions | W 507 (20Ó) x D 530 (20.9Ó) x H 194 (7.7Ó) |
| Rack mounted (Underside connectors) | W 483 (19Ó) x D 122 (4.8Ó) x H 444 (17.5Ó) 10U |
| Rack mounted (Rear connectors) | W 483 (19Ó) x D 193 (7.6Ó) x H 497 (19.6Ó) 11.2U |
