Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into a compact desk or rack mount format.
With Qu-Pac you are free to mix from your iPad, but the full functions of the mixer can be accessed from the front panel and touchscreen should you need them.
- Best-Selling Digital Mixing Platform
- Inputs: 16 Mono / 3 Stereo
- Expandable to 32 Mono / 3 Stereo
- Mixes: 4 Mono / 4 Stereo / LR
- Expandable to 4 Mono / 7 Stereo / LR
- Matrix: 2 Stereo
- 32x32 USB Audio Interface
- Comprehensive Channel Processing and FX
- Intuitive Interface with Full Colour Touchscreen
- Range of Remote Expanders
- Suitable for:
- A/V Install
- Corporate Audio
- Houses of Worship
Massive processing power and advanced functionality counts for nothing if you can't access the controls you need in a heartbeat.
The 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of Qu-Pac's interface, providing super-fast, easy access to all settings. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.
The Qu-Control key brings up a fully customizable screen which gives access to channels and settings tailored to the user and application. Several ‘widgets' can be assigned to the page, including channel levels, mutes and assignment on/off switches and are arranged to suit the user requirement, for example, as a source selection and level control of background music to one or multiple zones.
With Qu-Pad you're free to EQ and mix monitors on stage, roam around the venue whilst adjusting the PA, and mix the show from the heart of the audience. Qu-Pad connects over Wi-Fi and gives instant access to all live mixing parameters and settings.
Qu-You allows up to seven performers to control their own monitor mixes using any iOS or Android device, and frees up the engineer to focus on mixing for the audience.
Qu-Control is a customisable iOS app providing a simple interface for non-technical users to control the essential parameters of Qu mixers when technical operators are not around.
CAPTURE EVERY DETAIL
Qu has been designed from the ground up to deliver professional sound quality, from input to output.
Qu-Pac features sixteen AnalogiQ digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage.
The AnalogiQ preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, which are matched to 24bit digital to analogue converters to deliver the required high quality output.
WORLD CLASS PROCESSING AND FX
Qu's dynamics and FX algorithms are derived from those used in A+H's pro touring series.
Some of the world's most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units.
Qu boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. FX are returned to the mix on dedicated return channels, so you're not tying up your mono and stereo input channels, and each Stereo FX Return has a dedicated 4 band PEQ.
RECORD. STREAM. MIX.
Qu's built-in interface streams multitrack audio to your Mac or PC via a flexible patching system: all Input channels and the Main LR can be recorded at the same time, or you may choose to record something different such as FX returns or a pair of mixes.
The returns from the computer can be assigned to the Input channels. The interface is class-compliant on Mac OS X – and drivers are available for Windows systems. Either way, it will be recognized straightaway by any DAW supporting ASIOTM or Core Audio, including Logic, Cubase, Reaper, and Pro Tools.
Standard MIDI control is tunnelled over the USB and network connections, this can be mapped to the faders of your favourite DAW using the A+H MIDI Control app which provides easy setup and emulation of HUI or Mackie Control protocols on Mac OS X and Windows systems.
Want to livestream? Easy. Just send a stereo mix over USB and your streaming software will do the rest.
Qu-Pac is a self-contained mixer, so if you've already got the analogue cables you're good to go.
But if you're thinking of trading in the multicore for a Cat5 digital snake, the built-in dSNAKE™ port has you future-proofed, allowing connection to a remote AB168, AR2412 or AR84 Stagebox from our Everything I/O range of remote expanders.
Qu has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive.
Capturing multitrack recordings of your shows has never been so easy. A selectable stereo pair can be recorded alongside the 16 Mono channels, and multitrack audio can be played back to the 16 Mono inputs plus ST1.
On top of this, Qu-Drive also provides stereo recording patchable from any pair of Mix outputs, the Main LR (pre, post, or summed to mono) or even the PAFL bus, with 2- track stereo playback to ST3.
AMM: Automatic Mic Mixer
AMM is vital in applications such as conferences, meetings and panel discussions where a number of microphones are open at the same time.
Reducing background noise and minimising the risk of feedback, the Automatic Microphone Mixer helps the engineer to manage the levels of multiple mic inputs, ensuring that each speaker's contribution is heard clearly.
The D-Classic dynamic gain sharing algorithm is inspired by industry standard automixers. Up to 16 microphone sources can be mixed at once, with each channel having a priority setting which determines its ‘weight' in the total system gain.
THE STRONG, SILENT TYPE

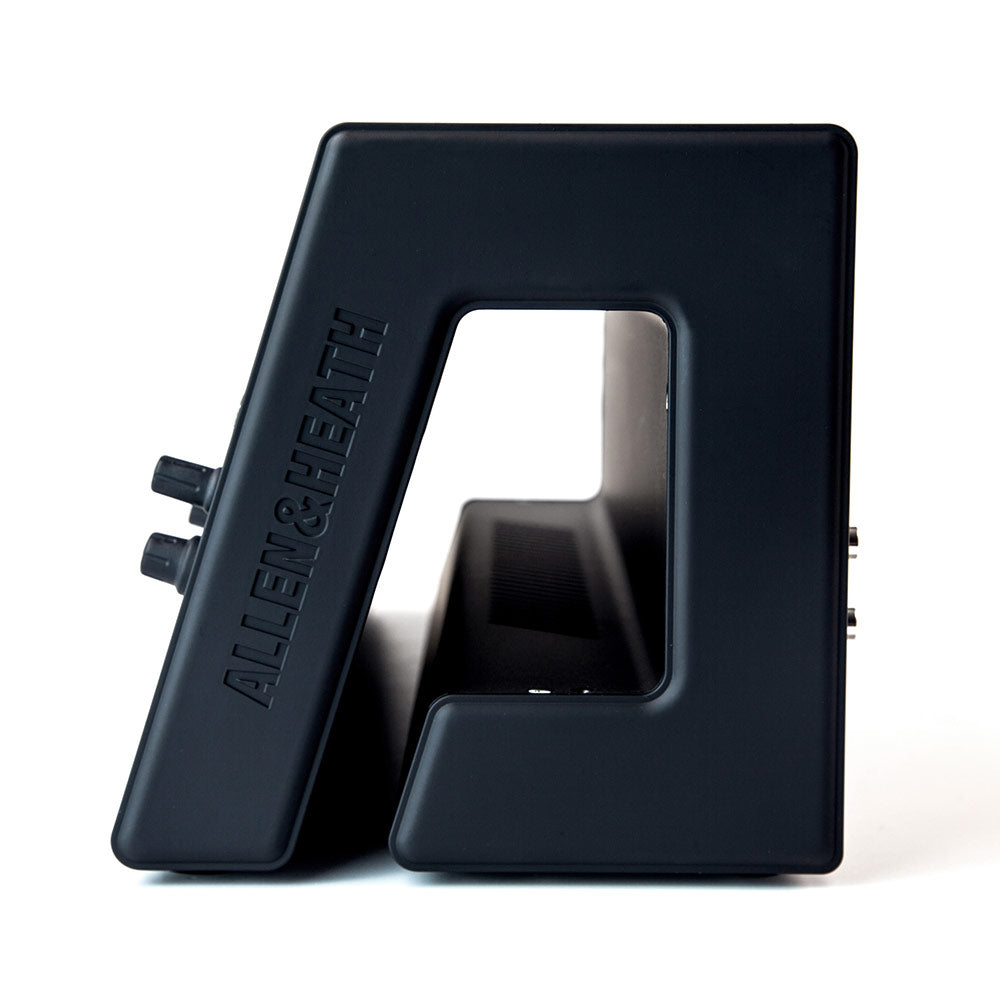

Made from 18 gauge, cold-rolled Zintec steel, Qu's distinctive frame is designed for strength and rigidity. Silence is a precious commodity in the live or studio environment, which is why nobody wants those moments of stillness ruined by whirring coming from the mix position. Qu's sleek profile generates optimal airflow through the mixer, eliminating the need for any fans.
GIVE PERFORMERS CONTROL
Qu is fully compatible with the ME Personal Mixing System.
The ME system expands available monitor mixes and gives each performer control over their own mix, leaving the engineer free to focus on the main mix.
- 19" Rack Mountable
- 16 local Mono Mic/Line Inputs (TRS + XLR)
- Recallable AnaLOGIQTM Preamps
- 3 Stereo Inputs (TRS)
- 12 local Mix Outputs (XLR)
- Expandable to 38 input, 24 out using dSNAKE AudioRack
- 4 Stereo Groups (switchable to Mix mode)
- Up to 11 Monitor Mixes (4 mono + 7 stereo)
- 4 FX Engines
- 4 dedicated FX Sends / Returns
- 4 Mute Groups
- 4 DCA Groups
- AES Digital Out
- 32×32 USB Audio Interface
- dSNAKETM Remote Audio Port
- 800×480 Touchscreen
- 15 Soft Keys
- 16 Custom Select keys
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
- Automatic Mic Mixer
- Channel Ducker on all Inputs
- ProFactory Mic Presets
- RackFX Library
- Built-in Signal Generator
- RTA with Peak Band indication
- Spectrogram to aid feedback elimination and room acoustics
- Qu-Drive Direct Multitrack Recording / Playback on USB drives
- DAW MIDI Control
- Qu-Pad fully-featured iPad App
- Qu-You iPhone / Android personal monitoring app
- Qu-Control customisable iOS app for simple wireless control
- Compatible with ME Personal Mixing System
