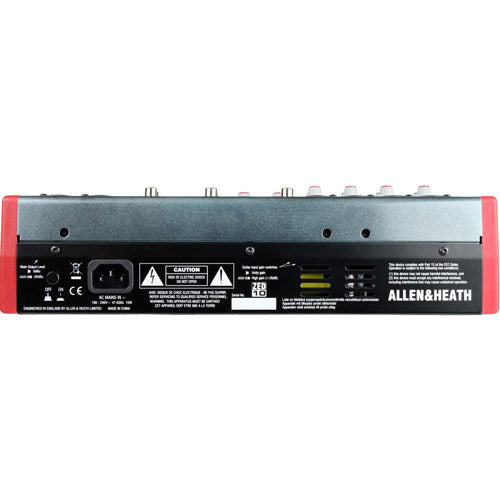

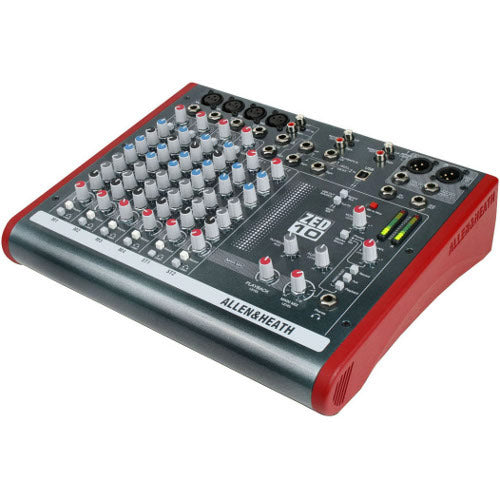

Allen And Heath ZED-10 Multi-Purpose Portable Mixer for Live Sound and Recording



  • Dale #:

    ALLE-AHZED10

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ZED-10 is an amazing little desk for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio. It comes with configurable USB audio in/out making it easy to capture stereo recordingsGuitars can be plugged in directly to the mixer usi... Read More

Retail Price: $469.99 Our Price: $379.99

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ZED-10 is an amazing little desk for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio. It comes with configurable USB audio in/out making it easy to capture stereo recordings

Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards.

Equipped with professional XLR stereo outputs and a flexible monitoring section with headphone and speaker feed outputs. ZED-10 is bundled with IK Multimedia's AmpliTube X-GEAR software, giving access to superbly modelled amps and effects.

Features:

  • 4 mic/line inputs, 2 with Class A FET high impedance inputs
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • 3 band EQ with MusiQ
  • 2 auxes
  • Sound image pan
  • Illuminated PFL indicator
  • Stereo returns & playback
  • All inputs with level control
  • 12 bar meters
  • Responsive 3-band, swept mid EQ with MusiQ
  • 2 stereo sources with MP3 player compatibility
  • Separate 2-track record outputs
  • Stereo playback input for 2-track replay
  • XLR main stereo outputs with inserts
  • Comprehensive monitoring
  • Configurable USB stereo audio in/out
  • Stereo monitor outs
  • 48V microphone phantom power
  • DI level switching for sub mixing

More +

Product Specs

Operating Levels
Input
Mono channel (XLR) Input -10 to –60dBu for nominal (+11dBu in max)
Mono channel Line Input (Jack socket)+10 to –40dBu (+31dBu maximum)
Stereo Input (Jack or phono sockets) 0dBu nominal (control = Off to +15dB)
Output
L/R Outputs ( XLR) Normal/DI out 0dBu/-30dBu +21dBu/-9dBu maximum.
Aux & FX Outputs (Jack sockets)0dBu nominal. +21dBu maximum.
Record & Monitor Outputs (phono sockets)0dBu nominal. +21dBu maximum.
Frequency Response
Mic in to Mix L/R Out, 30dB gain+0.5/-1dB 10Hz to 30kHz.
Line in to Mix L/R out 0dB gain +0.5/-1dB 10Hz to 25kHz
Stereo in to Mix L/R out +0.5/-1dB 10Hz to 30kHz
THD+n
Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out0.002%
Mic in to Mix L/R Out, 30dB gain  1kHz0.01%
Line in to Mix L/R out 0dB gain 0dBu 1kHz 0.003%
Stereo in to Mix L/R out 0dB gain +10dBu 1kHz 0.002%
Gtr Input to Mix L/R Out, 0dBu, Boost OUT0.015%
Gtr Input to Mix L/R Out, 0dBu, Boost IN 2% Second Harmonic
Headroom
Analogue Headroom from nominal (0Vu) 21dB
USB in & out headroom from nominal (0Vu) 14dB
Noise
Mic Pre EIN @ max gain 150R input Z 22-22kHz  -127dBu
Mix L/R out, L/R faders = 0, Levels min, 22-22kHz  -96dBu
Mix L/R out, L/R faders = 0, Levels min, 22-22kHz -96dBu
USB Audio CODEC (Coder/Decoder)
USB Audio In/OutUSB 1.1 compliant 16bit.
Sample Rate  32, 44.1, or 48kHz
Weight (ZED-10)
Unpacked 3.2kg (7 lb)
Packed 4.4kg (9.7 lb)
