DALE SKU # AMBI-ASF1MKII

Ambient Recording ASF-1 MKII SoundFish Underwater Microphone

Sale price$2,092.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The ASF-1 MKII is completely designed and manufactured by Ambient Recording in response all the requests for an affordable, yet professional hydrophone for working with standard audio gear. The goal was nothing less than to create a very natural sounding, low noise underwater microphone. Well, it took nearly 3 years but finally they did it. With the development of the Ambient "Sound Fish" Ambient Recording focused on high audio quality with best handling. Therefore they designed a linear, low distortion microphone preamp offering a linear frequency response from 10Hz- 40kHz.

    Waterproof up to 100m
    Following an idea to create an underwater microphone for professional sound recordists, Ambient Recording worked hard to build a hydrophone which can be fed directly from standard 48V Phantom power. Thus, this microphone works right out of the box with all your existing audio gear without additional adaptors. The ASF-1 MKII is machined out of high quality aluminum-brass and can easily withstand the water pressure of 100m depth.

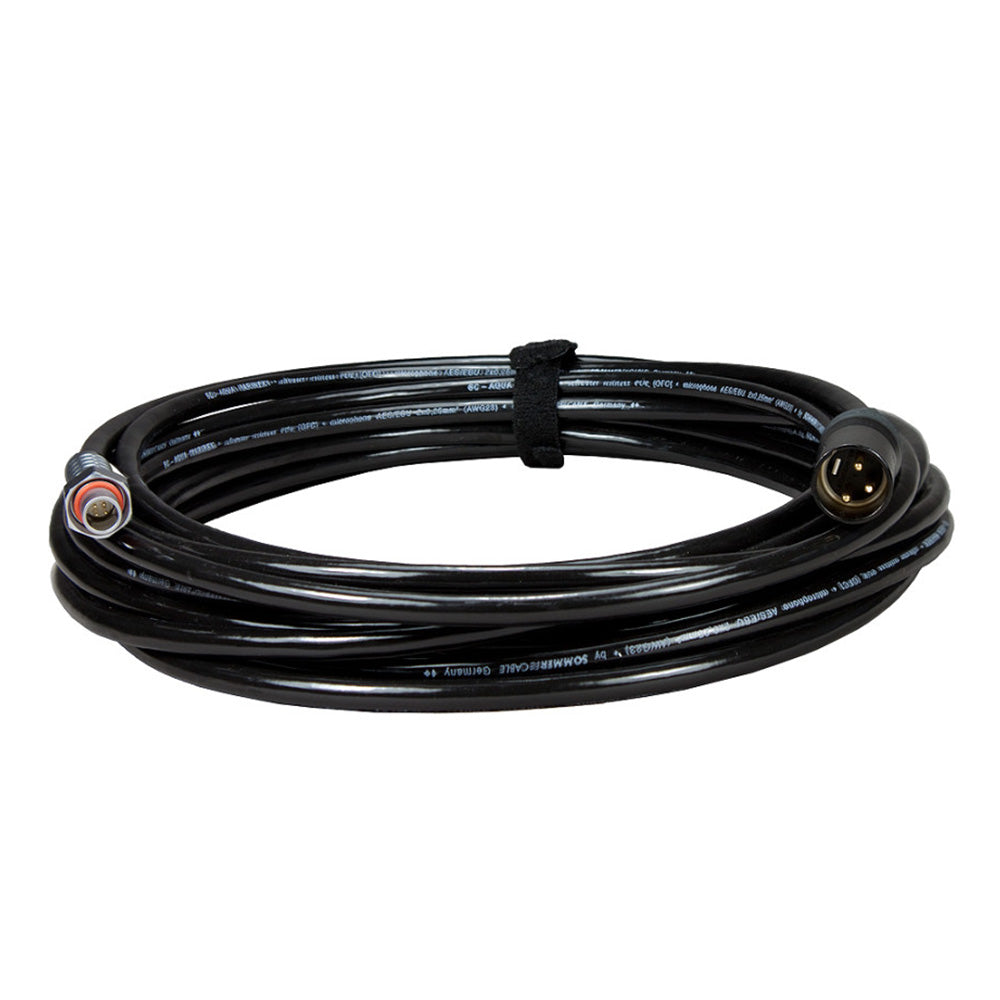

    Additionally the used materials (special formulated NBR, polyurethane cable) stand out for their long term resistance against seawater. Within the purchased parts package it includes a 10 meter underwater cable with sealed AHS underwater connector. Thus, the AFS-1 MKII can be used right out of the box without additional adaptors or cables. Other cable lengths are available on request.

    Frequency response 7Hz- 40kHz (-3dB)
    Polar Pattern Omni directional
    THD 0,1% (10Hz-40kHz)
    Dimensions (HxW) 180mm x 25mm
    Max depth 100m
    Housing material aluminum-brass
    Encapsulating material Special formulated NBR
    Weight (without cable) 270g
    Power Supply 48V Phantom
    Included Accessories detachable 10m underwater cable
    Connection Special designed AHS underwater connector
    Temperature range -5¡ C to +50¡C

    The ASF-1 MKII is completely designed and manufactured by Ambient Recording in response all the requests for an affordable, yet professional hydrophone for working with standard audio gear. The goal was nothing less than to create a very natural sounding, low noise underwater microphone. Well, it took nearly 3 years but finally they did it. With the development of the Ambient "Sound Fish" Ambient Recording focused on high audio quality with best handling. Therefore they designed a linear, low distortion microphone preamp offering a linear frequency response from 10Hz- 40kHz.

    Waterproof up to 100m
    Following an idea to create an underwater microphone for professional sound recordists, Ambient Recording worked hard to build a hydrophone which can be fed directly from standard 48V Phantom power. Thus, this microphone works right out of the box with all your existing audio gear without additional adaptors. The ASF-1 MKII is machined out of high quality aluminum-brass and can easily withstand the water pressure of 100m depth.

    Additionally the used materials (special formulated NBR, polyurethane cable) stand out for their long term resistance against seawater. Within the purchased parts package it includes a 10 meter underwater cable with sealed AHS underwater connector. Thus, the AFS-1 MKII can be used right out of the box without additional adaptors or cables. Other cable lengths are available on request.

    Frequency response 7Hz- 40kHz (-3dB)
    Polar Pattern Omni directional
    THD 0,1% (10Hz-40kHz)
    Dimensions (HxW) 180mm x 25mm
    Max depth 100m
    Housing material aluminum-brass
    Encapsulating material Special formulated NBR
    Weight (without cable) 270g
    Power Supply 48V Phantom
    Included Accessories detachable 10m underwater cable
    Connection Special designed AHS underwater connector
    Temperature range -5¡ C to +50¡C
