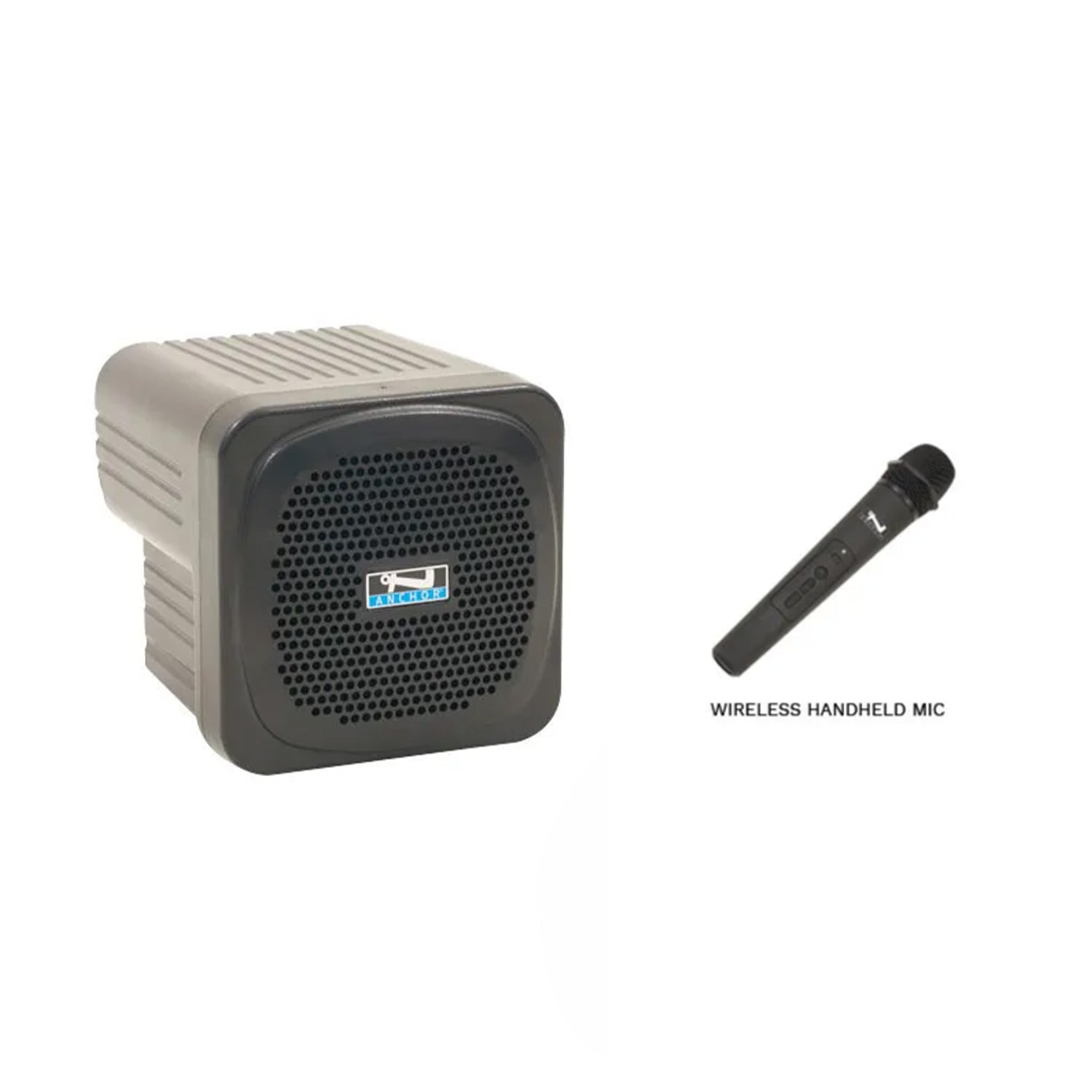

Anchor Audio AN-30BT - Portable PA Package with Wireless Handheld Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
AN-30BT Powered Speaker Monitor with Bluetooth, and one wireless handheld microphone. Models Included: AN-30BTU2, WH-LINK.
The AN-30 is the smallest AC-powered monitor in the Anchor Audio product line and is the ultimate in extreme portability. This tiny powerhouse weighs just one and a half pounds and emits 100 dB of loud clear sound. Connect up to 2 wireless microphones and 1 wired microphone for voice projection. This expandable system lets you daisy-chain units for as much coverage as you need over time and offers flexible mounting options for stands, wall, or ceiling. The AN-30 is perfect for classrooms, AV carts, conference rooms and more.
Features:
- Reach crowds of 100+
- Stand or bracket mountable
- Built-in bracket mount screws for easy installation (bracket with Allen wrench sold separately)
- Connect up to two wireless mics
- Available with or without wireless mic capability
| Weight | 4.5 lbs |
| Dimensions: (Height x Width x Depth) | 7" x 6" x 3.5" |
| Coverage | * area: approximately 20' x 30' * crowd size: approximately 100 |
| Drivers | AN-30 speakers include one 4.5" Woofer. |
| Rated Power Output | 30 watts |
| Max SPL @ Rated Power | 100 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 2A |
| Charger/Power Inlet | PC-2 |
| Battery | 10 AA alkaline batteries or 10 Lithium Iron Phosphate (LiFePo4) rechargeable batteries |
| Full recharge | ~ 7 hours |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Input | One unbalanced 1/4" |
| Line Output (post fader) | Isolated, 600_ One 1/4" phone |
| Speaker Out | 4-pole Neutrik Speakon¬ jack |
AN-30BT Powered Speaker Monitor with Bluetooth, and one wireless handheld microphone. Models Included: AN-30BTU2, WH-LINK.
The AN-30 is the smallest AC-powered monitor in the Anchor Audio product line and is the ultimate in extreme portability. This tiny powerhouse weighs just one and a half pounds and emits 100 dB of loud clear sound. Connect up to 2 wireless microphones and 1 wired microphone for voice projection. This expandable system lets you daisy-chain units for as much coverage as you need over time and offers flexible mounting options for stands, wall, or ceiling. The AN-30 is perfect for classrooms, AV carts, conference rooms and more.
Features:
- Reach crowds of 100+
- Stand or bracket mountable
- Built-in bracket mount screws for easy installation (bracket with Allen wrench sold separately)
- Connect up to two wireless mics
- Available with or without wireless mic capability
| Weight | 4.5 lbs |
| Dimensions: (Height x Width x Depth) | 7" x 6" x 3.5" |
| Coverage | * area: approximately 20' x 30' * crowd size: approximately 100 |
| Drivers | AN-30 speakers include one 4.5" Woofer. |
| Rated Power Output | 30 watts |
| Max SPL @ Rated Power | 100 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 2A |
| Charger/Power Inlet | PC-2 |
| Battery | 10 AA alkaline batteries or 10 Lithium Iron Phosphate (LiFePo4) rechargeable batteries |
| Full recharge | ~ 7 hours |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Input | One unbalanced 1/4" |
| Line Output (post fader) | Isolated, 600_ One 1/4" phone |
| Speaker Out | 4-pole Neutrik Speakon¬ jack |
