Anchor Audio Mini ECO 1 - Portable PA Package with Wired Headset Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AN-MINI/MiniVox Lite is a wearable monitor and ultra-lightweight PA solution weighing only 2.5 lbs. The soft case provides hands-free portability and can go with you anywhere. This unit can be AC or battery operated, lasts 10-12 hours on a charge, and has a convenient optional charging kit. 2 wireless microphones and 1 wired microphone can be used with the unit and ensures voice projection. The AN-MINI/MiniVox Lite emits 100 dB of clear, present sound and is ideal for tour guides, first responders, schools, auctions and more.
Features:
- Reach crowds of 100+
- Batteries operate 10 Ð 12 hours on a single charge
- Optional rechargeable battery kit
- Mic boost button
- Connect up to two wireless mics
- Available with or without wireless mic capability

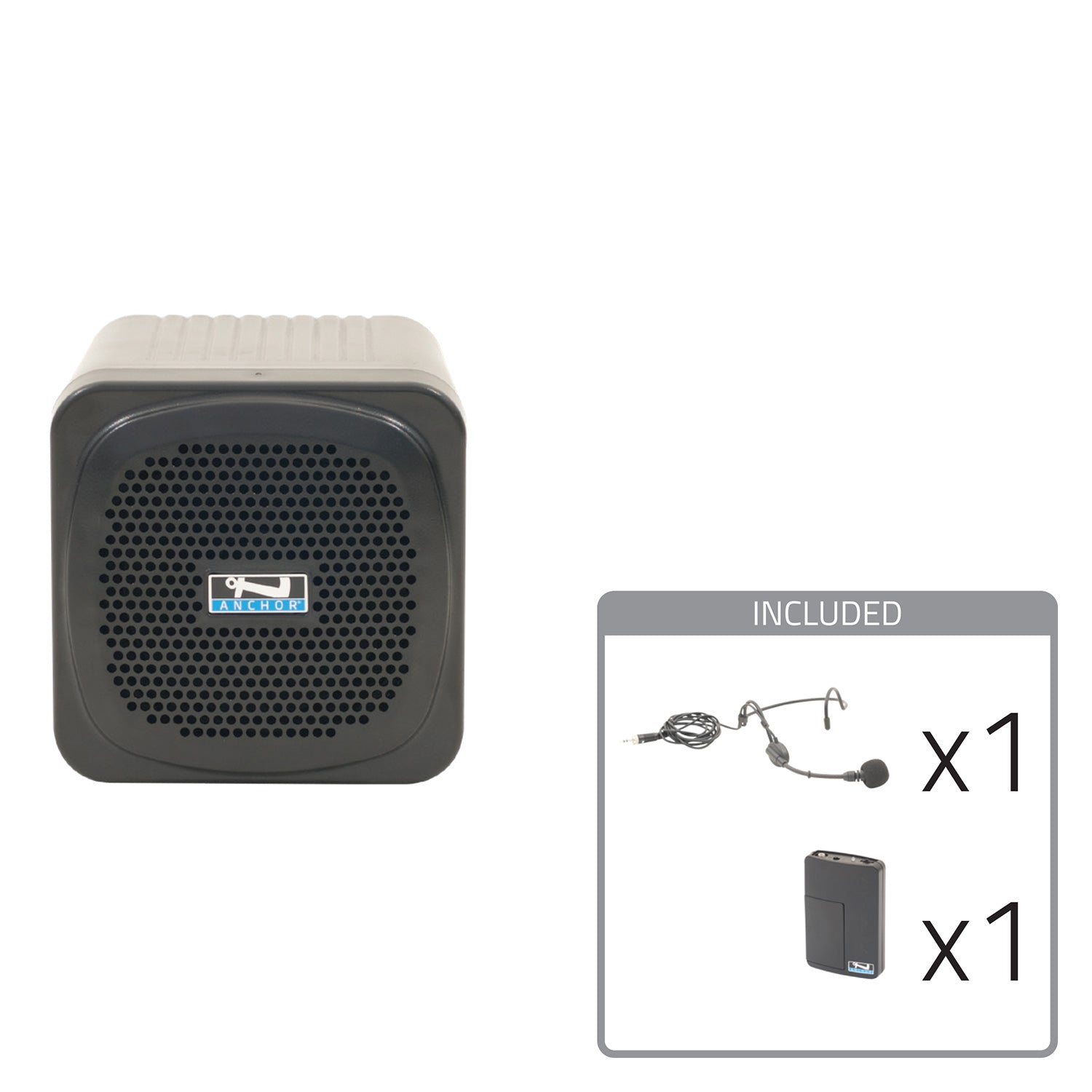

Package Includes:
- Qty1:ÊAN-MINI-BT -ÊMini Speaker
- Qty 1:ÊEM-LINK -ÊAnchor Audio Wired Headset MicÊ
- Qty 1: SOFT-MINI -ÊSoft Carry Bag
- Qty 1: RC-30 -ÊBattery Recharge Kit
| Weight | 2.6 lbs |
| Dimensions: (Height x Width x Depth) | 7" x 6" x 3.5" |
| Coverage | * area: approximately 20' x 30' * crowd size: approximately 100 |
| Drivers | One 4.5" Neodymium Woofer |
| Rated Power Output | 30 watts |
| Max SPL @ Rated Power | 100 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 2A |
| Charger/Power Inlet | PC-2 |
| Battery | 10 AA Alkaline, or 10 Rechargeable Lithium Iron Phosphate (LiFePo4) |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| AnchorFlex Frequency Range | 902~928 MHz USA/CAN 606~614MHz Europe |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * 34 V DC condenser mic (phantom) power * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Input | One 3.5 mm line level |
| Line Output | One 3.5 mm line level |
The AN-MINI/MiniVox Lite is a wearable monitor and ultra-lightweight PA solution weighing only 2.5 lbs. The soft case provides hands-free portability and can go with you anywhere. This unit can be AC or battery operated, lasts 10-12 hours on a charge, and has a convenient optional charging kit. 2 wireless microphones and 1 wired microphone can be used with the unit and ensures voice projection. The AN-MINI/MiniVox Lite emits 100 dB of clear, present sound and is ideal for tour guides, first responders, schools, auctions and more.
Features:
- Reach crowds of 100+
- Batteries operate 10 Ð 12 hours on a single charge
- Optional rechargeable battery kit
- Mic boost button
- Connect up to two wireless mics
- Available with or without wireless mic capability
Package Includes:
- Qty1:ÊAN-MINI-BT -ÊMini Speaker
- Qty 1:ÊEM-LINK -ÊAnchor Audio Wired Headset MicÊ
- Qty 1: SOFT-MINI -ÊSoft Carry Bag
- Qty 1: RC-30 -ÊBattery Recharge Kit
| Weight | 2.6 lbs |
| Dimensions: (Height x Width x Depth) | 7" x 6" x 3.5" |
| Coverage | * area: approximately 20' x 30' * crowd size: approximately 100 |
| Drivers | One 4.5" Neodymium Woofer |
| Rated Power Output | 30 watts |
| Max SPL @ Rated Power | 100 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 2A |
| Charger/Power Inlet | PC-2 |
| Battery | 10 AA Alkaline, or 10 Rechargeable Lithium Iron Phosphate (LiFePo4) |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| AnchorFlex Frequency Range | 902~928 MHz USA/CAN 606~614MHz Europe |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * 34 V DC condenser mic (phantom) power * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Input | One 3.5 mm line level |
| Line Output | One 3.5 mm line level |
