Anchor Audio Mini Link - Portable PA Package with Wired Handheld and Wireless Collar Microphones
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

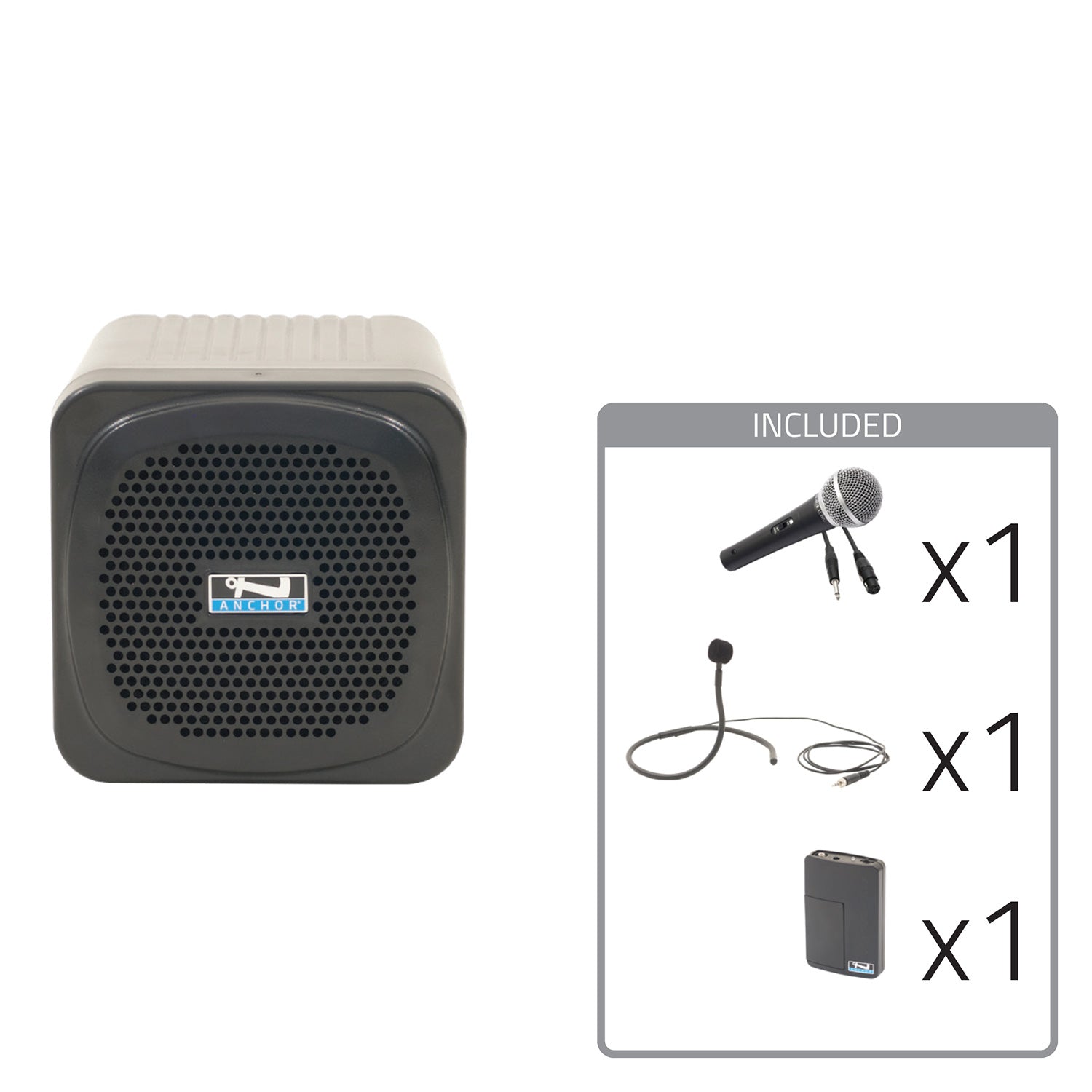

MINI Portable PA, battery recharge kit, soft carry case, wired handheld microphone, wireless belt pack transmitter with collar microphone Models Included: AN-MINIU2BT, RC-30, SOFT-MINI, MIC-50, WB-LINK + CM-LINK.
The AN-MINI/MiniVox Lite is a wearable monitor and ultra-lightweight PA solution weighing only 2.5 lbs. The soft case provides hands-free portability and can go with you anywhere. This unit can be AC or battery operated, lasts 10-12 hours on a charge, and has a convenient optional charging kit. 2 wireless microphones and 1 wired microphone can be used with the unit and ensures voice projection. The AN-MINI/MiniVox Lite emits 100 dB of clear, present sound and is ideal for tour guides, first responders, schools, auctions and more.
Features:
- Reach crowds of 100+
- Batteries operate 10 Ð 12 hours on a single charge
- Optional rechargeable battery kit
- Mic boost button
- Connect up to two wireless mics
- Available with or without wireless mic capability
| Weight | 2.6 lbs |
| Dimensions: (Height x Width x Depth) | 7" x 6" x 3.5" |
| Coverage | * area: approximately 20' x 30' * crowd size: approximately 100 |
| Drivers | One 4.5" Neodymium Woofer |
| Rated Power Output | 30 watts |
| Max SPL @ Rated Power | 100 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 2A |
| Charger/Power Inlet | PC-2 |
| Battery | 10 AA Alkaline, or 10 Rechargeable Lithium Iron Phosphate (LiFePo4) |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| AnchorFlex Frequency Range | 902~928 MHz USA/CAN 606~614MHz Europe |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * 34 V DC condenser mic (phantom) power * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Input | One 3.5 mm line level |
| Line Output | One 3.5 mm line level |
MINI Portable PA, battery recharge kit, soft carry case, wired handheld microphone, wireless belt pack transmitter with collar microphone Models Included: AN-MINIU2BT, RC-30, SOFT-MINI, MIC-50, WB-LINK + CM-LINK.
The AN-MINI/MiniVox Lite is a wearable monitor and ultra-lightweight PA solution weighing only 2.5 lbs. The soft case provides hands-free portability and can go with you anywhere. This unit can be AC or battery operated, lasts 10-12 hours on a charge, and has a convenient optional charging kit. 2 wireless microphones and 1 wired microphone can be used with the unit and ensures voice projection. The AN-MINI/MiniVox Lite emits 100 dB of clear, present sound and is ideal for tour guides, first responders, schools, auctions and more.
Features:
- Reach crowds of 100+
- Batteries operate 10 Ð 12 hours on a single charge
- Optional rechargeable battery kit
- Mic boost button
- Connect up to two wireless mics
- Available with or without wireless mic capability
| Weight | 2.6 lbs |
| Dimensions: (Height x Width x Depth) | 7" x 6" x 3.5" |
| Coverage | * area: approximately 20' x 30' * crowd size: approximately 100 |
| Drivers | One 4.5" Neodymium Woofer |
| Rated Power Output | 30 watts |
| Max SPL @ Rated Power | 100 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 2A |
| Charger/Power Inlet | PC-2 |
| Battery | 10 AA Alkaline, or 10 Rechargeable Lithium Iron Phosphate (LiFePo4) |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| AnchorFlex Frequency Range | 902~928 MHz USA/CAN 606~614MHz Europe |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * 34 V DC condenser mic (phantom) power * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Input | One 3.5 mm line level |
| Line Output | One 3.5 mm line level |
