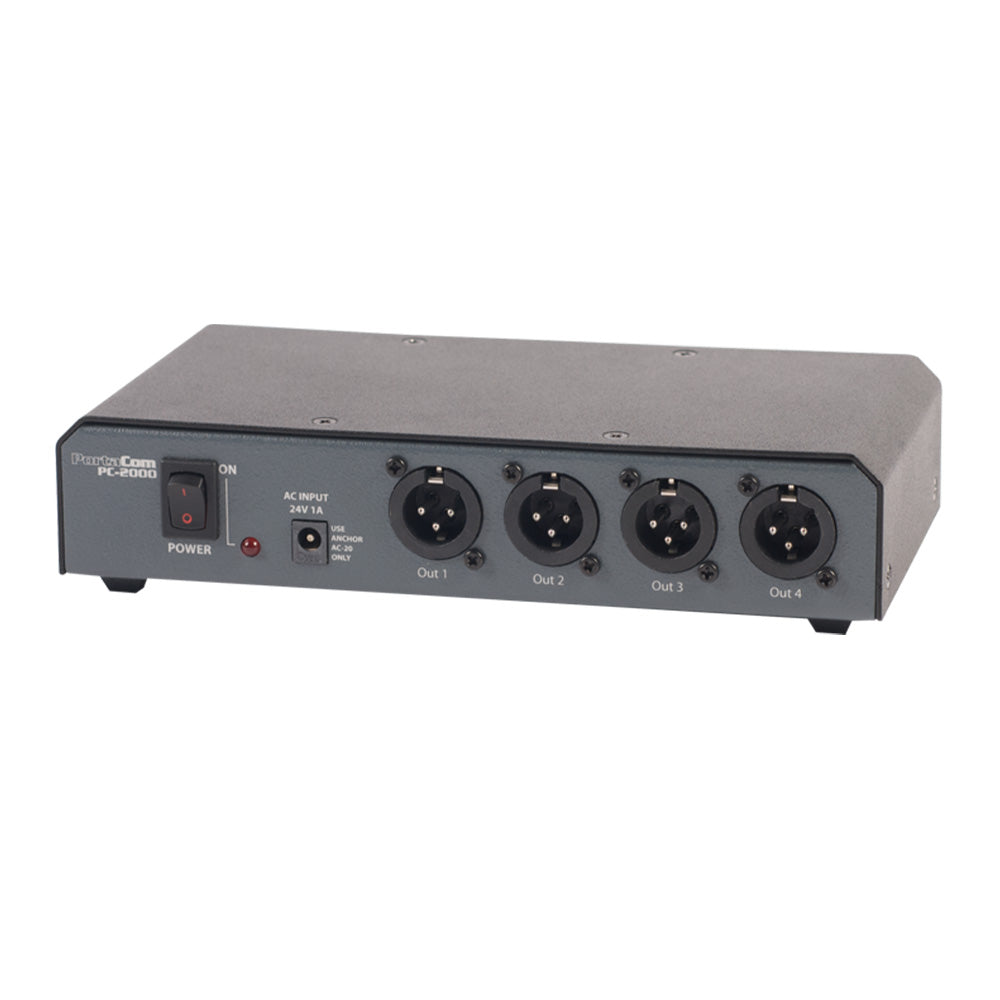

Anchor Audio PC-2000 - Power Console for Portacom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Anchor Audio PC-2000 - Power Console for Portacom
Sale price$499.00
Regular price$555.00
Description
The PC-2000 is the power console for the PortaCom wired intercom system.
| Output Connectors | Four 3-pin XLR male |
| Voltage Output | 22 VDC to beltpacks |
| Maximum Current Capacity | 400 mA |
| Maximum Quantity of Beltpacks | 20 BP-2000 beltpacks |
| Input Power Reqs | 24VAC, 50/60Hz, 750mA, 30-40VDC, 500mA |
| AC Power Adapter | AC-20 |
| Dimensions (HWD) | 1.75Ó x 8.5Ó x 4.5Ó (4.45 x 21.6 x 10.2 cm) |
| Weight | 3.6 lbs / 1.6 Kg |
The PC-2000 is the power console for the PortaCom wired intercom system.
| Output Connectors | Four 3-pin XLR male |
| Voltage Output | 22 VDC to beltpacks |
| Maximum Current Capacity | 400 mA |
| Maximum Quantity of Beltpacks | 20 BP-2000 beltpacks |
| Input Power Reqs | 24VAC, 50/60Hz, 750mA, 30-40VDC, 500mA |
| AC Power Adapter | AC-20 |
| Dimensions (HWD) | 1.75Ó x 8.5Ó x 4.5Ó (4.45 x 21.6 x 10.2 cm) |
| Weight | 3.6 lbs / 1.6 Kg |
