Angry Audio Mic Tally Gizmo - Logic Microphone Adapter for On-Air Lighting
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Let's say you bought gorgeous new M!KA microphone arms for the studio. And you got the ones with the tally lights. So how exactly do you light those up anyway? With the Mic Tally Gizmo, of course!

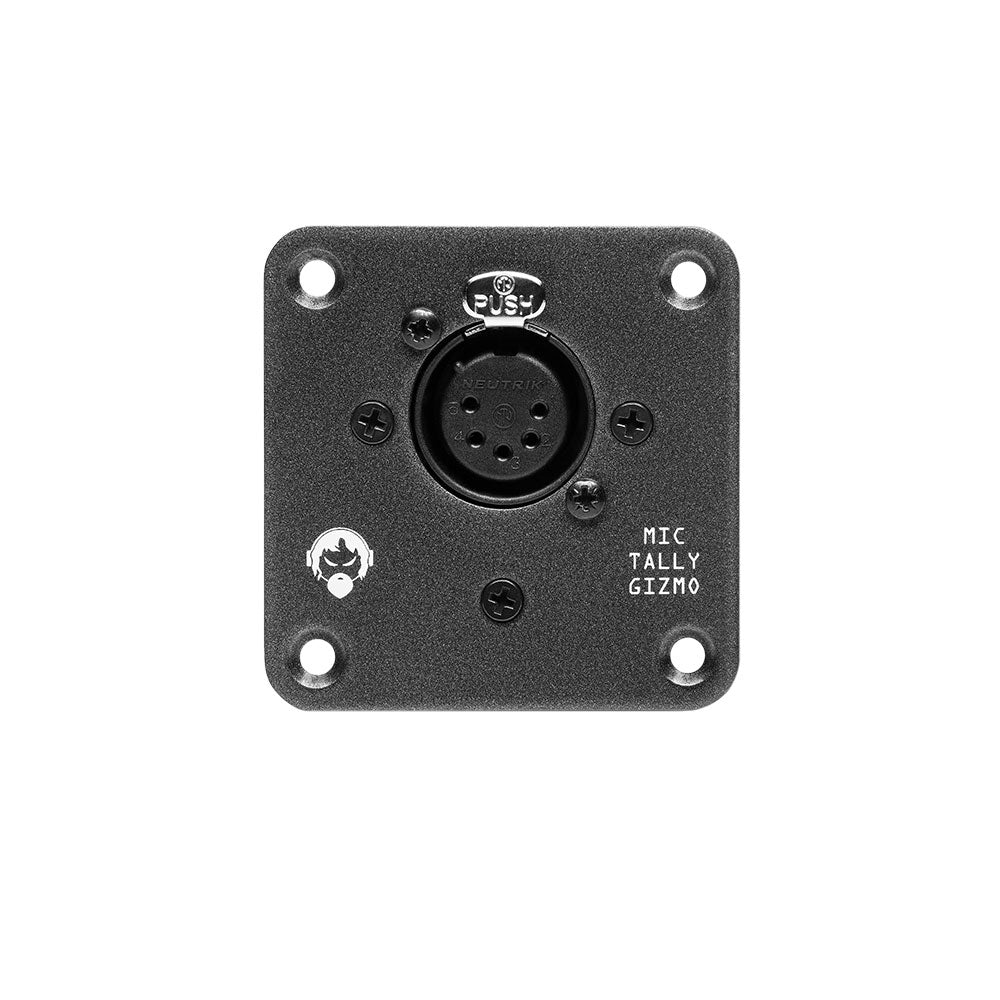

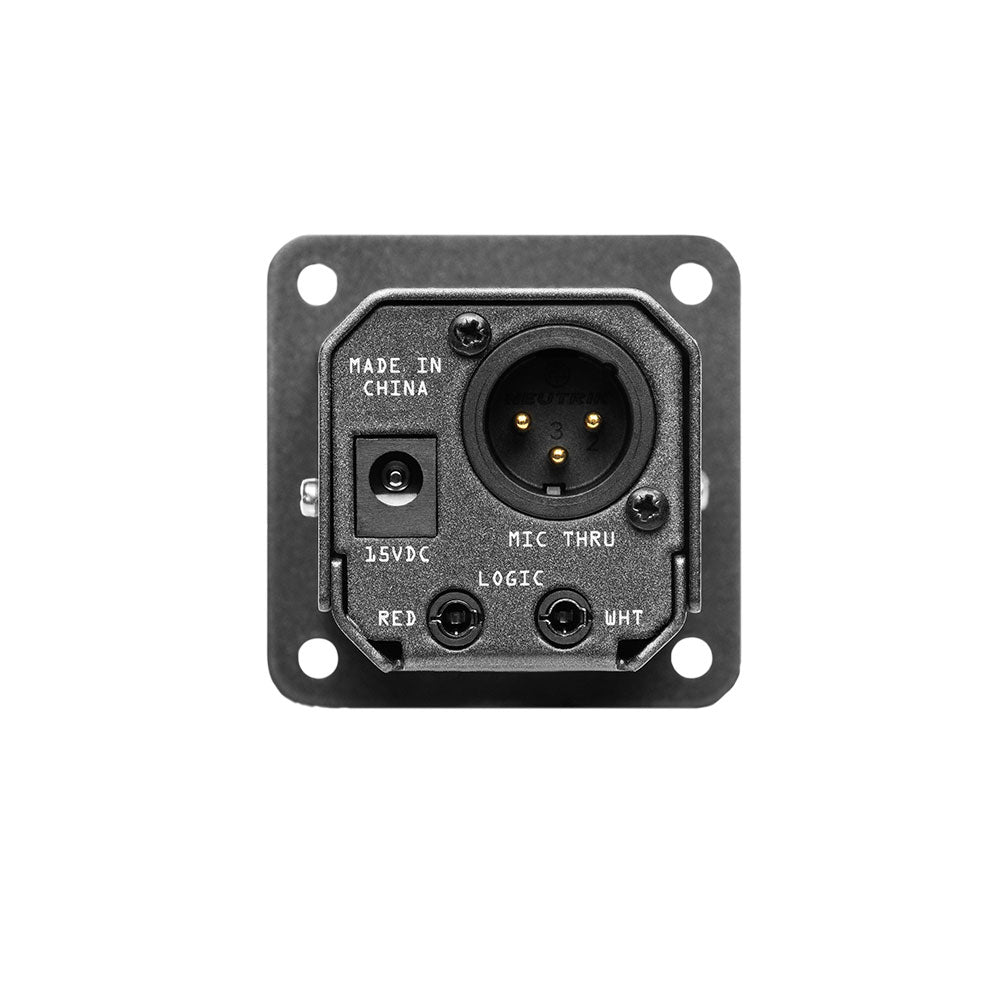

The 5-pin XLR topside carries the microphone audio and the signal voltage for the tally light. The microphone signal is passed through to a 3-pin XLR connector on the bottom. Dual logic inputs drive the tally either red or white. Red is usually the color for on-air. White can be used for an alternate signal. Ready light, talkback indicator, phone ringer, pizza delivery. You'll come up with a bright idea.
You won’t need a carpenter to install the Mic Tally Gizmo in your furniture. Even if you’re not that handy, you can handle a hole saw. A 2-? inch hole is as easy as installing a desk grommet. Your studios will look amazing and you’ll look brilliant.
| Mic Arm Input | 5-pin XLR female jack |
| Mic Thru | 3-pin XLR male jack |
| Logic Ports | 3.5mm TRSS jack |
| Power | 15VDC input |
| Power Input (Adapter) | 115VAC or 230VAC, 50-60Hz |
| Power Output (Adapter) | 15VDC, 200mA, 3.0W |
| Tally Output | 12VDC, 80mA |
| Operating Temperature | 0¼ to 40¼ C (32¼ to 104¼ F) |
| Storage Temperature | -20¼ to 45¼ C (-4¼ to 113¼ F) |
| Relative Humidity | 0% to 90% non-condensing |
| Width x depth x height (Gizmo) | 2.25 x 2.25 x 3.25 in. |
| Weight (Gizmo and Adapter) | 1.0 pound, 0.46 kilograms |
Let's say you bought gorgeous new M!KA microphone arms for the studio. And you got the ones with the tally lights. So how exactly do you light those up anyway? With the Mic Tally Gizmo, of course!
The 5-pin XLR topside carries the microphone audio and the signal voltage for the tally light. The microphone signal is passed through to a 3-pin XLR connector on the bottom. Dual logic inputs drive the tally either red or white. Red is usually the color for on-air. White can be used for an alternate signal. Ready light, talkback indicator, phone ringer, pizza delivery. You'll come up with a bright idea.
You won’t need a carpenter to install the Mic Tally Gizmo in your furniture. Even if you’re not that handy, you can handle a hole saw. A 2-? inch hole is as easy as installing a desk grommet. Your studios will look amazing and you’ll look brilliant.
| Mic Arm Input | 5-pin XLR female jack |
| Mic Thru | 3-pin XLR male jack |
| Logic Ports | 3.5mm TRSS jack |
| Power | 15VDC input |
| Power Input (Adapter) | 115VAC or 230VAC, 50-60Hz |
| Power Output (Adapter) | 15VDC, 200mA, 3.0W |
| Tally Output | 12VDC, 80mA |
| Operating Temperature | 0¼ to 40¼ C (32¼ to 104¼ F) |
| Storage Temperature | -20¼ to 45¼ C (-4¼ to 113¼ F) |
| Relative Humidity | 0% to 90% non-condensing |
| Width x depth x height (Gizmo) | 2.25 x 2.25 x 3.25 in. |
| Weight (Gizmo and Adapter) | 1.0 pound, 0.46 kilograms |
