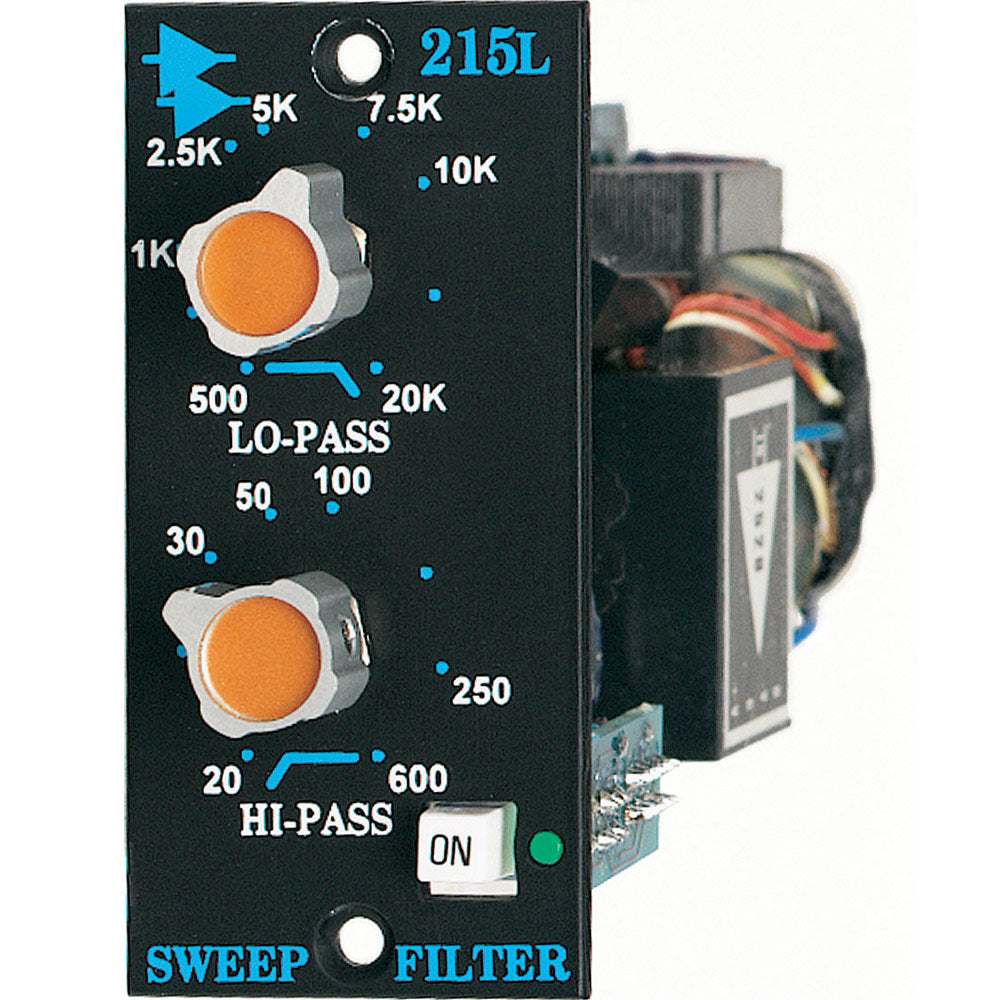

API 215L Discrete HP/LP Sweep Filter - 200 Series Legacy Module


  • Dale #:

    API-215L
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The API 215L is a unique passive, sweepable filter, designed specifically to contour the sound in such a way that it sounds natural and seems as if it always sounded that way. Its extreme flexibility, repeatable settings and superb sound make it ideal for all studio, live sound and broadcast appl... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The API 215L is a unique passive, sweepable filter, designed specifically to contour the sound in such a way that it sounds natural and seems as if it always sounded that way. Its extreme flexibility, repeatable settings and superb sound make it ideal for all studio, live sound and broadcast applications.

Features:
  • Wide range 6 dB per octave LOPASS control
  • Wide range 12 dB per octave HIPASS control
  • Balanced input stage
  • Passive filter design for smooth tone
  • Unity gain throughout
  • Hard Wire BYPASS switch
  • Transformer Coupled Output to +28 dBu
  • All Discrete Design

The 215L design is a passive low pass filter with a slope of only 6 dB per octave, and a passive dual hgh pass filter with a slope of 12 dB per octave. The filters are isolated from each other with the same discrete transistor buffer used in the famous 550 series equalizers. This minimizes interaction between the filters, as well as providing a low impedance source for the filter following the buffer.

The input section is a balanced circuit using the API 2510 all discrete op-amp, minimizing the loading effect on any device plugged into it. The output stage is a transformer balanced output, driven by the all discrete API 2520 op-amp.The filters are both continuously adjustable, with a range from 20 Hz to 20 kHz in two bands. The low pass filter has a range from 500 Hz to 20 kHz, and the high pass filter has a range from 20 Hz to 600 Hz. This covers a broad range of frequencies throughout the eintire audio spectrum.

Because of the subtle nature of the 215L filter, it finds a home with uses like rolling off the low end of a hi-hat, where a natural sound is desired, not the usual "phase-shifter" sound of a 18 to 24 dB per octave filter found on most consoles. It can also be used to thin out room mics, without a complete loss of low end, again, resulting from steep filter circuits.The 215L can be used in the Legacy Series Consoles or in the L200 Rack. The 215L Filter makes use of the 2520 and 2510 op-amps and therefore exhibits the reliability, long life and uniformity which are characteristic of API products.

More +

Product Specs

Number of BandsTwo
Filter TypePassive Sweepable Shelf
Filter Frequency Centers
Low Pass500 to 20 kHz
High Pass20 to 600 Hz
Input Impedance>20 K Ohms, Balanced
Output Impedance85 Ohms, Transformer coupled, Balanced
Nominal Levels-15 dBu to +15 dBu
Clipping Level+28 dBu
Frequency Response0, -.3, 30 to 20 kHz
Noise98 dB below +10 dBm output, unweighted. 20-20 kHz
Distortion
THD.02% (+4 dB @ 2 K)
Connectors.100 spaced ELCO
Noise98 dB below +10 dBm output, unweighted. 20-20 kHz
Size1.25 X 2.65 X 6 Deep
Shipping Weight/Actual Weight1.5 lb/1 lb
Power Consumption±16 Volts DC, 60mA max at +24 dBu out

More +
