Dale #:
API-312Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The 312 is one of API's most sought after and famous mic preamps. First introduced in the 1970s, it is well known and respected throughout the recording industry, and is the building block of the modern 3124 rack unit. Based on API co-founder Saul Walker's original designs, the API 312 Mic Pre c... Read MoreRetail Price: $795.00 Our Price: $755.25
Free Shipping (Continental US)
Suggested Accessories
Description

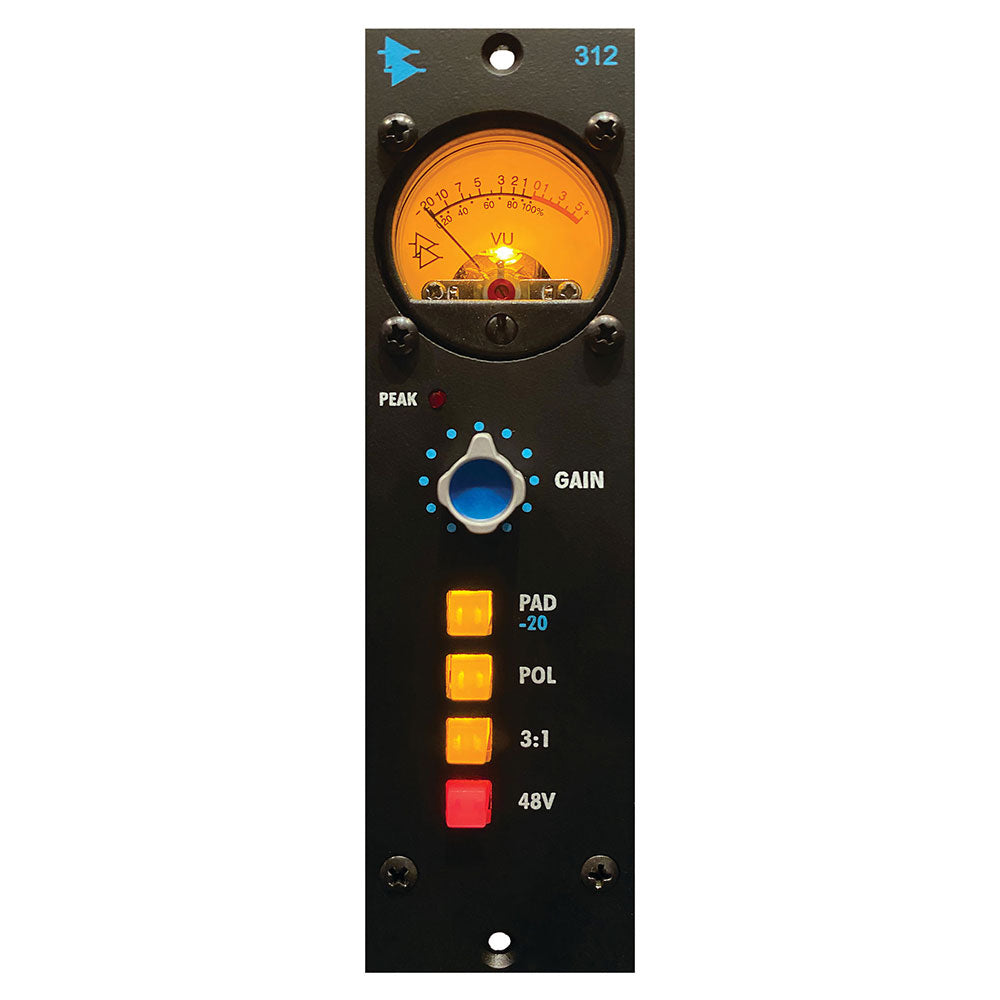

The 312 is one of API's most sought after and famous mic preamps. First introduced in the 1970s, it is well known and respected throughout the recording industry, and is the building block of the modern 3124 rack unit.

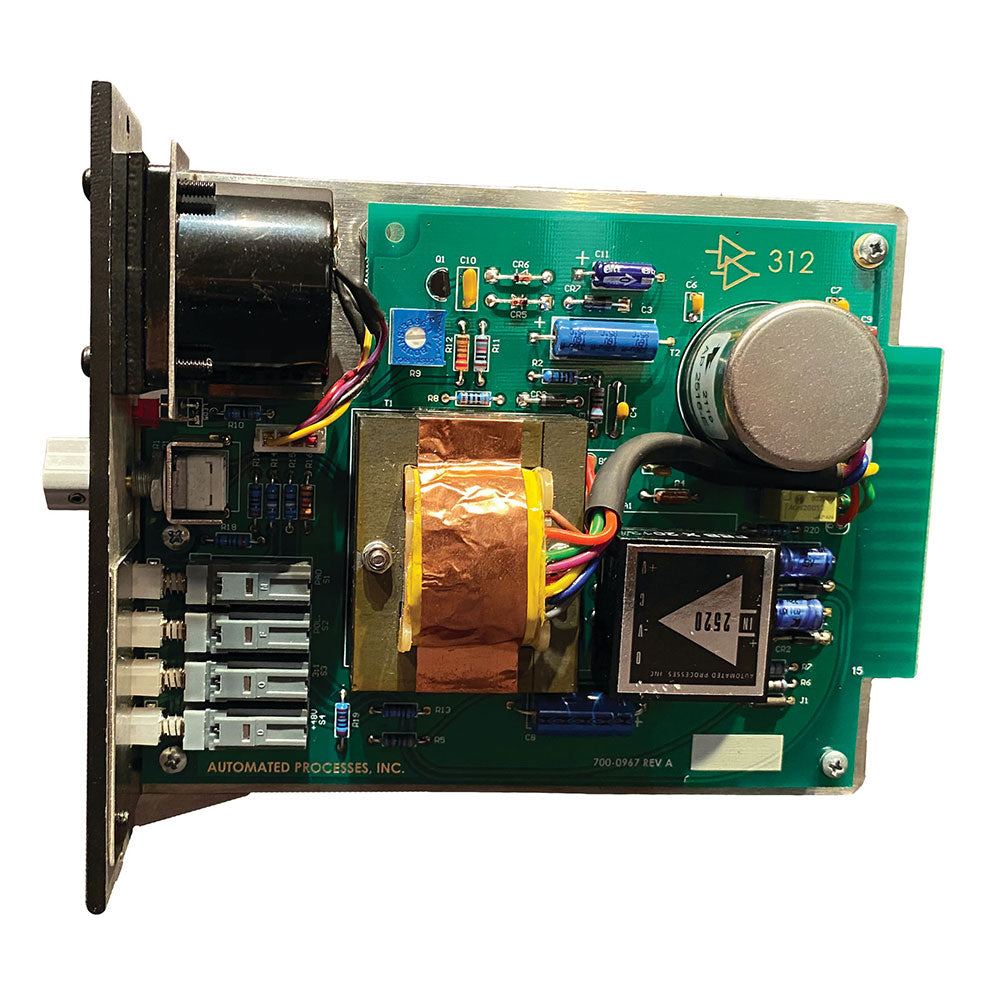

Based on API co-founder Saul Walker's original designs, the API 312 Mic Pre combines our 2520 op-amps and proprietary transformers. It delivers the analog warmth, massive headroom and unmistakable sound for which API is known, in a convenient 500 Series format.
Following the success of the hand wired 312 50th Anniversary Edition, this standard production version offers the classic API sound at an affordable price. Like all API products, the 312 is backed by API's unique Five Year Warranty.
Features:
More +
Product Specs
Gain Range: | +34 dB to +69 dB (+14 dB to +49 dB with pad) |
Maximum Input Level: | -4 dBu (+16 dBu with pad) |
Maximum Output Level: | +31 dBu |
Peak LED: | Set to +18 dBu output level |
Output Impedance: | Less than 75 Ohms, transformer balanced |
Frequency Response: | ±0.5 dB, 20 Hz to 40 kHz |
Signal to Noise Ratio: | 120 dB |
Connections: | 15 position .156" sp. edge connector |
Power Consumption: | ±16 Volts/DC @ 55 mA |
Size: | 1.5" x 5.25" x 6.75" deep |
Weight: | 1.5 lbs. |
More +
