Description

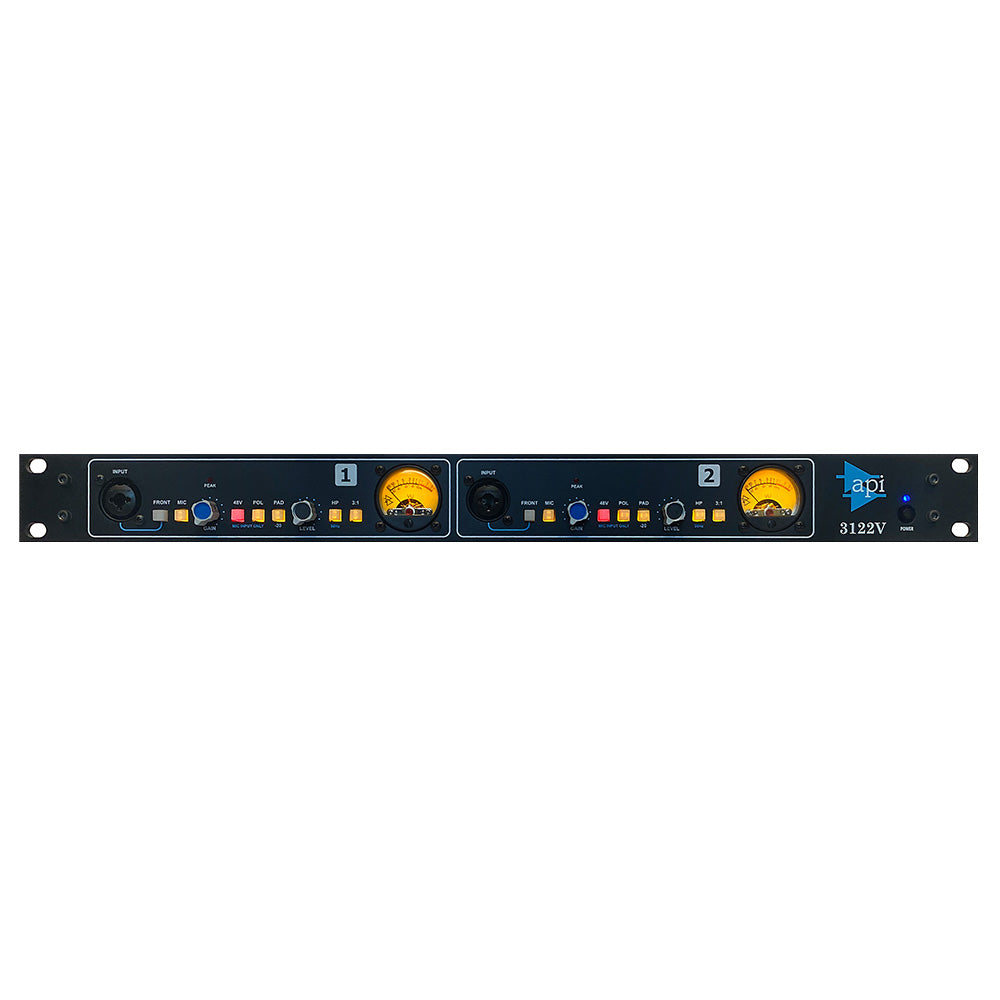

The 3122V provides 2 channels of API's signature analog sound and features the same legendary circuit design found in the 3124V and 3124MV, as well as the 312, 512V, and 512c mic preamps. In addition to the familiar combination of 2520 Op Amps and proprietary output transformers that give all API... Read MoreOur Price: $2,195.00
Free Shipping (Continental US)
Suggested Accessories
Description
The 3122V provides 2 channels of API's signature analog sound and features the same legendary circuit design found in the 3124V and 3124MV, as well as the 312, 512V, and 512c mic preamps. In addition to the familiar combination of 2520 Op Amps and proprietary output transformers that give all API mic preamps that punch and massive headroom, the 3122V also includes front and rear panel XLR and 1/4" inputs (conveniently selectable on the faceplate), a fixed-frequency HP filter, GAIN and the popular Variable Output Level control, as well as 48V, POL, and PAD. Rounding out the expansive feature set are the 3:1 Output Transformer Tap and 2 stunning analog VU meters with a separate peak LED.
Features:
More +
Product Specs
Input Impedance: | Mic: 1500 Ohms Hi-Z: 470 kOhms unbalanced |
Output Impedance: | Less than 75 Ohms, transformer balanced |
Nominal Levels: | XLR channel output: +4 dBu |
Frequency Response: | +/- 0.5 dB, 20 Hz to 40 kHz |
SNR: | Mic: -128 dB Hi-Z actual: -106 dB |
Gain Range: | Mic input: 14 dB min., 68 dB max (inc. pad) Hi-Z: -6 dB min., 48 dB max (inc. pad) |
Metering: | VU calibrated for XLR output, 0VU = +4 dBu PEAK LED calibrated to +18 dBu at 312 amp output |
Connections: | Front: two female mic input XLRs, two Hi-Z instrument inputs Rear: two female mic input XLRs, two male line output XLRs |
Power Consumption, Quiescent: | 8 Watts |
Size: | 19" X 1.75" (1U) X 11" Deep |
Size (Boxed for Shipping): | 23.25" X 6.5" X 16.5" |
Actual Weight: | 9 lbs. |
Shipping Weight: | 13 lbs. |
More +
