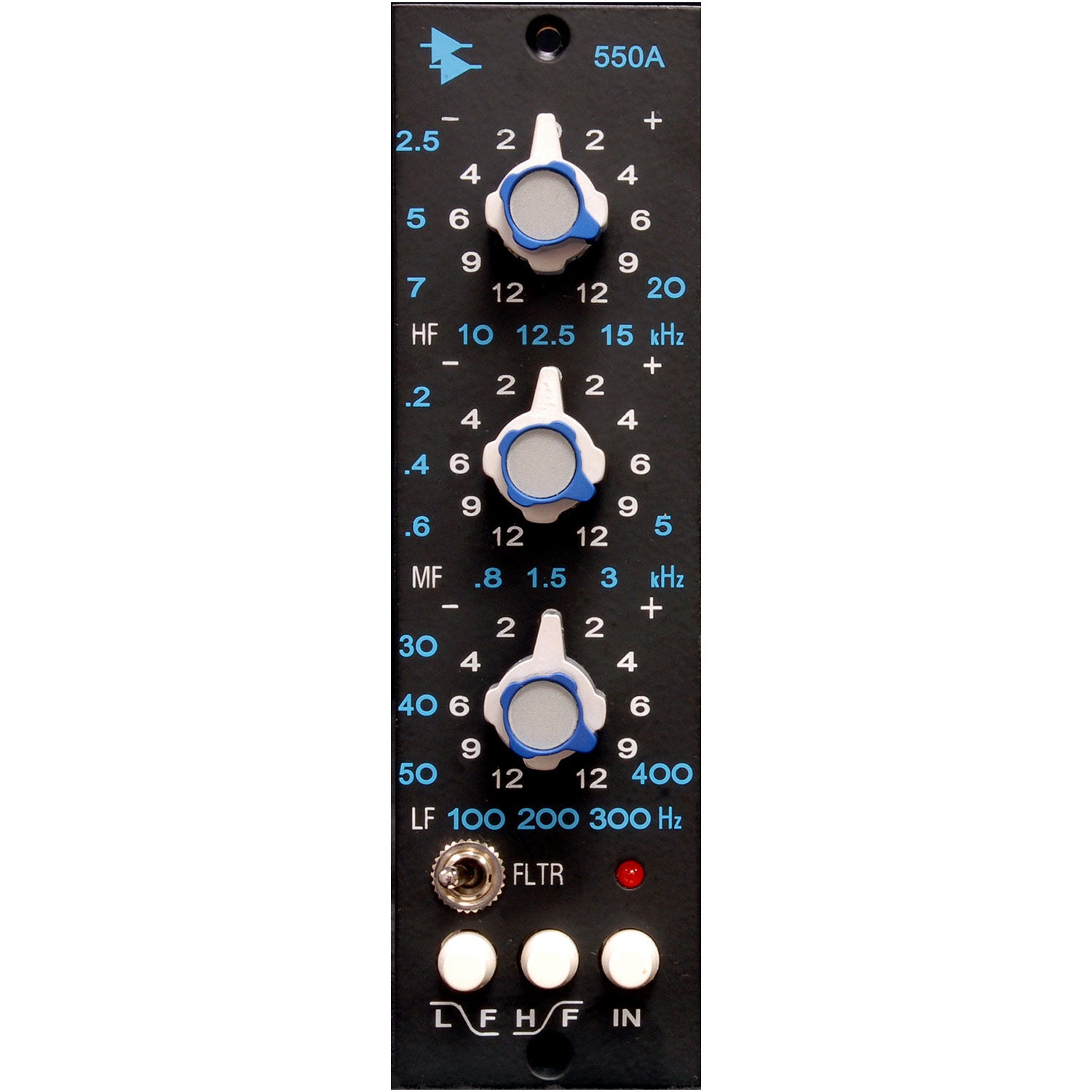

API 550A Discrete Classic 3 Band Parametric Equalizer - 500 Series Classic Module


  • Dale #:

    API-550A
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Few equalizers enjoy the respect and admiration of the coveted API 550A. Designed by the now legendary Saul Walker in the late 60's, the discrete 550A was first used as a modular OEM equalizer. As the industry rapidly embraced the sonic quality of the 550A, it quickly found it's way into many cu... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Few equalizers enjoy the respect and admiration of the coveted API 550A. Designed by the now legendary Saul Walker in the late 60's, the discrete 550A was first used as a modular OEM equalizer.

As the industry rapidly embraced the sonic quality of the 550A, it quickly found it's way into many custom console designs by Frank DeMedio and other leading engineers. Many of these consoles are still in use today.

Forty years later, the 550A remains the standard against which other EQ's are measured, and it has played a major role in the recording industry for decades. Still copied but never duplicated, the 550A became API's standard channel module EQ when the company began manufacturing consoles in 1971. With virtually all existing units spoken for, popular demand for this EQ resulted in API finally resuming production in 2004.

The 550A provides reciprocal equalization at 15 points in 5 steps of boost to a maximum of 12dB of gain at each point. The fifteen equalization points are divided into three overlapping ranges. The high and low frequency ranges are individually selectable as either peaking or shelving, and a band-pass filter may be inserted independently of all other selected equalization settings. Frequency ranges and boost/cut are selected by three dual-concentric switches, and a pushbutton "in" switch allows the EQ to be silently introduced to the signal path. A small toggle switch is used to insert the band-pass filter into the 550A.

Features:
  • 3 bands of classic API equalization
  • Each band offers 5 API selected frequency centers
  • Reciprocal and repeatable filtering
  • maximum 12 dB of boost/cut per band
  • EQ Band 1 and 3 offer shelf/peak switching
  • Proportional Q narrows filter Q at extremes
  • Traditional API fully discrete circuit design
  • High headroom +30 dB clip level

More +
