API Select T25 - Dual Channel Tube Compressor

  • Dale #:

    API-T25
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The API Select T25 is a classic 2-channel, FET feedback-style compressor/limiter with a Class-A tube output stage that utilizes a custom API transformer. Built with 12AT7WC and 12BH7 dual-triode vacuum tube, the T25 represents a new direction in API's line of compressors. It offers the user a pow... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

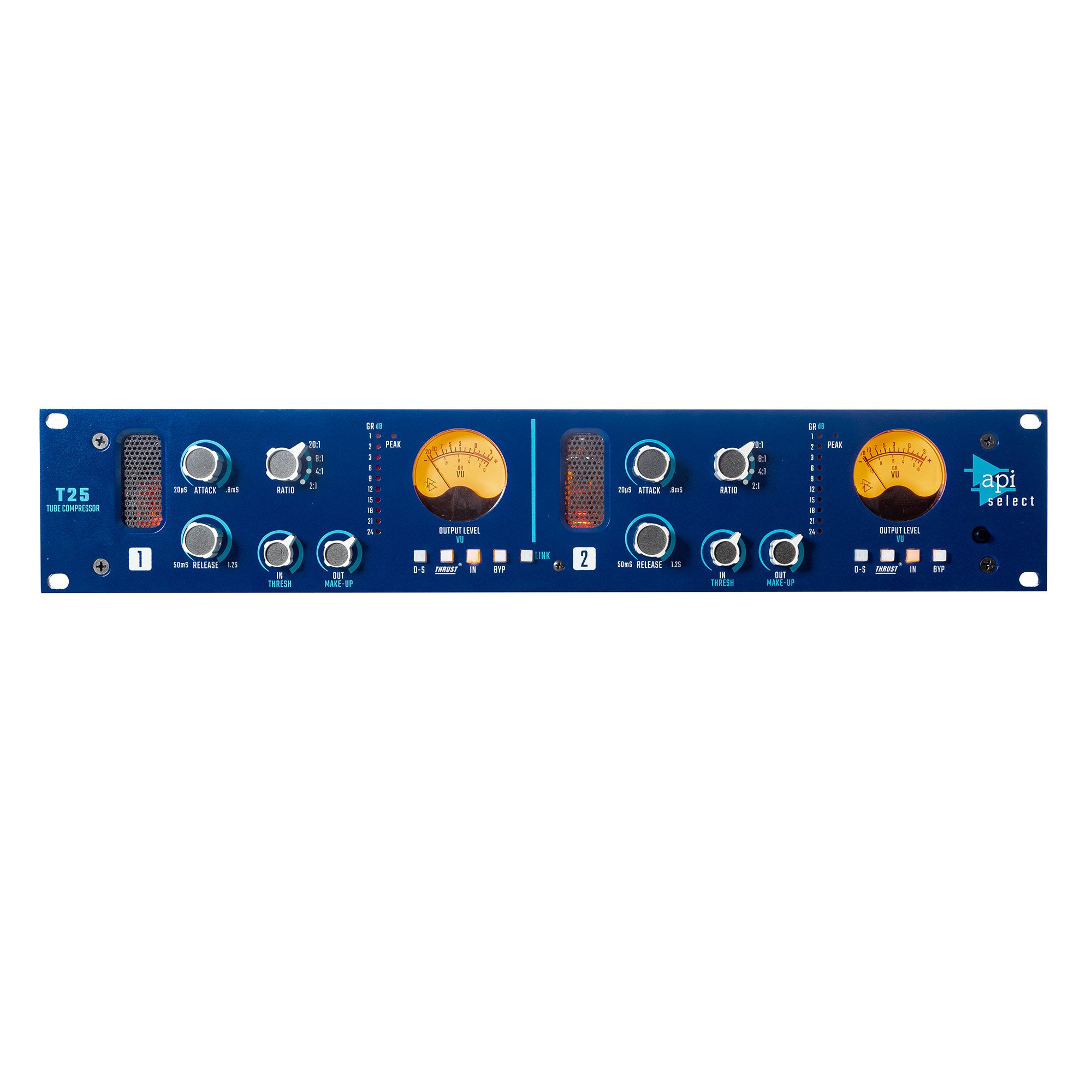

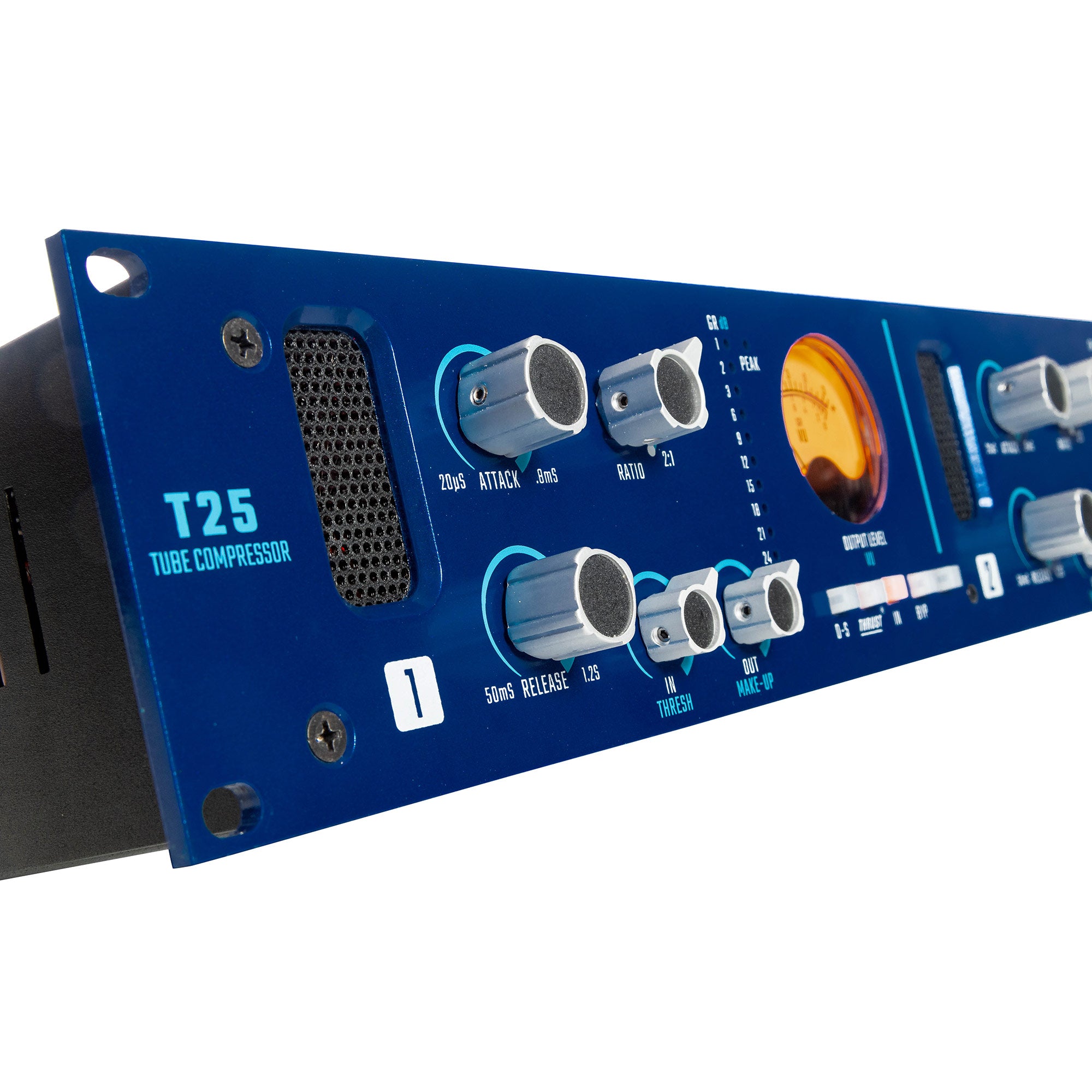

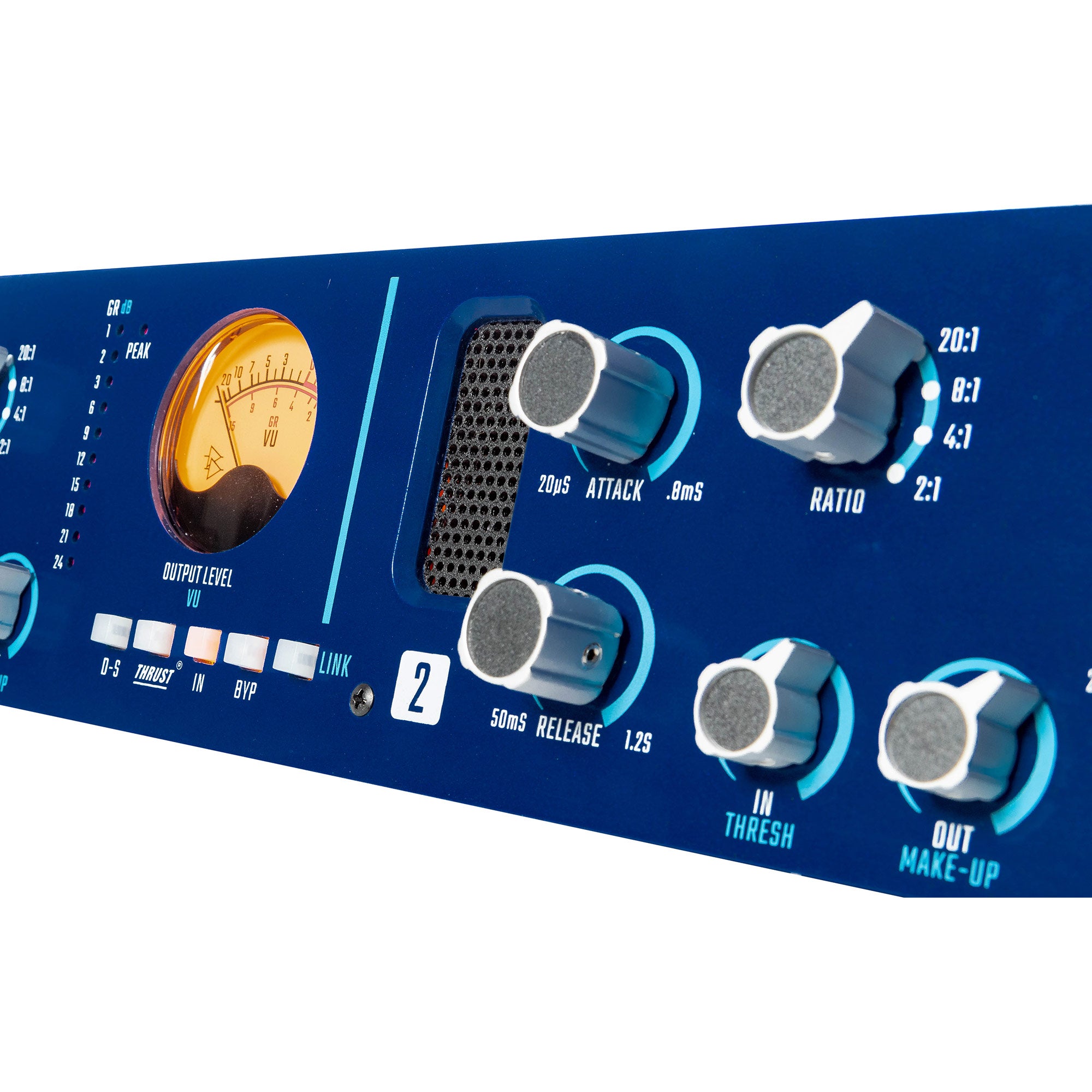

The API Select T25 is a classic 2-channel, FET feedback-style compressor/limiter with a Class-A tube output stage that utilizes a custom API transformer. Built with 12AT7WC and 12BH7 dual-triode vacuum tube, the T25 represents a new direction in API's line of compressors. It offers the user a powerful and flexible feature set, including the ability for use in either dual mono or stereo mode, and is carefully engineered to deliver classic tube performance. The T25 excels at delivering the unmistakable sound of API and features our industry-exclusive Five Year Warranty.

Features:

  • Field Effect Transistor (FET) based gain reduction circuit
  • Audio circuit uses 12AT7WC and 12BH7, dual-triode vacuum tubes
  • Custom proprietary API output transformer
  • 11-step attack time switch
  • 11-step release time switch
  • 4 fixed ratios
  • 31-step input/threshold control
  • 31-step output/make-up gain control
  • Detented controls for accurate recall
  • Patented THRUST® switch for frequency-dependent side chain control
  • D-S feature provides high-frequency dependent side-chain control for de-essing
  • Link Switch for stereo operation
  • 10-segment LED gain reduction meter
  • LED peak indicator
  • Classic analog VU meters for output
  • IN/OUT switch
  • Full hard-wired relay bypass

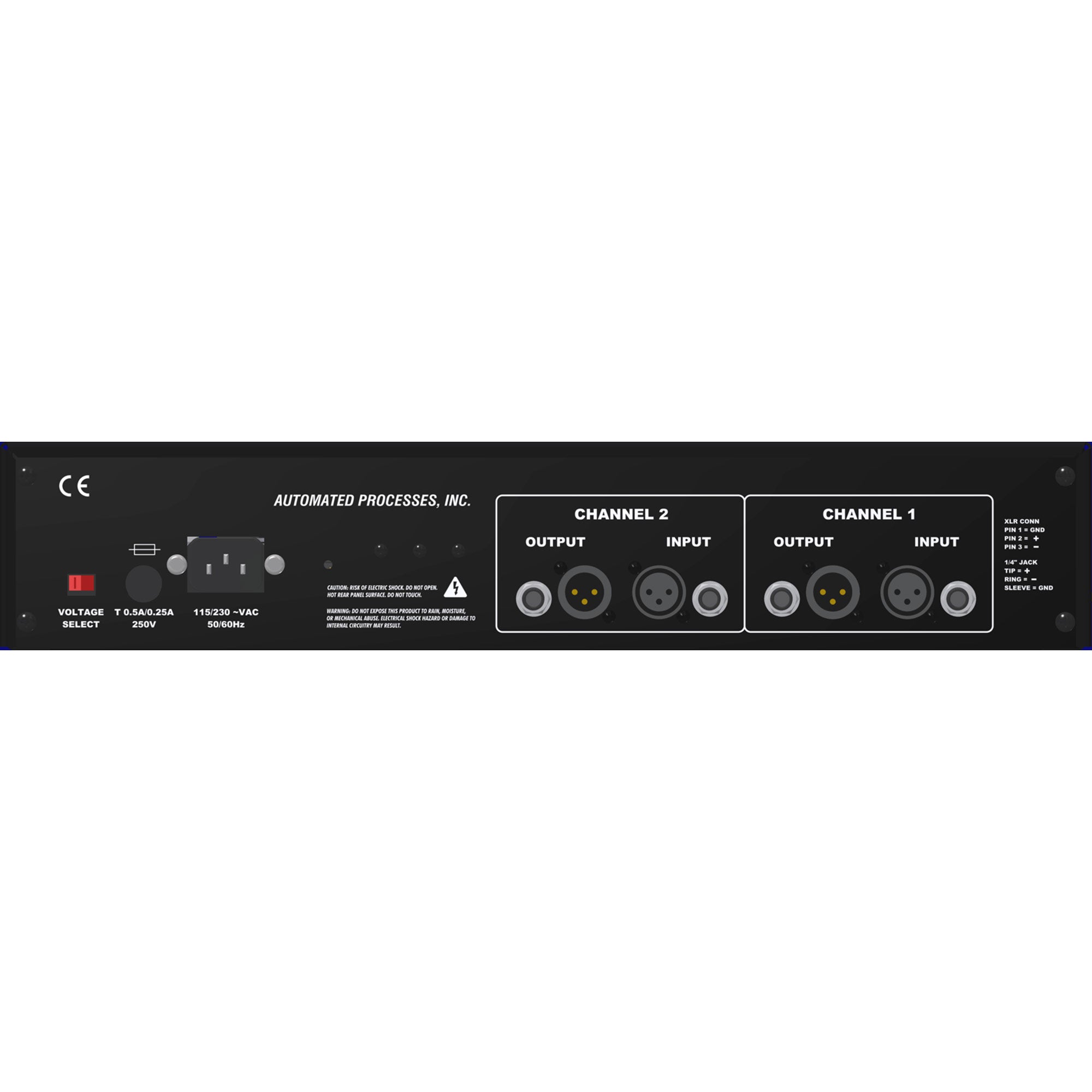

  • XLR and 1/4" TRS input and output connections

More +

Product Specs

Input Impedance: 20kΩ
Output Impedance: 75 ohms, can drive 600 ohm loads
Maximum Output Level: +24dBu
Frequency Response: 20Hz – 40kHz (+0dB / -1dB)
Ratios: 2:1, 4:1, 8:1, 20:1 (switchable)
Attack Times: 20μs – 0.8ms
Release Times: 50ms to 1.2s
Total Gain: +40dB, IN/OUT both fully CW
SNR: 90dB
Power Consumption: 45W
Size: 19" x 3.5" x 12" Deep
Size (Boxed for Shipping): 21" x 9" x 15"
Actual Weight: 14 lbs.
Shipping Weight: 17 lbs.
