API Select TranZformer CMP - Compressor Guitar Pedal
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

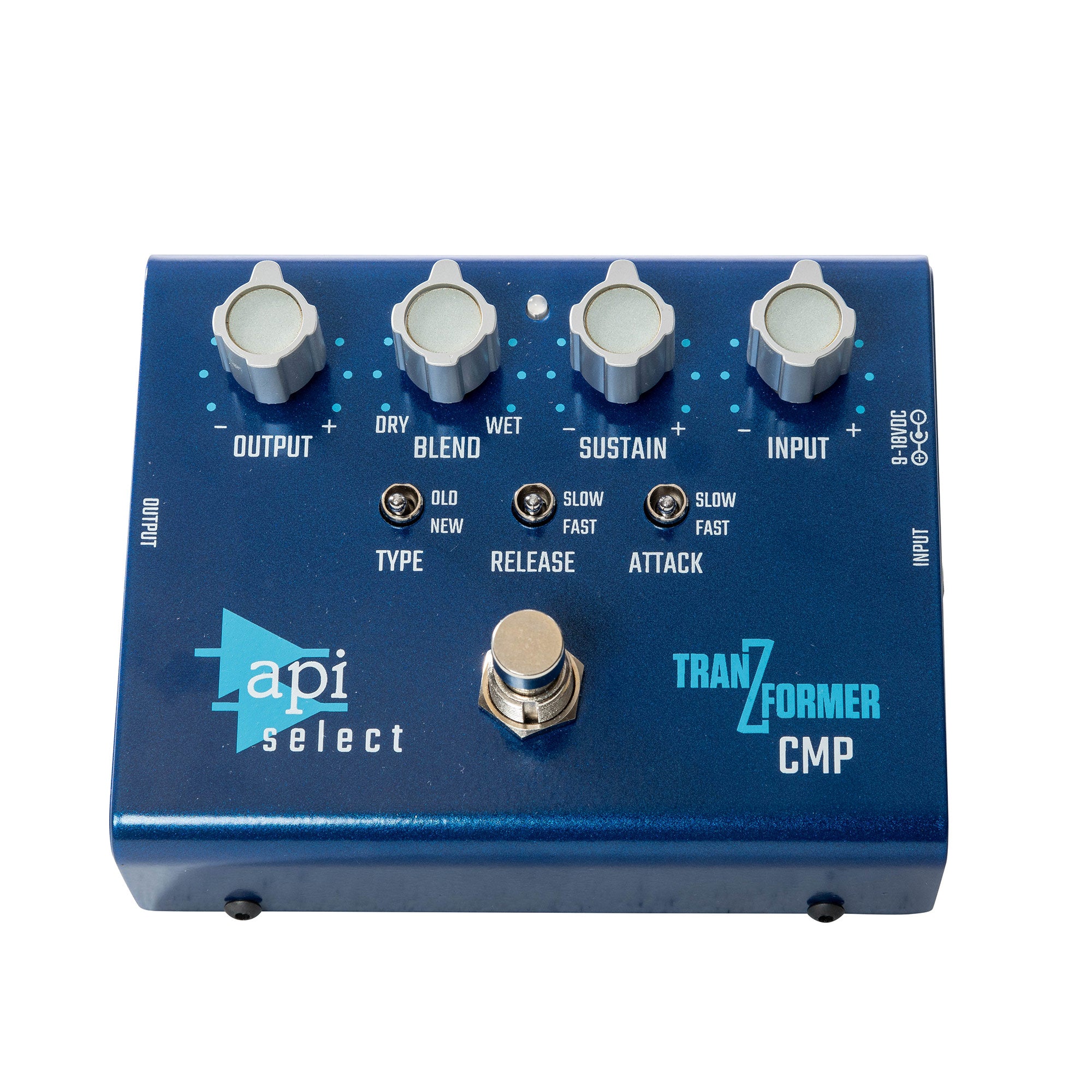

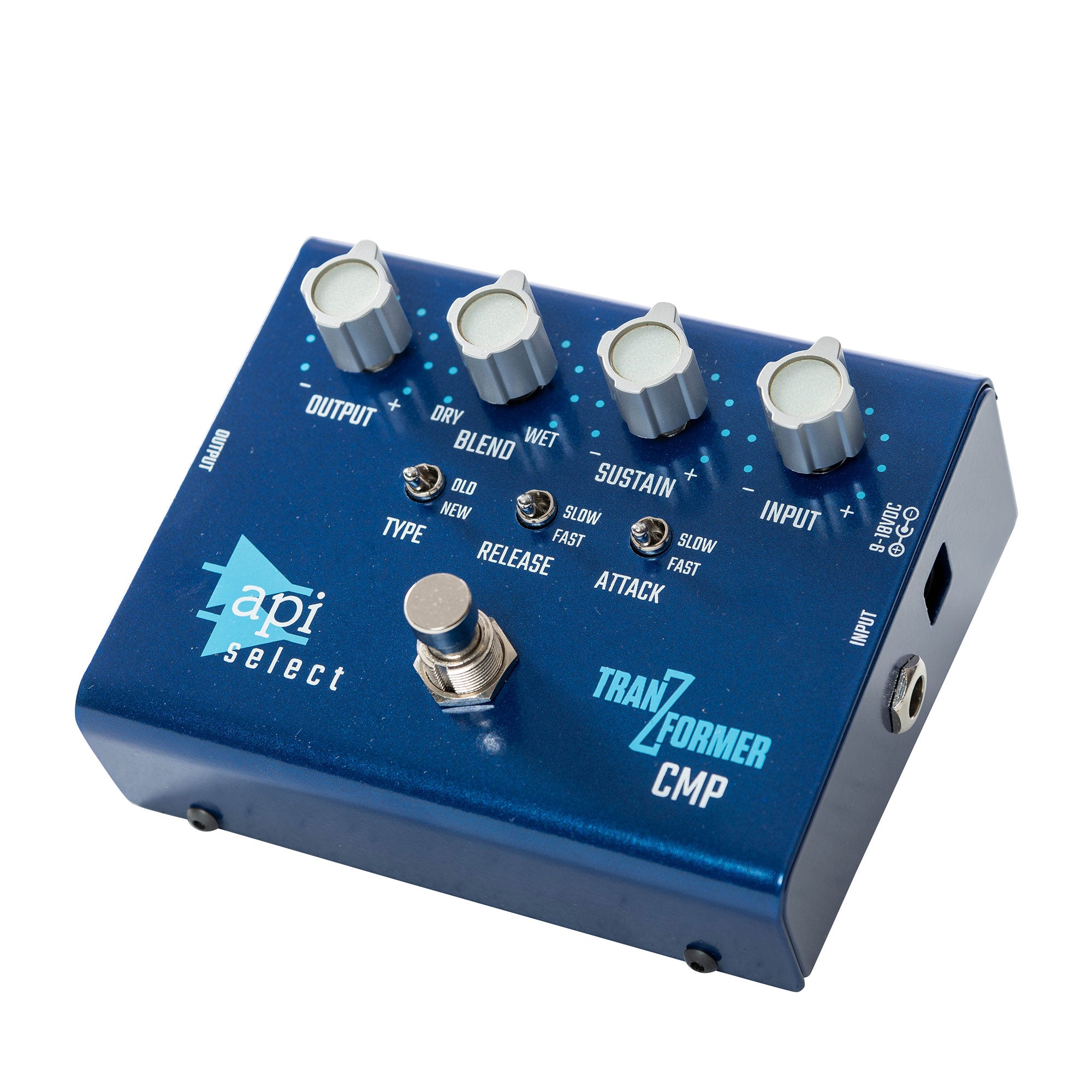

The API Select TranZformer® CMP incorporates API's legendary VCA-type compressor circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run off standard 9V power supplies, the CMP gives you classic studio-quality compression right at your feet. Other features include a buffered bypass in/out footswitch, adjustable attack and release times, wet/dry blend control, selectable "feedback" and "feedforward" compressor styles, transformer output, and of course the classic API sound.
Features:
- Proprietary API 2510 OpAmp
- Signature API output transformer
- Adjustable attack and release times
- Wet/dry blend control
- Selectable feedback/feedforward compressor styles
- Buffered bypass
| Input connection: | 1/4" Hi-Z unbalanced instrument input |
| Input Impedance: | 1M½ |
| Bypass: | Yes, buffered, 0dB |
| Output connections: | 1/4" Hi-Z unbalanced output |
| Output Impedance: | Hi-Z output: Less than 1k½ |
| Input Gain Control: | 9dB - 30dB, Variable |
| Output Level Control: | -inf. to 0dB, Variable |
| Maximum output level before clipping: | +15dBu (9VDC) +22dBu (18VDC) |
| Frequency Response: | +0dB, -1dB, 20-20kHz |
| Compressor: | Ratio (Sustain): Varies from 1:1 to 20:1 depending on compressor control setting. Attack (switched): FAST (1ms) or SLOW (10ms) Release (switched): FAST (300ms) or SLOW (1s) TYPE (switched): New (Feed-forward), OLD (Feed-back) |
| Power Supply: | 9-18VDC @ 100mA |
| Size: | 4.6" x 3.8" x 3" |
| Size (Boxed for Shipping): | 6" x 4.5" x 4.5" |
| Actual Weight: | 1.5 lbs. |
| Shipping Weight: | 2 lbs. |
The API Select TranZformer® CMP incorporates API's legendary VCA-type compressor circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run off standard 9V power supplies, the CMP gives you classic studio-quality compression right at your feet. Other features include a buffered bypass in/out footswitch, adjustable attack and release times, wet/dry blend control, selectable "feedback" and "feedforward" compressor styles, transformer output, and of course the classic API sound.
Features:
- Proprietary API 2510 OpAmp
- Signature API output transformer
- Adjustable attack and release times
- Wet/dry blend control
- Selectable feedback/feedforward compressor styles
- Buffered bypass
| Input connection: | 1/4" Hi-Z unbalanced instrument input |
| Input Impedance: | 1M½ |
| Bypass: | Yes, buffered, 0dB |
| Output connections: | 1/4" Hi-Z unbalanced output |
| Output Impedance: | Hi-Z output: Less than 1k½ |
| Input Gain Control: | 9dB - 30dB, Variable |
| Output Level Control: | -inf. to 0dB, Variable |
| Maximum output level before clipping: | +15dBu (9VDC) +22dBu (18VDC) |
| Frequency Response: | +0dB, -1dB, 20-20kHz |
| Compressor: | Ratio (Sustain): Varies from 1:1 to 20:1 depending on compressor control setting. Attack (switched): FAST (1ms) or SLOW (10ms) Release (switched): FAST (300ms) or SLOW (1s) TYPE (switched): New (Feed-forward), OLD (Feed-back) |
| Power Supply: | 9-18VDC @ 100mA |
| Size: | 4.6" x 3.8" x 3" |
| Size (Boxed for Shipping): | 6" x 4.5" x 4.5" |
| Actual Weight: | 1.5 lbs. |
| Shipping Weight: | 2 lbs. |
