API THE BOX Project Recording and Mixing Console

  • Dale #:

    API-THEBOXCONSOLE
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Building on API's rich heritage of extremely high-quality recording consoles, THE BOxis a small-format recording/mixing console designed for professional project studios, home studios, and production facilities of all kinds. Optimized for the digital era, THE BOxhandles all the functions needed f... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

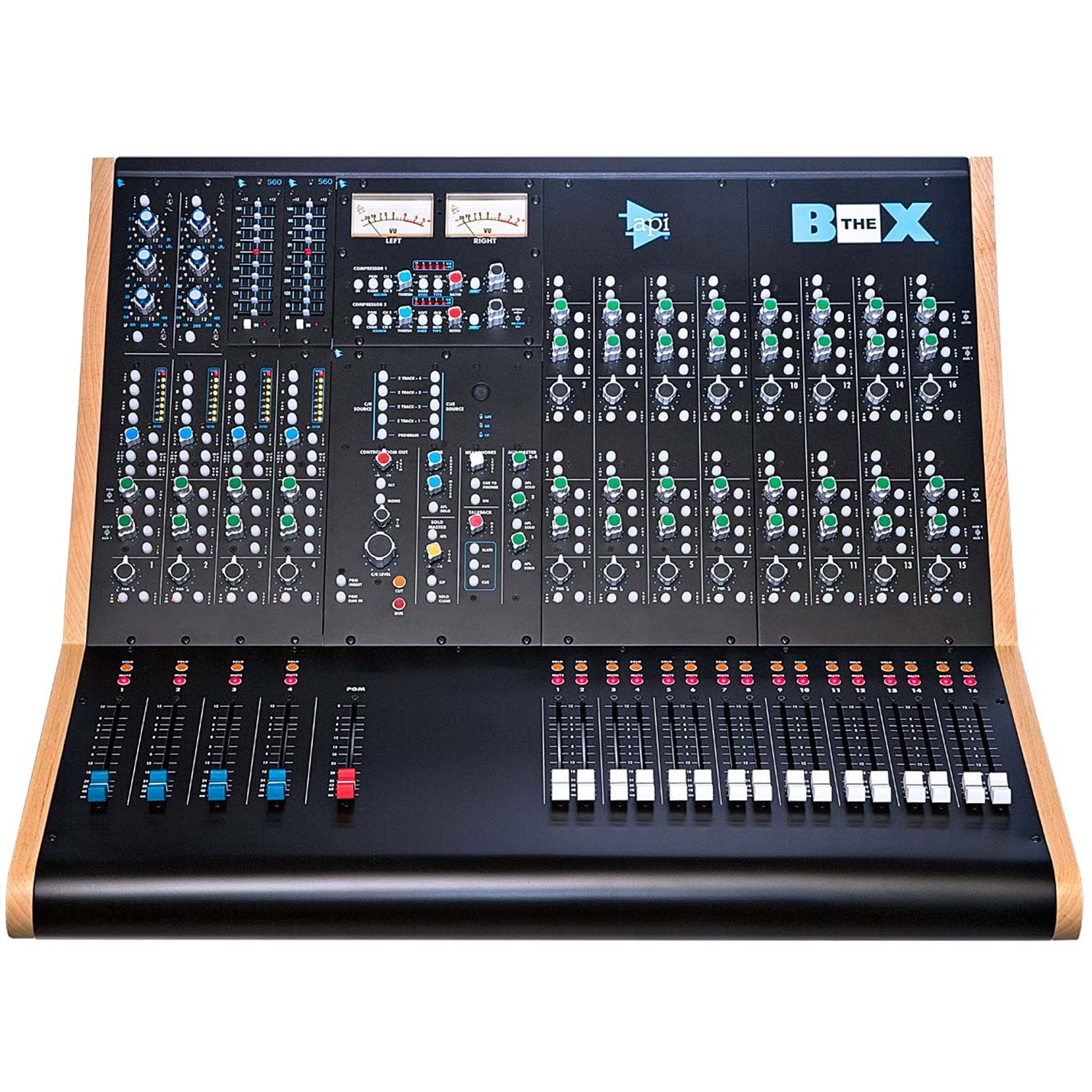

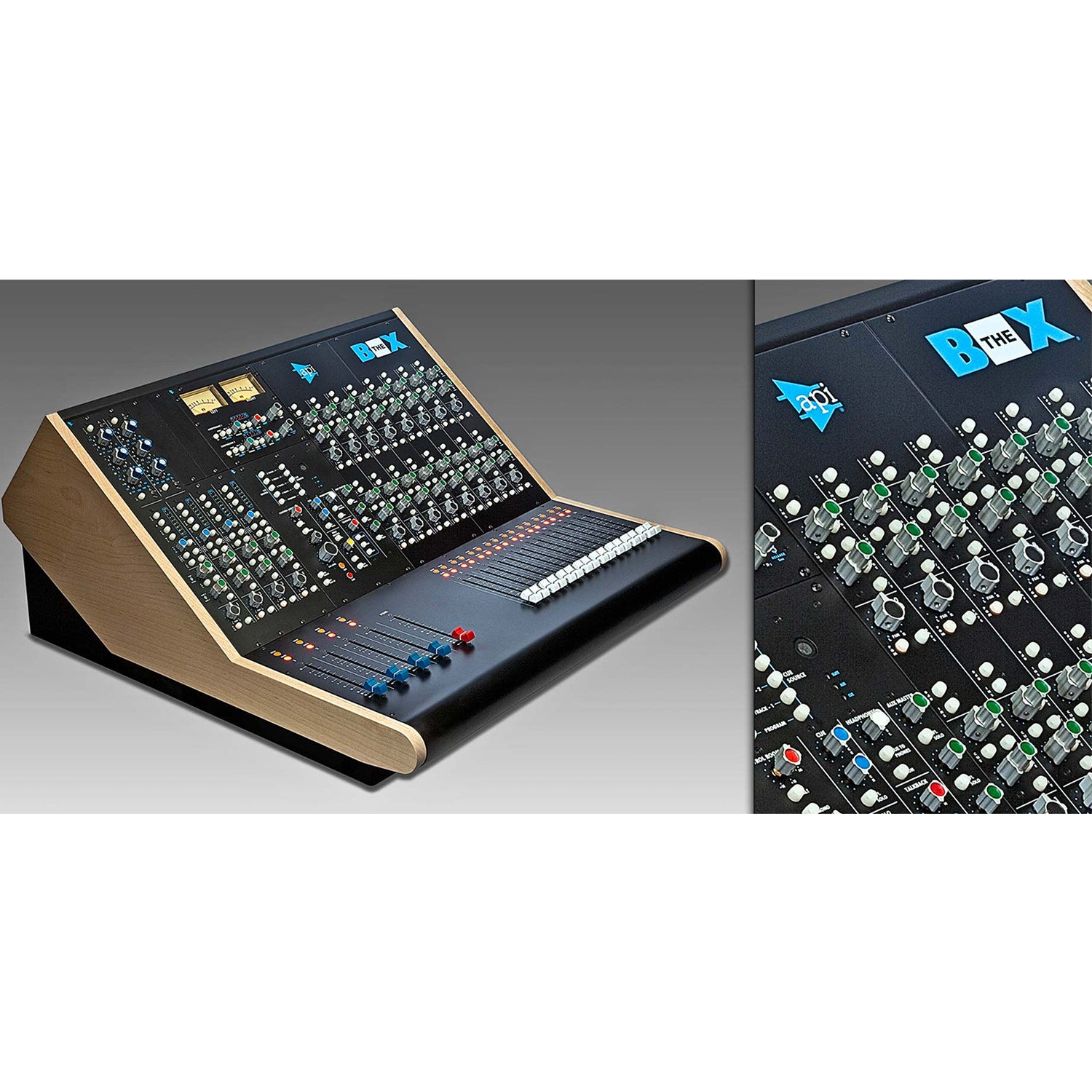

Building on API's rich heritage of extremely high-quality recording consoles, THE BOxis a small-format recording/mixing console designed for professional project studios, home studios, and production facilities of all kinds. Optimized for the digital era, THE BOxhandles all the functions needed for production not provided by most DAWs, including mic preamps, input signal processing, high-quality mix bus, cue sends with talkback, monitor control, and more, without the redundant capacities of larger consoles. Most importantly, THE BOxprovides the legendary all discrete API sound in an efficient, cost-effective package.

Recording with The Box
For recording, The BOX provides four (4) input channels. Channels 1 and 2 are equipped with preamp, filter, built-in 550A equalizer, insert, assignable compression, and output routing. Channels 3 and 4 provide the same features, but are each equipped with an API 500 series slot instead of the built-in EQ.

Mixing with The Box
For mixing, The BOX provides sixteen (16) dedicated summing input channels, as well as the four (4) input channels, for a total of twenty (20) channels. Accordingly, all channels, input and summing, have a fader, mute, pan-pot, program bus assignment, insert, solo, solo safe, and aux/cue sends. Additionally, summing inputs have a "0dB" switch that bypasses the fader and delivers the input signal to the pan-pot at unity gain. This feature is very useful for summing individual DAW tracks that have fader & mute automation.

The BOX is equipped with a comprehensive master section that includes controls for program bus insert and external inputs, auxiliary and cue masters, solo master, talkback, VU meters, and a fully-featured monitor section that supports two (2) stereo speaker systems and headphones. In addition, the master section contains two (2) 527 compressors that can be assigned to the input channels when recording and the program bus when mixing.

It's an API through and through!
To help assure reliability and longevity, "The BOX" is built to the same exacting API quality standards as the Vision, Legacy Plus, and 1608 consoles.

Features
  • Two (2) input channels with mic/instrument/line preamp, HP filter, & integral 550A EQ
  • Two (2) input channels with mic/instrument/line preamp, HP filter, & 500 slot
  • Two (2) compressors assignable to input channels or program bus with stereo link
  • Sixteen (16) summing channels (20 channels during mix)
  • Stereo program bus with master fader, insert, and external input
  • One (1) stereo and (2) mono auxiliary sends/buses
  • Stereo cue send/bus & headphone system
  • PFL, AFL, and solo-in-place solo modes with stereo solo bus
  • Full-featured monitor section that supports two stereo monitor systems
  • Talkback system

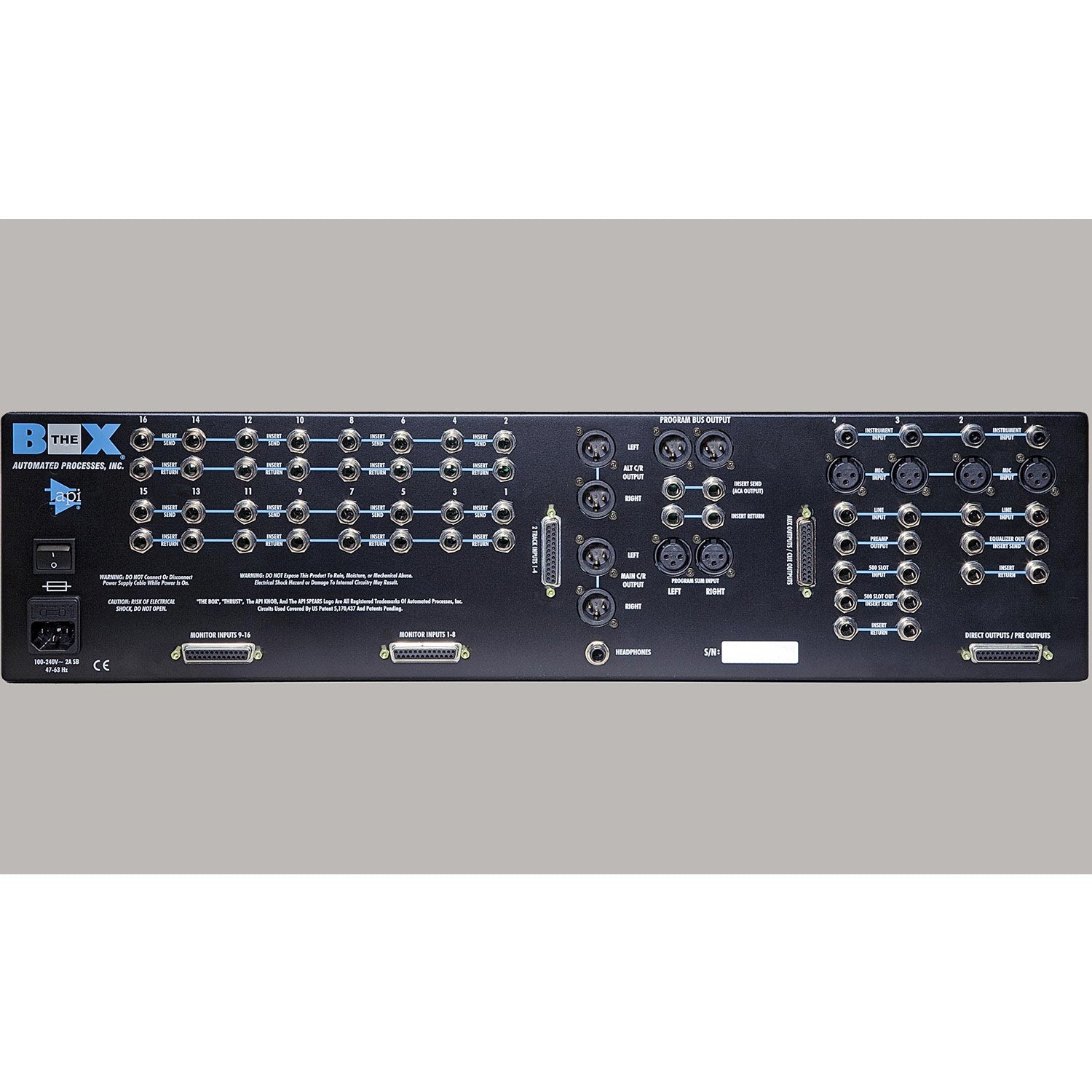

  • Comprehensive rear panel connections with balanced inputs and outputs
  • Integrated power supply

More +

Product Specs

Channels 20
Inputs

4 XLR Microphone Inputs with Preamps and Phantom Power
4 TRS Line Inputs
4 1/4" Instrument Inputs
2 DB25 Summing Inputs (1-8 and 9-16), wired to standard (aka Tascam) analog balanced pinout
1 DB25 External 2-Track Inputs, wired to standard (aka Tascam) analog balanced pinout

Outputs

XLR Program (Left, Right)
XLR Alt Output (Left, Right)
XLR CR Output (Left, Right)
1/4" Stereo Headphone Out
DB25 Direct Output/Pre Output, wired to standard (aka Tascam) analog balanced pinout

Send/Return TRS Insert Send/Return Per Channel
TRS 500 Series Slot Inserts
TRS Program Buss Insert
EQ 2 x 550A 3-Band EQ
Aux Sends 4
Busses 2
Fader Type 100mm Long Throw
Talkback Built-In Microphone
Monitor Outputs 2
Metering 2 x API VU
Console Dimensions 26.5" W x 23.3" D x 13.2" H (673mm x 592mm x 335mm)
Console Weight 80 lbs. (36.3kg)
Shipping Dimensions 30" x 29" x 24" (762 x 737 x 610 mm)
Shipping Weight 105 lbs. (47.6kg)
