Apogee 16X16SE - 16-Input 16-Output Analog Module for Symphony MkII
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Apogee Symphony I/O Mk II 16×16 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Offering the ultimate sonic performance for Dolby Atmos and other Immersive audio applications , 16×16 SE takes advantage of the latest advancements in digital and analog audio technology to offer A/D inputs with 124 dB (A) of dynamic range and a THD+N of -115dB, plus D/A outputs with 128dB (A) of dynamic range and an astonishingly low THD+N of -119dB.
The I/O Modules are the sound and soul of Symphony I/O Mk II, and represent over 30 years of Apogee R+D and design excellence. These powerful Modules deliver Apogee's core competency: superior sounding digital audio recording. With multiple I/O and Mic Preamp modules available, you can choose from base configurations or expand to grow your studio's capabilities.

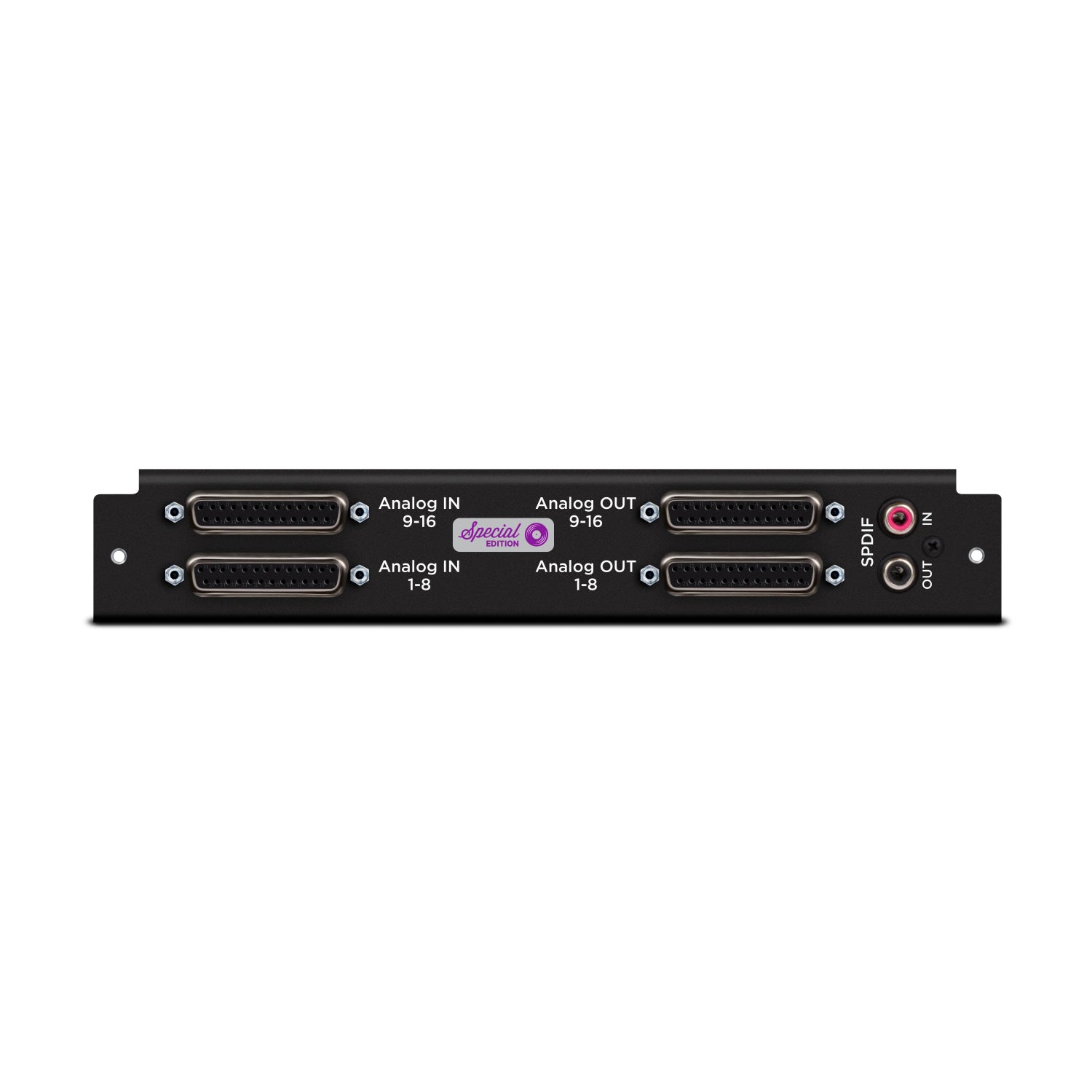

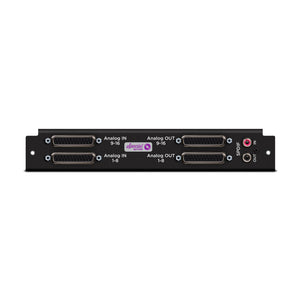

| INPUTS | Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors Coax IN: S/PDIF on 1 RCA connector |
| OUTPUTS | Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors Coax OUT: Supports SPDIF on 1 RCA connector |
Apogee Symphony I/O Mk II 16×16 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Offering the ultimate sonic performance for Dolby Atmos and other Immersive audio applications , 16×16 SE takes advantage of the latest advancements in digital and analog audio technology to offer A/D inputs with 124 dB (A) of dynamic range and a THD+N of -115dB, plus D/A outputs with 128dB (A) of dynamic range and an astonishingly low THD+N of -119dB.
The I/O Modules are the sound and soul of Symphony I/O Mk II, and represent over 30 years of Apogee R+D and design excellence. These powerful Modules deliver Apogee's core competency: superior sounding digital audio recording. With multiple I/O and Mic Preamp modules available, you can choose from base configurations or expand to grow your studio's capabilities.
| INPUTS | Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors Coax IN: S/PDIF on 1 RCA connector |
| OUTPUTS | Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors Coax OUT: Supports SPDIF on 1 RCA connector |
