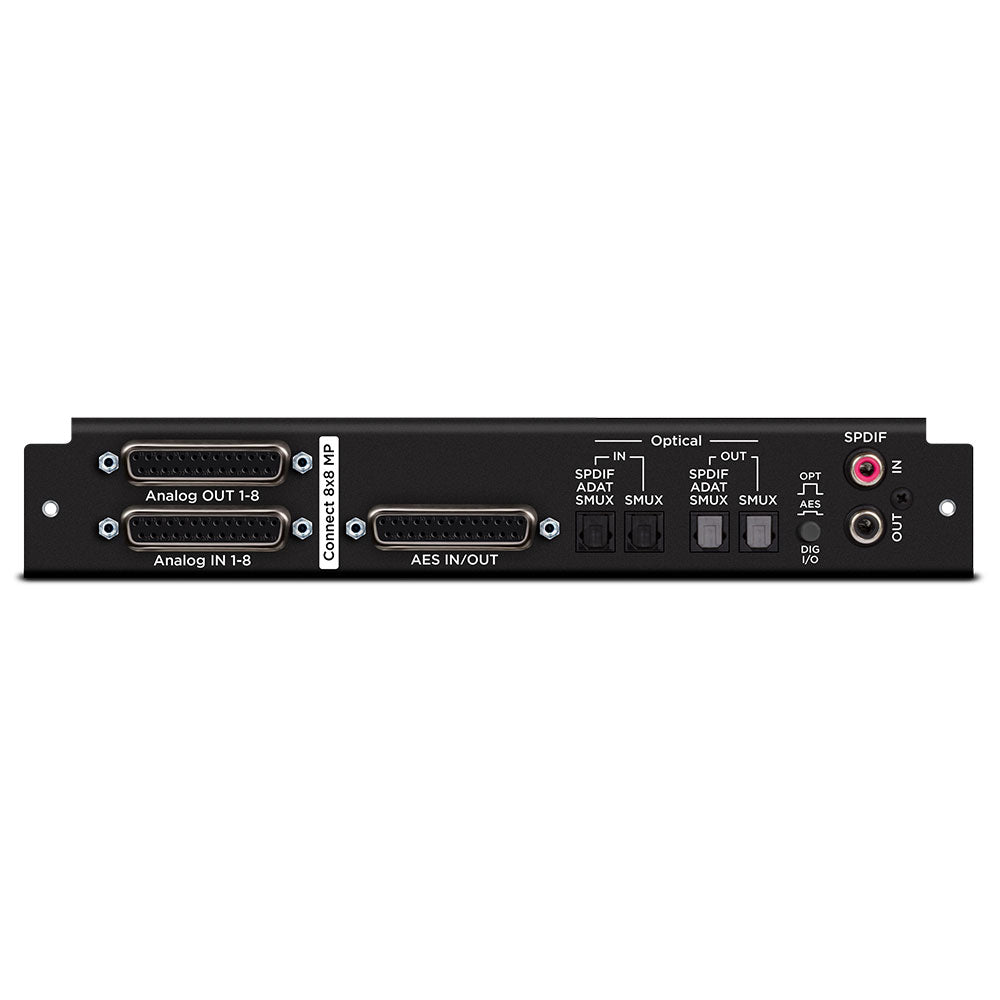

Apogee CONNECT-8X8MP - 8x8 Analog / 8x8 AES / 8x8 ADAT / 2x2 SPDIF Module for Symphony MkII
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
8×8 Analog I/O + 8×8 AES/Optical I/O + 8 Mic preamps - 16 Channels of I/O simultaneously.
The I/O Modules are the sound and soul of Symphony I/O Mk II, and represent over 30 years of Apogee R+D and design excellence. These powerful Modules deliver Apogee's core competency: superior sounding digital audio recording. With multiple I/O and Mic Preamp modules available, you can choose from base configurations or expand to grow your studio's capabilities.
| INPUTS | |
| Analog IN | 8 balanced inputs on 1 DSUB 25-pin connector 8 microphone preamps with up to 72dB of gain Featuring Advanced Stepped Gain Architectureª |
| *AES-EBU IN | 8 inputs on 1 DSUB 25-pin connector (192k single wide compatible) |
| *Optical IN | Supports ADAT, SMUX / S/PDIF ADAT: 8 channels 44.1-48 kHz SMUX: 8 channels 88.2-96 kHz S/PDIF: 2 channels, up to 96 kHz |
| Coax IN | 2 channels of S/PDIF, up to 192 kHz |
| OUTPUTS | |
| Analog OUT | 8 balanced outputs on 1 DSUB 25-pin connector |
| *AES-EBU OUT | 8 outputs on 1 DSUB 25-pin connector (192k single wide compatible) |
| *Optical OUT | Supports ADAT, SMUX / S/PDIF ADAT: 8 channels 44.1-48 kHz SMUX: 8 channels 88.2-96 kHz S/PDIF: 2 channels, up to 96 kHz |
| Coax OUT | 2 channels of S/PDIF, up to 192 kHz |
| Note | * Hardware switch selects AES or Optical digital input format |
8×8 Analog I/O + 8×8 AES/Optical I/O + 8 Mic preamps - 16 Channels of I/O simultaneously.
The I/O Modules are the sound and soul of Symphony I/O Mk II, and represent over 30 years of Apogee R+D and design excellence. These powerful Modules deliver Apogee's core competency: superior sounding digital audio recording. With multiple I/O and Mic Preamp modules available, you can choose from base configurations or expand to grow your studio's capabilities.
| INPUTS | |
| Analog IN | 8 balanced inputs on 1 DSUB 25-pin connector 8 microphone preamps with up to 72dB of gain Featuring Advanced Stepped Gain Architectureª |
| *AES-EBU IN | 8 inputs on 1 DSUB 25-pin connector (192k single wide compatible) |
| *Optical IN | Supports ADAT, SMUX / S/PDIF ADAT: 8 channels 44.1-48 kHz SMUX: 8 channels 88.2-96 kHz S/PDIF: 2 channels, up to 96 kHz |
| Coax IN | 2 channels of S/PDIF, up to 192 kHz |
| OUTPUTS | |
| Analog OUT | 8 balanced outputs on 1 DSUB 25-pin connector |
| *AES-EBU OUT | 8 outputs on 1 DSUB 25-pin connector (192k single wide compatible) |
| *Optical OUT | Supports ADAT, SMUX / S/PDIF ADAT: 8 channels 44.1-48 kHz SMUX: 8 channels 88.2-96 kHz S/PDIF: 2 channels, up to 96 kHz |
| Coax OUT | 2 channels of S/PDIF, up to 192 kHz |
| Note | * Hardware switch selects AES or Optical digital input format |
