Description

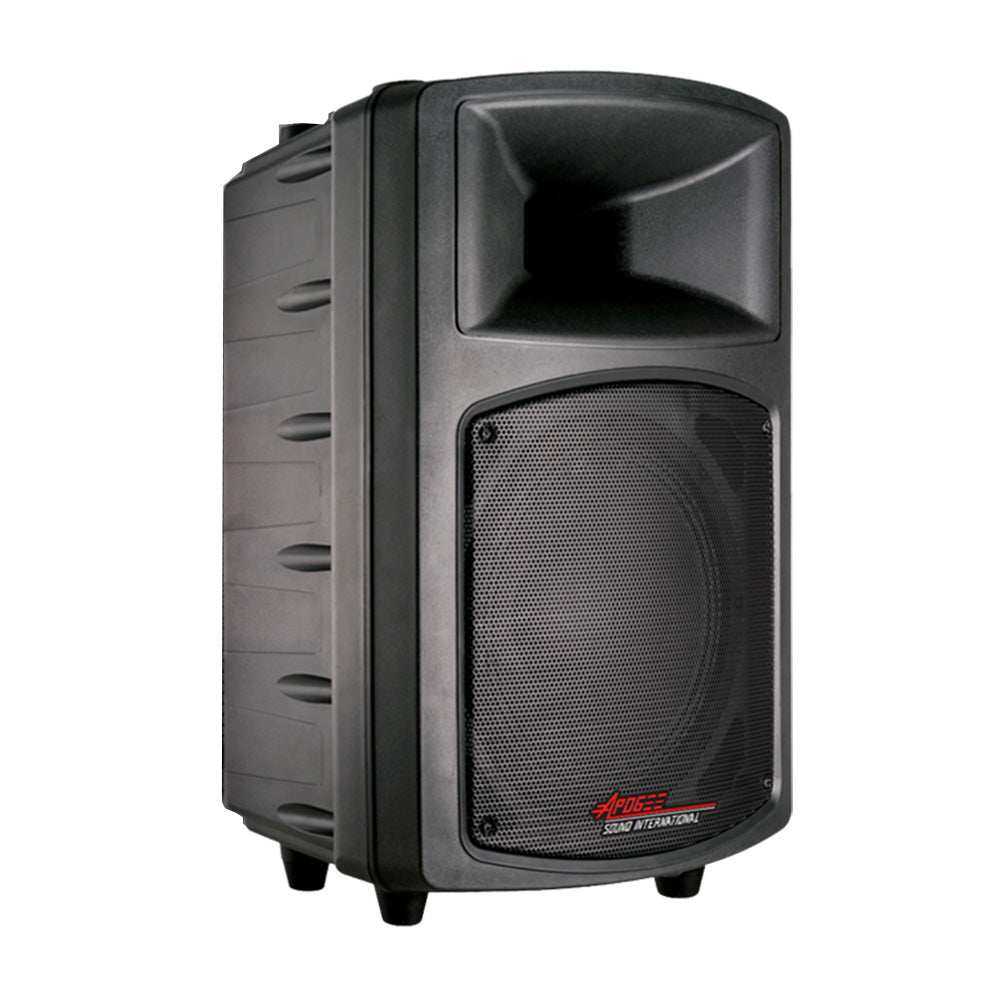

The Apogee AMT-12 and AMT-15 Loudspeakers are designed to provide high-output music and sound reinforcement in a lightweight, cost efficient package. Robust, high-sensitivity woofers and a Ferrofluid-treated 1.77-inch compression driver are combined with highly-evolved crossover network technology. The AMT-12 and AMT-15 will fill even large rooms with plenty of power, and a smooth transition makes for highly accurate and realistic sound.
Features:
- Molded polypropylene construction
- Heavy gauge steel grilles with powder-coated finish
- Large, high-sensitivity woofers
- Ferrofluid-cooled and damped, high-output titanium alloy compression drivers
- Up to 300W power handling capability for AMT-15; 200W for AMT-12
- Rich, dynamic bass response
- Top-side sockets to receive speaker feet for stacking
- Lightweight with integral carrying handle molded into speaker housing
- Two combo input connectors: 1/4 inch Phone and Speakon™
- Smooth, precise passive crossover
Driver Complement | Low Frequency: One Apogee 12" cone-type high-sensitivity, low-mass driver High Frequency: One Apogee 1.77"-diameter titanium-alloy compression driver diaphragm with a 1" exit, utilizing a specially-designed Ferrofluid for damping and cooling of the voice coil |
Input Connectors | Two Combo Input Connectors: 1/4" Phone and Speakonª |
Handles | Integrated carry handle molded into side of enclosure |
Grille | Heavy-gauge perforated steel |
Mounting Options | ¥ POLE_/ TRIPOD MOUNT, using 1-3/8" (35mm) socket ¥ STACKING using integral feet ¥ SUSPENDED, using M8 threaded inserts (1.25mm pitch) two on top of enclosure and two on bottom of enclosure ¥ ARRAYABLE, 0-degree Òtight packÓ to 30 degrees of splay, using available Adjustable Rigging Beam Kit ¥ YOKE MOUNTING (Includes Safety Anchor Point hardware) |
Enclosure Type | Lightweight, multi-vented molded enclosure utilizing extensive rib matrix for minimizing panel resonances |
Cabinet Construction | Mineral-filled polypropylene |
Options/Accessories | ¥ Adjustable Rigging Beam Kit, 0Ð30 degrees (Part # 109-2140) ¥ AMT Rigging Kit (Part # 109-2151) Yoke Assemblies: ¥ 108-2120 for AMT-12 ¥ 108-2150 for AMT-15 |
Format | Passive/Two-way |
Dispersion | 65¡ H _ 65¡ V |
Frequency Response (1m on axis) | 60 Hz to 20 kHz ± 3 dB |
Sensitivity (1W @ 1m) | 96 dBspl |
Nominal Impedance | 8 ohms |
Max. Power Handling | 200 W continuous |
Max. Sound Pressure Level | 119 dB, Peak: 125 dB |
Dimensions | 23" H _ 16.25" W x 13" D |
Weight | 37 lb. |
The Apogee AMT-12 and AMT-15 Loudspeakers are designed to provide high-output music and sound reinforcement in a lightweight, cost efficient package. Robust, high-sensitivity woofers and a Ferrofluid-treated 1.77-inch compression driver are combined with highly-evolved crossover network technology. The AMT-12 and AMT-15 will fill even large rooms with plenty of power, and a smooth transition makes for highly accurate and realistic sound.
Features:
- Molded polypropylene construction
- Heavy gauge steel grilles with powder-coated finish
- Large, high-sensitivity woofers
- Ferrofluid-cooled and damped, high-output titanium alloy compression drivers
- Up to 300W power handling capability for AMT-15; 200W for AMT-12
- Rich, dynamic bass response
- Top-side sockets to receive speaker feet for stacking
- Lightweight with integral carrying handle molded into speaker housing
- Two combo input connectors: 1/4 inch Phone and Speakon™
- Smooth, precise passive crossover
Driver Complement | Low Frequency: One Apogee 12" cone-type high-sensitivity, low-mass driver High Frequency: One Apogee 1.77"-diameter titanium-alloy compression driver diaphragm with a 1" exit, utilizing a specially-designed Ferrofluid for damping and cooling of the voice coil |
Input Connectors | Two Combo Input Connectors: 1/4" Phone and Speakonª |
Handles | Integrated carry handle molded into side of enclosure |
Grille | Heavy-gauge perforated steel |
Mounting Options | ¥ POLE_/ TRIPOD MOUNT, using 1-3/8" (35mm) socket ¥ STACKING using integral feet ¥ SUSPENDED, using M8 threaded inserts (1.25mm pitch) two on top of enclosure and two on bottom of enclosure ¥ ARRAYABLE, 0-degree Òtight packÓ to 30 degrees of splay, using available Adjustable Rigging Beam Kit ¥ YOKE MOUNTING (Includes Safety Anchor Point hardware) |
Enclosure Type | Lightweight, multi-vented molded enclosure utilizing extensive rib matrix for minimizing panel resonances |
Cabinet Construction | Mineral-filled polypropylene |
Options/Accessories | ¥ Adjustable Rigging Beam Kit, 0Ð30 degrees (Part # 109-2140) ¥ AMT Rigging Kit (Part # 109-2151) Yoke Assemblies: ¥ 108-2120 for AMT-12 ¥ 108-2150 for AMT-15 |
Format | Passive/Two-way |
Dispersion | 65¡ H _ 65¡ V |
Frequency Response (1m on axis) | 60 Hz to 20 kHz ± 3 dB |
Sensitivity (1W @ 1m) | 96 dBspl |
Nominal Impedance | 8 ohms |
Max. Power Handling | 200 W continuous |
Max. Sound Pressure Level | 119 dB, Peak: 125 dB |
Dimensions | 23" H _ 16.25" W x 13" D |
Weight | 37 lb. |
